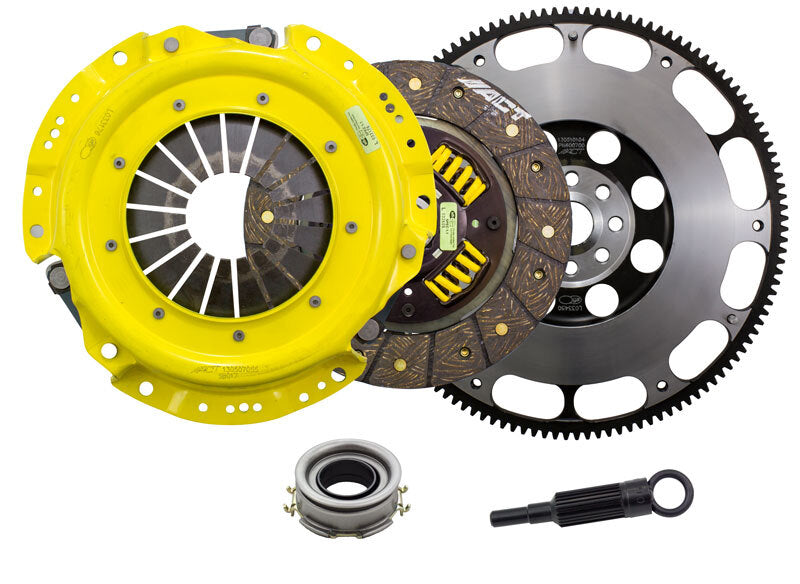

ACT Performance Clutch Kit Flywheel

Frequently Asked Questions

Which clutch should I choose ?

To choose the correct clutch setup for your application, you will need to know the estimate torque output of your engine.  Once you have that figure out, it is recommended to choose a clutch that will handle at least 10 percent more torque than your engine output.

ACT offers pressure plates with different clamp loads.

Clamp load is the amount of pressure exerted by the pressure plate ring on the clutch disc when the clutch is engaged. The higher the clamp load, the greater its torque-holding capacity before the clutch begins to slip.  The higher the clamp load, the more pedal effort is required.

ACT Pressure Plate and Discs Info

Pressure Plate Information

SP = SPORT PRESSURE PLATE
10-30% clamp load increase
Stock to moderate pedal feel
Recommended disc type: Street

HD = HEAVY DUTY PRESSURE PLATE
20-50% clamp load increase
Stock to moderate pedal feel
Recommended disc: Street / Race
Most popular choice

XT = XTREME PRESSURE PLATE
40-120% clamp load increase
Moderate to stiff pedal feel
Recommended disc: Street / Race

XX = MAXX XTREME PRESSURE PLATE
70-150% clamp load increase
Stiff to very stiff pedal feel
Recommended disc: Race

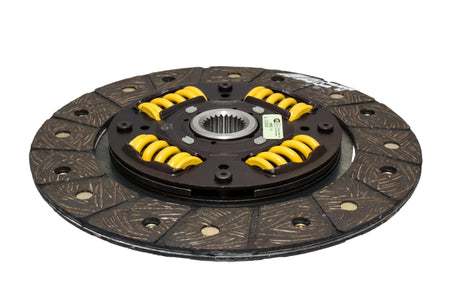

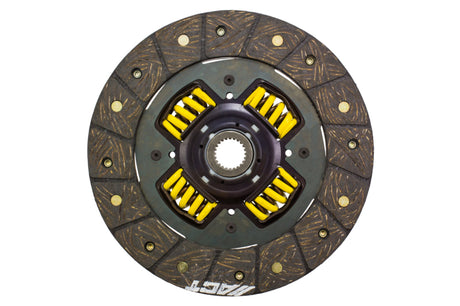

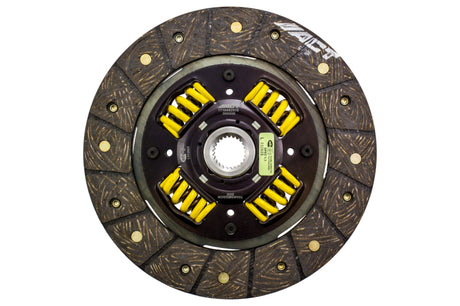

Clutch Discs

MM = MODIFIED STREET DISC

Recommended for street or occasional race use
Quicker engagement
Quiet operation
Improved friction material

SS = PERFORMANCE STREET DISC

Recommended for street & race use
Quicker engagement & operation
Improved hub and burst strength
Most popular choice

SD = RIGID HUB STREET DISC

Recommended for street / race use
Minimum weight for faster shifts
Quick engagement, smooth & precise
Ultra-high burst strength

Clutch Discs Pads

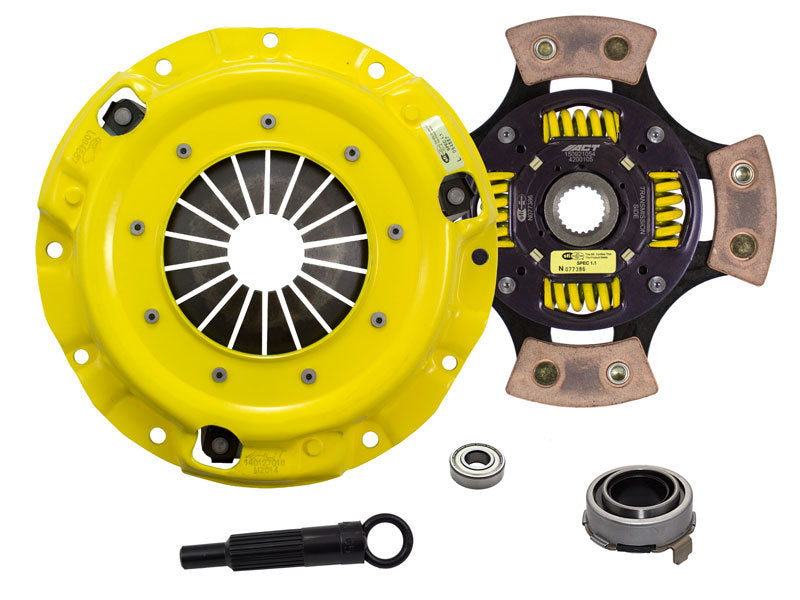

G4 = 4 - PAD

Recommended for road racing
Increased torque capacity, good durability and spline life
Quiet operation, reduced driveline shock
Harsh engagement, chatter

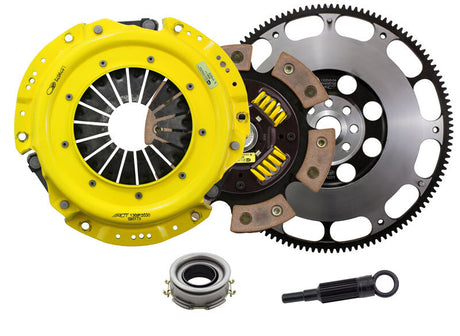

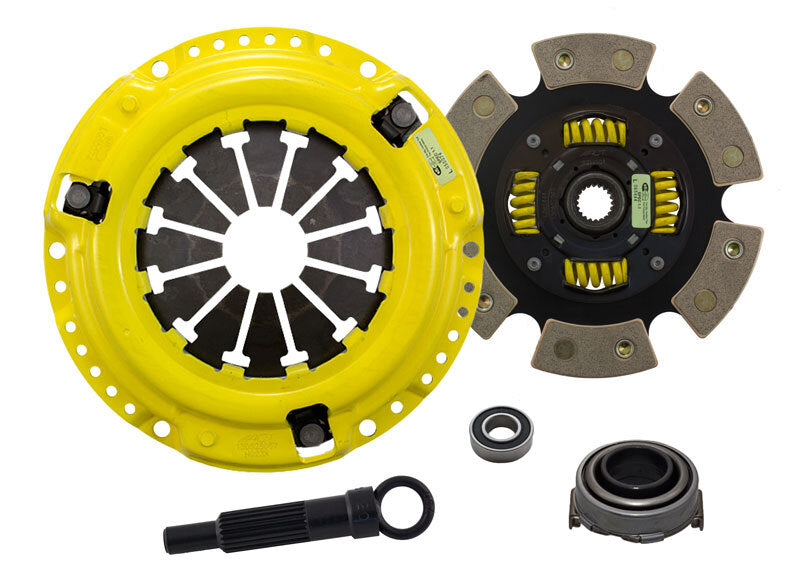

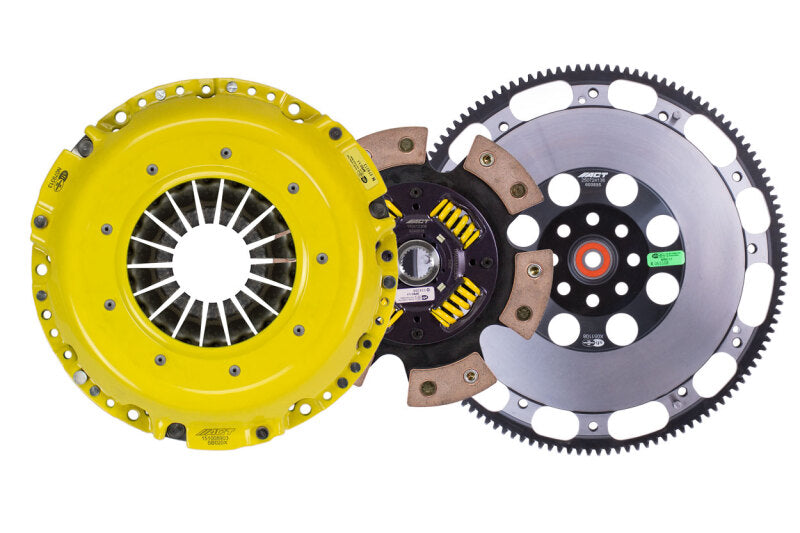

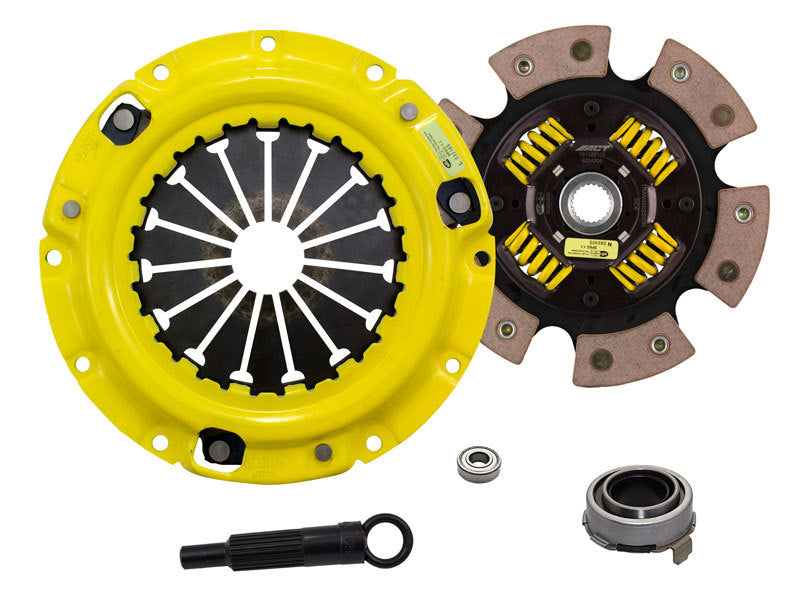

G6 = 6 - PAD

Recommended for road racing & high-powered street racing
Increased torque capacity, good durability and spline life
Quiet operation, reduced driveline shock
Harsh engagement, chatter
Most popular choice

R4 = 4 - PAD

Recommended for drag & road racing
Increased torque capacity
Fastest shifts, low inertia
Good durability, but shortened spline life
Harsh engagement, chatter
Gear noise

R6 = 6 - PAD

Recommended for drag & road racing
Increased torque capacity
Faster shifts, reduced inertia
Very good durability, but shortened spline life
Harsh engagement, chatter
Gear noise

SINTERED IRON

Recommended for clutchless shifting, drag race transmissions only
Very high torque capacity
Extremely durable and heavy
Harsh engagement, chatter
Gear noise
