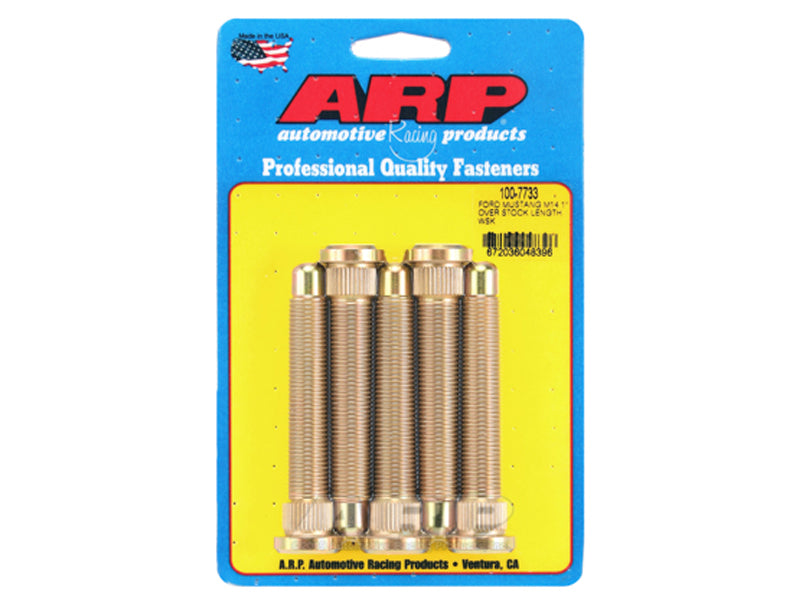

ARP Extended Wheel Stud Kit for 2015+ Ford Mustang
Upgrade the wheel mounting hardware on your Ford Mustang with the ARP 100-7733 extended wheel stud kit. These M14 x 1.50 studs measure approximately one inch longer than standard Mustang wheel studs, providing additional thread length for compatible wheel spacers, thicker wheel centers, open-ended lug nuts, and motorsport wheel setups.
Each wheel stud is manufactured from heat-treated 8740 chrome-moly steel and rated at a nominal tensile strength of 190,000 PSI. A cadmium-plated finish provides additional durability and corrosion resistance for demanding street, drag-racing, autocross, and road-course applications.
The studs feature a 3.435-inch under-head length, 0.625-inch knurl diameter, and bullet-style nose for easier wheel and lug-nut installation. Each package includes five wheel studs, enough to service one Mustang wheel hub.
Product Features
- Extended wheel studs for compatible 2015+ Ford Mustang applications
- Approximately one inch longer than standard wheel studs
- M14 x 1.50 thread size
- 3.435-inch under-head length
- 0.625-inch knurl diameter
- Heat-treated 8740 chrome-moly construction
- Nominal tensile strength of 190,000 PSI
- Cadmium-plated finish
- Bullet-style nose supports easier wheel installation
- Suitable for compatible wheel spacers and thicker wheel centers
- Designed for street-performance and motorsport applications
- Sold as a five-piece set
- Lug nuts not included
- ARP part number 100-7733
Common Applications
- Wheel-spacer installations
- Drag-racing wheel setups
- Road-course and autocross vehicles
- Aftermarket wheels with thicker mounting pads
- Open-ended racing lug nuts
- Applications requiring additional thread engagement
Product Specifications
- Manufacturer: ARP
- Part Number: 100-7733
- Product Type: Extended wheel stud kit
- Vehicle Application: Ford Mustang
- Thread Size: M14 x 1.50
- Under-Head Length: 3.435 inches
- Extension Over Stock: Approximately 1 inch
- Knurl Diameter: 0.625 inch
- Knurl Length: 0.400 inch
- Nose Length: 0.435 inch
- Material: 8740 chrome moly
- Finish: Cadmium plated
- Tensile Strength: 190,000 PSI nominal
- Quantity: Five wheel studs
- Lug Nuts Included: No
Quantity Notice
This package contains five wheel studs, enough for one five-lug wheel hub. Order a quantity of four kits to replace the studs at all four corners of the vehicle.
Fitment and Installation Note
Confirm the hub material, stud-hole diameter, knurl size, wheel-spacer thickness, and required thread engagement before installation. Extended studs normally require compatible open-ended lug nuts.
Wheel studs should be installed using the proper press equipment. Do not draw the studs into the hub using a lug nut, as improper installation can damage the stud, hub, or knurl.
