All Balls Racing Honda Foreman Rubicon Rincon Tie Rod Upgrade Kit

The All Balls Racing Tie Rod Upgrade Kit is a complete replacement steering linkage kit for select Honda FourTrax Foreman, Rubicon, and Rincon ATV applications. It includes two tie rods and four tie-rod ends, providing the components needed to replace both sides of the applicable steering system.

This kit is recommended when the original tie rods or tie-rod ends are bent, damaged, loose, seized, or worn. All Balls Racing identifies part number 52-1027 as a tie rod upgrade kit for the Honda applications listed below.

Features

• Complete two-sided ATV tie rod kit
• Includes two replacement tie rods
• Includes four replacement tie-rod ends
• Services the left and right sides of the applicable steering system
• Vehicle-specific kit for select Honda FourTrax ATV models
• Suitable for replacing worn, loose, bent, or damaged steering linkage components
• All Balls Racing part number 52-1027

Fitment

Honda TRX500

• 2001–2014 Honda TRX500FA
• 2005–2013 Honda TRX500FE
• 2004–2008 Honda TRX500FGA
• 2005–2013 Honda TRX500FM
• 2009–2014 Honda TRX500FPA
• 2007–2013 Honda TRX500FPE
• 2008–2013 Honda TRX500FPM
• 2005–2006 Honda TRX500TM

Honda Rincon

• 2003–2005 Honda TRX650 Rincon
• 2006–2023 Honda TRX680 Rincon

Honda Rubicon

• 2024–2026 Honda TRX700 Rubicon

Fitment varies by exact model code, year, and steering configuration. Confirm the complete model designation printed on the ATV or vehicle identification label before ordering. A listing for one TRX500 model does not mean the kit fits every Honda TRX500 produced during the same years.

Recommended Use

Recommended when inspection identifies worn or damaged tie rods or tie-rod ends. Possible symptoms may include:

• Excessive steering play
• Loose or worn tie-rod end joints
• Bent or damaged tie rods
• Clunking from the steering linkage
• Difficulty maintaining proper front-wheel alignment
• Uneven front tire wear associated with steering play or misalignment

Inspect the ball joints, wheel bearings, steering stem, control-arm bushings, and related front suspension components before replacing parts to determine the source of any steering looseness or alignment problem.

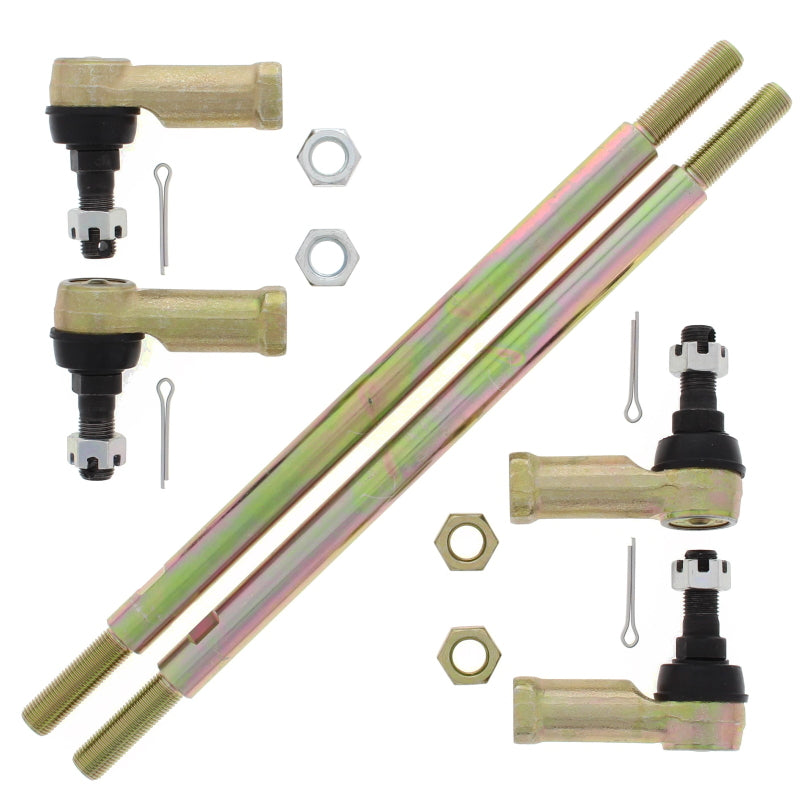

What’s Included

• 2 tie rods
• 4 tie-rod ends
• One complete tie rod kit for both sides
• All Balls Racing part number 52-1027

Steering knuckles, steering stem, ball joints, control arms, and other suspension components are not included unless otherwise shown or specified.

Installation

Compare the replacement components with the original steering linkage before installation. Record or measure the original tie-rod lengths to establish an initial adjustment, and install each tie-rod end in the correct position and orientation.

Tighten all steering hardware according to the Honda service procedure and applicable torque specifications. A complete front-wheel alignment and steering inspection should be performed after installation. Before operating the ATV, verify that the steering moves freely from lock to lock without binding and that all retaining hardware is properly secured.
