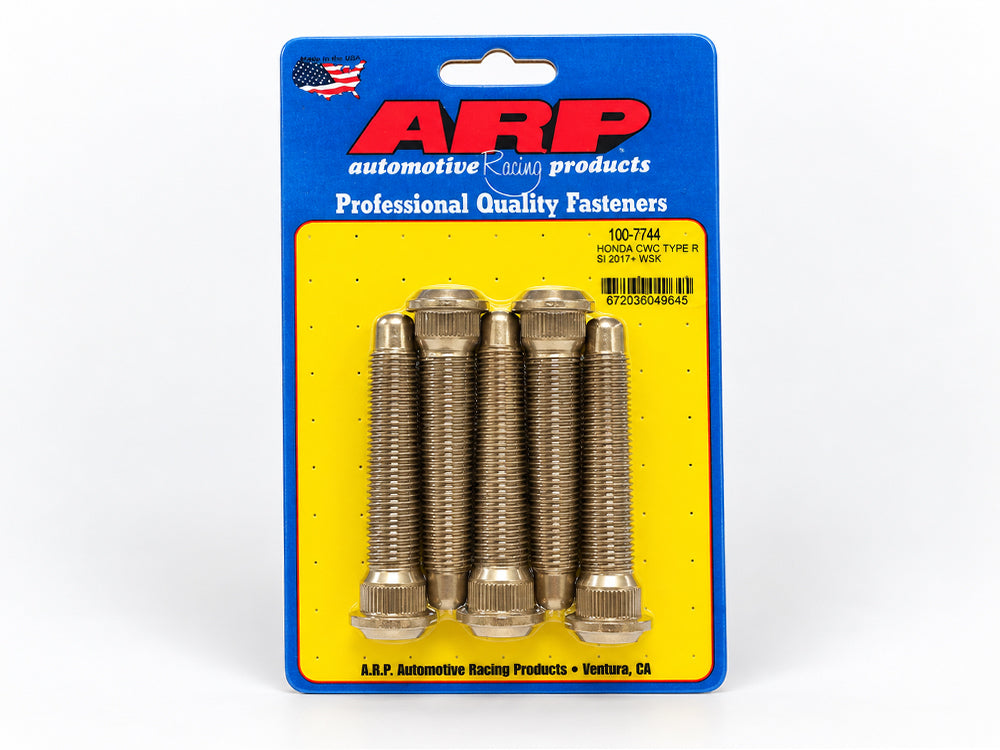

The ARP Extended Wheel Stud Kit is designed for the 2017–2021 Honda Civic Type R FK8. Each package contains five M14 × 1.50 press-in wheel studs, enough to service one compatible front or rear wheel hub.
These studs feature a 3.000-inch under-head length for applications requiring longer wheel studs. The extended design can provide additional usable thread length when installing compatible aftermarket wheels, open-ended lug nuts, or properly selected wheel spacers.
Features
- Extended press-in wheel studs for the Honda Civic Type R FK8
- M14 × 1.50 thread size
- 3.000-inch under-head length
- 0.647-inch knurl diameter
- 0.270-inch knurl length
- 0.395-inch nose length
- Extended nose helps simplify lug-nut starting
- Five-stud package services one compatible wheel hub
- ARP part number 100-7744
Fitment
- 2017–2021 Honda Civic Type R (FK8)
Fitment has not been confirmed here for the 2023-and-newer Civic Type R FL5. Confirm the vehicle generation, hub configuration, thread size, knurl diameter, wheel setup, and required stud length before ordering.
Specifications
- Stud type: Extended press-in wheel stud
- Thread size: M14 × 1.50
- Knurl diameter: 0.647 inch
- Under-head length: 3.000 inches
- Knurl length: 0.270 inch
- Nose length: 0.395 inch
- Quantity: 5 wheel studs
Recommended Hub-Hole Diameter
- Steel or cast-iron hub: 0.631–0.641 inch
- Aluminum hub: 0.631–0.637 inch
The recommended dimensions above are supplied by ARP for installation and machining reference. The factory hub should be measured before any modification is performed.
Recommended Use
Recommended when replacing compatible wheel studs or when a properly engineered wheel and spacer combination requires additional usable thread length. Confirm that the selected lug nuts provide adequate thread engagement and do not bottom against the stud nose.
Extended studs commonly require compatible open-ended lug nuts. Wheel spacers should only be used when properly sized for the vehicle, hub, wheel, and available stud engagement.
What’s Included
- 5 ARP extended wheel studs
- One five-stud kit for one compatible wheel hub
- ARP part number 100-7744
Four packages are required to replace all 20 wheel studs on the vehicle. Lug nuts, wheels, spacers, hubs, and installation tools are not included.
Installation
Remove and install wheel studs using suitable wheel-hub service equipment. Do not install the studs by striking them with a hammer or pulling them into place solely with a lug nut, as improper installation can damage the stud, hub, or wheel bearing.
Confirm that each stud is fully seated and that the stud’s under-head radius clears the hub correctly. After installation, use compatible M14 × 1.50 lug nuts and tighten them to the vehicle or wheel manufacturer’s specified procedure and torque value.
Professional installation is recommended. Recheck lug-nut torque after the initial heat cycle or driving interval specified by the wheel or vehicle manufacturer.
