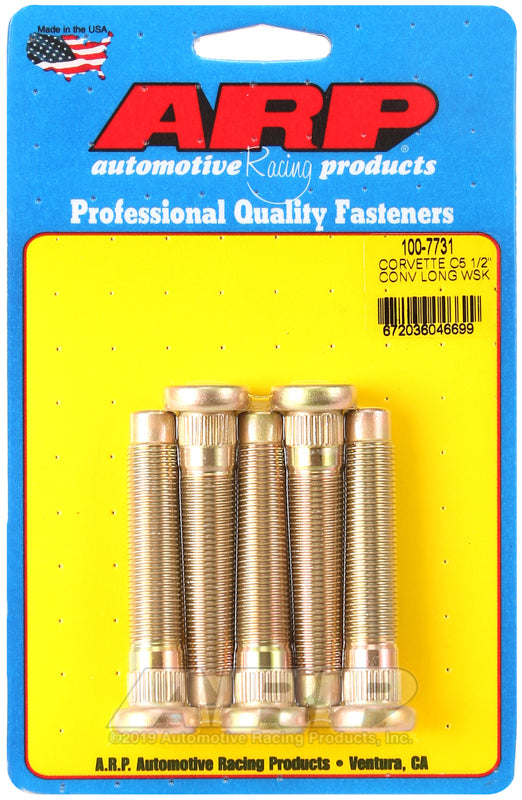

The ARP Long Wheel Stud Conversion Kit replaces the original M12 × 1.50 wheel studs on the 1997–2004 Chevrolet Corvette C5 with extended 1/2-20 press-in studs. Each package contains five studs to service one wheel.
These extended-length studs have a 2.675-inch under-head length and are designed for performance applications requiring a high-strength 1/2-20 wheel-stud configuration. They are manufactured from heat-treated 8740 chromoly steel and nominally rated at 190,000 psi tensile strength.
Features
- Long wheel stud conversion kit for the Chevrolet Corvette C5
- Converts the original M12 × 1.50 lug-nut thread to 1/2-20
- Extended 2.675-inch under-head length
- Press-in wheel stud design
- Quick-start nose helps guide the lug nut onto the thread
- Heat-treated 8740 chromoly steel construction
- Nominal 190,000 psi tensile-strength rating
- Cadmium-plated gold finish
- Five studs included for one wheel
- ARP part number 100-7731
Fitment
- 1997–2004 Chevrolet Corvette C5 Coupe
- 1998–2004 Chevrolet Corvette C5 Convertible
- 2001–2004 Chevrolet Corvette C5 Z06
Important: These studs use 1/2-20 threads and replace the original metric M12 × 1.50 thread format. The factory metric lug nuts cannot be reused. Compatible 1/2-20 lug nuts must be purchased separately.
Each kit services one five-lug wheel. Four kits are required to replace the wheel studs on all four wheels of one Corvette.
Specifications
- Stud style: Press-in
- Thread size: 1/2-20 RH
- Knurl diameter: 0.509 inch
- Under-head length: 2.675 inches
- Knurl length: 0.300 inch
- Nose length: 0.300 inch
- Quick-start nose: Yes
- Material: Heat-treated 8740 chromoly steel
- Nominal tensile strength: 190,000 psi
- Finish: Cadmium-plated gold
- Quantity: 5 wheel studs
Recommended Use
Recommended for C5 Corvette owners converting from factory M12 × 1.50 lug threads to 1/2-20 wheel hardware or requiring longer wheel studs for a compatible performance wheel, brake, or motorsport configuration.
Before ordering, confirm that the 2.675-inch under-head length provides the correct usable thread length for the wheel, brake rotor, any approved spacer, and the required lug-nut engagement. Long studs may require open-ended lug nuts depending on the wheel and lug-nut configuration.
What’s Included
- 5 ARP long 1/2-20 press-in wheel studs
- Enough studs to service one Corvette C5 wheel
- ARP part number 100-7731
Compatible 1/2-20 lug nuts, installation tools, and additional wheel-stud kits are not included.
Installation
Remove the original wheel studs using the appropriate hub-service procedure. Inspect each mounting hole for damage, deformation, corrosion, or previous modification before installing the ARP studs.
The 0.509-inch knurl requires the correct interference fit in the factory hub. Each stud must be installed squarely and fully seated against the back of the hub. The under-head radius must also have adequate clearance to prevent improper seating or stud damage.
After installation, use only compatible 1/2-20 lug nuts with the correct seat style for the wheels. Verify adequate thread engagement, confirm that the lug nuts do not bottom on the stud noses, and tighten the wheels using the appropriate pattern and torque specification. Professional installation is recommended.
