The ARP Chevrolet Pressure Plate Bolt Kit provides the high-strength fasteners needed to secure a compatible clutch pressure plate, also called a clutch cover, to the flywheel. It is designed for select Chevrolet Small Block and Big Block V8 applications using six 3/8"-16 pressure plate bolts.

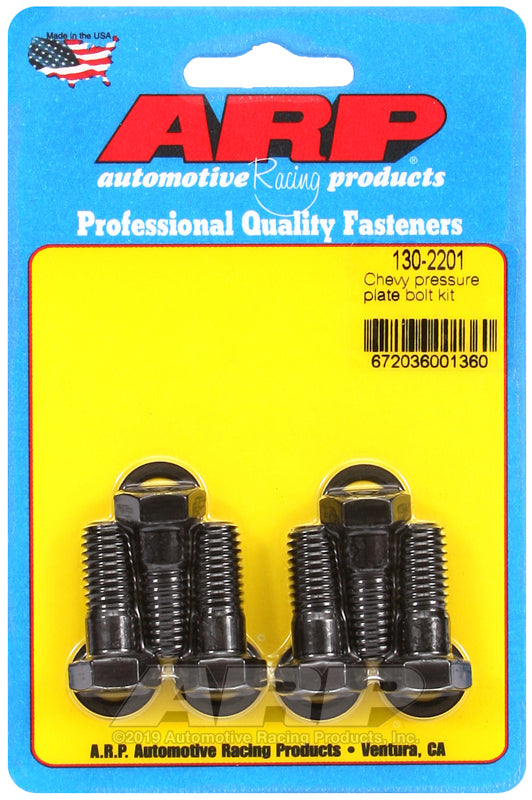

The kit contains six hex-head chromoly bolts and matching washers. Each bolt has a 1-inch under-head length and a conventional 9/16-inch hex head for installation with commonly available hand tools.
Features
- High-performance clutch pressure plate bolt kit
- Designed for compatible Chevrolet Small Block and Big Block V8 applications
- Premium chromoly-steel construction
- Hardened to a nominal tensile strength of 180,000 psi
- Black oxide finish
- 3/8"-16 coarse thread
- 1-inch under-head length
- Standard 9/16-inch hex head
- Includes six bolts and six matching washers
- ARP part number 130-2201
Fitment
Chevrolet Small Block V8
- 265 cubic-inch Small Block
- 283 cubic-inch Small Block
- 302 cubic-inch Small Block
- 305 cubic-inch Small Block
- 307 cubic-inch Small Block
- 327 cubic-inch Small Block
- 350 cubic-inch Small Block
- 400 cubic-inch Small Block
- Other compatible Chevrolet Small Block applications
Chevrolet Big Block V8
- 396 cubic-inch Big Block
- 402 cubic-inch Big Block
- 409 cubic-inch Big Block
- 427 cubic-inch Big Block
- 454 cubic-inch Big Block
- 496 cubic-inch Big Block
- 502 cubic-inch Big Block
- Other compatible Chevrolet Big Block applications
Compatibility depends on the pressure plate and flywheel bolt pattern—not displacement alone. Confirm that the application requires six 3/8"-16 bolts with a 1-inch under-head length and adequate clearance for a 9/16-inch hex head before ordering.
Specifications
- Fastener location: Clutch pressure plate to flywheel
- Fastener type: Hex-head bolt
- Thread size: 3/8"-16
- Under-head length: 1 inch
- Hex size: 9/16 inch
- Material: Chromoly steel
- Finish: Black oxide
- Quantity: 6 bolts
Recommended Use
Recommended when installing or replacing a compatible clutch pressure plate on a Chevrolet Small Block or Big Block V8 engine. The kit is suitable for street-performance, restoration, racing, and drivetrain service applications requiring the specified fastener dimensions.
This is a pressure plate or clutch-cover bolt kit. It does not replace the separate flywheel-to-crankshaft bolts.
What’s Included
- 6 ARP 3/8"-16 pressure plate bolts
- 6 matching washers
- ARP part number 130-2201
Installation
Inspect and clean the pressure plate and flywheel mounting threads before assembly. Position the clutch disc using an appropriate alignment tool, then install the pressure plate and start every bolt by hand to prevent cross-threading.
Tighten the bolts gradually in an alternating or crisscross sequence so the pressure plate seats evenly. ARP specifies 45 ft-lbs for a 3/8-inch pressure plate bolt when ARP lubricant is applied. Follow the instructions supplied with the fasteners and confirm that this value is appropriate for the pressure plate and flywheel being used.
Do not substitute these bolts for flywheel-to-crankshaft fasteners. Professional installation is recommended if you are unfamiliar with clutch assembly or drivetrain service.
