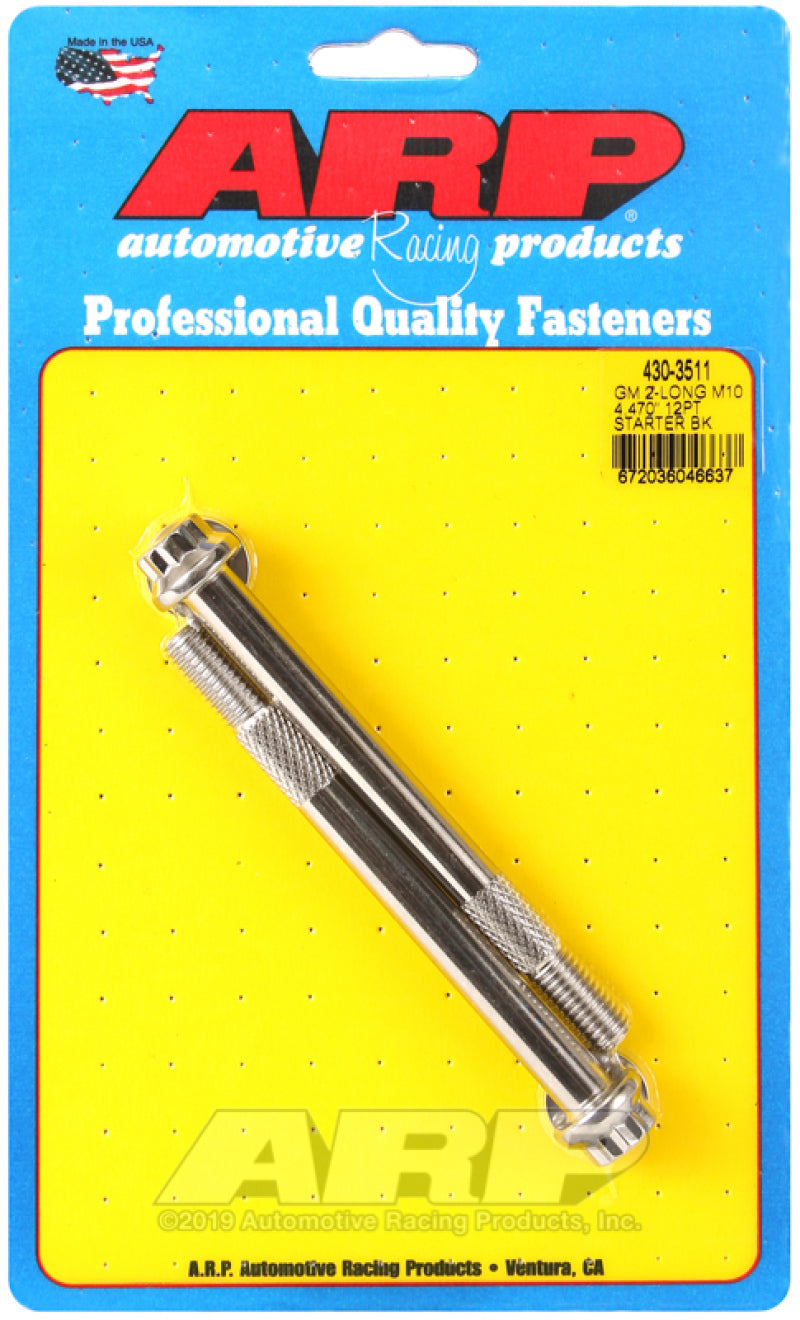

ARP GM M10 4.470-Inch 12-Point Stainless Starter Bolt Kit

The ARP GM Starter Bolt Kit contains two equal-length M10 mounting bolts for compatible Chevrolet and General Motors starter installations. Each bolt features a 4.470-inch under-head length, a compact 1/2-inch 12-point head, and polished stainless-steel construction.

This kit fit a broad range of Chevrolet four-cylinder, six-cylinder, Small Block, Big Block, LS, and LT engine applications. However, starter mounting hardware can vary according to the engine block, starter housing, mounting pattern, flywheel or flexplate, and aftermarket starter design. The bolt dimensions must be checked before ordering.

Features

• Starter-to-engine-block mounting bolt kit
• Contains two equal-length starter bolts
• M10 metric thread diameter
• 4.470-inch under-head length
• 1/2-inch 12-point head
• Polished stainless-steel construction
• Compact 12-point head provides tool access in confined areas
• Semi-universal fit for compatible GM starter arrangements
• ARP part number 430-3511

Applications

• Select Chevrolet four-cylinder engines
• Select Chevrolet six-cylinder engines
• Select Chevrolet Small Block engines
• Select Chevrolet Big Block engines
• Select Chevrolet LS-series engines
• Select Chevrolet LT-series engines
• Select General Motors applications

The engine categories above are not complete vehicle fitment guarantees. Confirm the starter, engine block, and mounting hardware dimensions before ordering.

Specifications

• Fastener location: Starter to engine block
• Thread diameter: M10
• Under-head length: 4.470 inches
• Approximate under-head length: 113.5 mm
• Head style: 12-point
• Socket size: 1/2 inch
• Material: Stainless steel
• Finish: Polished
• Bolt lengths: Two equal-length bolts
• Quantity: 2 bolts

Important Size and Fitment Check

GM starter bolts are available in different diameters, thread pitches, lengths, shoulder configurations, and mounting arrangements. Do not order this kit based only on the vehicle make or engine family.

Before ordering, compare the following specifications with the original starter bolts and the requirements of the installed starter:

• Thread diameter and thread pitch
• 4.470-inch under-head length
• Smooth-shank or locating-shoulder dimensions
• Available threaded depth in the engine block
• Straight-across or staggered starter mounting pattern
• Starter nose and mounting-pad configuration
• Flywheel or flexplate and ring-gear compatibility
• Whether the installation requires two equal bolts or different bolt lengths

This kit contains two equal-length 4.470-inch bolts. It is not suitable for a setup requiring one long bolt and one short bolt unless the starter manufacturer specifically approves that configuration.

Recommended Use

Recommended for compatible GM starter installations that specifically require two M10 mounting bolts with a 4.470-inch under-head length. It may be used for engine assembly, starter replacement, restoration, performance builds, and aftermarket starter installation after all dimensions have been confirmed.

What’s Included

• 2 ARP M10 stainless-steel starter bolts
• Both bolts have a 4.470-inch under-head length
• ARP part number 430-3511

The starter, starter brace, mounting shims, washers, wiring, flywheel, flexplate, and installation tools are not included unless otherwise specified.

Installation

Disconnect the vehicle battery before removing or servicing the starter. Inspect the starter mounting pad, engine-block threads, starter nose, and original mounting hardware before installation.

Start both bolts by hand and verify that they engage the correct threads without binding or bottoming in the block. The starter should seat squarely against the mounting surface without being pulled into position by the bolts.

Use the torque specification provided by the engine or starter manufacturer for the exact installation. ARP does not publish a product-specific installation sheet for this kit. After installation, verify proper starter alignment and pinion-to-ring-gear clearance. Incorrect alignment can cause starter noise, engagement problems, or damage to the starter and ring gear.
