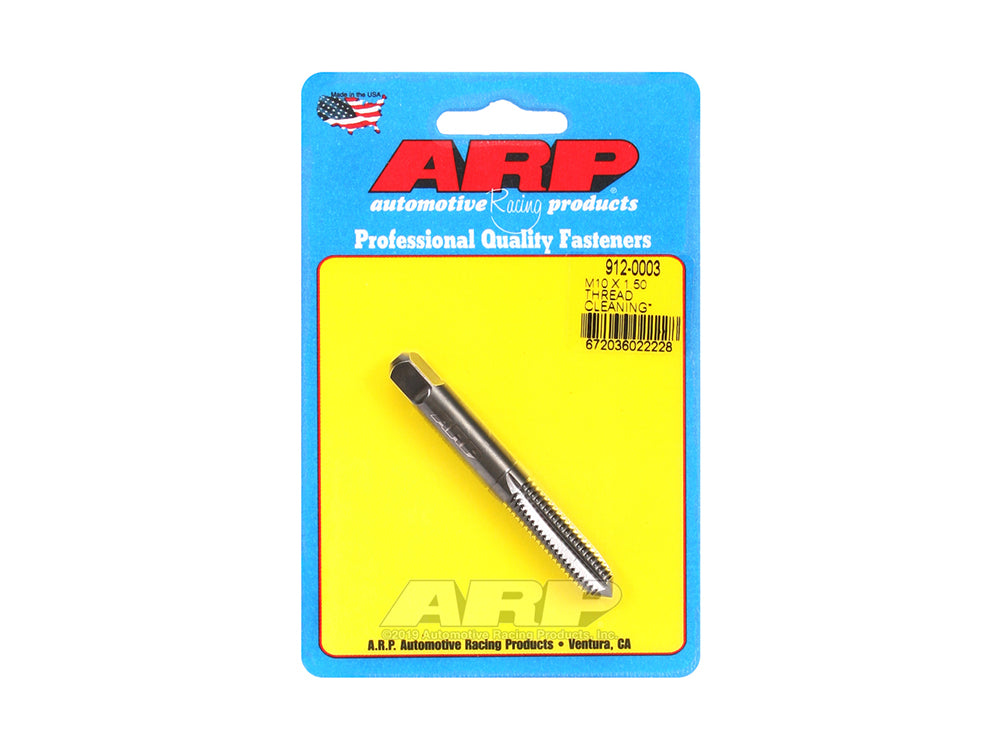

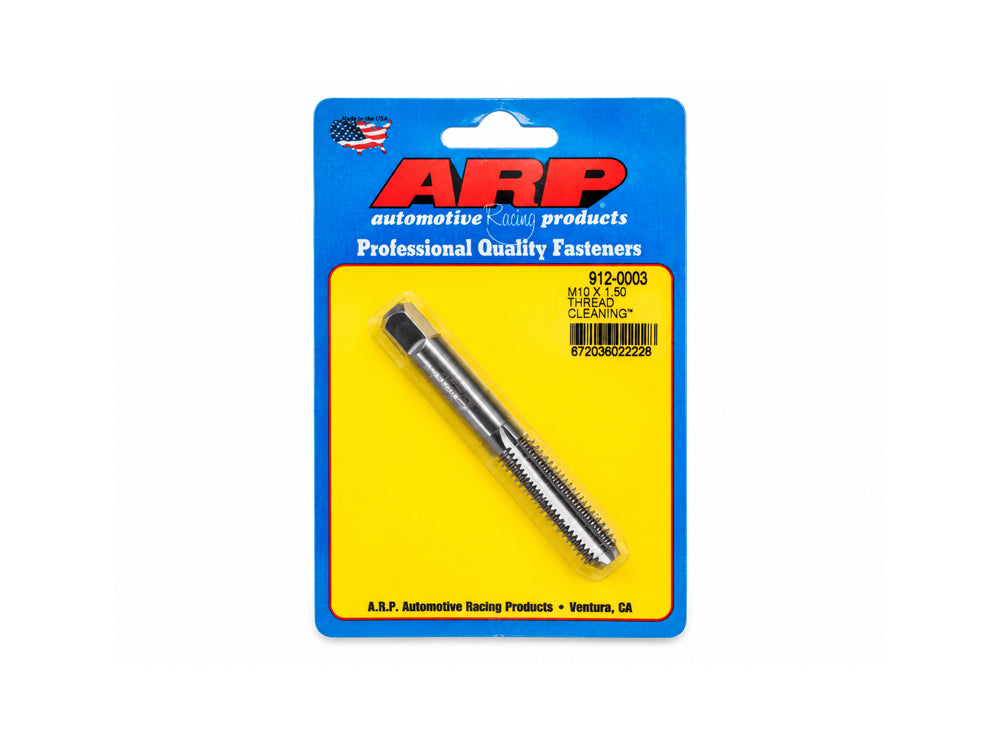

The ARP M10 × 1.50 Thread Cleaning Chaser Tap is designed to clean existing internal threads before fastener installation or final engine assembly. Its correct M10 × 1.50 thread pitch and diameter allow it to pass through compatible threaded holes and remove accumulated dirt, corrosion, old sealant, and other debris.
Unlike a conventional cutting tap, this tool is intended for cleaning existing threads. It is not designed to cut new threads, enlarge a threaded hole, or repair severely damaged threads. Its cleaning-focused design helps reduce unnecessary material removal from engine blocks, cylinder heads, and other threaded components.
Features
- Dedicated internal thread-cleaning chaser
- M10 × 1.50 metric thread size
- Correct pitch and diameter for cleaning existing threads
- Suitable for compatible blind and through holes
- Helps remove dirt, corrosion, old sealant, and accumulated debris
- Helps prepare threaded holes for accurate fastener installation
- Steel construction
- Zinc-plated finish
- Sold individually
- ARP part number 912-0003
Specifications
- Tool type: Internal thread-cleaning chaser tap
- Thread size: M10 × 1.50
- Thread direction: Right-hand
- Material: Steel
- Finish: Zinc plated
- Adjustable: No
- Drill bit included: No
- Tap wrench included: No
- Quantity: 1 thread chaser
Applications
This is a universal workshop and engine-building tool for components with existing M10 × 1.50 internal threads. Potential uses include compatible threaded holes in engine blocks, cylinder heads, brackets, housings, suspension components, and other automotive or mechanical assemblies.
Confirm the original thread diameter and pitch before use. M10 × 1.50 is different from M10 × 1.25 and other metric thread pitches.
Important Usage Note
This tool is strictly a cleaning chaser and is not designed to cut new threads. It should not be used to create an M10 × 1.50 threaded hole, enlarge an existing hole, or repair threads that are severely crossed, stripped, distorted, or otherwise damaged.
Thread repair may require a conventional tap, thread-restoration tool, or threaded insert depending on the type and severity of the damage.
Recommended Use
Recommended during engine assembly, cylinder-head installation, drivetrain service, suspension work, fabrication, or other repairs where clean existing threads are required for proper fastener engagement and accurate tightening.
Cleaning threaded holes before assembly helps prevent trapped debris from interfering with bolt engagement, fastener preload, and torque readings.
What’s Included
- 1 ARP M10 × 1.50 thread-cleaning chaser tap
- ARP part number 912-0003
A tap wrench, drill bit, lubricant, compressed-air equipment, and additional thread-repair tools are not included.
How to Use

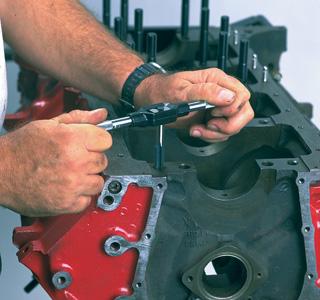

Verify that the threaded hole is M10 × 1.50 and remove loose surface debris before beginning. Apply a suitable thread-cleaning lubricant when appropriate, then carefully start the chaser by hand to avoid cross-threading.
Turn the tool slowly through the existing threads and periodically reverse it to help release collected debris. Do not force the chaser if excessive resistance is encountered. Remove the tool and clean the hole thoroughly before installing the fastener.
Use additional caution with blind holes. Confirm the available depth and remove all loosened debris and fluid before installing a bolt, as trapped material can prevent proper seating or damage the component.
