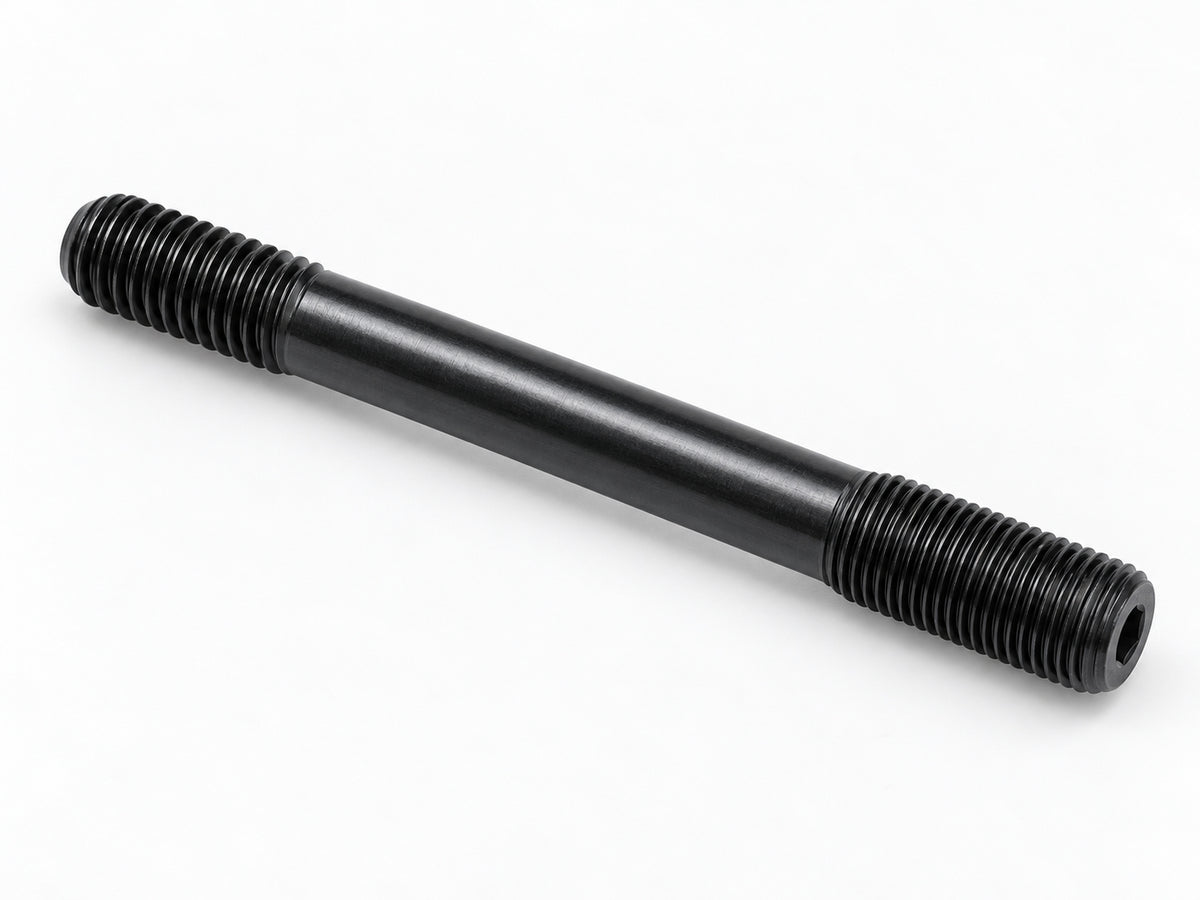

The ARP AU5.600-2LB is a double-ended stud featuring M12 x 1.5 threads on one end, M12 x 1.25 threads on the opposite end and a 5.600-inch overall length. Its long-broached design provides an internal installation feature for positioning the stud during assembly.
This individual stud is intended for replacement or custom applications requiring the same dimensions and thread specifications. Confirm the complete part number, thread sizes, threaded-section lengths, material requirements and application specifications before ordering.
Features
- Double-ended metric stud
- M12 x 1.5 thread on one end
- M12 x 1.25 thread on the opposite end
- 5.60 inches overall length
- Long-broached installation feature
- Sold individually
Specifications
- Brand: ARP
- Part Number: AU5.600-2LB
- Product Type: Double-ended long-broached stud
- Thread Size 1: M12 x 1.5
- Thread Size 2: M12 x 1.25
- Overall Length: 5.600 inches
- Approximate Metric Length: 142.24 mm
- Quantity: One stud
Fitment
This is a dimension-specific replacement component and is not presented as a universal vehicle-fitment part. Verify the ARP part number, both thread pitches, overall length, threaded-section lengths, broach configuration and required material grade against the original component or application specifications.
Recommended Use
Recommended for replacing a matching individual stud or for a properly engineered custom application. Do not mix studs with different dimensions, materials or strength specifications within the same critical fastener assembly.
What’s Included
- One ARP AU5.600-2LB stud
Not included: Nut, washer, lubricant and application-specific installation hardware.
Installation
Clean and inspect all mating threads before installation. The internal broach is intended to assist with positioning or removal and should not be treated as the final torque interface. Follow the specifications for the particular application, including the required nut, washer, lubricant, installed height and torque procedure. No universal torque specification applies to this individual stud.
