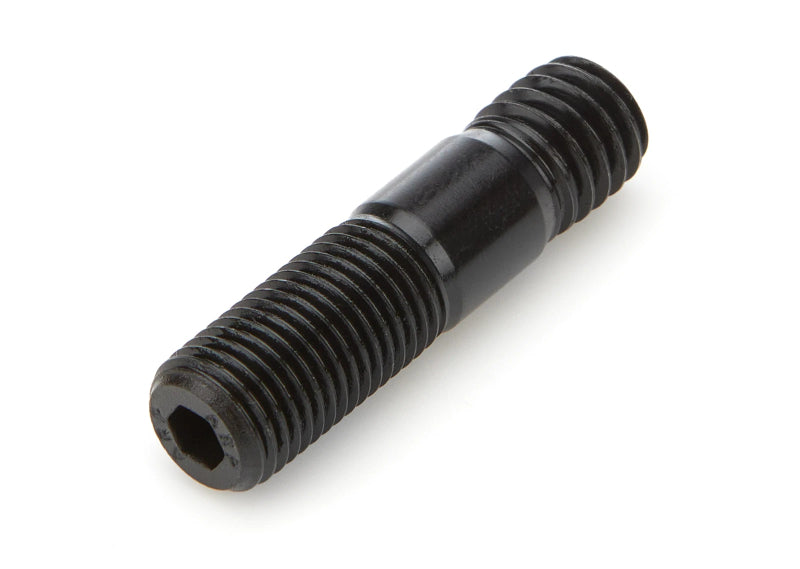

The ARP Universal Broached Stud is a high-strength replacement fastener featuring 3/8-16 coarse threads on one end and 3/8-24 fine threads on the opposite end. Its 1.500-inch overall length makes it suitable for compatible automotive, racing, fabrication and industrial assemblies requiring these exact dimensions.
The coarse-thread end is designed to install into a compatible threaded component, while the fine-thread end accepts a matching 3/8-24 nut. A broached recess at the end of the stud assists with installation and removal in confined locations.
Features
- Universal double-ended replacement stud
- 3/8-16 coarse thread on one end
- 3/8-24 fine thread on the opposite end
- 1.500-inch overall length
- Manufactured from high-strength 8740 chromoly
- Black oxide finish
- Broached end assists with installation and removal
- Sold individually
- ARP part number AJ1.500-5B
Fitment
This is a universal replacement stud and is not assigned to one specific vehicle, engine or component. Compatibility must be determined by comparing the thread sizes, overall length, thread engagement, unthreaded section and required clamping arrangement with the original fastener or assembly specifications.
Do not select this stud based on the 3/8-inch diameter alone. Both mating thread sizes and the available installation depth must match the intended application.
Specifications
- Coarse thread: 3/8-16
- Coarse-thread length: Approximately 0.360 inch
- Fine thread: 3/8-24
- Fine-thread length: Approximately 0.715 inch
- Overall length: 1.500 inches
- Material: 8740 chromoly
- Finish: Black oxide
- Installation feature: Broached end
- Quantity: 1 stud
Recommended Use
Recommended as a replacement or fabrication fastener when an assembly specifically requires a 1.500-inch double-ended stud with 3/8-16 and 3/8-24 threads. Suitable uses depend entirely on the component design, required clamp load and manufacturer specifications.
What’s Included
- 1 ARP universal broached stud
- ARP part number AJ1.500-5B
Nuts, washers, lubricant, thread sealer and additional hardware are not included unless otherwise specified.
Installation
Clean and inspect the mating threads before installation. Verify that the coarse-thread end has adequate engagement without bottoming out in a blind hole. Install the stud only to the depth required by the component manufacturer.
The broached recess is intended to assist with positioning, installation and removal. It should not be used to apply the final clamping torque. Final preload is created by tightening the nut on the 3/8-24 fine-thread end.
No universal torque specification applies because the correct torque depends on the nut, washer, lubricant, thread engagement, mating materials and intended application. Follow the equipment or component manufacturer’s torque procedure.
