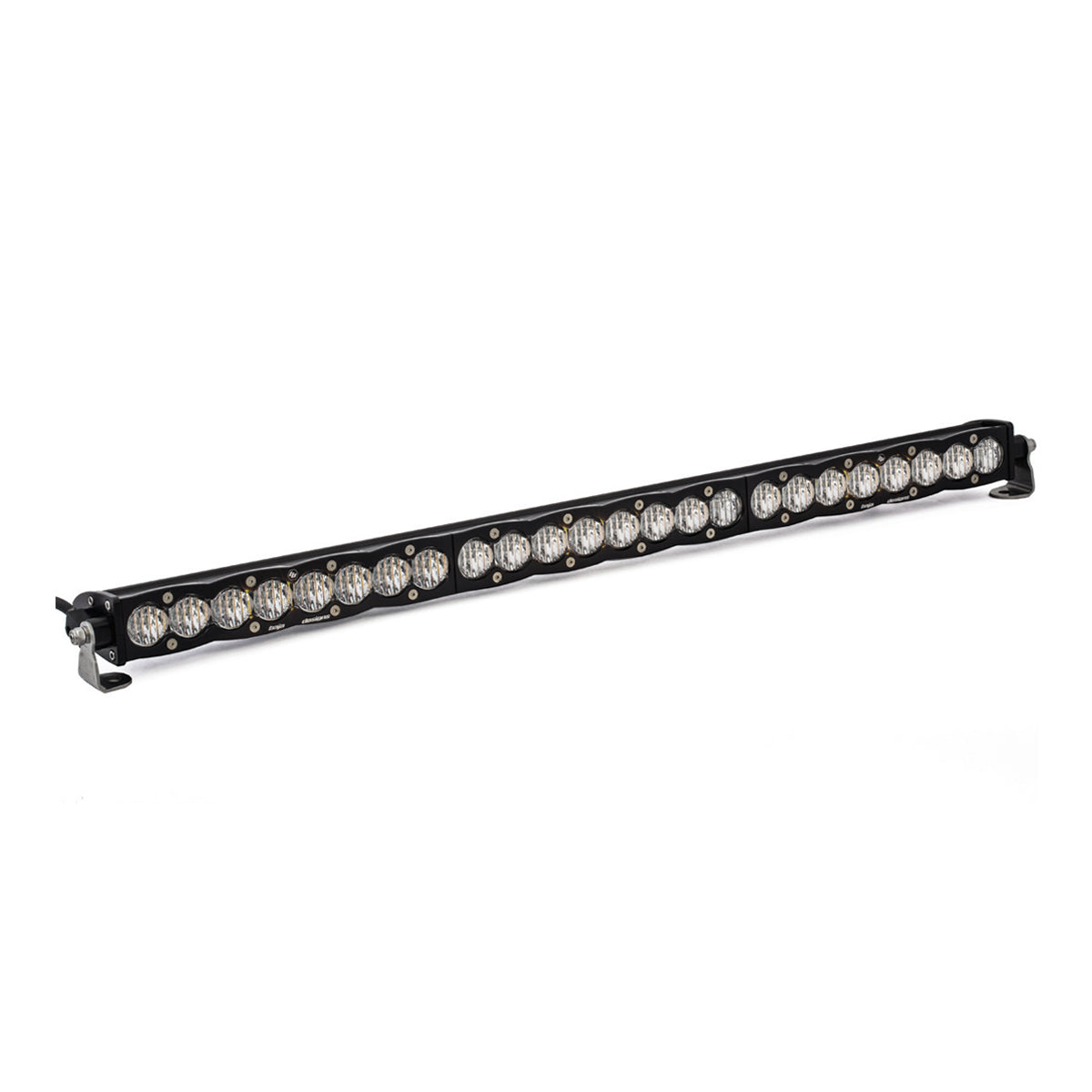

Baja Designs S8 30-Inch Clear Wide Cornering LED Light Bar - 5000k Daylight, Natural Color
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.
Illuminate trails, work areas and low-speed off-road routes with the Baja Designs S8 30-inch LED light bar. This universal straight light bar combines 24 high-output LEDs with a clear Wide Cornering lens pattern, producing broad horizontal coverage for improved visibility along trail edges, around corners and immediately ahead of the vehicle.
The slim S8 housing measures only 1.6 inches tall and incorporates an amber backlight for a distinctive marker-light appearance when connected through a compatible mode-switch harness. Its hard-anodized aluminum housing, hard-coated polycarbonate lens and stainless-steel mounting brackets are engineered for demanding off-road environments.
Features
- 30-inch Baja Designs S8 straight LED light bar
- Wide Cornering beam provides broad, near-field illumination
- Clear hard-coated polycarbonate lens
- 19,050-lumen light output
- 24 Cree LEDs
- Integrated amber backlight feature
- Slim 1.6-inch-tall housing
- Aircraft-grade aluminum housing with Mil-Spec hard-anodized finish
- Billet-machined aluminum bezel
- Built-in overvoltage protection
- Replaceable lenses and optics
- Universal auxiliary-lighting application
Specifications
- Manufacturer: Baja Designs
- Series: S8
- Part number: 703004
- Light-bar size: 30 inches
- Beam pattern: Wide Cornering
- Lens color: Clear
- Output: 19,050 lumens
- LED quantity: 24
- Power draw: 180 watts
- Current draw: 12 amps
- Color temperature: 5000K
- Lighting modes: Main beam and amber backlight

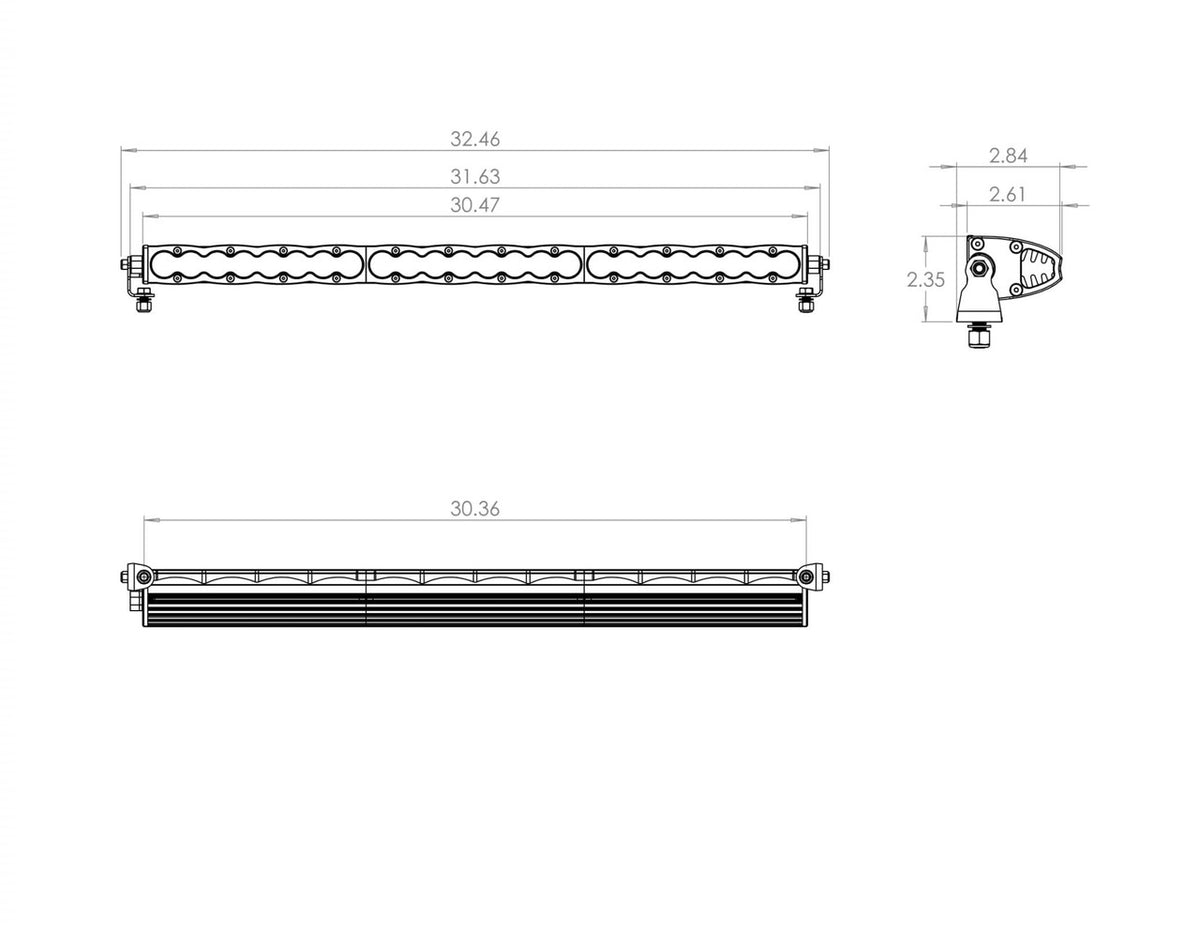

- Dimensions: 30 x 3 x 1.6 inches
- Weight: 6.5 pounds
- Housing: Black hard-anodized aircraft-grade aluminum
- Lens material: Hard-coated polycarbonate
- Mounting hardware: Stainless steel
- Rated LED life: 49,930 hours
- Water resistance: IP69K
- Impact resistance: IK10 compliant
- Durability testing: Exceeds MIL-STD-810G
Fitment
This is a universal auxiliary LED light bar and is not designed for one specific vehicle. Confirm the available mounting space, bracket requirements, electrical capacity and wiring route before ordering. Vehicle-specific mounting brackets may be required and are sold separately unless otherwise stated.
Recommended Use
The Wide Cornering pattern is designed to provide broad horizontal coverage for trails, corners, roadside areas and other situations where near-field peripheral visibility is more important than long-distance spot illumination.
What’s Included
- One Baja Designs S8 30-inch LED light bar
- Stainless-steel mounting brackets and related mounting hardware

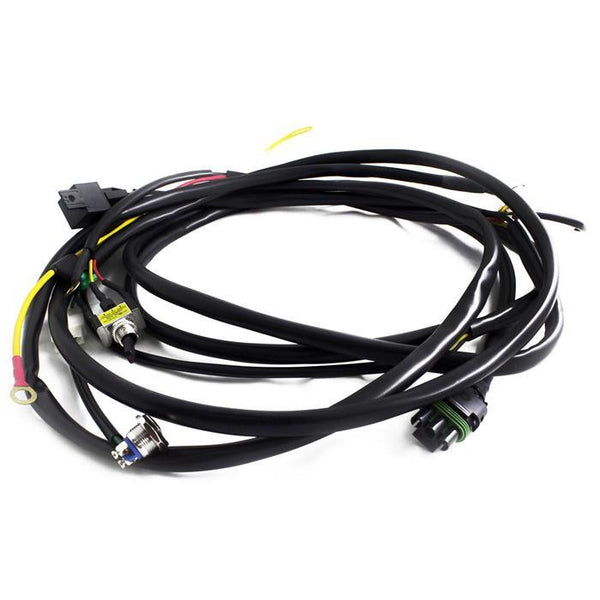

Wiring harness note: A wiring harness is not included. Baja Designs identifies harness 640122 for main-beam and backlight control with a mode switch, or harness 640115 for basic On/Off operation of one compatible 10–30-inch light bar. Purchase the appropriate harness separately.
Installation
Professional installation is recommended. Mount the light bar to a suitable structural location and use wiring, circuit protection and switching equipment rated for its 180-watt, 12-amp electrical load. Operation of the amber backlight requires a compatible backlight-control harness.
Check local vehicle-lighting regulations before operating auxiliary lighting on public roads.
Proposition 65 Warnings.
Cancer and Reproductive Harm. See details below.
Items that are not CARB Legal will not be sold and ship to California or CARB states.
