Baja Designs S2 Sport Dual Reverse Light Kit – 2005–2023 Tacoma / 2010–2024 4Runner
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.
Improve rearward visibility on your Toyota Tacoma or 4Runner with the Baja Designs S2 Sport Dual Reverse Light Kit. This complete auxiliary lighting package installs two compact S2 Sport LED lights below the rear bumper, providing broad illumination for reversing, connecting a trailer, working behind the vehicle or navigating dark trails.
Each S2 Sport produces 1,581 raw lumens through a clear Wide Cornering lens, delivering 3,162 combined raw lumens across Baja Designs lighting Zone 8. The included on/off wiring harness provides manual toggle-switch control, allowing the lights to be used whenever additional rear-facing illumination is needed.
Features
- Two compact S2 Sport LED reverse lights
- 1,581 raw lumens per light and 3,162 combined raw lumens
- Clear Wide Cornering lenses provide broad rearward coverage
- Designed to illuminate Baja Designs lighting Zone 8
- Mounts neatly below the vehicle’s rear bumper
- Manual activation through the included toggle-switch harness
- 5000K daylight-color illumination
- Hard-coated polycarbonate lenses
- Powder-coated cast-aluminum housings
- IP69K-rated against water and dust intrusion
- IK10-compliant impact resistance
- Built-in overvoltage protection
- uService replaceable lenses and optics
Specifications
- Brand: Baja Designs
- Product series: S2 Sport
- Manufacturer part number: 447720
- UPC: 810031742943
- Light quantity: Two
- Beam pattern: Wide Cornering
- Lens color: Clear
- Output: 1,581 raw lumens per light
- Combined output: 3,162 raw lumens
- Power consumption: 12.42 watts per light
- Current draw: 0.9 amp per light
- Color temperature: 5000K
- Housing material: Powder-coated cast aluminum
- Lens material: Hard-coated polycarbonate
- Individual light dimensions: 2.93 x 1.76 x 1.68 inches
- Individual light weight: 0.5 pound
- Water-resistance rating: IP69K
- Control method: Manual toggle switch
Fitment
- 2005–2023 Toyota Tacoma
- 2010–2024 Toyota 4Runner
Fitment note: Confirm that the vehicle’s rear bumper, hitch and surrounding accessories provide suitable mounting and wiring clearance. Aftermarket bumpers, trailer hitches and other rear-mounted accessories may affect installation.
Recommended Use
Recommended for rear-area lighting, trailer connection, nighttime reversing, campsite illumination, trail use and rear-facing dust-light applications. Rear-facing auxiliary-light laws vary by location; use these lights responsibly and comply with applicable road and off-road regulations.

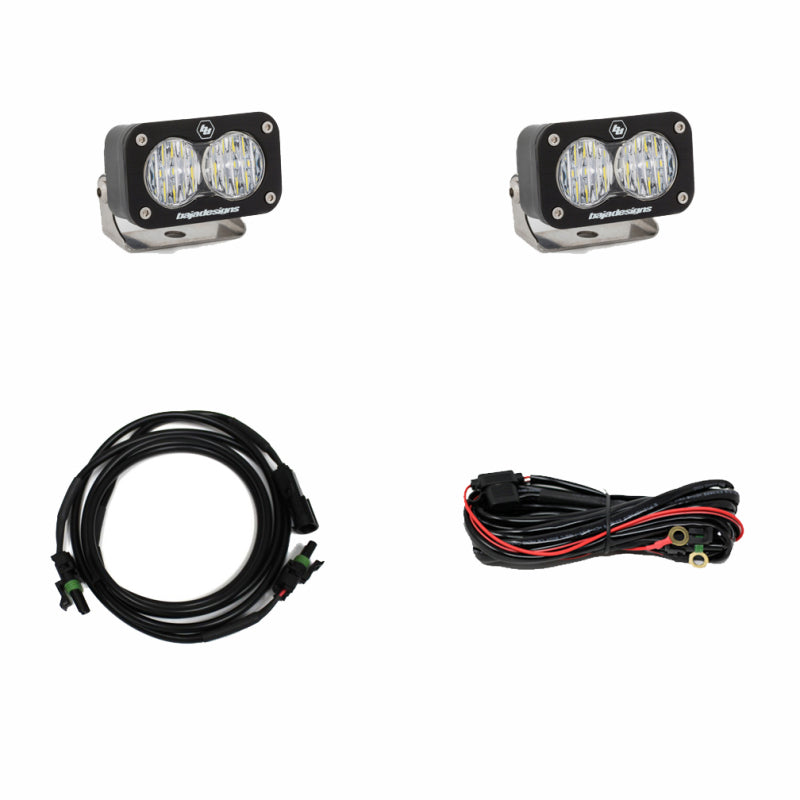

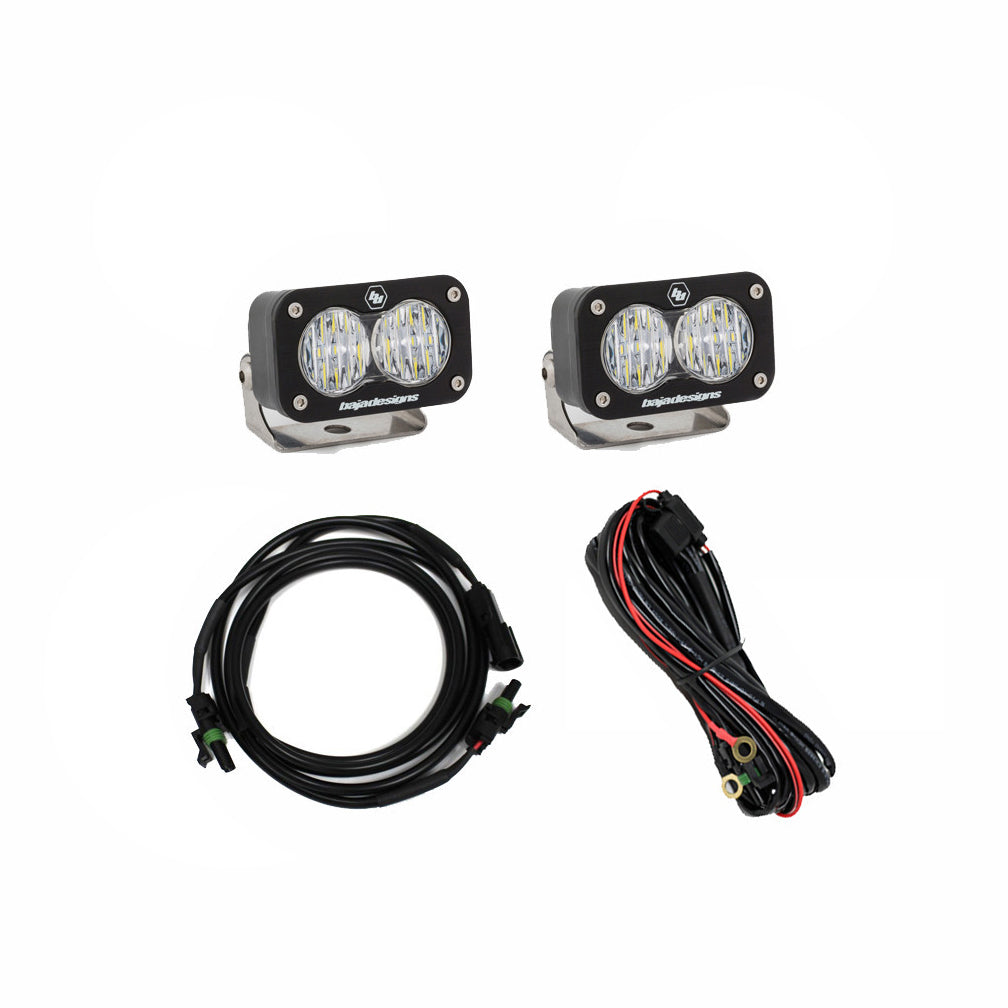

What’s Included
- Two S2 Sport Wide Cornering LED lights with clear lenses
- Two light mounting brackets
- On/off wiring harness, part number 640139
- 10-foot extension harness, part number 640165
- Splitter harness, part number 613606
- Required mounting hardware
Installation

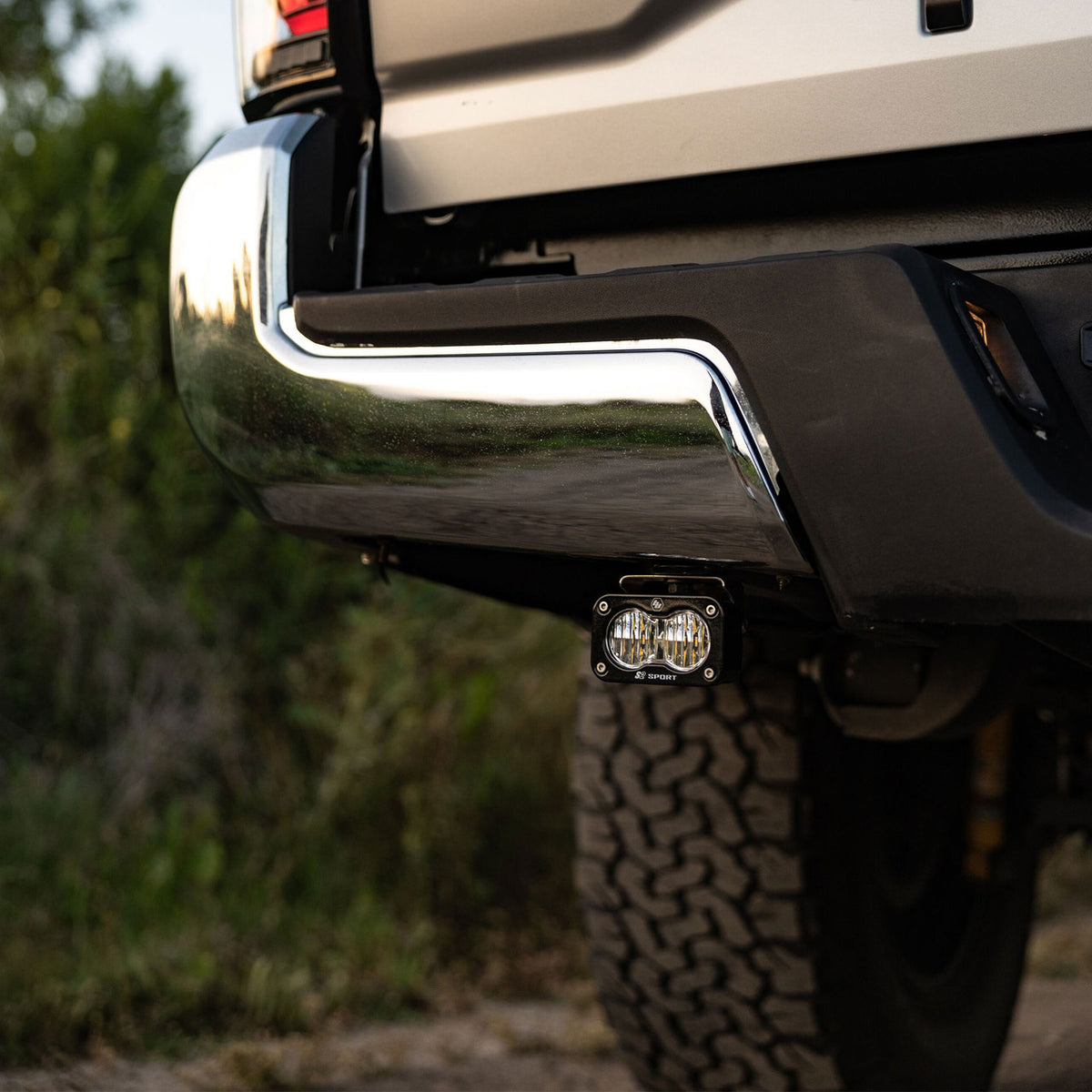

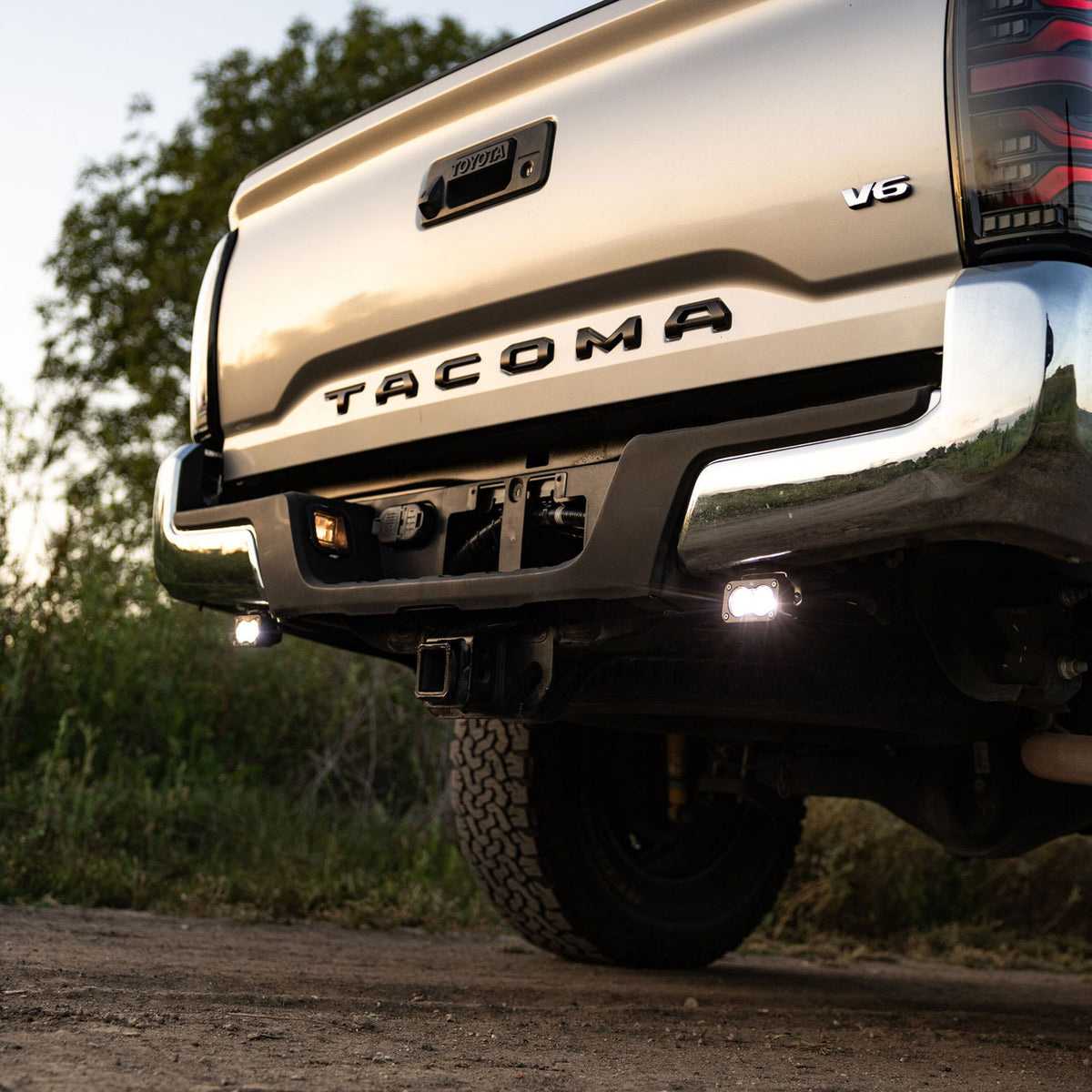

The S2 Sport lights mount below the rear bumper using the supplied brackets and hardware. The included extension and splitter harnesses route power from the main on/off harness to both rear lights.
This kit uses manual toggle-switch activation and should not be assumed to activate automatically when the transmission is placed in reverse. Professional installation is recommended if you are unfamiliar with automotive wiring, switch installation or underbody harness routing.
