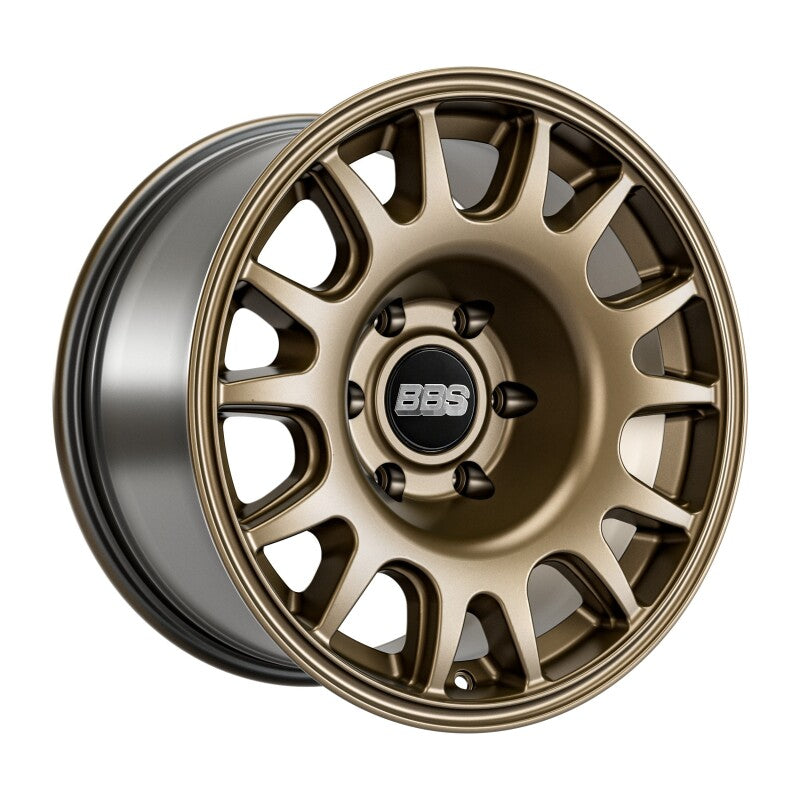

BBS TS-R 17x9 Satin Bronze Truck and SUV Wheel
Upgrade the appearance of a compatible six-lug truck or SUV with the BBS TS-R 17x9 wheel in Satin Bronze.
The TS-R features a bold multi-spoke design developed for truck and SUV applications. This wheel measures 17 inches in diameter and 9 inches wide, with a 6x139.7 bolt pattern, -12mm offset, and 106.1mm center bore. These specifications correspond with BBS part number TS-R179084N1202.
The -12mm offset positions the mounting surface behind the wheel’s centerline and may place the wheel farther outward than many positive-offset factory wheels. Final stance and clearance depend on the vehicle’s original wheel dimensions, suspension setup, tire size, and body configuration.
When paired with an appropriate tire size, the 17-inch diameter can allow for a taller tire sidewall than a comparable 18-inch wheel setup.
The Satin Bronze finish provides a distinctive contrast against light or dark exterior colors while retaining a clean, refined appearance.
Product Features
- BBS TS-R multi-spoke wheel design
- Designed for compatible trucks and SUVs
- 17-inch diameter
- 9-inch width
- 6x139.7 bolt pattern
- -12mm offset
- 106.1mm center bore
- Satin Bronze finish
- One-piece wheel design
- Sold individually
- BBS part number TS-R179084N1202
Wheel Specifications
- Manufacturer: BBS
- Model: TS-R
- BBS Part Number: TS-R179084N1202
- Wheel Diameter: 17 inches
- Wheel Width: 9 inches
- Bolt Pattern: 6x139.7
- Offset: -12mm / ET-12
- Center Bore: 106.1mm
- Finish: Satin Bronze
- Construction: One-piece wheel
- Quantity: One wheel
Common Vehicle Applications
The 6x139.7 bolt pattern and 106.1mm center bore are commonly found on select Toyota and Lexus truck and SUV platforms, including certain:
- Toyota Tacoma
- Toyota 4Runner
- Toyota FJ Cruiser
- Lexus GX470
- Lexus GX460
Vehicle compatibility cannot be confirmed by bolt pattern alone. Verify the model year, trim, center bore, wheel offset, brake clearance, suspension clearance, fender clearance, tire size, and required lug hardware before ordering.
Quantity Notice
This product is sold as one wheel.
- Order quantity 1 for one replacement wheel
- Order quantity 4 for a complete four-wheel set
- Order quantity 5 when adding a matching full-size spare
Hardware Note
Lug nuts, valve stems, TPMS sensors, and tires are not included unless specifically shown or stated.
Verify the required lug-seat style and wheel-fastener thread size before installation.
Installation Note
Professional wheel and tire installation is recommended. Test-fit the wheel before mounting a tire to verify hub, brake, suspension, and fender clearance.
The -12mm offset may position the wheel and tire farther outward than the original setup. Check for rubbing or interference throughout the complete steering and suspension range before driving.
Tighten the wheel fasteners to the vehicle manufacturer’s specified torque and recheck the torque after the initial driving period.
