Bilstein 05-23 Toyota Tacoma B8 Pro Front Upper Control Kit

The Bilstein B8 Pro Front Upper Control Arm Kit is designed for lifted and leveled 2005–2023 Toyota Tacoma applications. This complete two-arm kit replaces the original front upper control arms with heavy-duty components engineered to improve suspension geometry, articulation, and straight-line stability.

Lifting a Tacoma can reduce available caster and place the original upper ball joints at less favorable operating angles. Bilstein addresses these changes with increased caster geometry and revised ball-joint pivot angles that help restore proper suspension operation and provide additional wheel travel.

Each arm is constructed from heavy-duty 4130 chromoly steel tubing and protected by a durable black powder-coated finish. Sealed 4140 steel ball joints and low-friction, maintenance-free pivot bushings provide smooth articulation without requiring routine greasing.

Features

• Complete front upper control arm kit for lifted or leveled Toyota Tacoma applications

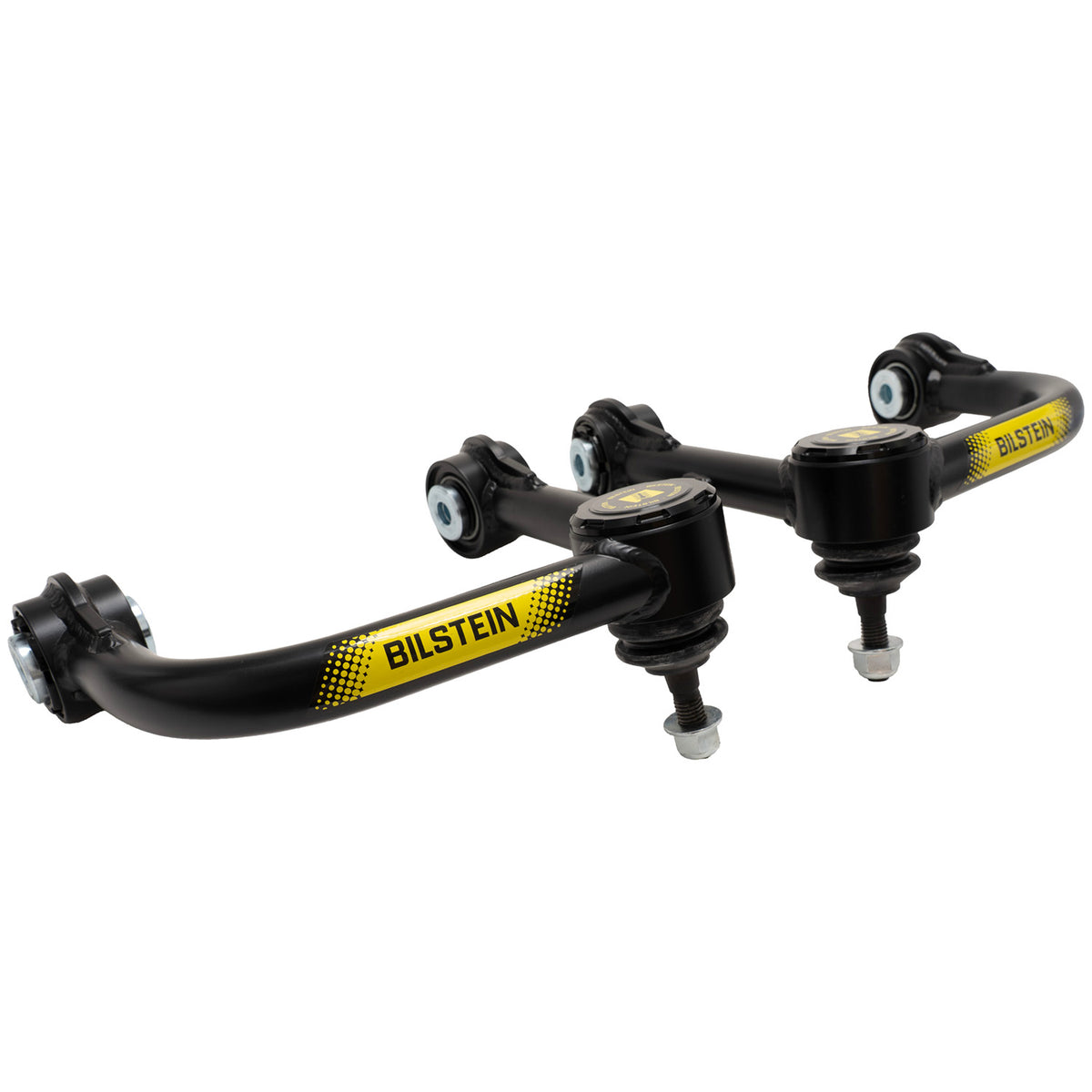

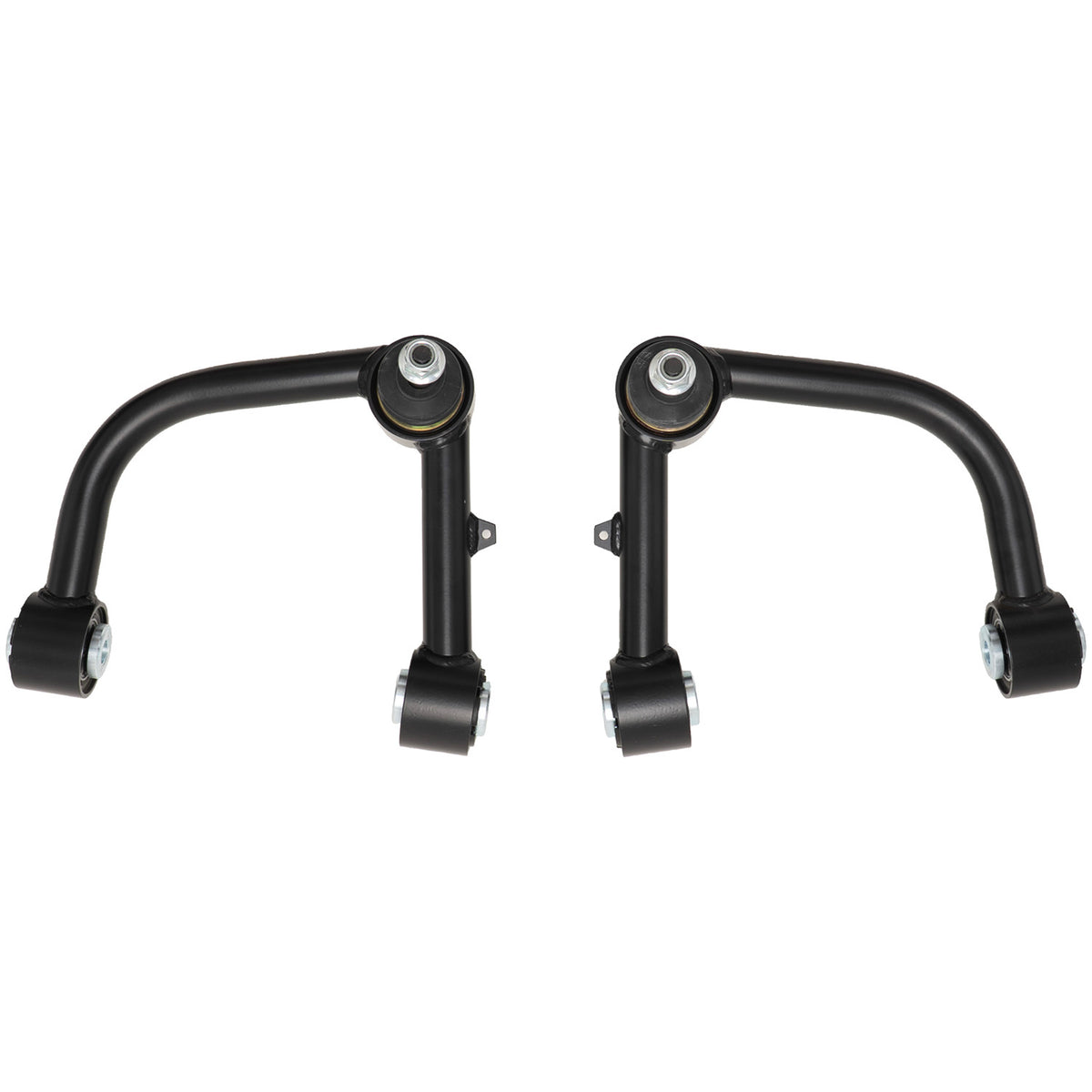

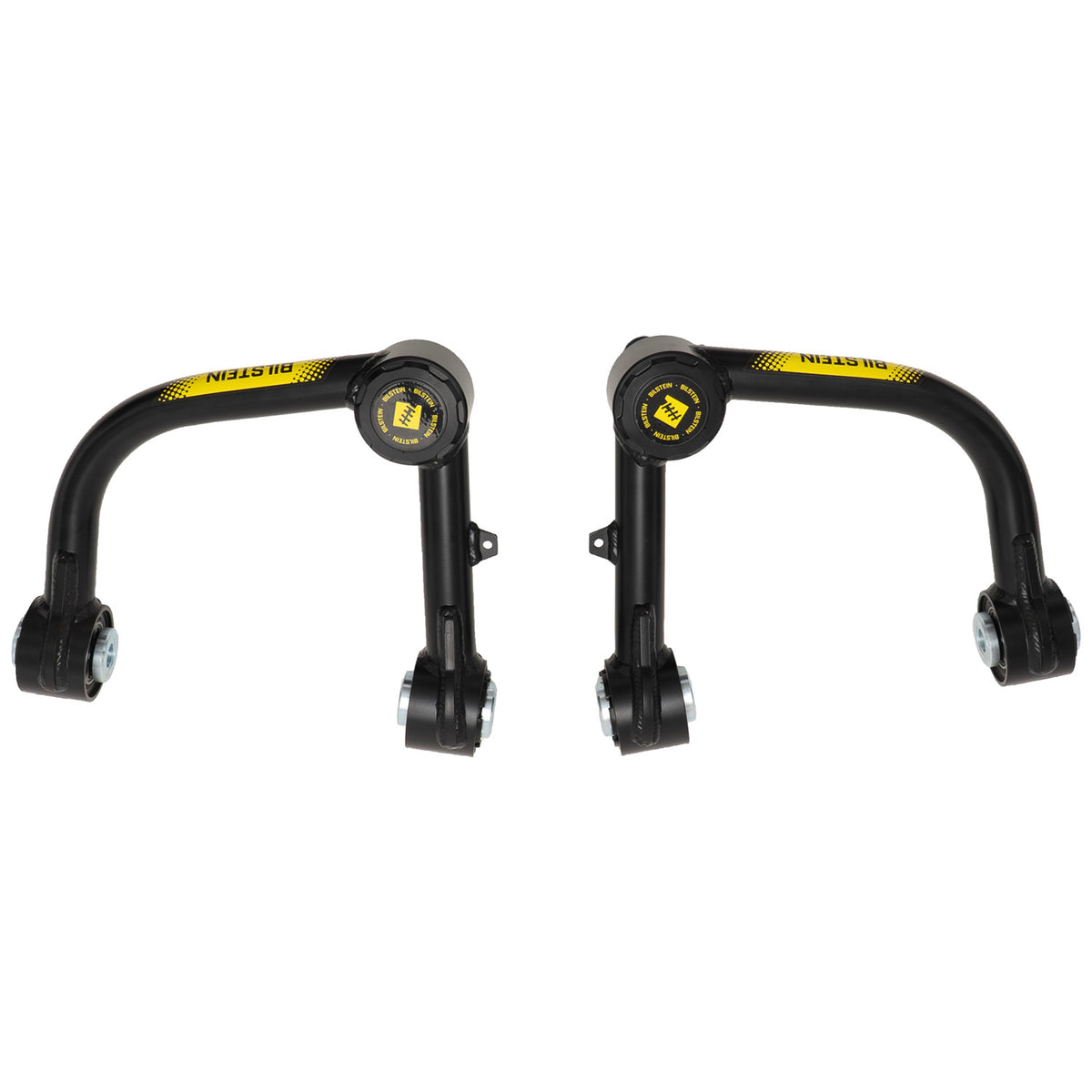

• Includes left- and right-side upper control arms
• Heavy-duty tubular 4130 chromoly steel construction
• Durable black powder-coated finish
• Increased caster geometry helps improve straight-line stability
• Revised ball-joint pivot angles support additional suspension travel

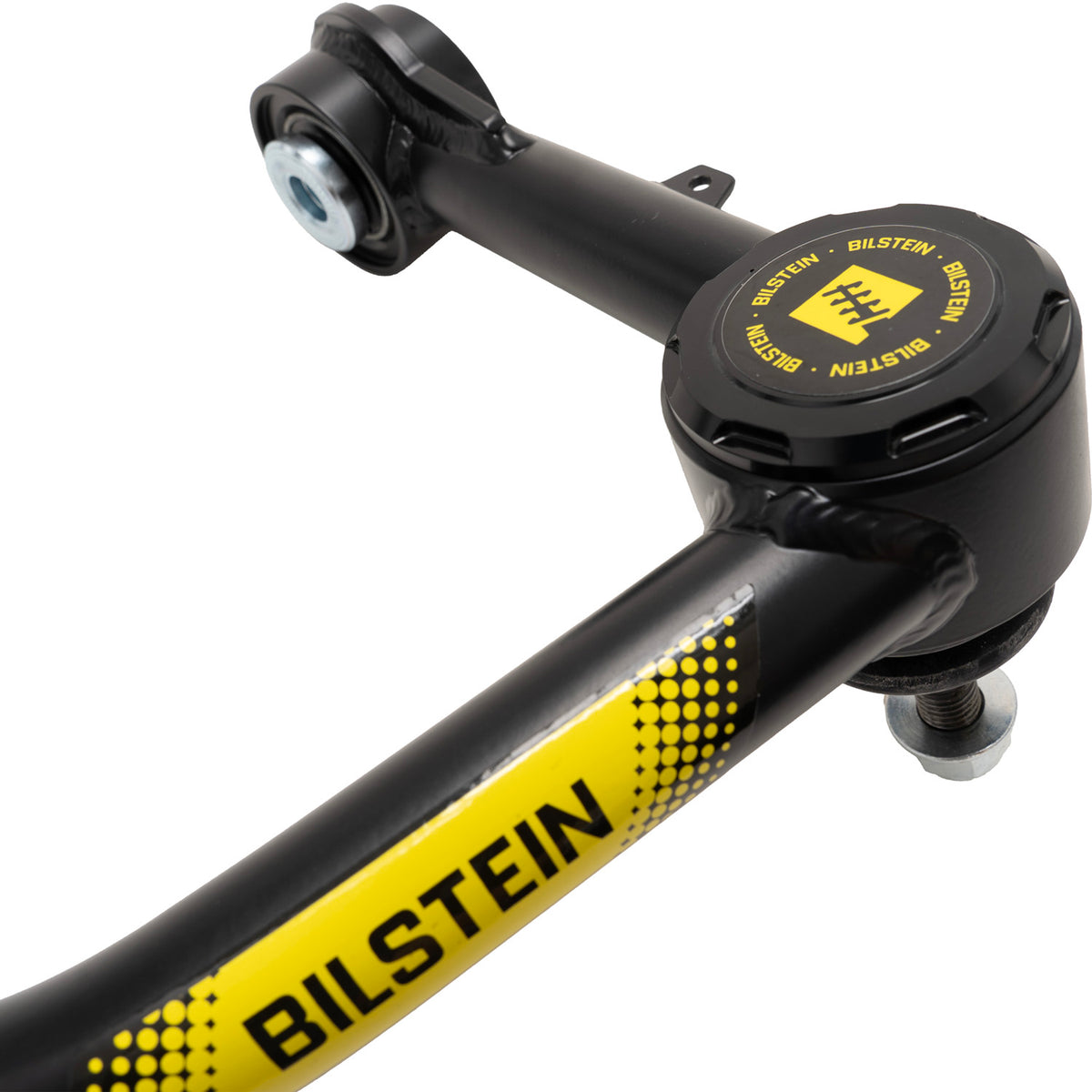

• Sealed 4140 steel ball joints with induction-hardened ball studs

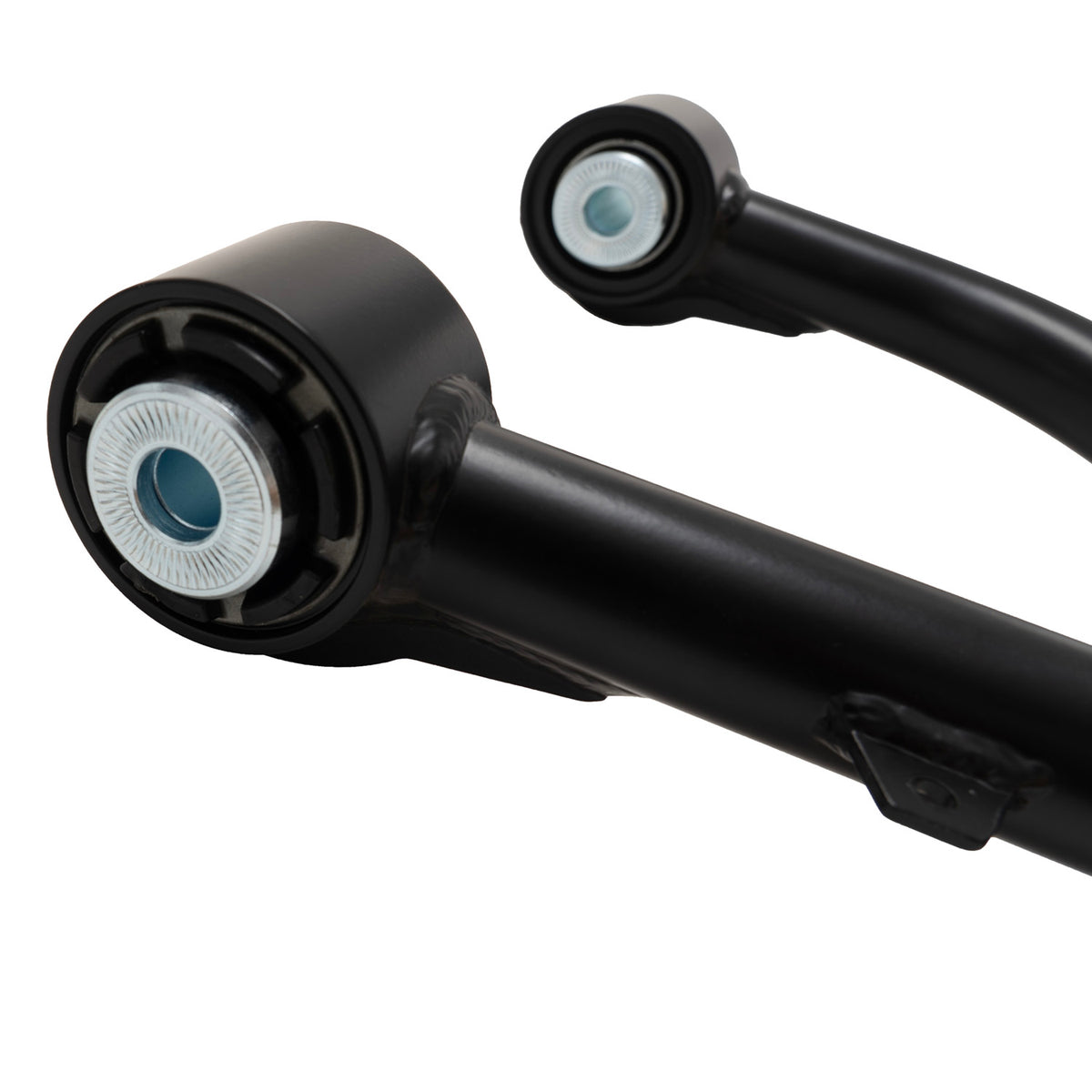

• Composite-lined, double-bonded urethane pivot bushings
• Free-spinning inner bushing sleeves provide smooth, quiet articulation
• Maintenance-free bushing and ball-joint design
• Direct-fit installation using the original mounting locations
• Bilstein part number 51-353070

Fitment

• 2005–2023 Toyota Tacoma

Listed applications include:

• 2005–2015 Toyota Tacoma Base
• 2005–2015 Toyota Tacoma PreRunner
• 2016–2023 Toyota Tacoma Limited
• 2016–2023 Toyota Tacoma SR
• 2016–2023 Toyota Tacoma SR5
• 2016–2023 Toyota Tacoma TRD Off-Road
• 2016–2023 Toyota Tacoma TRD Sport
• 2015 and 2017–2023 Toyota Tacoma TRD Pro
• 2021 Toyota Tacoma Trail
• 2023 Toyota Tacoma Trail Special Edition

Fitment note: These control arms are intended primarily for lifted or leveled suspension applications. Confirm the vehicle year, trim, drivetrain, suspension components, lift height, wheel offset, and tire clearance before ordering. They do not fit the redesigned 2024-and-newer Toyota Tacoma.

Recommended Use

Recommended for lifted or leveled Tacoma models needing improved front suspension geometry, increased caster, better upper ball-joint operating angles, or additional suspension travel. They are also an appropriate complement to compatible Bilstein B8 5100, 6100, 6112, and 8112 suspension systems.

What’s Included

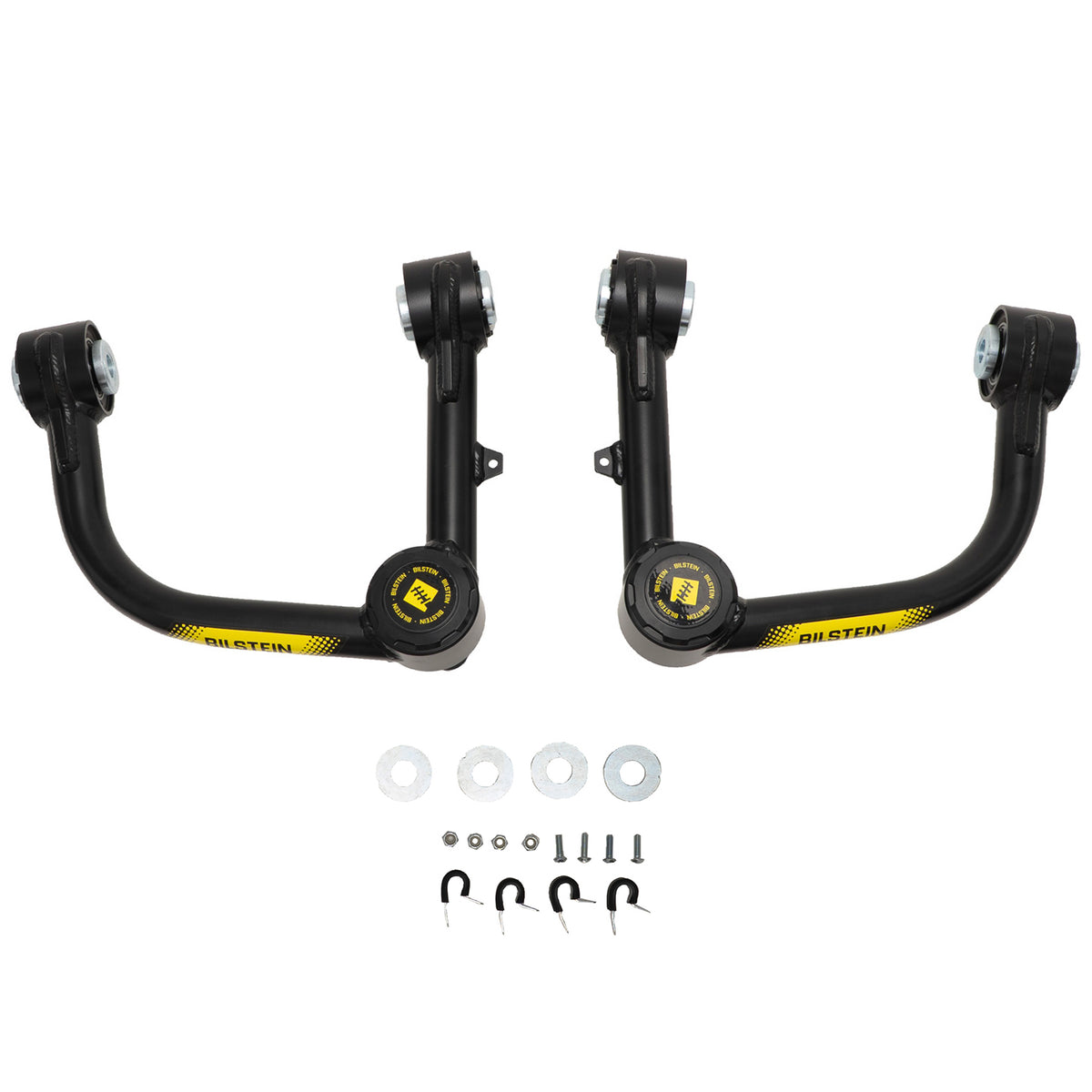

• 1 left front upper control arm
• 1 right front upper control arm
• Preinstalled sealed ball joints
• Preinstalled pivot bushings
• Ball-joint caps

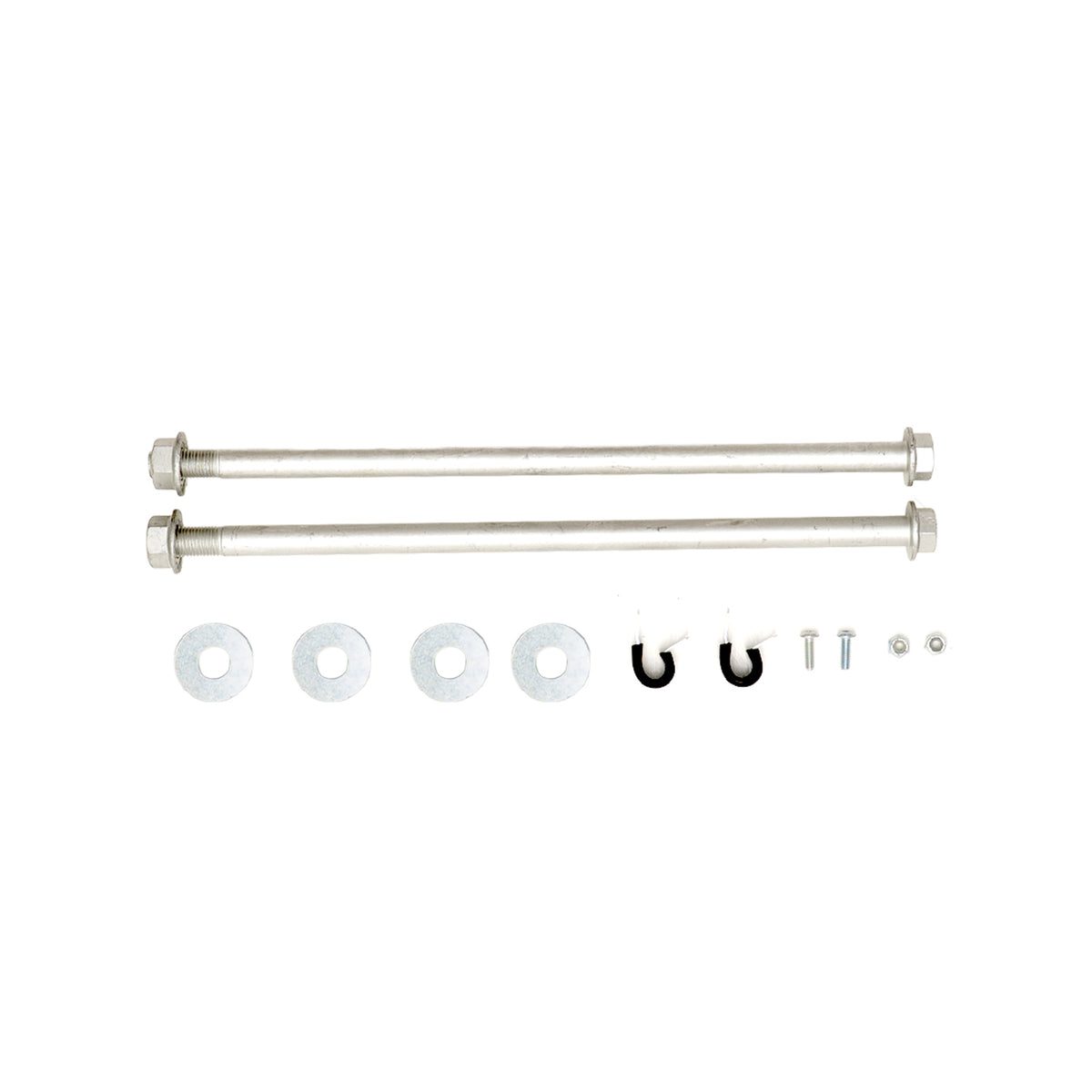

• Required installation hardware
• Installation instructions

Installation

Installation requires removal of the original front upper control arms. Follow the supplied Bilstein instructions and the Toyota service procedure for fastener tightening sequences and torque specifications.

After installation, inspect clearance around the control arms, coilovers, wheels, tires, brake hoses, and surrounding components throughout the complete steering and suspension range. A professional wheel alignment is required after control-arm installation. Professional installation is recommended.
