Increase ground clearance while maintaining controlled on-road handling with the Bilstein B8 TerraSport suspension lift kit for select 2019–2025 Toyota RAV4 models.
This complete vehicle-specific kit combines two B8 TerraSport front struts, two rear shocks, and the supporting spacers and hardware required for installation. The system is designed to provide approximately 1.5 inches of lift while retaining the vehicle’s original coil springs and upper mounts.
Unlike a basic spacer-only lift, the B8 TerraSport system uses application-specific dampers with revised dimensions and elevated spring-perch positioning. The dampers are tuned for the RAV4 platform to improve suspension control and provide additional clearance for unpaved roads, light off-road use, and compatible tire upgrades.
The front B8 TerraSport struts use a twin-tube design, while the rear B8 TerraSport shocks use a monotube design. Damping is preset by Bilstein and is not externally adjustable.
This listing includes one complete front and rear suspension lift kit.
Product Features
- Complete Bilstein B8 TerraSport suspension lift kit
- Designed for select 2019–2025 Toyota RAV4 models

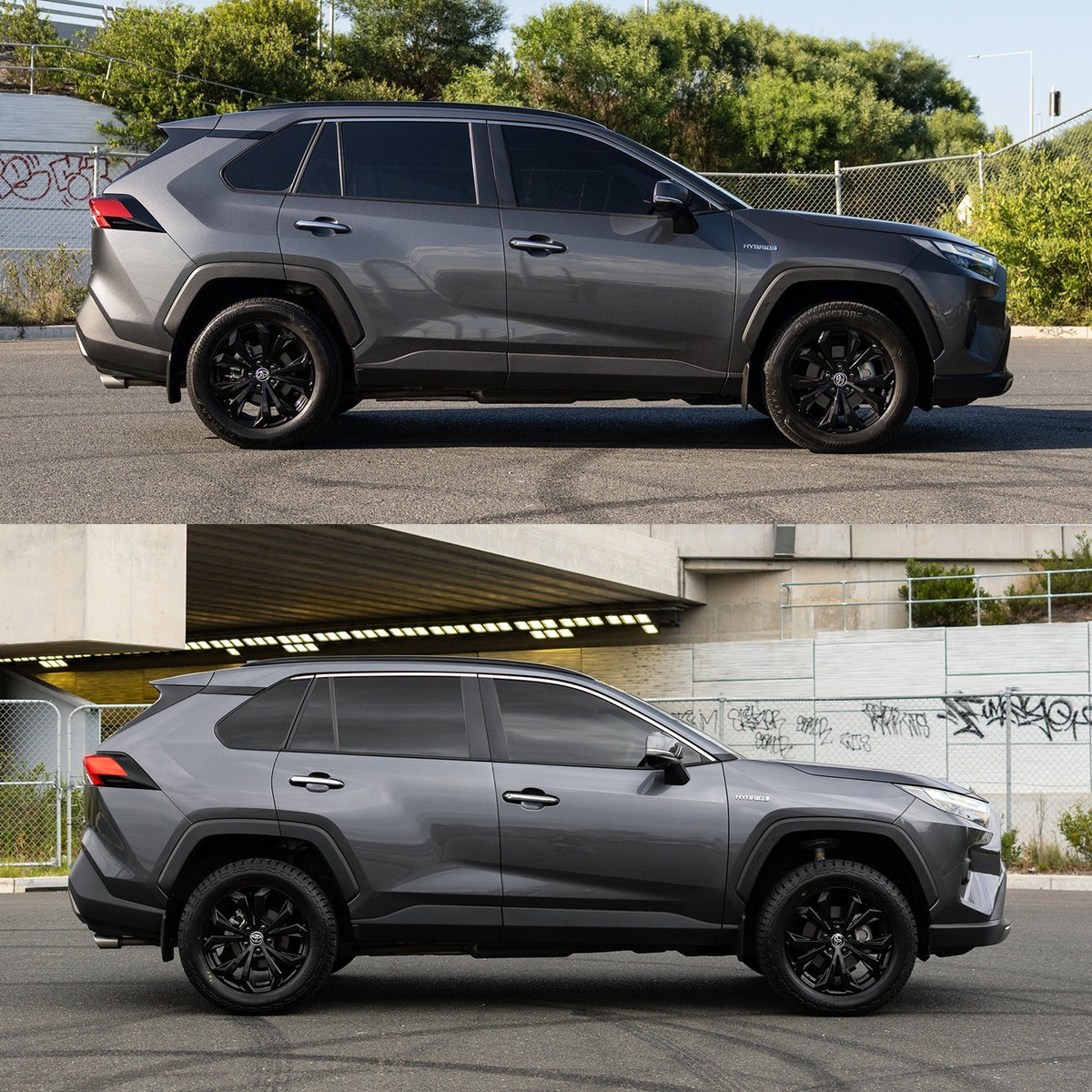

- Provides approximately 1.5 inches of suspension lift

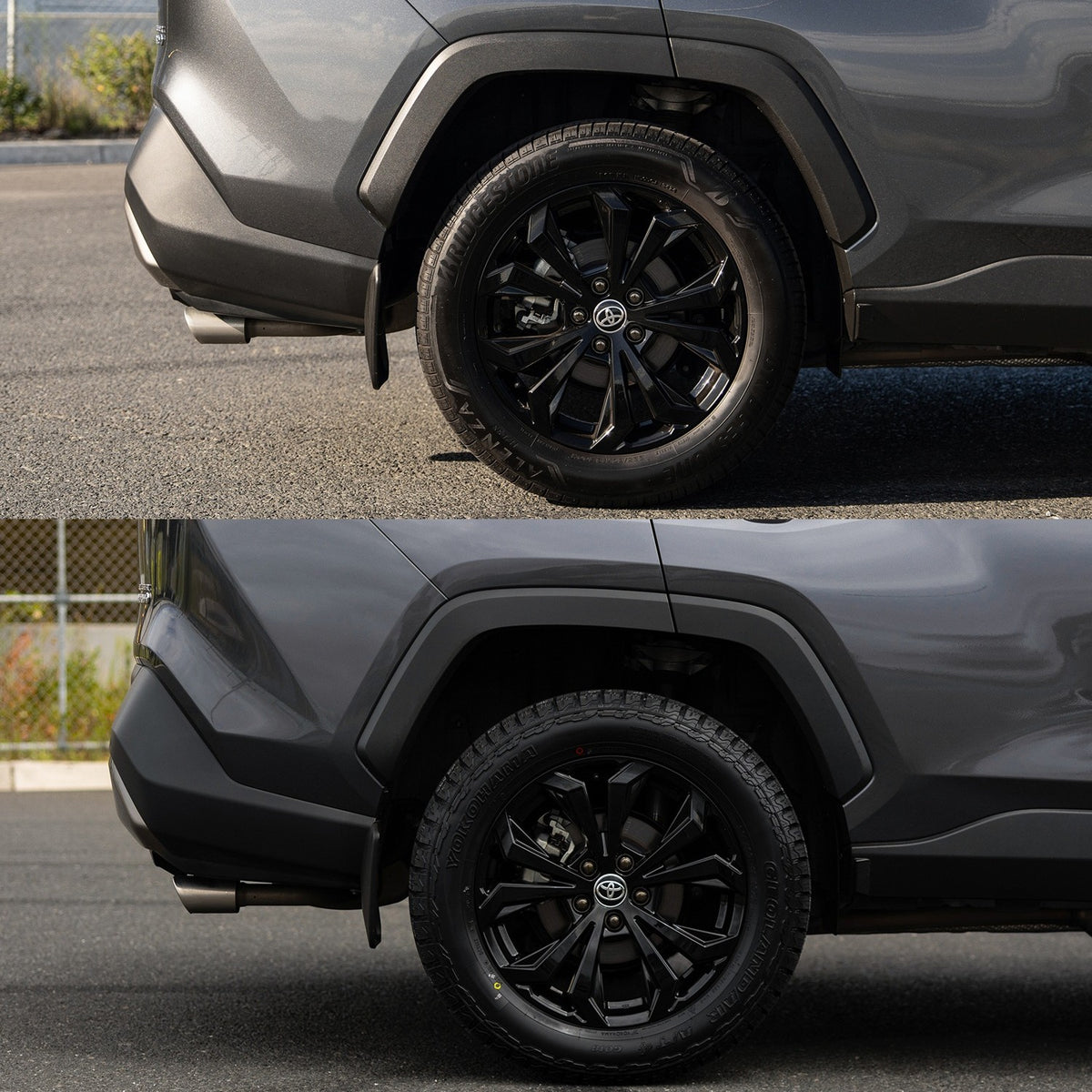

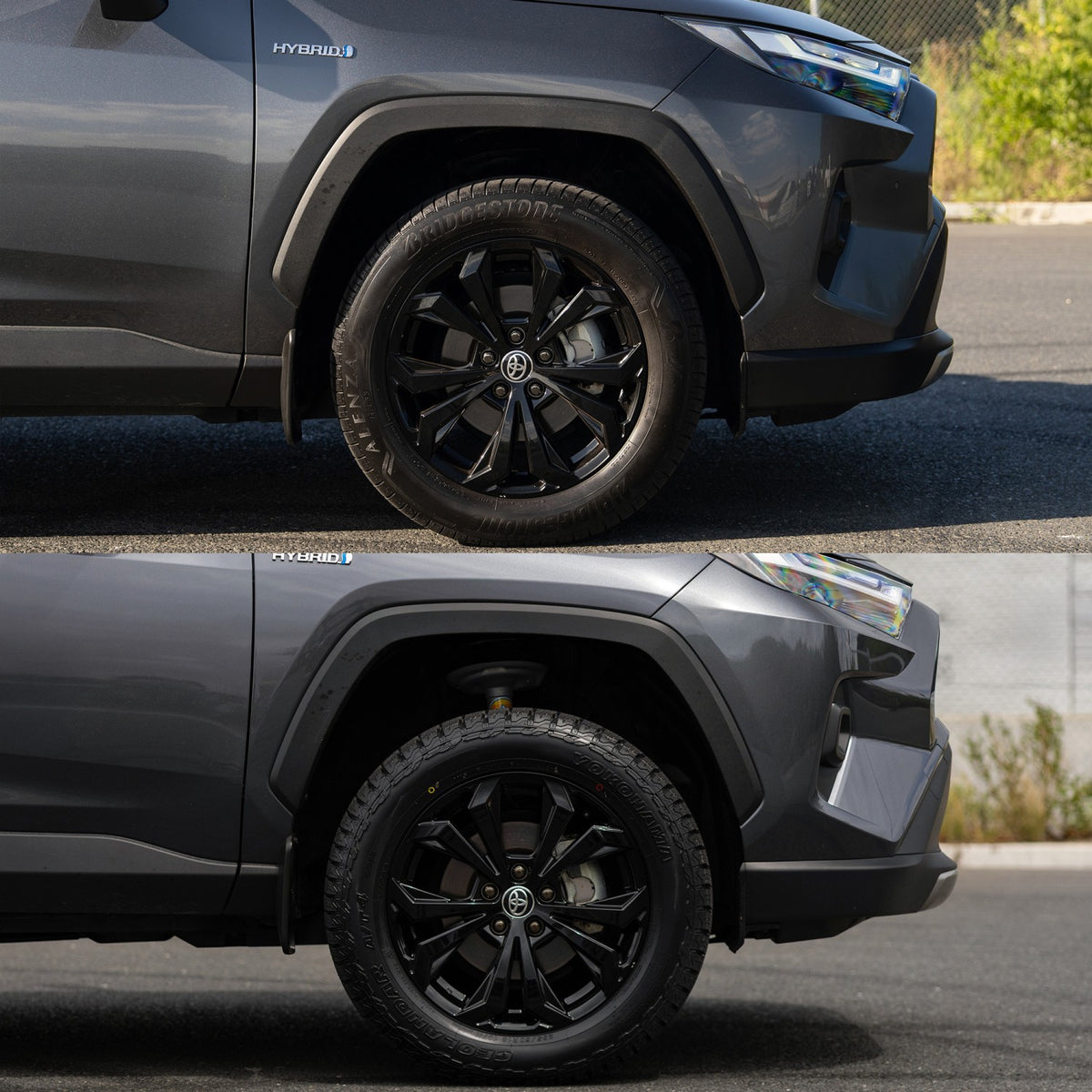

- Helps increase ground and underbody clearance

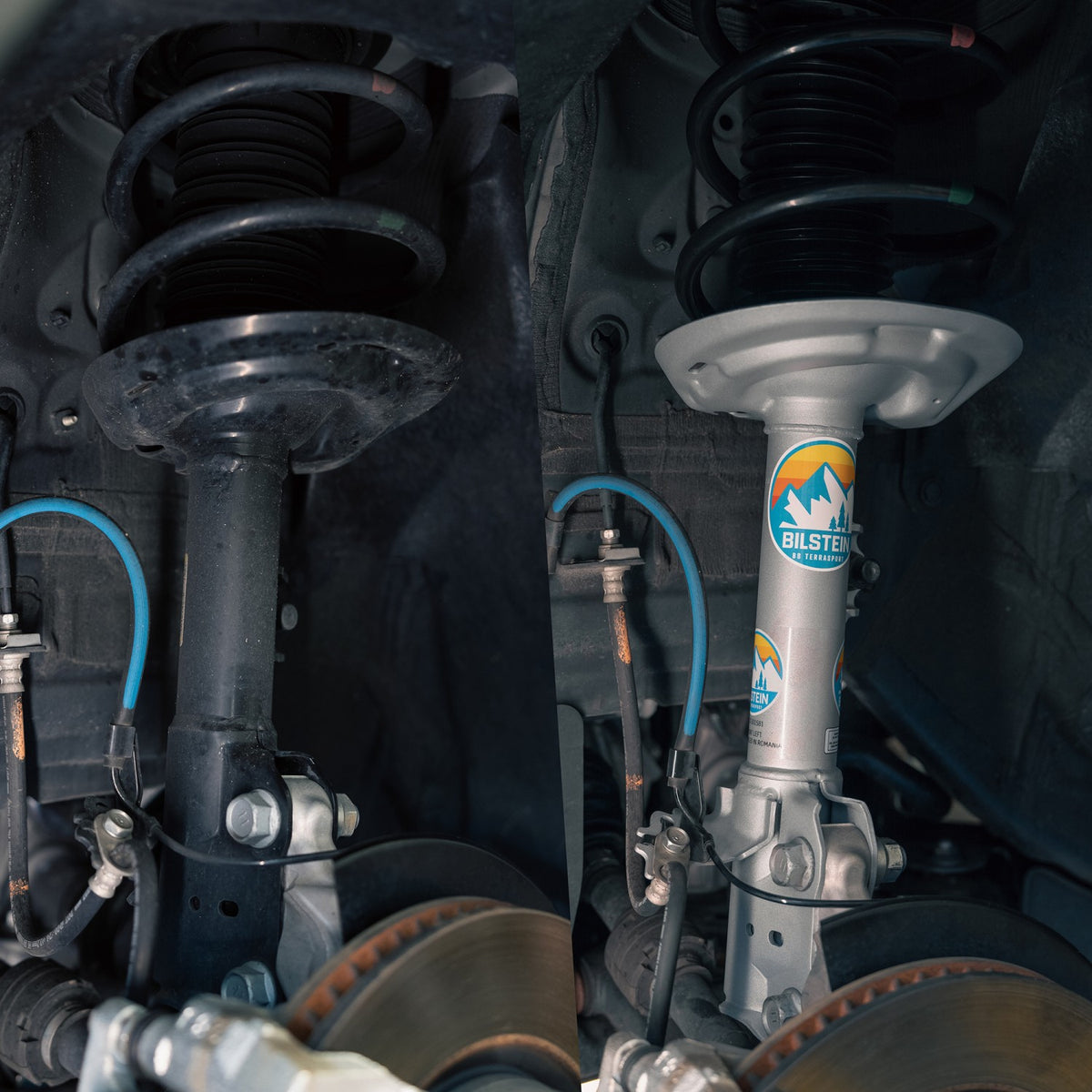

- Includes two front B8 TerraSport twin-tube struts

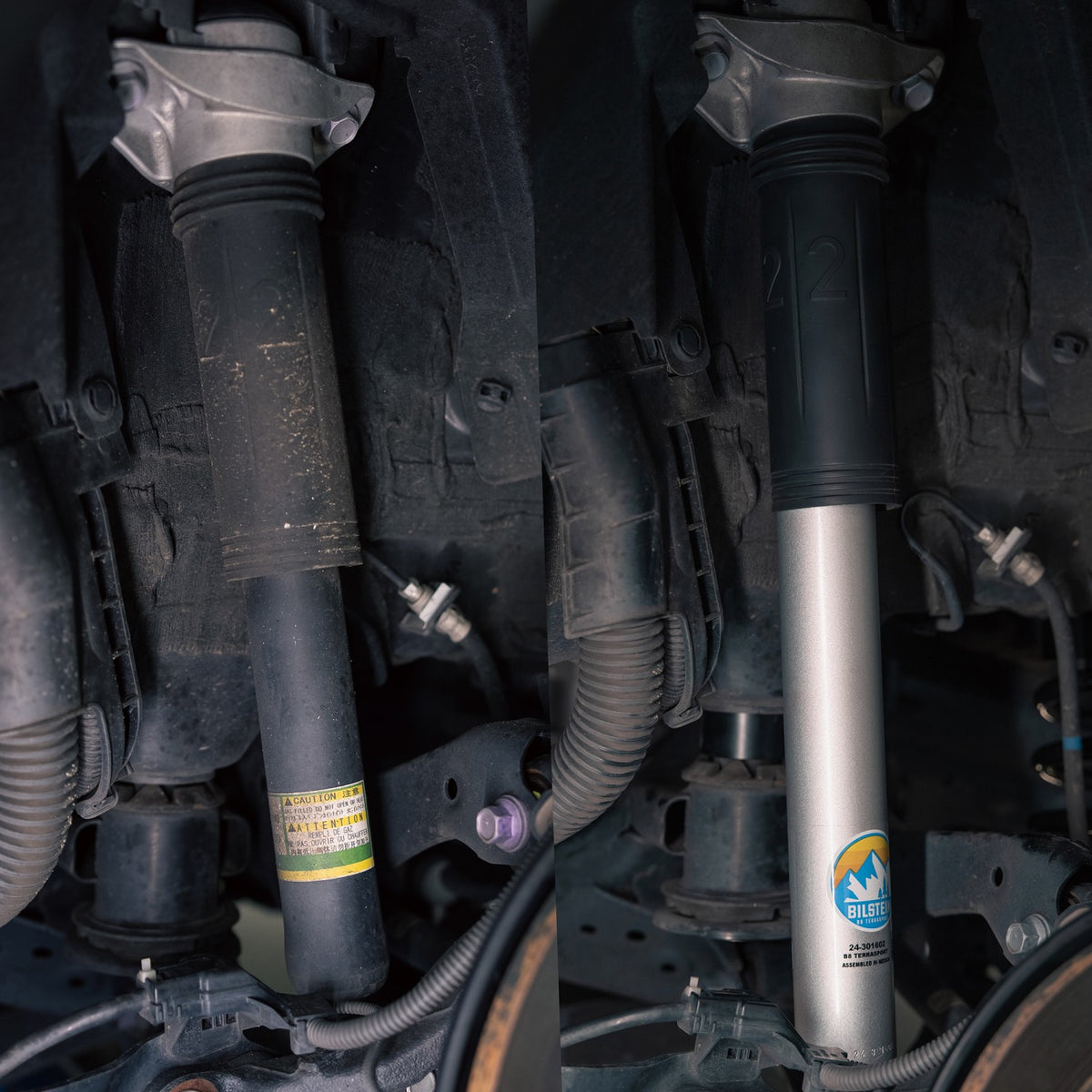

- Includes two rear B8 TerraSport monotube shocks
- Uses the original RAV4 coil springs
- Reuses the original upper strut mounts
- Application-specific damper tuning
- Higher fixed front spring-perch positioning
- Extended damper design for lifted applications
- Non-adjustable damping
- No external reservoirs
- Supporting spacers, installation hardware, and instructions included
- Bilstein part number 70-363814
Vehicle Fitment
Toyota RAV4 Gas Models
- 2019–2025 Toyota RAV4 LE
- 2019–2025 Toyota RAV4 XLE
- 2019–2025 Toyota RAV4 XLE Premium
- 2019–2025 Toyota RAV4 Limited
Toyota RAV4 Hybrid Models
- 2019–2025 Toyota RAV4 Hybrid LE
- 2019–2025 Toyota RAV4 Hybrid XLE
- 2021–2025 Toyota RAV4 Hybrid XLE Premium
- 2019–2025 Toyota RAV4 Hybrid XSE
- 2019–2025 Toyota RAV4 Hybrid Limited
- 2022–2025 Toyota RAV4 Hybrid SE
- 2023–2025 Toyota RAV4 Hybrid Woodland Edition
Fitment is limited to the models and trims listed above. Verify the year, trim, powertrain, drivetrain, suspension configuration, and original equipment before ordering.

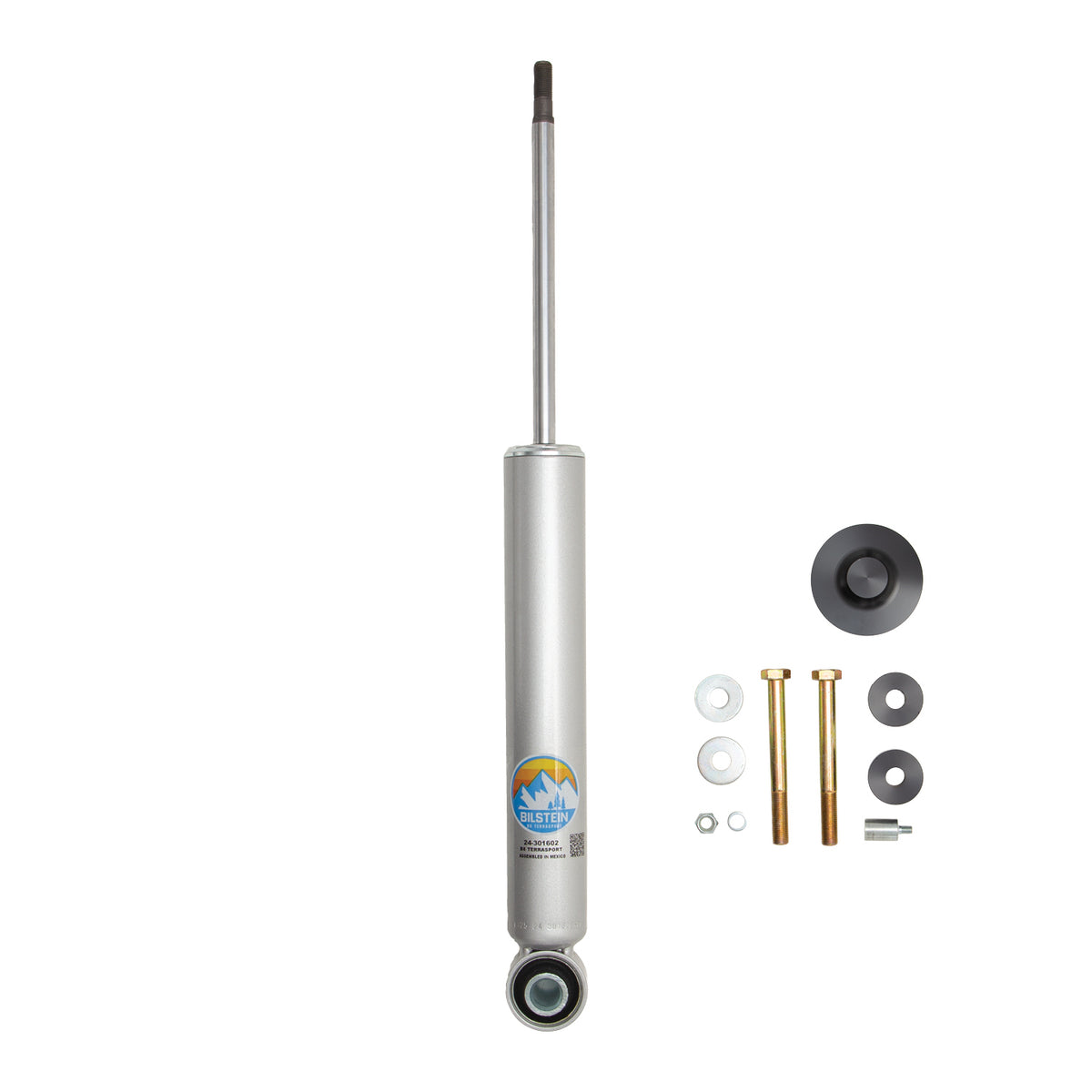

Kit Contents
- 2 Bilstein B8 TerraSport front twin-tube struts
- 2 Bilstein B8 TerraSport rear monotube shocks
- 1 anodized black aluminum spring spacer, 25.5mm
- 2 anodized black aluminum cradle-drop spacers, 25.5mm
- 1 cradle-bracket spacer, 30mm
- Related installation hardware
- Detailed installation instructions
Quantity: One complete vehicle kit
Product Specifications
- Manufacturer: Bilstein
- Series: B8 TerraSport
- Product Type: Suspension lift kit
- Bilstein Part Number: 70-363814
- Velocity Shop SKU: BIL70-363814
- Approximate Lift Height: 1.5 inches

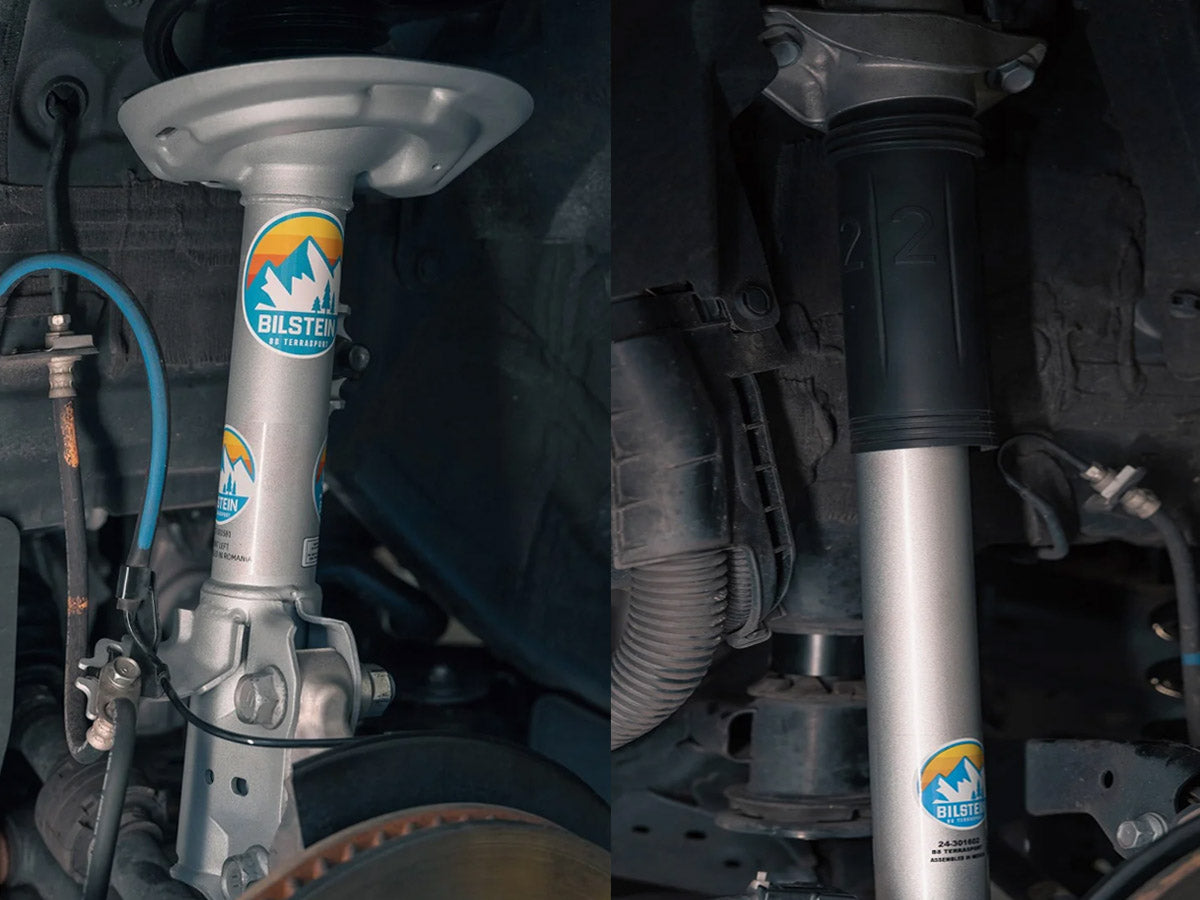

- Front Dampers: Two twin-tube struts
- Rear Dampers: Two monotube shocks
- Damping Adjustment: Non-adjustable
- External Reservoirs: No
- Damper Finish: Silver paint
- Factory Springs Retained: Yes
- Factory Upper Mounts Retained: Yes
- Kit Weight: 33.64 pounds
- UPC: 651860973302
- Quantity per Vehicle: One kit
Factory Component Notice
This kit reuses the vehicle’s original coil springs and upper strut mounts. Replacement springs, upper mounts, bearings, isolators, and other wear components are not included unless specifically shown or stated.
Inspect all reused suspension components before installation and replace worn or damaged parts separately.
Tire and Clearance Notice
Additional suspension lift may provide room for different wheel and tire combinations, but it does not guarantee that every larger tire will fit.
Final tire clearance depends on wheel width, wheel offset, tire dimensions, alignment settings, suspension travel, fender clearance, and vehicle load. Confirm the complete wheel-and-tire setup before ordering.
Installation Note
Professional installation is strongly recommended.
The installation requires removal and disassembly of the original front strut assemblies so the factory springs and upper mounts can be transferred to the Bilstein struts. Proper spring-compression equipment and suspension-service procedures are required.
A four-wheel alignment should be performed after installation. Verify camber, caster, and toe measurements and inspect all suspension fasteners after the initial driving period.
