Bilstein EVO S Coilovers for 2020–2024 Tesla Model Y AWD

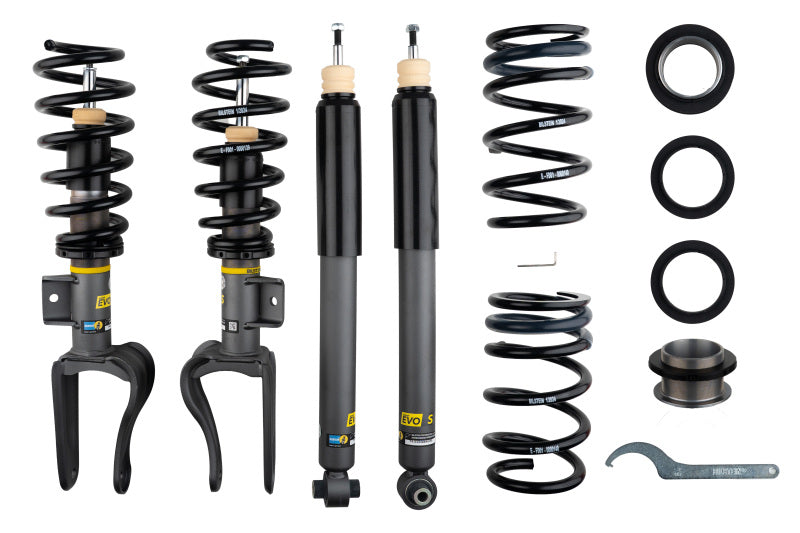

Improve handling, ride-height control, and overall suspension response with the Bilstein 47-348615 EVO S coilover suspension kit.
Designed for compatible 2020–2024 Tesla Model Y Long Range AWD and Performance AWD models, the EVO S is a complete front and rear street-performance suspension system. Its application-specific spring and damper tuning provides a more responsive, controlled driving experience while retaining the comfort needed for everyday street use.
Threaded front and rear ride-height adjustment allows the vehicle’s stance to be set within the approved adjustment range. Bilstein lists this Model Y application with approximately 15–40mm of front lowering and 0–35mm of rear lowering, although the final ride height can vary with vehicle configuration, battery weight, wheel and tire setup, and installation settings

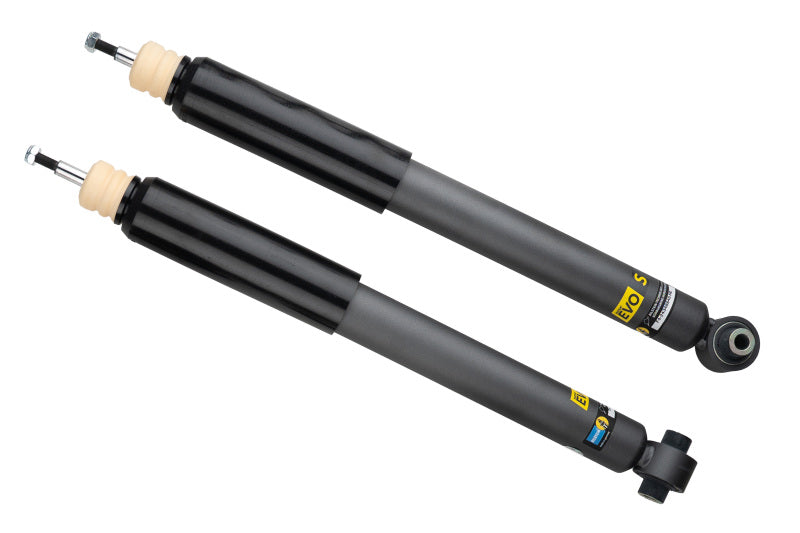

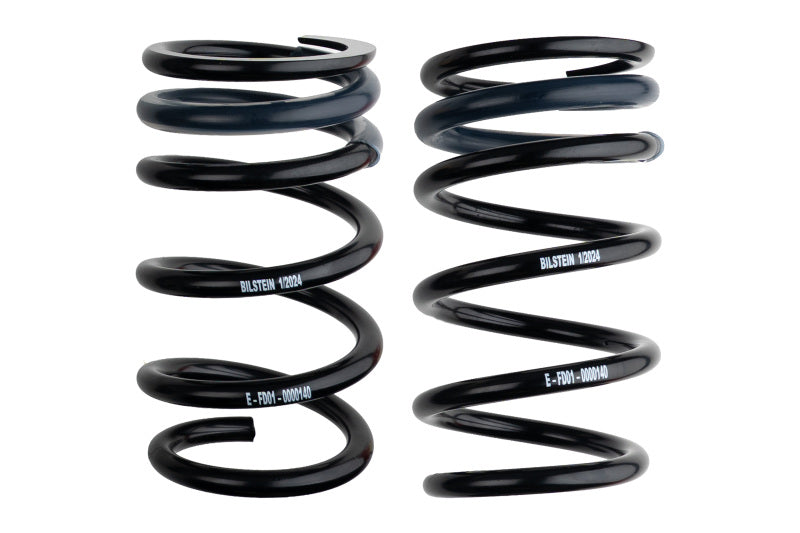

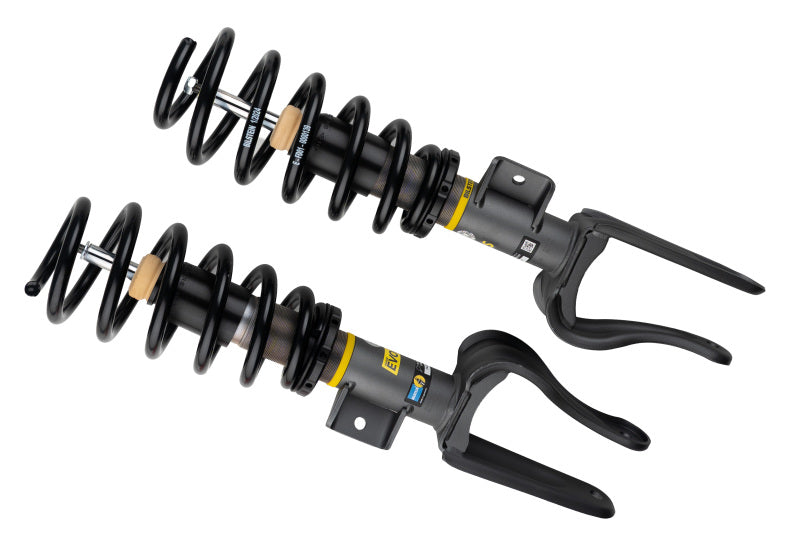

The front uses linear-rate springs rated at approximately 400 lb/in, while the rear uses progressive-rate springs rated at approximately 571 lb/in. The kit combines monotube and twin-tube damper designs selected specifically for the Model Y chassis.
Bilstein EVO S suspension systems are developed for street performance and manufactured in Germany using application-specific testing and tuning.
Product Features
- Complete front and rear coilover suspension kit
- Fits compatible 2020–2024 Tesla Model Y AWD models
- Designed for Long Range and Performance applications
- Threaded ride-height adjustment
- Approximately 15–40mm front lowering
- Approximately 0–35mm rear lowering
- Application-specific spring and damper tuning
- Improves steering response and suspension control
- Maintains usable comfort for everyday street driving
- Linear-rate front springs
- Progressive-rate rear springs
- Grey dampers with black springs
- Manufactured in Germany
- Bilstein part number 47-348615
Vehicle Fitment
- 2020–2024 Tesla Model Y Long Range AWD
- 2020–2024 Tesla Model Y Performance AWD
This kit is listed for all-wheel-drive Model Y applications. Confirm the vehicle model, drivetrain, production date, and suspension configuration before ordering.
Lowering Range
- Front: Approximately 15–40mm
- Rear: Approximately 0–35mm
Actual lowering may vary based on the original suspension, model configuration, vehicle equipment, battery package, wheel and tire combination, and selected adjustment position.
Product Specifications
- Manufacturer: Bilstein
- Product Line: EVO S
- Part Number: 47-348615
- Product Type: Front and rear coilover suspension kit
- Vehicle Position: Front and rear
- Ride-Height Adjustable: Yes
- Front Spring Type: Linear
- Front Spring Rate: Approximately 400 lb/in
- Rear Spring Type: Progressive
- Rear Spring Rate: Approximately 571 lb/in
- Damper Design: Monotube and twin-tube
- Damper Finish: Grey
- Spring Finish: Black
- Drivetrain: AWD
- GTIN: 00651860942247
- Barcode: 651860942247
- Country of Manufacture: Germany
Installation Note
Professional suspension installation is recommended. After installation, set both sides evenly, verify suspension and wheel clearance, and perform a four-wheel alignment.
Ride height should be measured and adjusted with the vehicle on level ground. Recheck all mounting hardware after the suspension has settled.
