Blox Racing K-Series Oil Pan Baffle for K20A2 K20Z1 (RSX Type S Engine)
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.

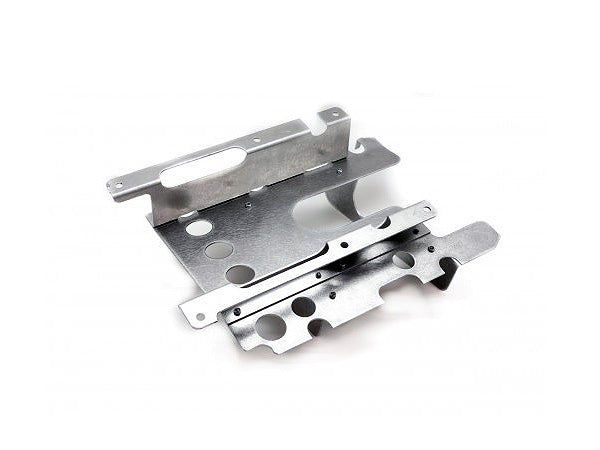

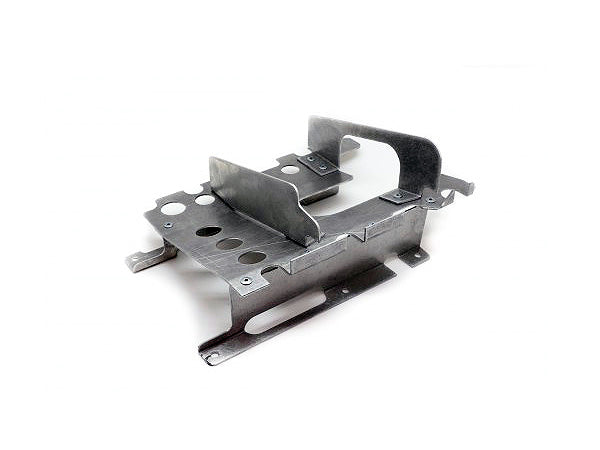

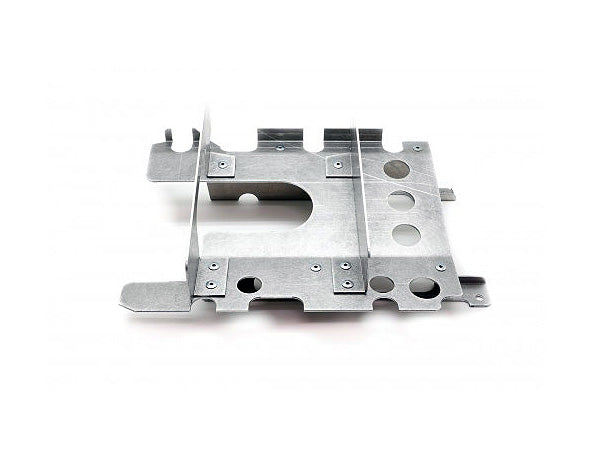

The BLOX Racing BXPT-10505 Bolt-In Oil Pan Baffle is designed for Honda K-Series engines, excluding K24Z-series engines, and helps control oil movement inside the oil pan during hard acceleration, braking, cornering, and racing conditions.

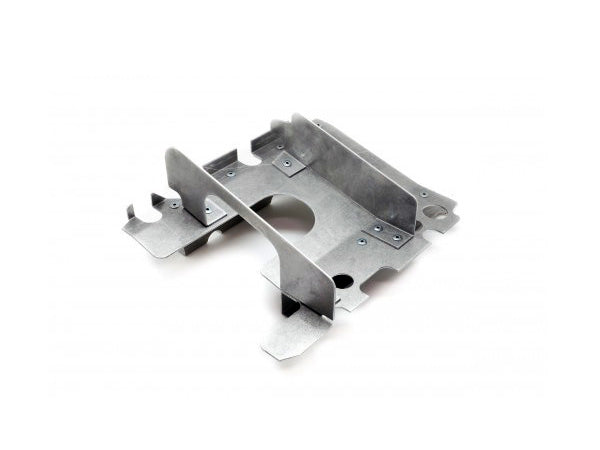

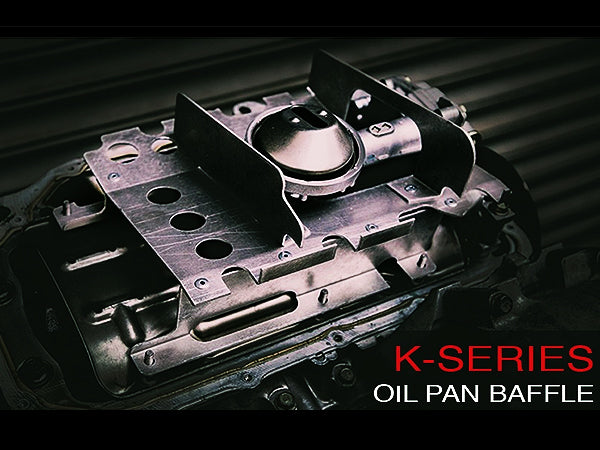

The baffle uses a three-chamber internal design, with the largest chamber surrounding the oil pump pickup. This helps keep oil concentrated around the pickup area and can help reduce the risk of oil starvation during aggressive driving.
For K-Series engines that do not already use the compatible RSX Type-S oiling configuration, the required RSX Type-S oil pan, oil pump, oil pump chain, and chain guide must be installed before this baffle can be used.
Features
- BLOX Racing bolt-in oil pan baffle
- Designed for Honda K-Series engines excluding K24Z
- Three-chamber internal oil-control design
- Largest chamber surrounds the oil pump pickup
- Helps reduce oil slosh inside the oil pan
- Helps maintain oil around the pickup during hard driving
- Designed to help reduce the risk of oil starvation
- 16-gauge 6061-T6 aluminum construction
- Stainless steel rivets
- Bolt-in design
Compatibility
The BLOX Racing BXPT-10505 oil pan baffle is designed to work with Honda K-Series engines, excluding K24Z-series engines.
Applications that do not already use the compatible RSX Type-S oiling setup require the following OE Honda parts or equivalent components:
- RSX Type-S Oil Pan: 11200-PRB-000
- RSX Type-S Oil Pump: 15100-PRB-A01
- RSX Type-S Oil Pump Chain: 13441-PCX-004
- RSX Type-S Oil Pump Chain Guide: 13460-PNC-004
Verify your existing oil pan and oil pump configuration before ordering. This product is not compatible with K24Z-series engines.
Specifications
- Manufacturer: BLOX Racing
- Part Number: BXPT-10505
- Product Type: Oil Pan Baffle
- Engine Family: Honda K-Series
- Material: 6061-T6 Aluminum
- Material Thickness: 16 Gauge
- Fasteners: Stainless Steel Rivets
- Design: Three-Chamber
- Installation Type: Bolt-In
- K24Z Compatibility: No
Oil Control Design
During aggressive driving, engine oil can move rapidly from side to side and front to rear inside the oil pan. The BLOX Racing BXPT-10505 uses three internal chambers to help limit this movement and keep more oil around the pickup area.
The largest chamber is positioned around the oil pump pickup to help support a more consistent oil supply during hard acceleration, braking, cornering, and racing conditions.
Recommended Use
- Street performance Honda K-Series builds
- Autocross
- Road course and track-day use
- Drag racing
- K-Series swaps using the compatible RSX Type-S oiling configuration
What’s Included

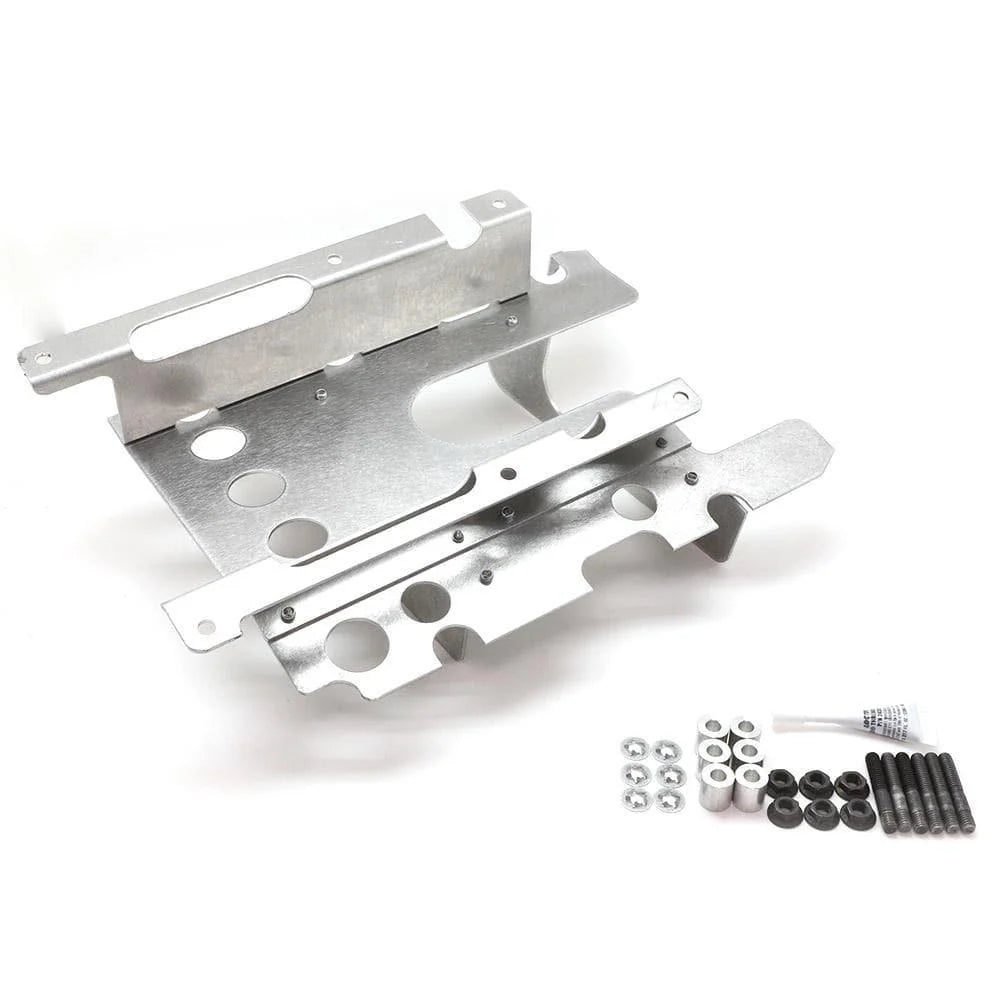

- 1 BLOX Racing BXPT-10505 bolt-in oil pan baffle
Installation Note
Before installation, verify that the engine is equipped with the compatible RSX Type-S oil pan, oil pump, oil pump chain, and chain guide or equivalent components. K24Z-series engines are excluded. Follow the BLOX Racing installation procedure and inspect all oil-system components during assembly.
