BorgWarner S300SX-E 9180 SuperCore – 69mm Compressor – 13009097051 – Showroom Special

BorgWarner S300SX-E 9180 SuperCore Assembly

Build a custom high-performance turbocharger setup around the BorgWarner S300SX-E 9180 SuperCore, part number 13009097051.

This assembly uses a 69mm compressor inducer, a 91.44mm compressor wheel outside diameter, and a 79.76mm turbine wheel outside diameter. It is designed as the center SuperCore assembly for an S300SX-E turbocharger configuration, allowing the appropriate turbine housing and related components to be selected separately for the intended application.

This particular unit is a showroom special that was removed from its packaging for photography but was never installed.

Product Features

• BorgWarner S300SX-E 9180 SuperCore assembly
• 69mm compressor wheel inducer
• 91.44mm compressor wheel outside diameter
• 79.76mm turbine wheel outside diameter
• 73.37mm turbine wheel exducer
• Straight compressor outlet
• Designed for custom S300SX-E turbocharger configurations
• BorgWarner part number 13009097051
• Showroom special
• Never installed

S300SX-E SuperCore Design

The SuperCore is the central rotating and compressor assembly of the turbocharger and is intended to be matched with compatible turbine housing components for the desired application.

BorgWarner's S300SX-E platform uses performance-oriented features such as a 360-degree thrust bearing and provisions associated with the SX-E family for high-performance turbocharger builds.

Because this is a SuperCore rather than a complete application-specific turbocharger, final turbo sizing and turbine housing selection should be based on engine displacement, power target, exhaust flow, intended use, and installation requirements.

Recommended Use

Suitable for custom turbocharger builds where the BorgWarner S300SX-E 9180 SuperCore configuration is appropriate, including:

• Performance street builds
• Motorsports applications
• Custom gasoline turbo systems
• Custom diesel turbo systems
• High-output engine combinations
• Turbocharger replacement or configuration projects using compatible S300SX-E components

This is a universal performance component and is not a direct vehicle-specific bolt-on turbocharger by itself. Exact compatibility depends on the complete turbo system and selected housings.

What’s Included

• 1 BorgWarner S300SX-E 9180 SuperCore assembly
• BorgWarner part number 13009097051

A complete turbine housing or vehicle-specific installation kit should not be assumed to be included. Exact-product listings for this SuperCore identify the turbine housing and certain ancillary components as separate items.

Showroom Special Condition

This unit is being sold as a showroom special.

• Removed from packaging for photographs
• Never installed
• May show normal signs of handling or display associated with photography and storage

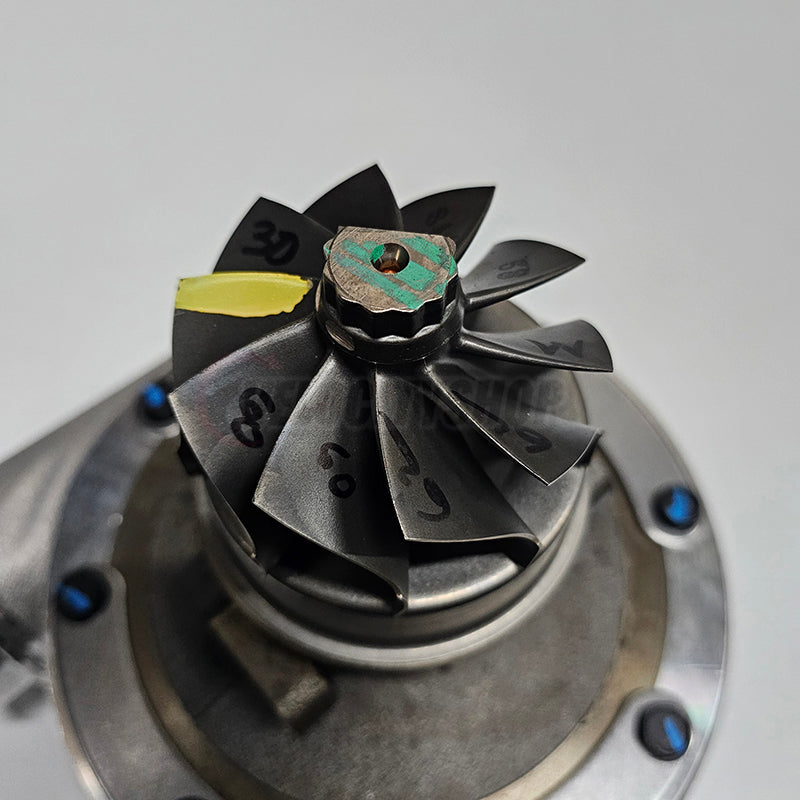

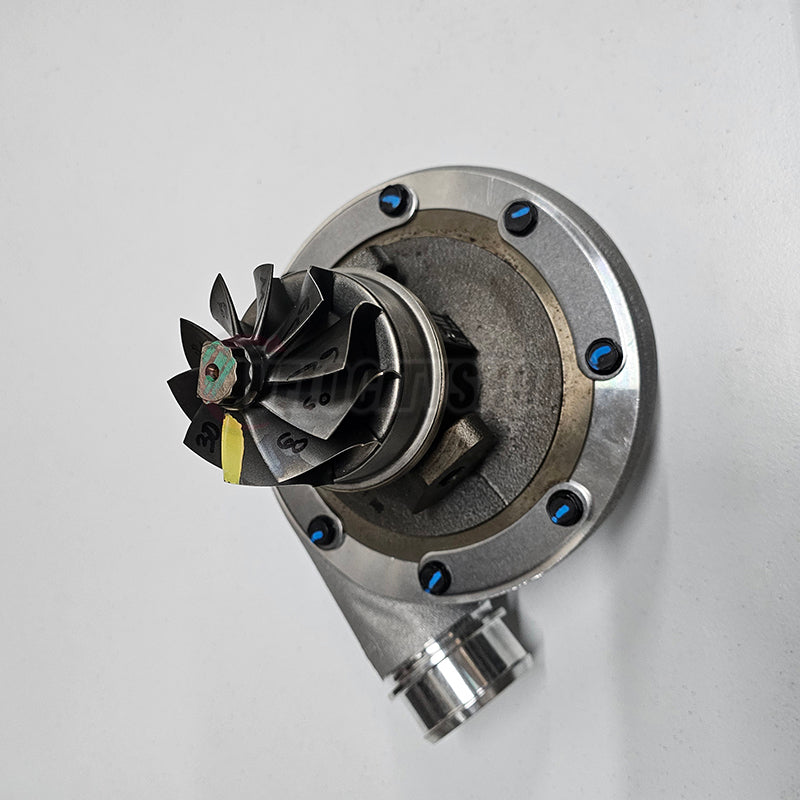

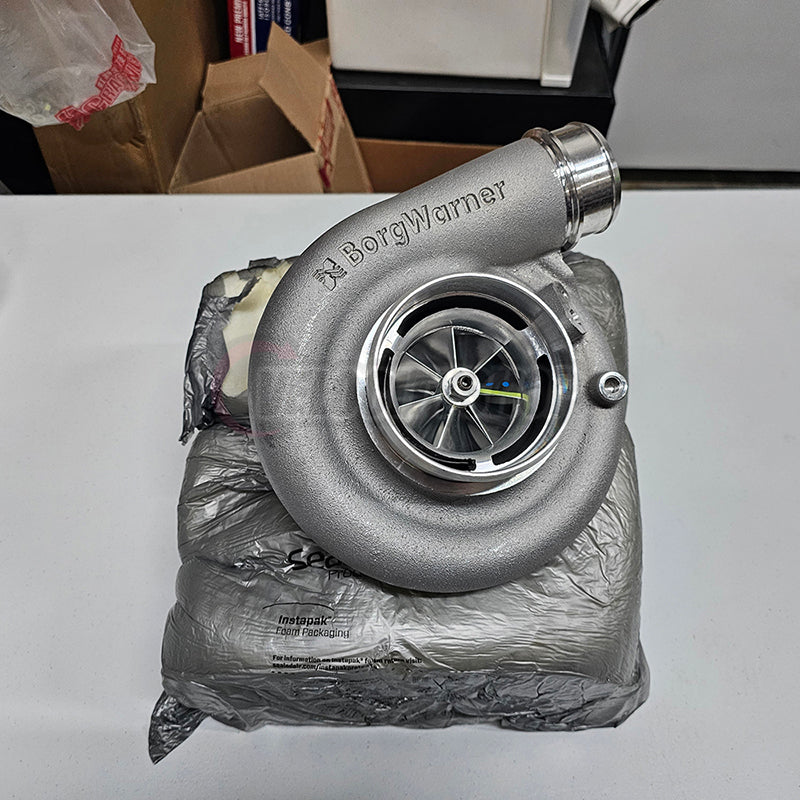

Please review the product photos for the condition of the actual item being offered.

Installation Note

Professional turbocharger system design and installation are recommended.

Before installation:

• Confirm the SuperCore is compatible with the intended turbine housing
• Verify compressor and turbine clearances
• Confirm oil feed and drain requirements
• Verify compressor inlet and outlet plumbing
• Confirm exhaust housing and flange configuration
• Check the complete turbocharger system for proper lubrication and unrestricted oil drainage before startup

Do not assume vehicle compatibility based on compressor wheel dimensions alone.

Product Specifications

• Manufacturer: BorgWarner
• Series: S300SX-E
• SuperCore Model: 9180

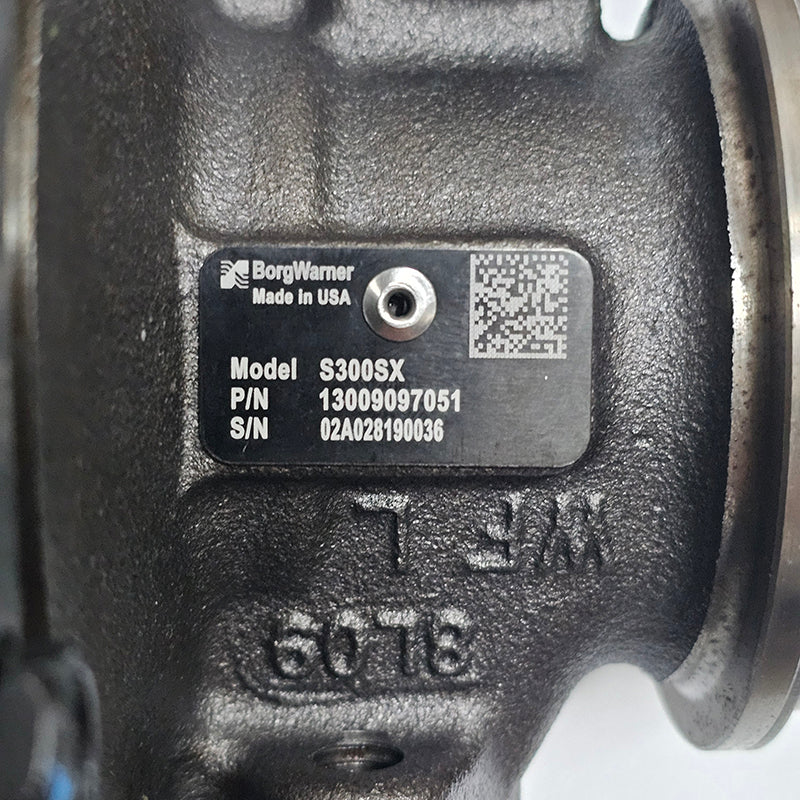

• Part Number: 13009097051
• Product Type: Turbocharger SuperCore Assembly
• Compressor Wheel O.D.: 91.44 mm / 3.60 in
• Compressor Wheel Inducer: 69 mm / 2.72 in
• Turbine Wheel O.D.: 79.76 mm / 3.14 in
• Turbine Wheel Exducer: 73.37 mm / 2.89 in
• Compressor Outlet: Straight
• Fitment Type: Universal / Custom Application
• Condition: Showroom Special – Never Installed
