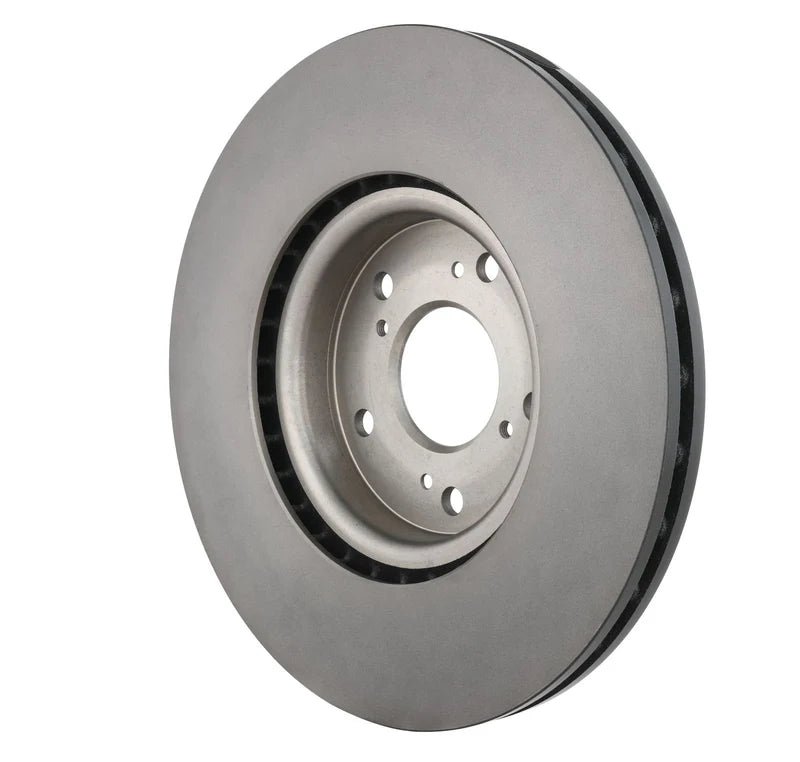

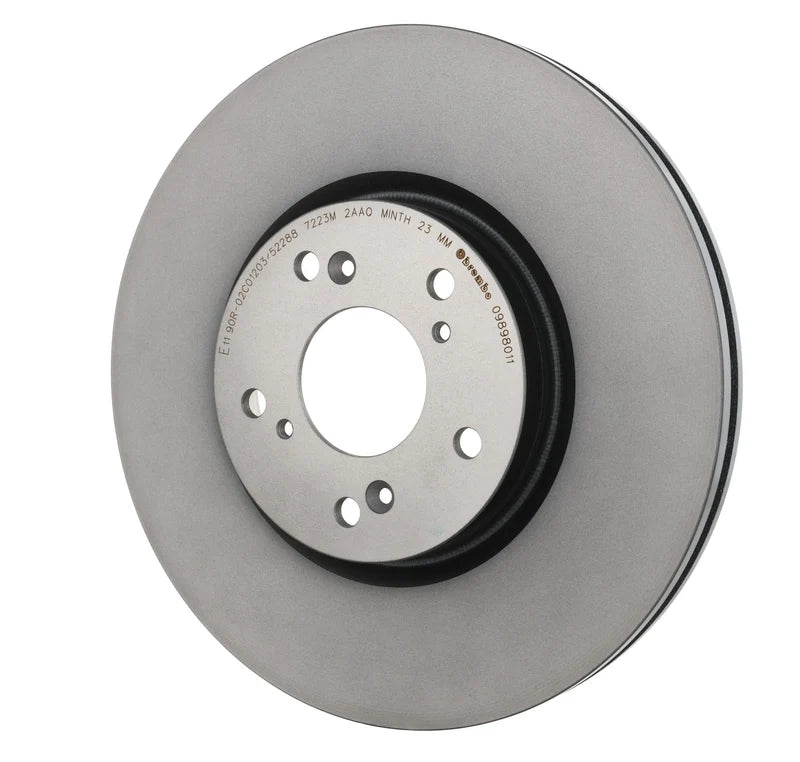

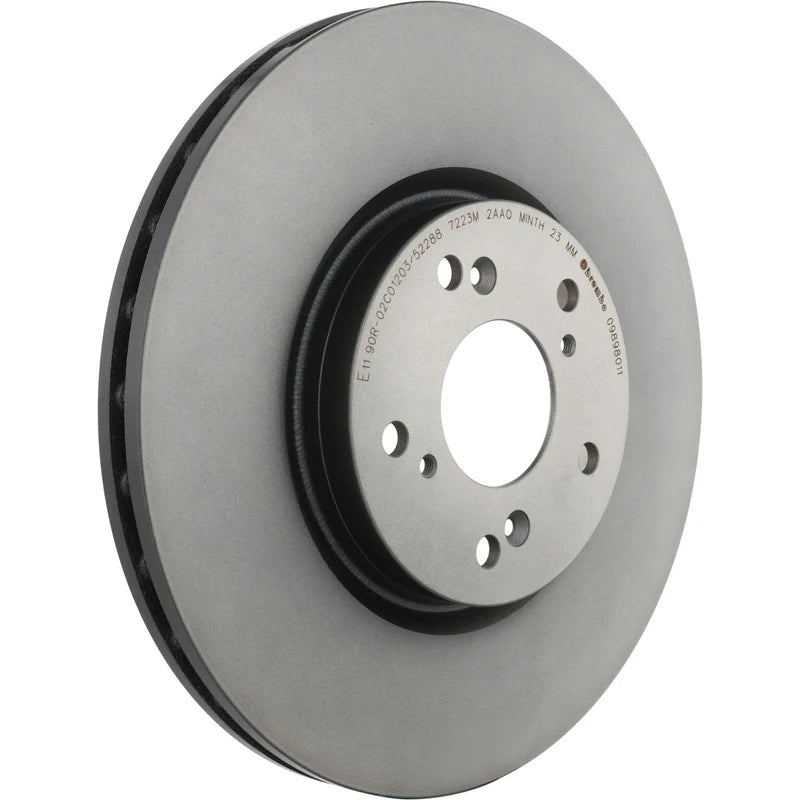

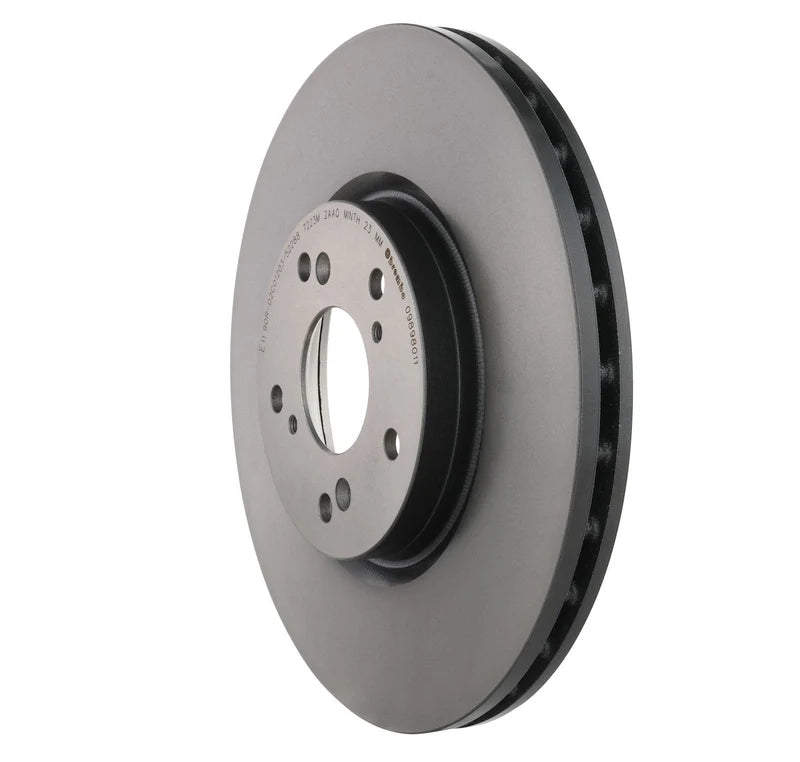

Brembo Prime UV-Coated Front Brake Rotor for Acura TL
Restore smooth, consistent braking performance with the Brembo 09.8980.11 Prime front brake rotor for select 2004–2008 Acura TL applications.
Designed as an OE-style direct replacement, this plain-face vented rotor is manufactured from high-carbon cast iron and features Brembo’s protective UV coating. The coating helps protect the rotor hat, outer edge, and non-swept surfaces against corrosion while maintaining a clean appearance behind the wheel.
The rotor measures 310mm in diameter and is designed for the larger front brake configuration used on the 2004–2006 Acura TL with the factory 6-speed manual transmission and the 2007–2008 Acura TL Type-S. (Brembo Caliper models)
This listing includes one front brake rotor. Order quantity 2 to replace both front rotors.
Product Features
- Brembo Prime replacement brake rotor
- Front axle application
- OE-style plain braking surface
- Vented rotor construction
- High-carbon cast-iron material
- Brembo UV-coated finish
- Helps protect non-swept surfaces against corrosion
- Designed for direct replacement installation
- 310mm outside diameter
- 25mm nominal thickness
- Fits either the front-left or front-right position
- Sold individually
- Brembo part number 09.8980.11
Vehicle Fitment
Acura TL w/ Brembo Front Calipers
- 2004–2006 Acura TL Sport with factory 6-speed manual transmission
- 2007–2008 Acura TL Type-S
The 2004–2006 Acura TL was available with more than one front brake configuration. This 310mm rotor is intended for models equipped with the larger factory front brake system (Brembo Brake Calipers) associated with the 6-speed manual transmission.
Verify the original rotor diameter, transmission, trim, brake caliper, and factory brake configuration before ordering.
Brake Rotor Specifications
- Manufacturer: Brembo
- Product Line: Prime
- Brembo Part Number: 09.8980.11
- Installation Position: Front
- Side: Left or right
- Rotor Style: Plain
- Rotor Construction: Vented
- Material: High-carbon cast iron
- Finish: UV coated
- Outside Diameter: 310mm / approximately 12.20 inches
- Nominal Thickness: 25mm
- Minimum Thickness: 23mm
- Overall Height: Approximately 45mm
- Center Bore: 64mm
- Lug-Hole Quantity: 5
- UPC: 8020584319260
- Quantity: One rotor
What’s Included
- 1 Brembo Prime front brake rotor
Brake pads, calipers, mounting brackets, brake hoses, and additional brake components are not included unless specifically shown or stated.
Quantity Notice
Brake rotors should be replaced in pairs across the same axle to maintain balanced braking performance.
This rotor is sold individually. Select a quantity of 2 when replacing both front brake rotors.
Installation Note
Professional installation is recommended.
Before installing the rotor, thoroughly clean the wheel-hub mounting surface and remove rust, scale, and debris. An uneven hub surface can create excessive rotor runout, pedal pulsation, or vibration.
Inspect the brake pads, calipers, slide hardware, brake hoses, and wheel hubs during installation. Installing new brake pads with new rotors is recommended to promote proper bedding and even contact.
Follow the applicable Acura service procedures and complete the recommended brake-pad and rotor bedding process after installation.
