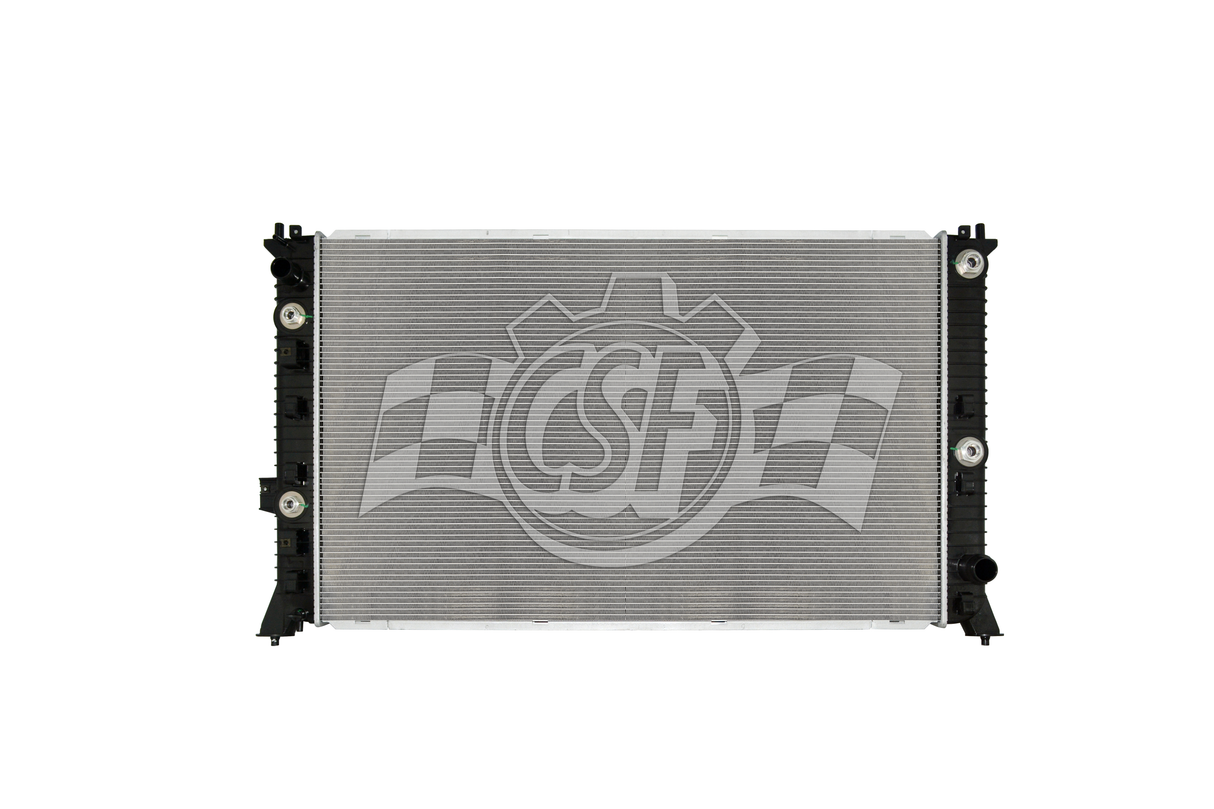

CSF 20-24 Chevrolet Silverado 2500/3500 6.6L Radiator
CSF 20-24 Chevrolet Silverado 2500/3500 6.6L Radiator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sign up to be the first to know when it's here
Have a Question?
Customer also asked
CSF factories are ISO/TSO certified, each CSF radiators are designed and built to High Performance Standards, and are carefully engineered and wind tunnel tested in labartory for Cooling Performance Validation.
Features
OEM specified Plastic Tank-Aluminum Core Construction
Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength and Durability
Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120°F
Tubes - Welded Type or Latest Generation "B-Tube" Design
Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging - "10 Foot Drop Test" Standard
Drop-in Fit
High Performance Transmission Cooler with special Built-in Turburlator, when applicable
All components are installed, torqued, & tested on Radiator during assembly
Specifications
Bottom Hose Fitting (in): 1 1/2 Right (in)
Core Length (in): 37-9/16 (in)
Core Material: Aluminum
Core Thickness (in): 1-1/4 (in)
Core Width (in): 23-3/8 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 23-13/16
Inlet Width (in): 1-15/16
No. Of Rows: 1
Oil Cooler (in): 11-1/2 Left & Right (high-efficiency Plate Type)
Outlet Length (in): 23-13/16
Outlet Width (in): 2-7/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect outlet pipe & quick-connect oil cooler fittings.
Top Hose Fitting (in): 1-5/16 Left (in)
Cross Compatibility
DPI 13885
OEM 84565799
OEM 84889155
Partslink GM3010625
