Energy Suspension Steering Rack Bushing Set – 1994–2001 Acura Integra, 1992–1995 Civic & 1993–1997 del Sol – Red – 16.10102R

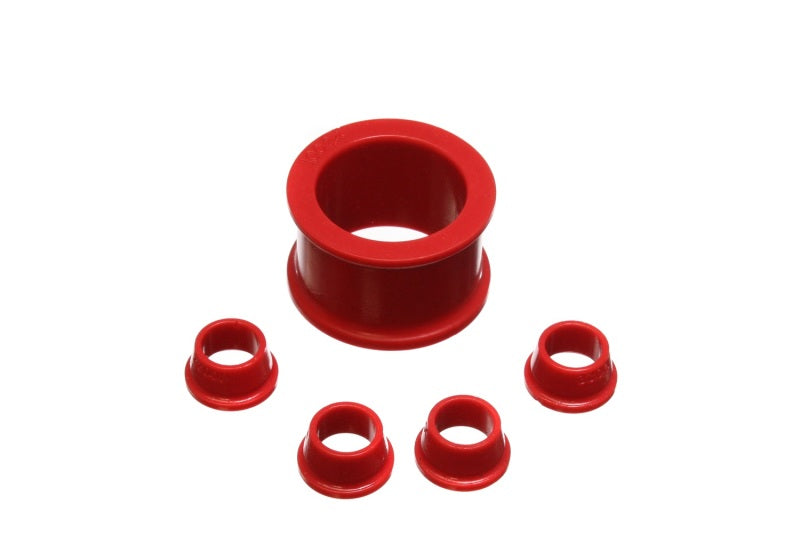

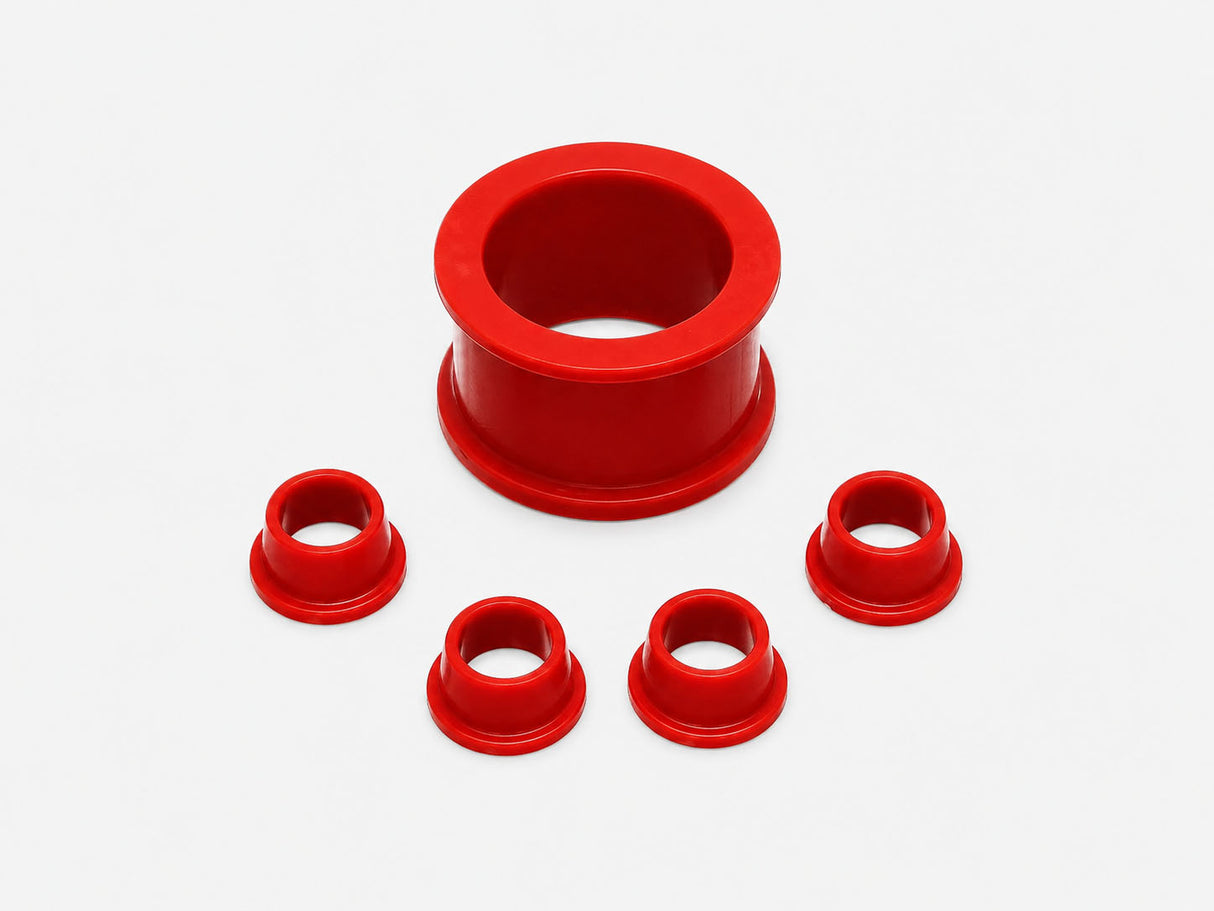

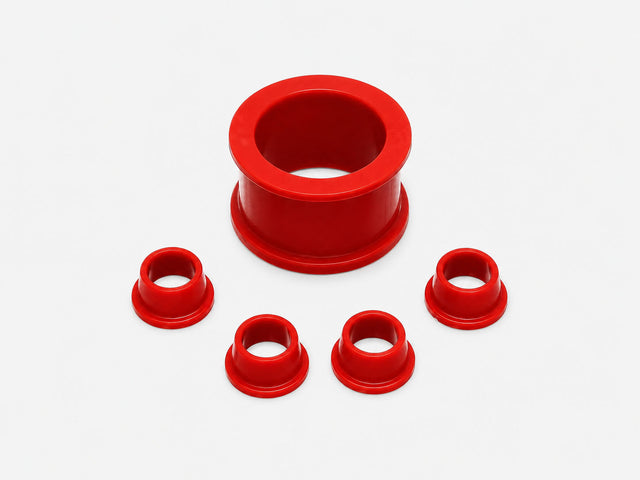

Energy Suspension 16.10102R Steering Rack Bushing Set

Replace worn factory steering rack bushings with the Energy Suspension 16.10102R polyurethane rack-and-pinion bushing set in red.

Designed for compatible Honda and Acura power steering applications, these Hyper-Flex polyurethane bushings replace aging rubber rack mounts that can soften, compress, or deteriorate over time. Firmer polyurethane construction helps secure the steering rack more consistently to the chassis and reduce unwanted rack movement during steering input.

Product Features

• Energy Suspension steering rack bushing set
• Designed for compatible power steering applications
• Hyper-Flex polyurethane construction
• Replaces original rubber rack mounting bushings
• Helps reduce unwanted steering rack movement
• Resistant to common underbody contaminants that can deteriorate rubber
• Performance-oriented replacement for worn factory bushings
• Red finish
• Energy Suspension part number 16.10102R

Vehicle Fitment (power steering only)

For Left Hand Drive applications only.

Acura Integra

• 1997–2001 Integra GS
• 1994–2001 Integra GS-R
• 1994–2001 Integra LS
• 1994–1998 Integra RS
• 1995–1996 Integra Special Edition
• 1997–1998 Integra Type R
• 2000–2001 Integra Type R

Honda Civic

• 1992–1995 Civic CX
• 1992–1995 Civic DX
• 1992–1995 Civic EX
• 1992–1995 Civic LX
• 1992–1995 Civic Si
• 1992–1995 Civic VX

Honda Civic del Sol

• 1993–1997 del Sol S
• 1993–1997 del Sol Si
• 1994–1997 del Sol VTEC

The application data associated with 16.10102R lists those Integra, Civic, and del Sol applications.

Important Fitment Notice

This bushing set is intended for compatible power steering rack-and-pinion systems.

Do not select the bushings based solely on vehicle year or chassis. Confirm that the vehicle is equipped with the correct power steering rack and that Energy Suspension part number 16.10102R is specified for the application before ordering. Exact-product listings specifically identify this as a power steering rack bushing set.

Hyper-Flex Polyurethane

Energy Suspension uses its Hyper-Flex polyurethane material as a firmer alternative to original rubber suspension and steering bushings.

Compared with aged rubber rack mounts, polyurethane is designed to better resist permanent compression and deterioration from common automotive contaminants such as oil, road salt, and other underbody exposure.

Because polyurethane is firmer than factory rubber, some additional steering feel or vibration may be transmitted through the chassis after installation.

Recommended Use

This kit is well suited for:

• Replacing worn or deteriorated steering rack bushings
• Street-driven Honda and Acura applications
• Performance-oriented builds
• Restorations using an original-style power steering rack
• Vehicles where excessive rack movement is contributing to vague steering response

What’s Included

• 1 Energy Suspension rack-and-pinion bushing set for one vehicle

Exact individual bushing count should be verified against the package contents before stating a specific number of pieces.

Installation Note

Professional installation is recommended.

Before installation:

• Inspect the steering rack and mounting brackets for damage
• Inspect the rack housing and mounting surfaces for corrosion
• Compare the new bushings with the original components
• Confirm the steering rack is correctly centered and secured
• Follow the vehicle manufacturer’s torque specifications for steering rack mounting hardware

After installation, verify that the steering system operates freely through the complete steering range and inspect for abnormal movement or interference.

A 4 wheel alignment is required after installation.

Product Specifications

• Manufacturer: Energy Suspension
• Product Line: Hyper-Flex
• Part Number: 16.10102R
• Velocity Shop SKU: ENG16.10102R
• Product Type: Rack and Pinion / Steering Rack Bushing Set
• Steering Type: Power Steering
• Material: Polyurethane
• Color: Red
• Fitment Type: Vehicle Specific
• UPC / Barcode: 703639254621
