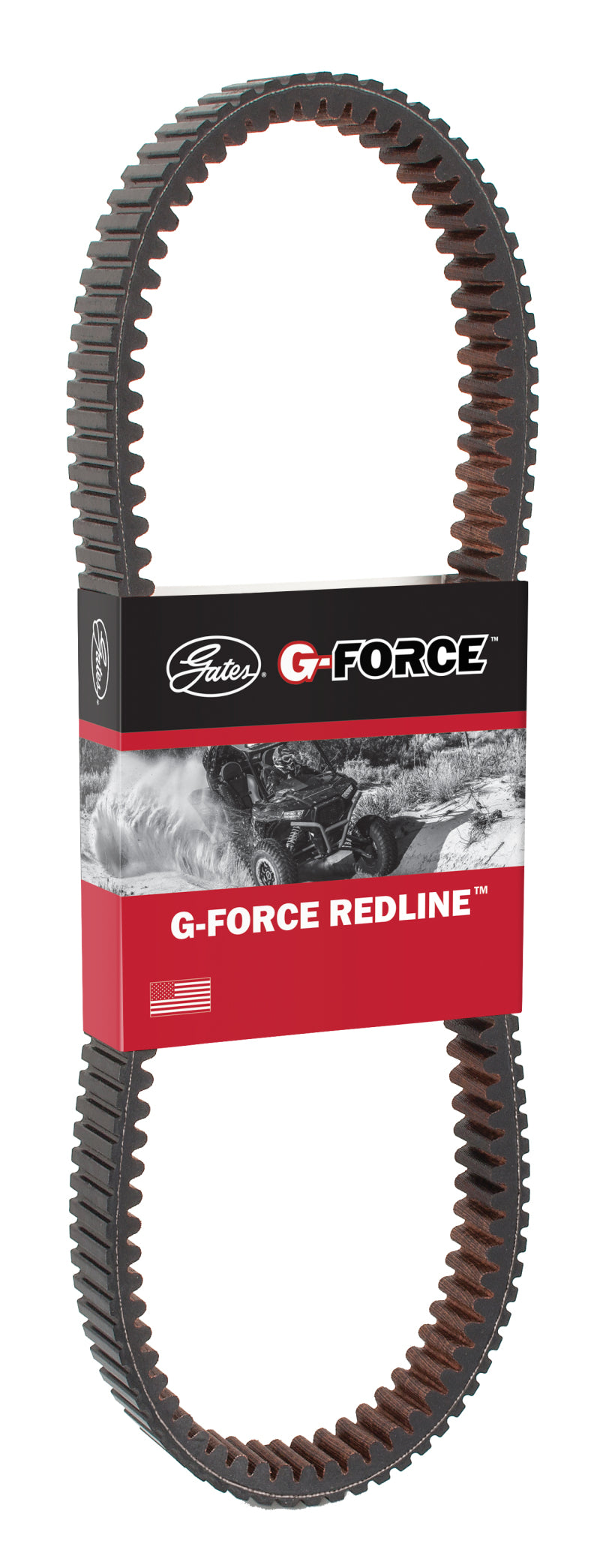

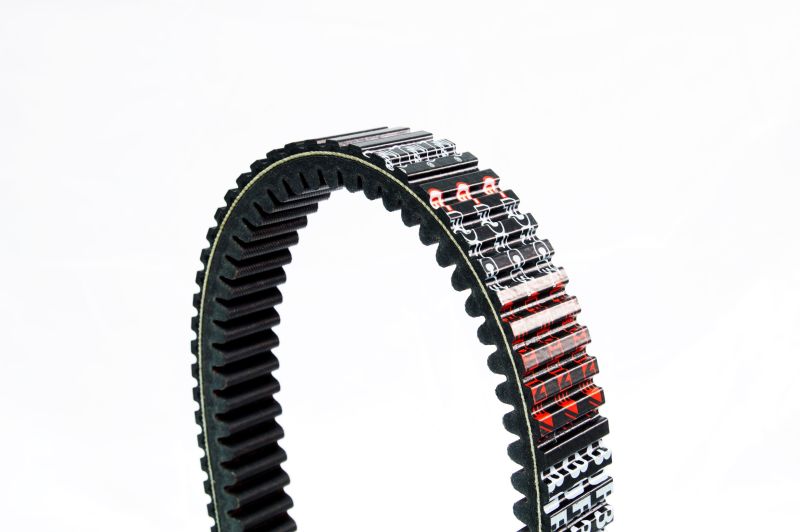

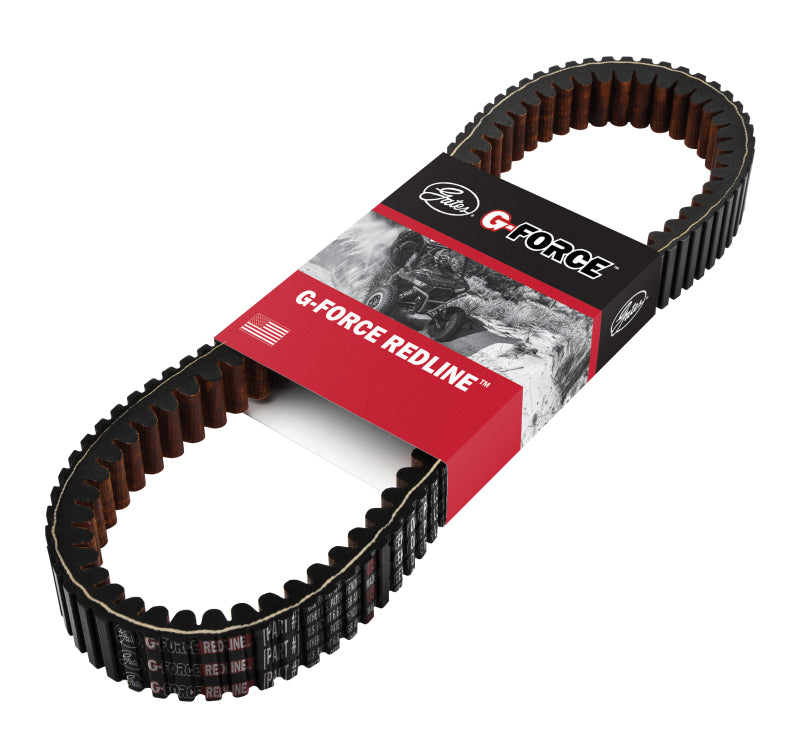

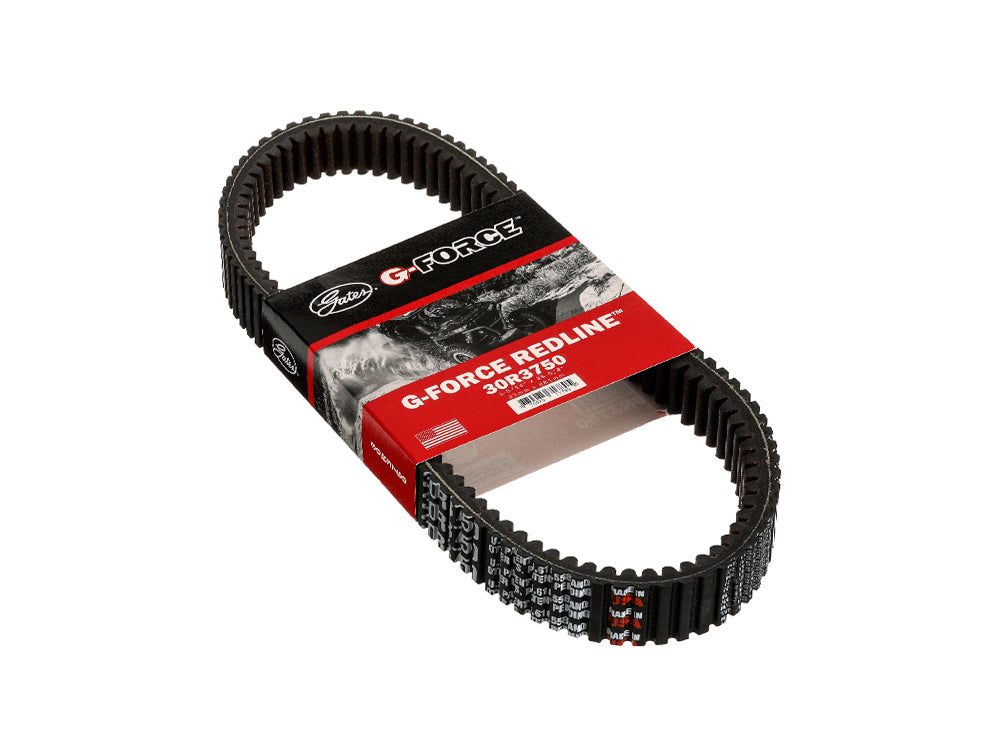

Gates G-Force RedLine CVT Drive Belt
The Gates G-Force RedLine CVT belt is a premium severe-duty drive belt for select Bennche, BMS, Bombardier, Massimo, Odes, and Qlink ATV and UTV applications.
Designed for demanding powersports use, this belt uses Gates’ patented Ethylene Elastomer compound to provide increased heat resistance, axial stiffness, and load capacity. It is engineered to resist heat fade, glazing, cracking, and wear while maintaining efficient power transfer under sustained loads and elevated operating temperatures.
Features
- Premium Gates G-Force RedLine CVT drive belt
- Patented Ethylene Elastomer compound
- High heat resistance with improved heat recovery
- Increased stiffness for higher continuous torque and load capacity
- Helps reduce heat fade and speed loss
- Resists glazing, cracking, and wear
- Notched belt construction
- Suitable for demanding ATV and UTV use
- Made without chlorinated compounds
- Gates part number: 30R3750
Fitment
Bennche
- 2017–2022 Bighorn 850 – 800cc
- 2017–2019 Warrior 800 – 800cc
- 2020–2022 X2 800 – 800cc
- 2020–2022 X2 1000 – 976cc
BMS
- 2022–2024 Beast 1000 – 996cc
Bombardier
- 2006 Outlander 800 HO EFI – 800cc
- 2006 Outlander 800 HO EFI XT – 800cc
- 2006 Outlander MAX 800 HO EFI – 800cc
Can-Am ATVs
- 2007–2011 Outlander – 800cc
- 2012–2015 Outlander – 800cc and 976cc
- 2016–2024 Outlander – 854cc and 976cc
- 2025 Outlander – 976cc
- 2007–2012 Outlander MAX – 800cc
- 2013–2015 Outlander MAX – 800cc and 976cc
- 2016–2018 Outlander MAX – 854cc and 976cc
- 2015 Outlander XT – 800cc and 976cc
- 2016–2018 Outlander XT – 854cc and 976cc
- 2007–2011 Renegade – 800cc
- 2012–2015 Renegade – 800cc and 976cc
- 2016–2022 Renegade – 854cc and 976cc
- 2023–2026 Renegade – 976cc
Can-Am UTVs
- 2011–2020 Commander – 800cc and 976cc
- 2014–2016 Commander MAX – 976cc
- 2017–2019 Commander MAX – 800cc and 976cc
- 2015–2019 Commander XT – 800cc and 976cc
- 2013–2018 Maverick – 976cc
- 2013–2017 Maverick MAX – 976cc
Massimo
- 2018–2019 MSU850 – 800cc
- 2022 MSU850 – 850cc
- 2023–2024 MSU850 – 800cc
- 2018–2022 Warrior800 – 800cc
Odes
- 2014–2019 Assailant – 800cc
- 2014–2019 Dominator – 800cc
- 2021 Dominator – 800cc
- 2014–2019 Dominator – 1000cc
- 2021 Dominator – 1000cc
- 2014–2017 Raider – 800cc
- 2014–2017 Raider – 1000cc
- 2018–2019 Ravager – 1000cc
- 2021 Ravager – 1000cc
- 2019 X-Force – 976cc
Qlink
- 2010–2014 FrontRunner 800S EFI – 800cc
Fitment varies by model year and engine. Confirm the vehicle’s exact year, make, model, engine displacement, and original belt specifications before ordering.
Belt Specifications
- Top width: 1.313 inches
- Top width: 33 mm
- Pitch width: 1.22 inches
- Pitch width: 31 mm
- Pitch length: 37.499 inches
- Outside circumference: 38.625 inches
- Outside circumference: 981 mm
- Construction: Notched

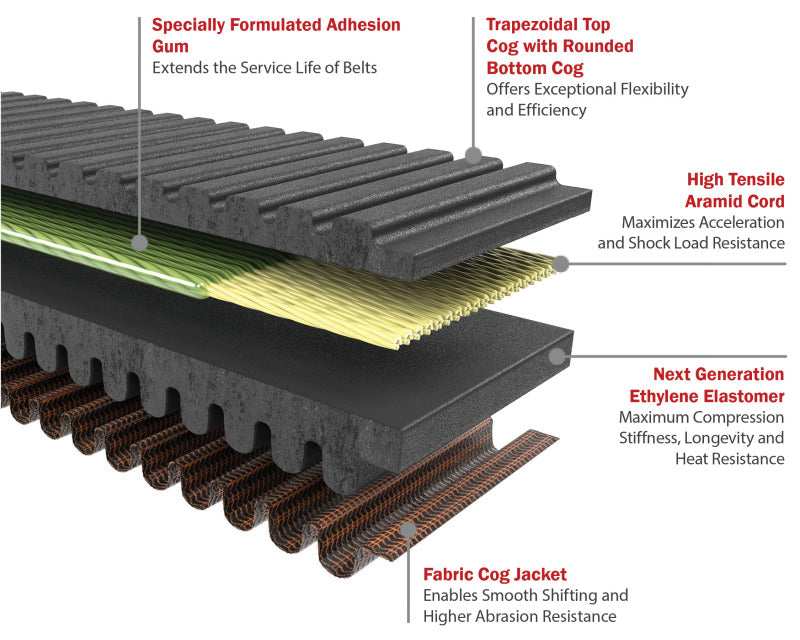

G-Force RedLine Technology
G-Force RedLine belts are designed for demanding powersports applications where high loads and elevated temperatures can shorten conventional belt life.
The Gates Ethylene Elastomer compound provides increased stiffness and heat resistance to help the belt maintain its shape and transfer power consistently during high-temperature operation. This design helps reduce heat-related speed loss while improving resistance to glazing, cracking, and wear.
What’s Included
- 1 Gates G-Force RedLine CVT drive belt
- Gates part number 30R3750
Installation and Break-In
Inspect the CVT system and clean the clutch sheaves before installing the new belt. Remove old belt residue, glazing, oil, and debris, and verify clutch alignment according to the vehicle manufacturer’s specifications.
Gates recommends properly heat-cycling a new CVT belt before full-load operation. Use moderate acceleration, avoid exceeding three-quarter throttle during break-in, allow the belt to cool completely between heat cycles, and avoid aggressive riding until the break-in process is complete.
Do not use brake cleaner on the clutch sheaves. Professional installation is recommended if you are unfamiliar with CVT belt service.
