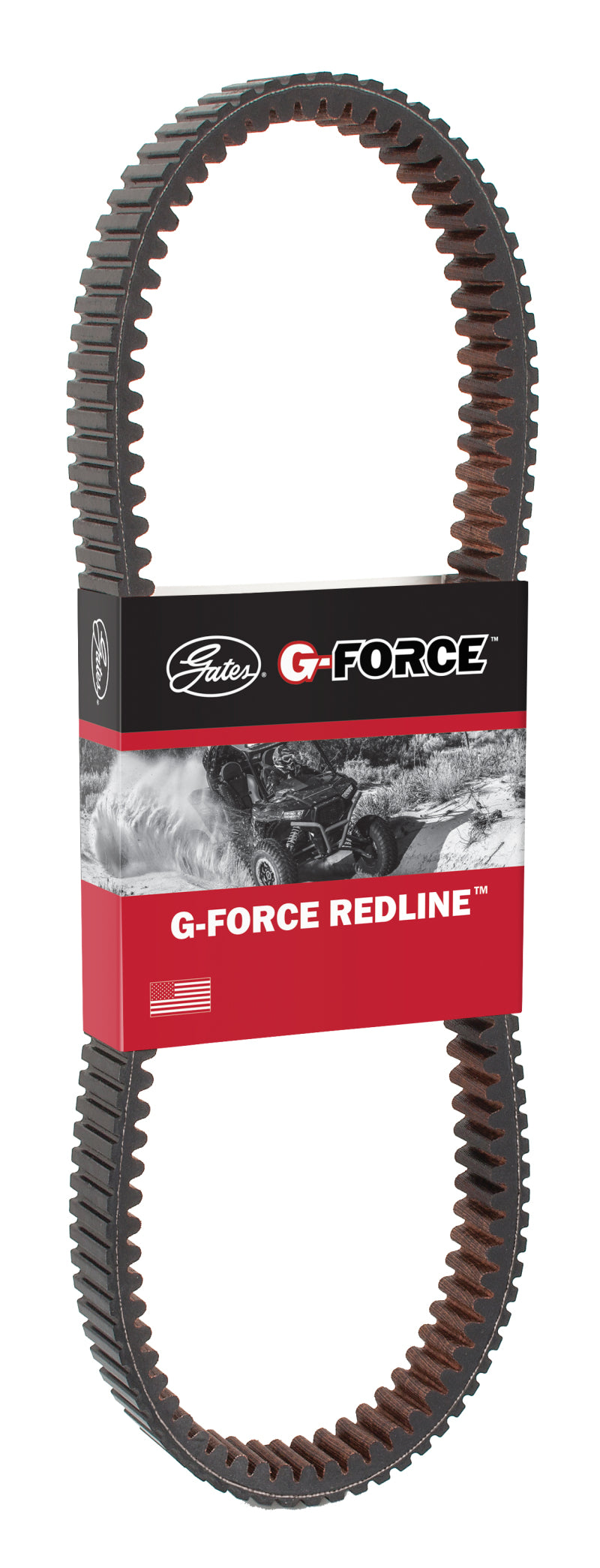

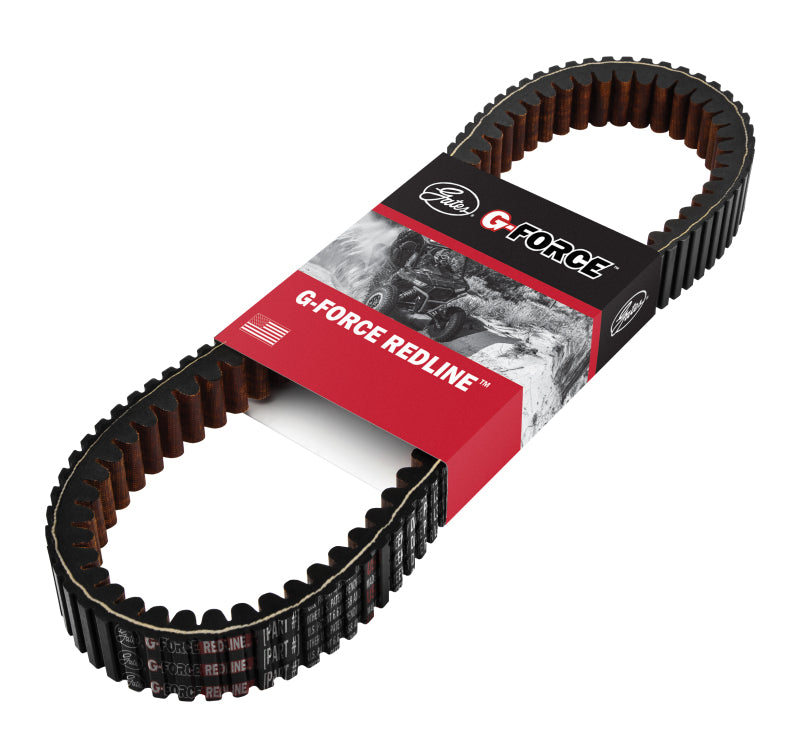

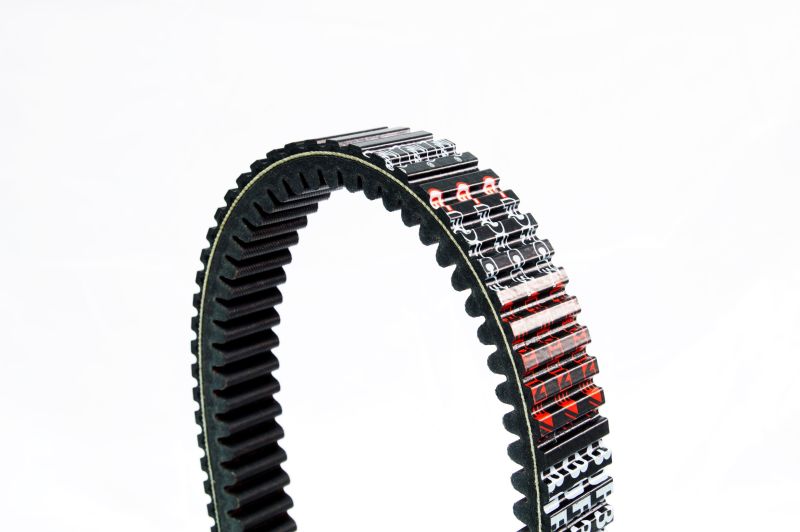

Gates G-Force RedLine CVT Belt 28R3636
The Gates 28R3636 G-Force RedLine CVT belt is a high-performance drive belt engineered for select Arctic Cat Wildcat 951cc UTV applications.
Designed for demanding powersports CVT systems, the G-Force RedLine uses an aramid fiber-loaded Ethylene Elastomer compound and high-tensile aramid cord construction to withstand the heat, compression forces, acceleration, and frequent load changes encountered during aggressive off-road driving.
Features
- Gates G-Force RedLine high-performance CVT drive belt
- Designed for select Arctic Cat Wildcat 951cc UTV applications
- Aramid fiber-loaded Ethylene Elastomer compound
- High-tensile aramid cord reinforcement
- High transverse stiffness for demanding torque loads
- Engineered for improved heat resistance and recovery
- Designed to reduce heat fade and speed loss
- Fabric cog jacket for smooth shifting and abrasion resistance
- Improved resistance to cracking and wear
- Suitable for severe-duty off-road operating conditions
- Manufacturer Part Number: 28R3636
Vehicle Fitment
Arctic Cat Utility Vehicles – 951cc
- 2013 Arctic Cat Wildcat 1000
- 2014 Arctic Cat Wildcat 1000
- 2014 Arctic Cat Wildcat 1000 Limited
- 2014 Arctic Cat Wildcat 4
- 2013 Arctic Cat Wildcat 4 1000
- 2014 Arctic Cat Wildcat 4 Limited
- 2014 Arctic Cat Wildcat 4X
- 2015 Arctic Cat Wildcat 4X
- 2016 Arctic Cat Wildcat 4X
- 2018 Arctic Cat Wildcat 4X
- 2015 Arctic Cat Wildcat EPS
- 2013 Arctic Cat Wildcat X
- 2014 Arctic Cat Wildcat X
- 2015 Arctic Cat Wildcat X
- 2016 Arctic Cat Wildcat X
- 2017 Arctic Cat Wildcat X
- 2018 Arctic Cat Wildcat X
- 2019 Arctic Cat Wildcat X
- 2014 Arctic Cat Wildcat X Limited
Engine Size: 951cc
Verify the vehicle model, model year, and engine size before ordering.
G-Force RedLine Technology

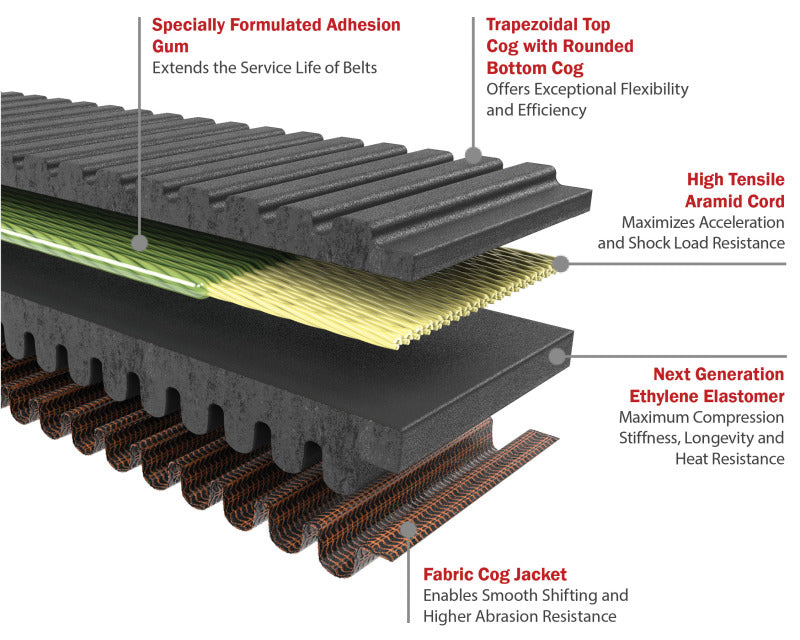

Gates G-Force RedLine belts use an aramid fiber-loaded Ethylene Elastomer compound engineered to provide high stiffness and heat resistance under demanding CVT loads.
High-tensile aramid cords help maximize acceleration, shock-load resistance, and fatigue resistance, while the fabric cog jacket promotes smooth shifting and increased abrasion resistance.
This construction is designed to maintain consistent power transfer during high acceleration, frequent back-shifting, heavy loads, and other severe off-road operating conditions.
Heat and Load Performance
Heat is one of the major sources of CVT belt performance loss and premature wear.
G-Force RedLine belts provide greater dynamic axial stiffness, reduced speed loss under heavy loads, and recovery from temperatures up to approximately 338°F (170°C) without power loss.
The RedLine design is intended for demanding UTV applications where repeated torque loads and elevated CVT temperatures can place significant stress on the drive belt.
Recommended for:
- Select Arctic Cat Wildcat 951cc UTVs
- Aggressive trail riding
- Desert and dune use
- Rock crawling
- High-load off-road driving
- Frequent acceleration and back-shifting
- High-temperature CVT operating environments
- Replacement of a worn, cracked, glazed, or damaged CVT belt
What's Included
- 1 Gates G-Force RedLine 28R3636 CVT drive belt
Manufacturer: Gates
Product Line: G-Force RedLine
Part Number: 28R3636
Product Type: CVT Drive Belt
Vehicle Type: UTV / Side-by-Side
Application: Select Arctic Cat Wildcat models
Engine Size: 951cc
Installation and Break-In
Inspect the primary and secondary clutch system before installing the new CVT belt. Make sure the clutch sheaves are clean, properly aligned, and free of oil, grease, old belt residue, and other contaminants.
Do not back-bend, crimp, flatten, invert, or pry on the CVT belt during handling or installation.
Gates recommends properly breaking in a new G-Force belt before severe use. Gradually heat-cycle the new belt and avoid immediately subjecting it to repeated full-throttle acceleration or heavy loads.
Proper clutch condition, clutch tuning, belt installation, and break-in can significantly affect belt performance and service life.
