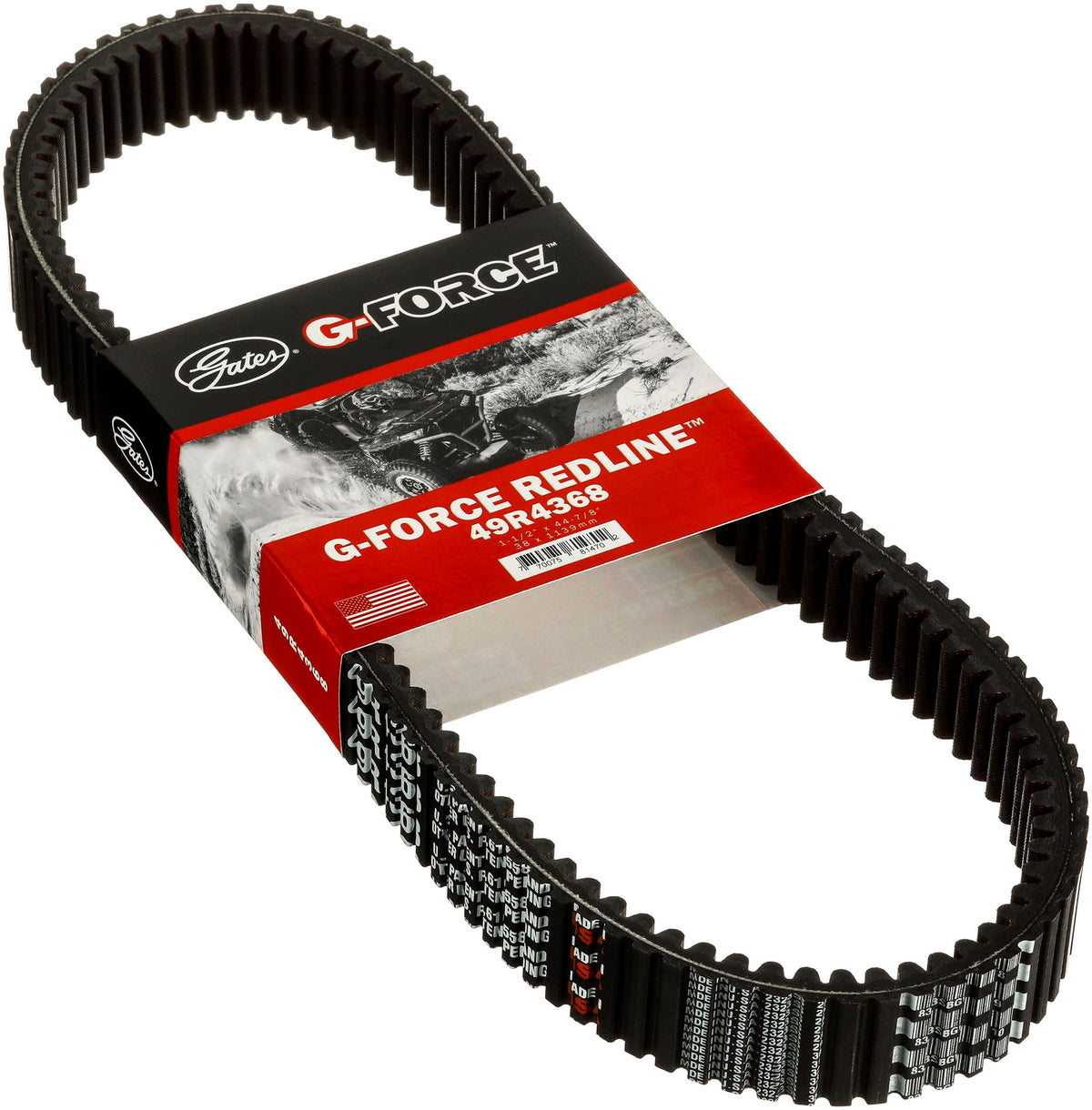

The Gates 49R4368 G-Force RedLine CVT belt is a high-performance powersports drive belt engineered for demanding snowmobile and utility vehicle applications.
G-Force RedLine belts use a fiber-reinforced Ethylene Elastomer compound and high-tensile aramid cord construction to provide increased stiffness, heat resistance, load capacity, and consistent power transfer under severe operating conditions.
Designed for high-output CVT applications, the 49R4368 is a direct-fit replacement belt for select Arctic Cat snowmobiles and Kawasaki Ridge utility vehicles.
Features
- Gates G-Force RedLine high-performance CVT belt
- Fiber-reinforced Ethylene Elastomer construction
- High-tensile aramid cord reinforcement
- Double-notched belt design
- Engineered for high-load and high-torque CVT applications
- High resistance to heat, wear, and cracking
- Designed to reduce speed loss under heavy load
- Improved recovery after high-temperature operation
- Built for demanding snowmobile and utility vehicle use
- Manufacturer Part Number: 49R4368
Vehicle Fitment
Arctic Cat Snowmobiles
- 2017 Arctic Cat XF9000 – 998cc
- 2017 Arctic Cat XF9000 Crosstrek – 998cc
- 2017 Arctic Cat ZR9000 – 998cc
Kawasaki Utility Vehicles
- 2024 Kawasaki Ridge – 999cc
- 2025 Kawasaki Ridge – 999cc
G-Force RedLine Technology
Gates G-Force RedLine belts are engineered for demanding powersports CVT systems where heat, torque, acceleration, and repeated load changes can place significant stress on the drive belt.
The RedLine Ethylene Elastomer compound provides high transverse stiffness and heat resistance, helping the belt maintain its shape and transfer power efficiently under load.
Gates reports that the RedLine design provides improved acceleration, reduced speed loss, increased torque capacity, and improved recovery after exposure to extreme operating temperatures.
High-Temperature Performance
The G-Force RedLine construction is designed to resist glazing, cracking, and performance loss caused by excessive heat.
Gates reports recovery from temperatures up to approximately 338°F (170°C) without power loss, making the RedLine series suitable for severe-duty powersports applications where CVT temperatures can rise rapidly.
Belt Specifications
Manufacturer: Gates
Product Line: G-Force RedLine
Part Number: 49R4368
Belt Type: CVT Drive Belt
Construction: Double Notched
Material: Ethylene Elastomer / EPDM-based compound
Top Width: Approximately 38mm / 1.49 in.
Outside Circumference: Approximately 44.85 in.
Pitch Length: Approximately 43.68 in.
Belt Angle: 26 Degrees
What's Included
- 1 Gates G-Force RedLine 49R4368 CVT drive belt
Installation and Break-In
Inspect and clean the CVT clutch sheaves before installing the new belt. Remove old belt residue, glazing, oil, and debris from the clutch surfaces and verify clutch alignment according to the vehicle manufacturer's specifications.
Gates recommends properly breaking in a new G-Force CVT belt before severe use. Gradually heat-cycle the belt during initial operation rather than immediately subjecting it to full-throttle acceleration or heavy loads.
Proper installation, clutch condition, alignment, and belt break-in can significantly affect CVT belt performance and service life.
