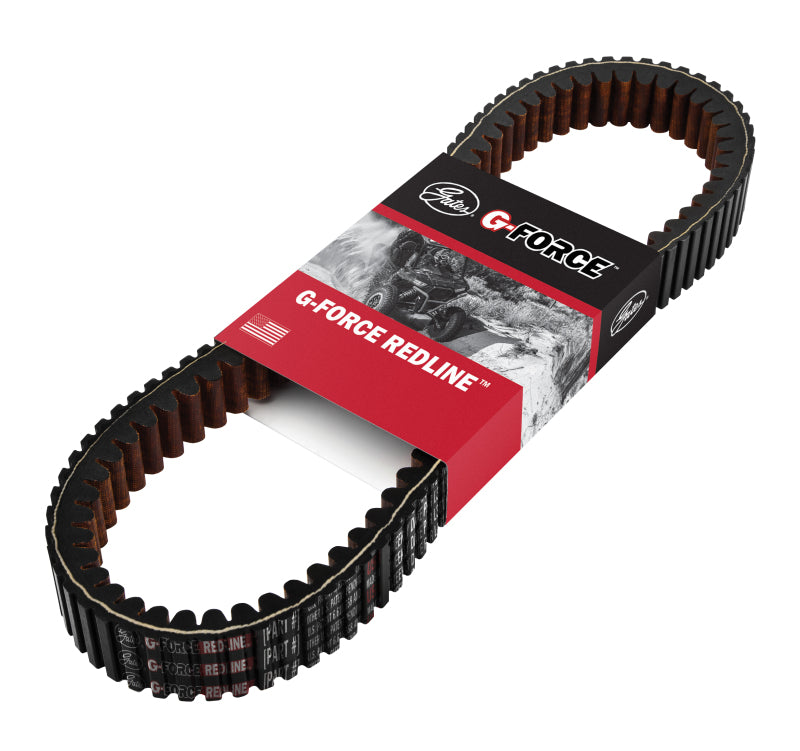

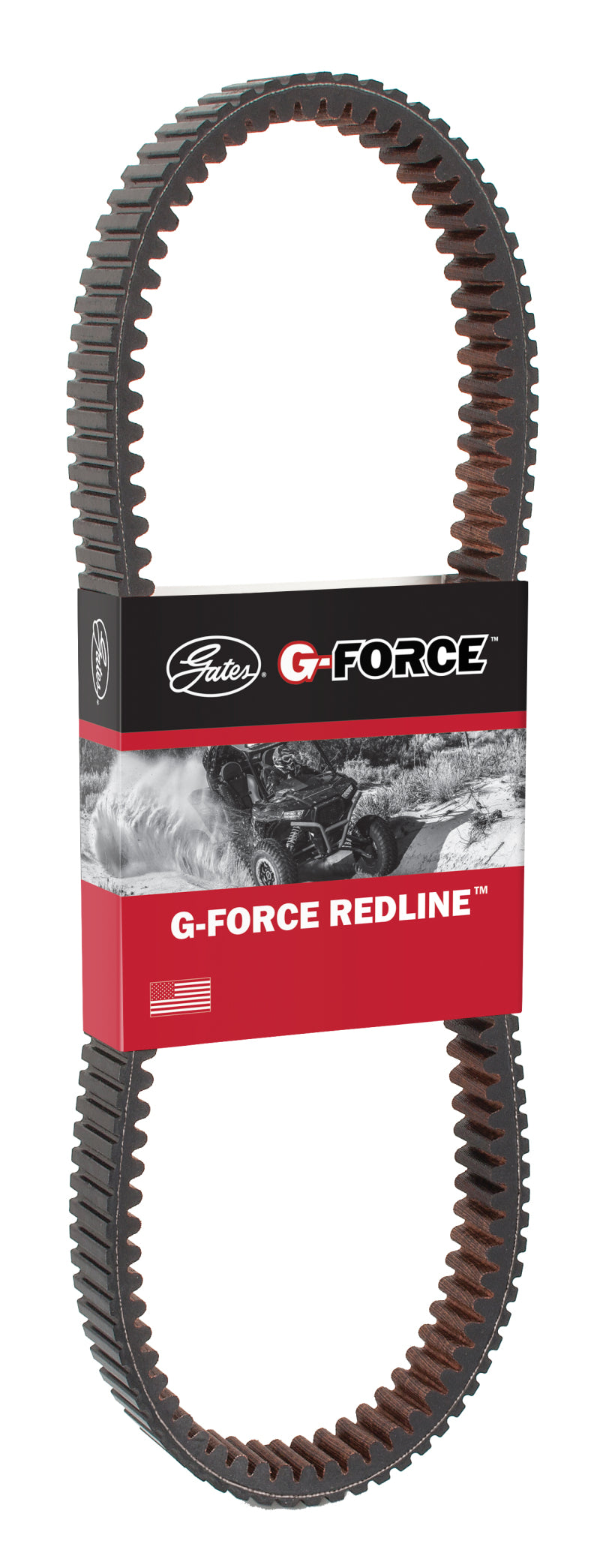

The Gates 50R4289 G-Force RedLine CVT Belt is a high-performance replacement drive belt for select Polaris RZR 925cc applications. Designed for demanding turbocharged off-road use, the RedLine series uses Gates' proprietary Ethylene Elastomer compound to provide high heat resistance, strong load capacity, and improved durability under severe operating conditions.
Gates engineers the G-Force RedLine belt for high-horsepower side-by-side applications where repeated heat cycles, heavy loads, and aggressive riding can push a conventional CVT belt beyond its limits.
Features
- Genuine Gates G-Force RedLine CVT belt
- Gates part number 50R4289
- Gates product number 98241030
- Designed for select Polaris RZR 925cc applications
- Engineered for demanding turbocharged off-road CVT use
- Proprietary Ethylene Elastomer compound
- High transverse stiffness for increased load and torque capacity
- High heat resistance and recovery
- Designed to reduce heat fade and speed loss under heavy load
- Improved crack and wear resistance
- Designed to resist glazing during high-temperature operation
- Made without chlorinated compounds
Fitment
Polaris RZR 925cc
- 2018 Polaris RZR 925cc
- 2019 Polaris RZR 925cc
- 2020 Polaris RZR 925cc
- 2021 Polaris RZR 925cc
- 2022 Polaris RZR 925cc
- 2023 Polaris RZR 925cc
- 2024 Polaris RZR 925cc
Polaris RZR Pro 925cc
- 2022 Polaris RZR Pro 925cc
- 2023 Polaris RZR Pro 925cc
- 2024 Polaris RZR Pro 925cc
- 2025 Polaris RZR Pro 925cc
- 2026 Polaris RZR Pro 925cc
Polaris RZR XP 925cc
- 2017 Polaris RZR XP 925cc
Verify Gates part number 50R4289 against the exact year, model, engine displacement, and CVT configuration before ordering.
Specifications
- Manufacturer: Gates
- Product Line: G-Force RedLine
- Part Number: 50R4289
- Product Number: 98241030
- Product Type: CVT Drive Belt
- Application Type: Powersports / UTV
- Engine Fitment: 925cc
- Material Family: Ethylene Elastomer
- Quantity: 1 Belt

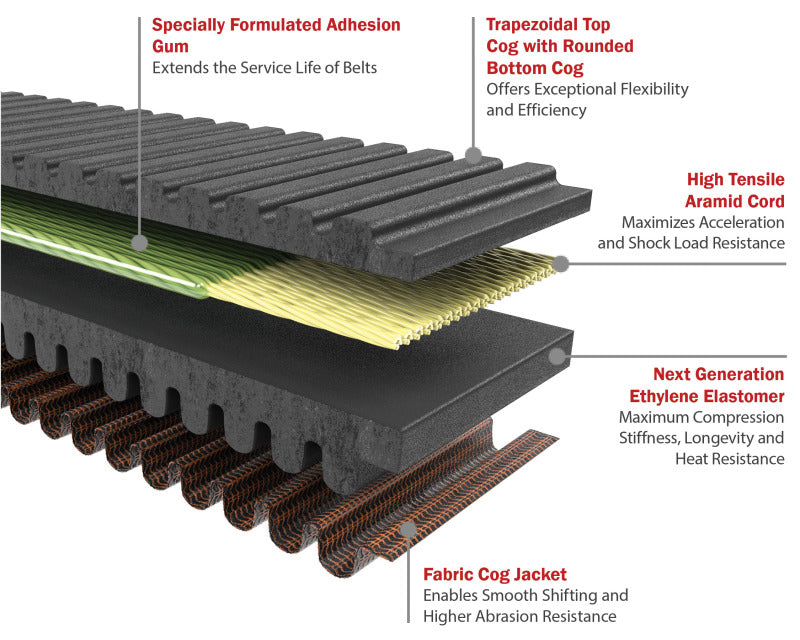

G-Force RedLine Technology
Gates developed the G-Force RedLine series for larger side-by-sides and high-horsepower off-road vehicles. Its next-generation Ethylene Elastomer compound is designed to deliver high transverse stiffness and heat resistance, supporting higher load capacity and peak torque while reducing heat-related performance loss.
Heat & Load Performance
Gates reports that RedLine belts deliver approximately 75% greater dynamic axial stiffness on average, up to 50% lower speed loss, and strong recovery from temperatures up to 338°F / 170°C. Gates also states that the belt is designed to resist glazing and recover after operating at temperatures above 300°F / 149°C.
Durability
In Gates severe-duty laboratory and field testing, G-Force RedLine belts demonstrated significantly longer belt life than competing aftermarket belts. The belt design is engineered to improve crack, wear, and chunking resistance during demanding off-road use.
Recommended Use
- Turbocharged Polaris RZR applications
- High-load side-by-side use
- Off-road and recreational riding
- Sand, trail, and severe-duty use
- Modified or high-horsepower applications where Gates 50R4289 is specified
What's Included
- 1 Gates 50R4289 G-Force RedLine CVT belt
Break-In & Installation
Proper CVT belt break-in is important for belt life and performance. Gates recommends cleaning and aligning the clutch system according to manufacturer specifications before installation. Remove old belt residue and glazing from the clutch sheaves, and do not use brake cleaner on the clutch surfaces.
Gates recommends performing controlled heat cycles after installation and gradually operating through the shift range without exceeding three-quarter throttle during the break-in process. Follow Gates' complete G-Force CVT belt break-in procedure and the vehicle manufacturer's clutch service instructions.
