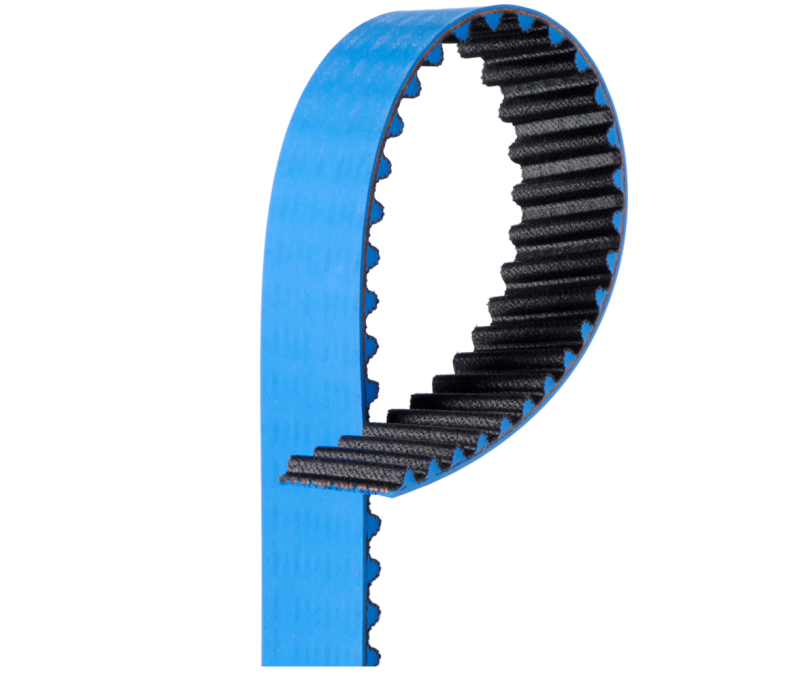

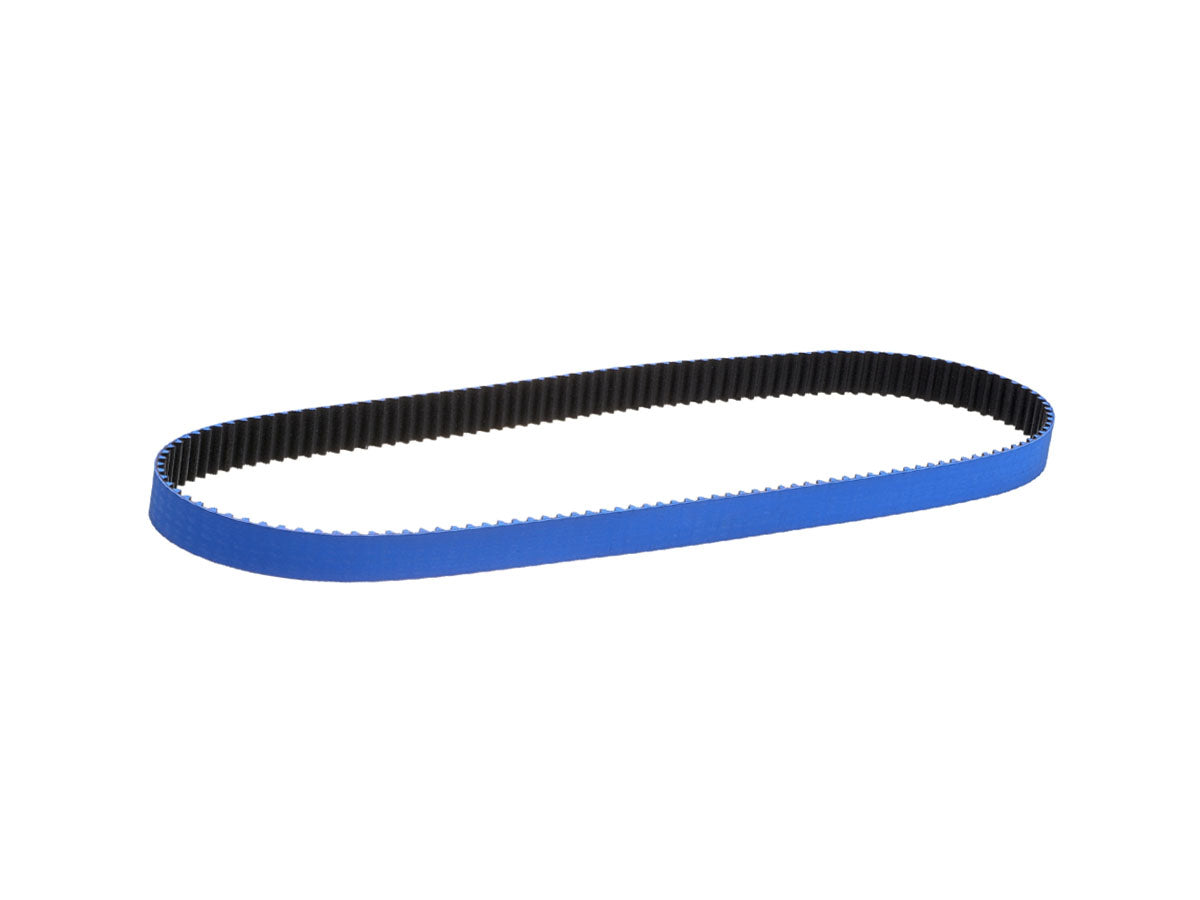

The Gates T1040RB RPM Racing Performance timing belt is designed for Nissan RB-series engine applications, including RB20, RB25, and RB26 engines found in select Nissan Skyline and Stagea models.
Engineered for high-performance and high-RPM use, the Gates RPM timing belt features high-strength tensile cords, aramid-reinforced teeth, and heat-resistant HNBR construction for increased strength and durability compared with a conventional replacement timing belt.
Features
- Gates RPM Racing Performance timing belt
- Designed for Nissan RB20, RB25, and RB26 engine applications
- High-strength fiberglass tensile cord construction
- Aramid fiber-reinforced gripping teeth
- High-saturation HNBR elastomer construction
- Increased resistance to heat and wear
- Designed for high-horsepower and high-RPM applications
- Curvilinear tooth profile
- 141 teeth
- 25.4mm / 1-inch belt width
- 8mm tooth pitch
- 1128mm / 44.41-inch pitch length
- Blue performance belt
- Timing marks included
- Manufacturer Part Number: T1040RB
Vehicle Fitment
Nissan Skyline
T1040RB for select Skyline applications including:
- 1985–1994 Skyline – 2.5L 6-cylinder applications
- 1985–1994 Skyline – 2.6L 6-cylinder applications
- 1995–2000 Skyline – select 2.5L and 2.6L 6-cylinder applications
- 2001–2002 Skyline – select 2.6L 6-cylinder applications
Nissan Stagea
- 1996 Nissan Stagea – 2.5L 6-cylinder
- 1997 Nissan Stagea – 2.5L 6-cylinder
- 1998 Nissan Stagea – 2.5L 6-cylinder
- 1999 Nissan Stagea – 2.5L 6-cylinder
- 2000 Nissan Stagea – 2.5L 6-cylinder
- 2001 Nissan Stagea – 2.5L 6-cylinder
Engine Applications
- Nissan RB20
- Nissan RB25
- Nissan RB26
Because Nissan Skyline and Stagea vehicles were offered with numerous engine configurations and many imported vehicles have been modified or engine-swapped, verify the installed engine and original timing belt application before ordering.
Gates RPM Racing Construction
Gates RPM timing belts are engineered for performance engines operating at elevated engine speeds, loads, and temperatures.
Premium high-strength fiberglass tensile cords help control belt stretch and maintain dimensional stability, while aramid-reinforced teeth and a nylon tooth covering provide increased wear resistance.
The high-saturation HNBR elastomer compound is formulated to withstand the elevated temperatures associated with high-performance engine operation.
Performance Benefits
Maintaining accurate synchronization between the crankshaft and camshafts is critical on Nissan RB-series engines, particularly in high-RPM and modified applications.
The reinforced Gates RPM construction is designed to withstand increased timing drive loads while maintaining the tooth engagement and dimensional stability required for precise valve timing.
Gates RPM timing belts can provide up to three times the heat resistance and as much as 300% greater strength compared with a standard aftermarket timing belt.
Recommended for:
- Nissan RB20 engine applications
- Nissan RB25 engine applications
- Nissan RB26 engine applications
- Nissan Skyline performance builds
- Nissan Stagea performance builds
- RB20DET applications
- RB25DET applications
- RB26DETT applications
- High-RPM engine builds
- Turbocharged performance applications
- Street performance vehicles
- Track and motorsports applications
- Engine rebuild and timing system service
Specifications
Manufacturer: Gates
Product Line: RPM Racing Performance
Part Number: T1040RB
Product Type: Engine Timing Belt
Color: Blue
Tooth Count: 141
Belt Width: 25.4mm / 1 in.
Tooth Pitch: 8mm
Pitch Length: 1128mm / 44.41 in.
Cord Material: Fiberglass
Belt Material: HNBR / HSN
Profile: Curvilinear
Timing Marks: Yes
What's Included
- 1 Gates T1040RB RPM Racing Performance timing belt
Installation
Timing belt installation should be performed according to the appropriate Nissan factory service procedure for the engine being serviced.
Inspect the timing belt tensioner, idler pulleys, water pump, camshaft seals, crankshaft seal, and related timing components while the timing system is disassembled.
Correct crankshaft and camshaft alignment is critical. After installation, rotate the engine manually and verify all timing marks before starting the engine.
Professional installation is recommended if you are not experienced with Nissan RB-series timing systems.
