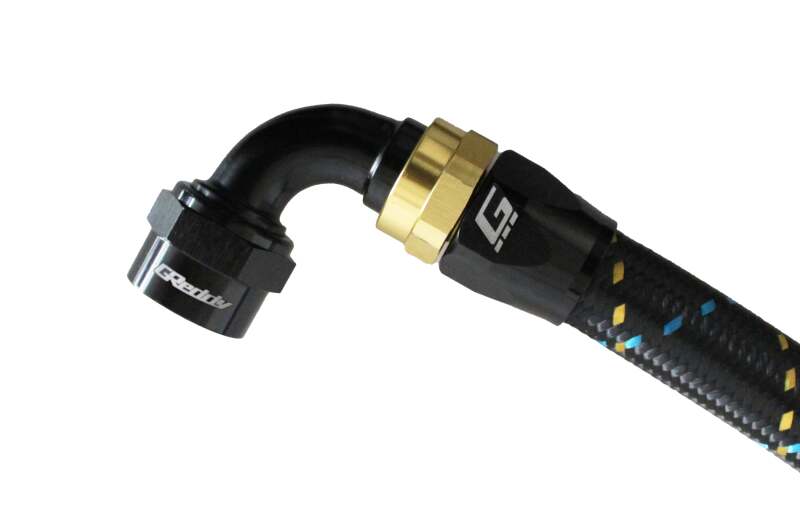

The GReddy -10AN 90-degree swivel hose end provides a durable, adjustable connection for custom automotive fluid-line installations. Its angled design helps route compatible -10AN hose through confined engine-bay areas while reducing the need for tight hose bends.
Machined from billet 6061 aluminum, the fitting features a black and gold anodized finish, dual Viton O-rings, and a swivel design that allows the fitting to be clocked into position during assembly.
Features
- 90-degree -10AN swivel hose end
- Machined from a single billet of 6061 aluminum
- No welded or brazed joints
- Dual Viton O-rings
- One-way locking pin
- Swivel design allows easier alignment and clocking

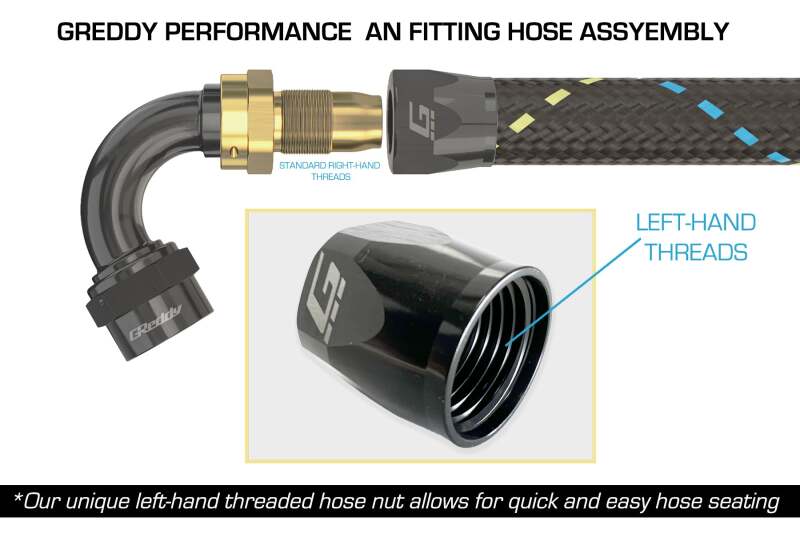

- Left-hand-threaded hose nut assists with hose seating
- Black and gold anodized finish
- Includes a matching plastic AN plug
- GReddy part number: 12801090
Fitment and Compatibility
This is a universal -10AN hose-end fitting rather than a vehicle-specific component.
GReddy recommends using it with:
- GReddy -10AN nylon-braided hose
- GReddy hose part number 12851000
Verify the hose type, size, fluid compatibility, pressure requirements, and mating connection before installation. This standard -10AN hose end is different from GReddy’s -10 ORB fitting.
Swivel Construction
The swivel design allows the fitting angle to be adjusted or clocked during assembly, making it easier to align the connection without twisting or placing unnecessary stress on the hose.
Dual Viton O-rings seal the swivel mechanism, while the one-way locking pin secures the fitting assembly.
Recommended Use
Suitable for custom automotive fluid-line installations requiring:
- A -10AN hose end
- A 90-degree routing angle
- Adjustable fitting orientation
- Compact hose routing
- Black and gold engine-bay hardware
The complete system must use hose and components suitable for the fluid, temperature, and pressure of the intended application.
What’s Included
- 1 GReddy -10AN 90-degree swivel hose end
- 1 matching plastic AN plug
- GReddy part number 12801090
Hose is not included.
Installation
Use only compatible -10AN hose and mating fittings. Cut the hose cleanly and install it according to GReddy’s hose-assembly instructions.
Clock the swivel fitting to the required position without forcing or overtightening it. Inspect the completed line for proper clearance and verify that it is not rubbing, kinked, twisted, or exposed to excessive heat. Pressure-test the assembled system and check for leaks before operating the vehicle.
