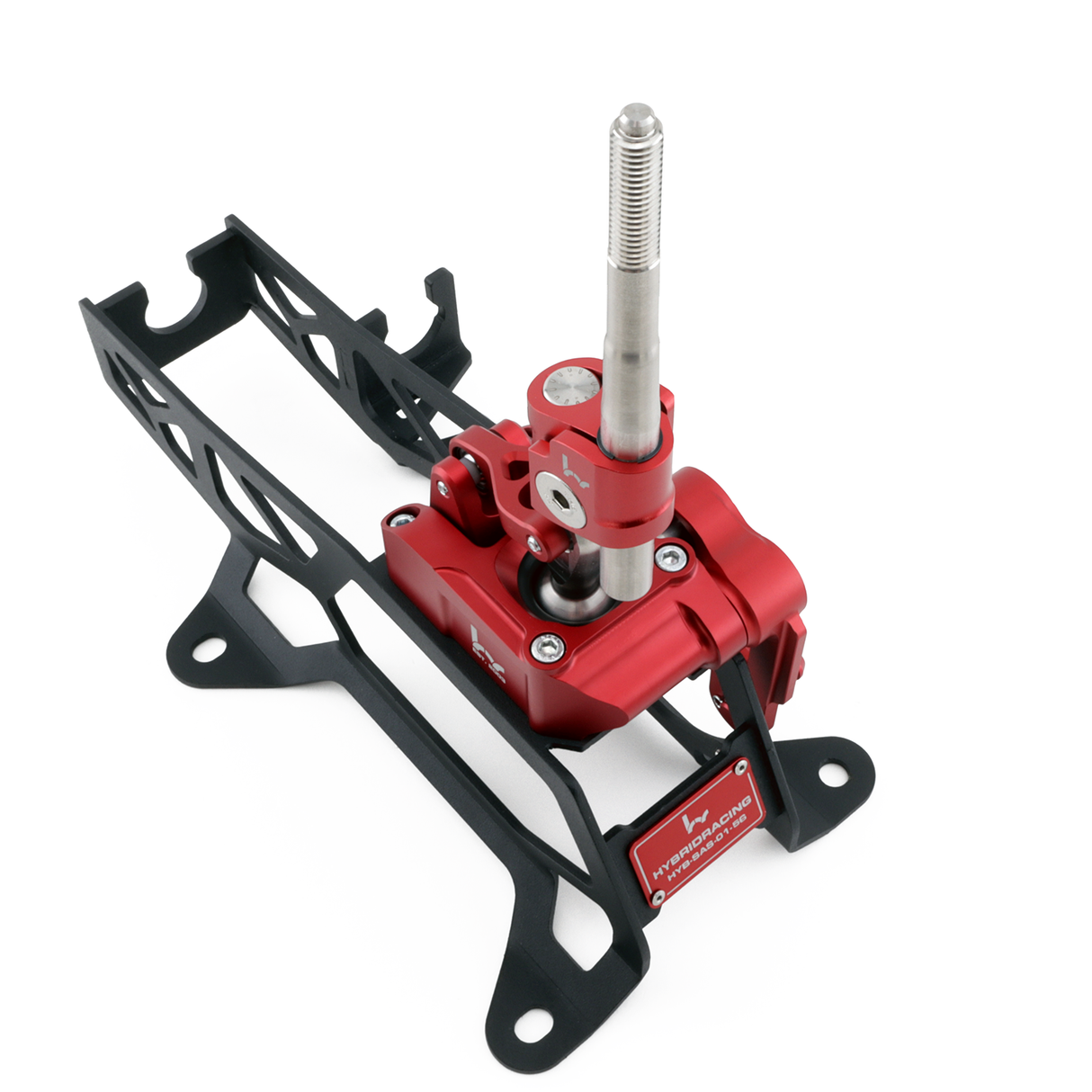

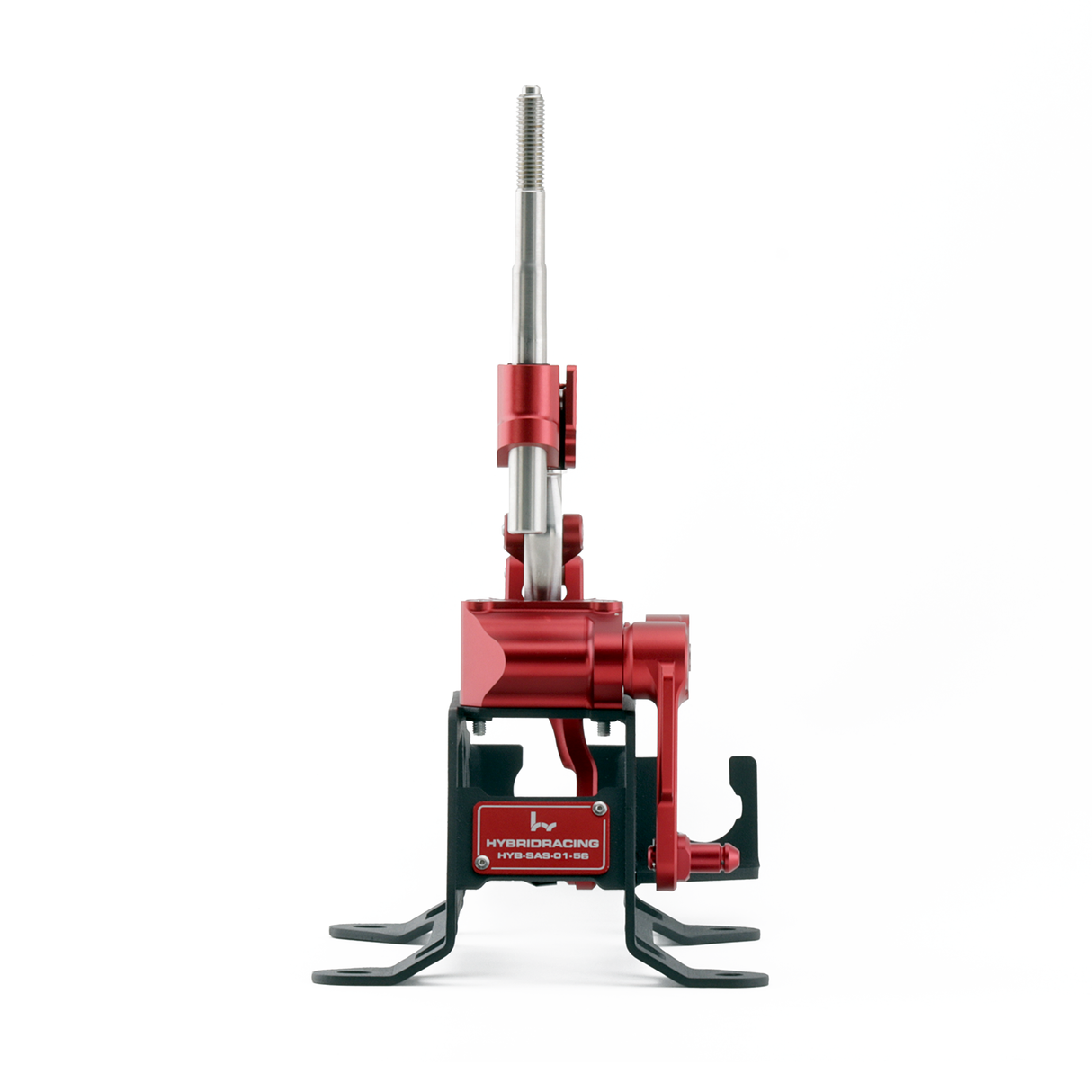

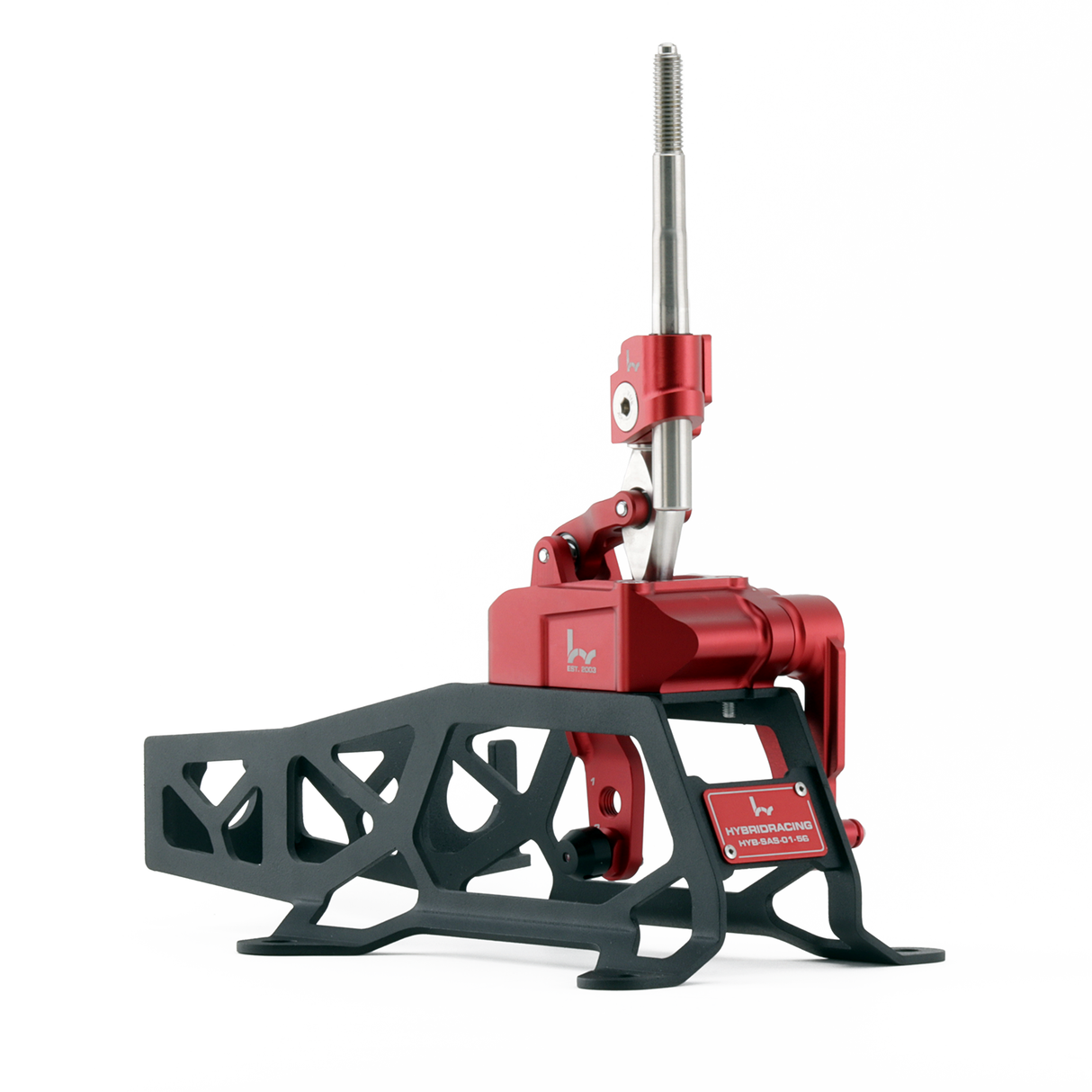

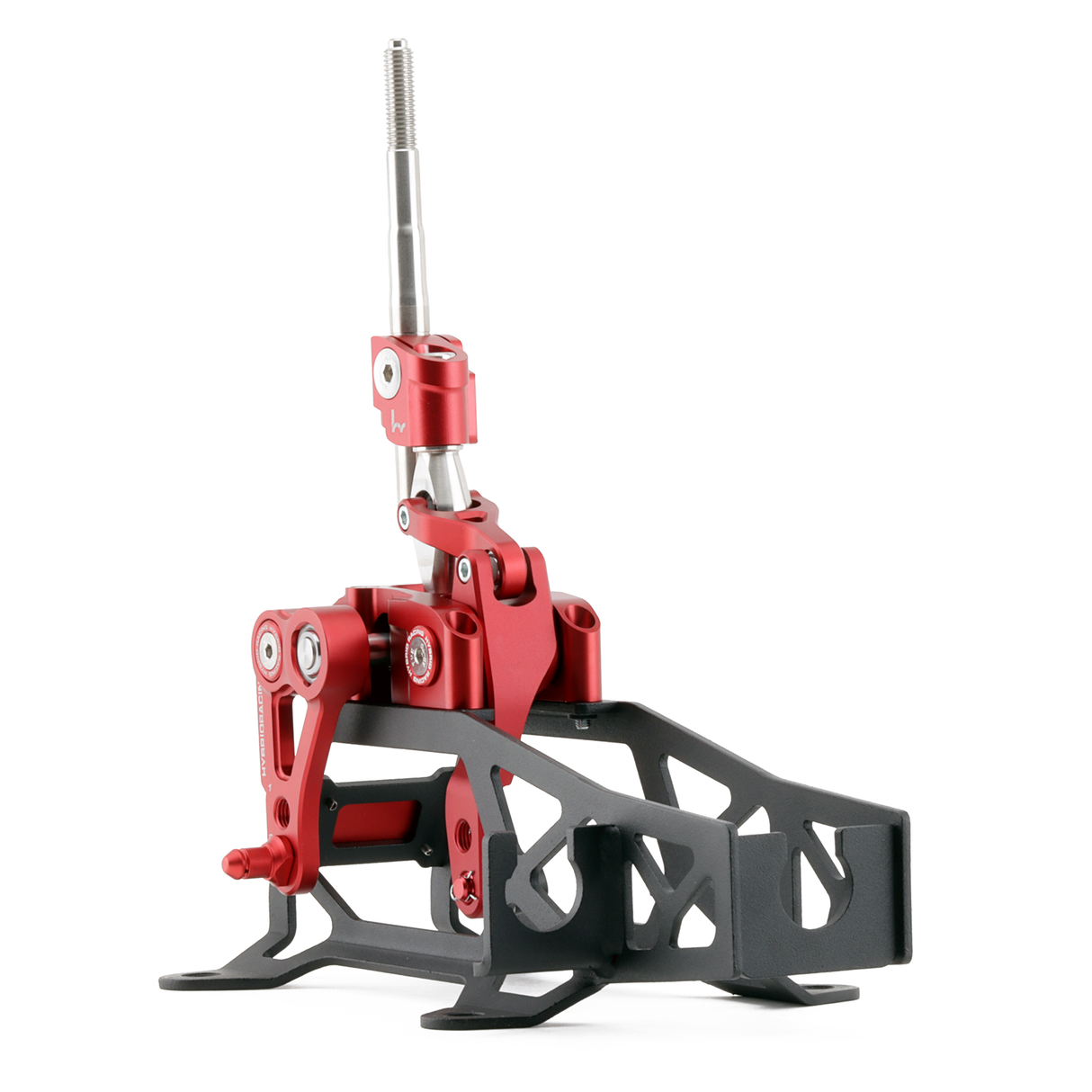

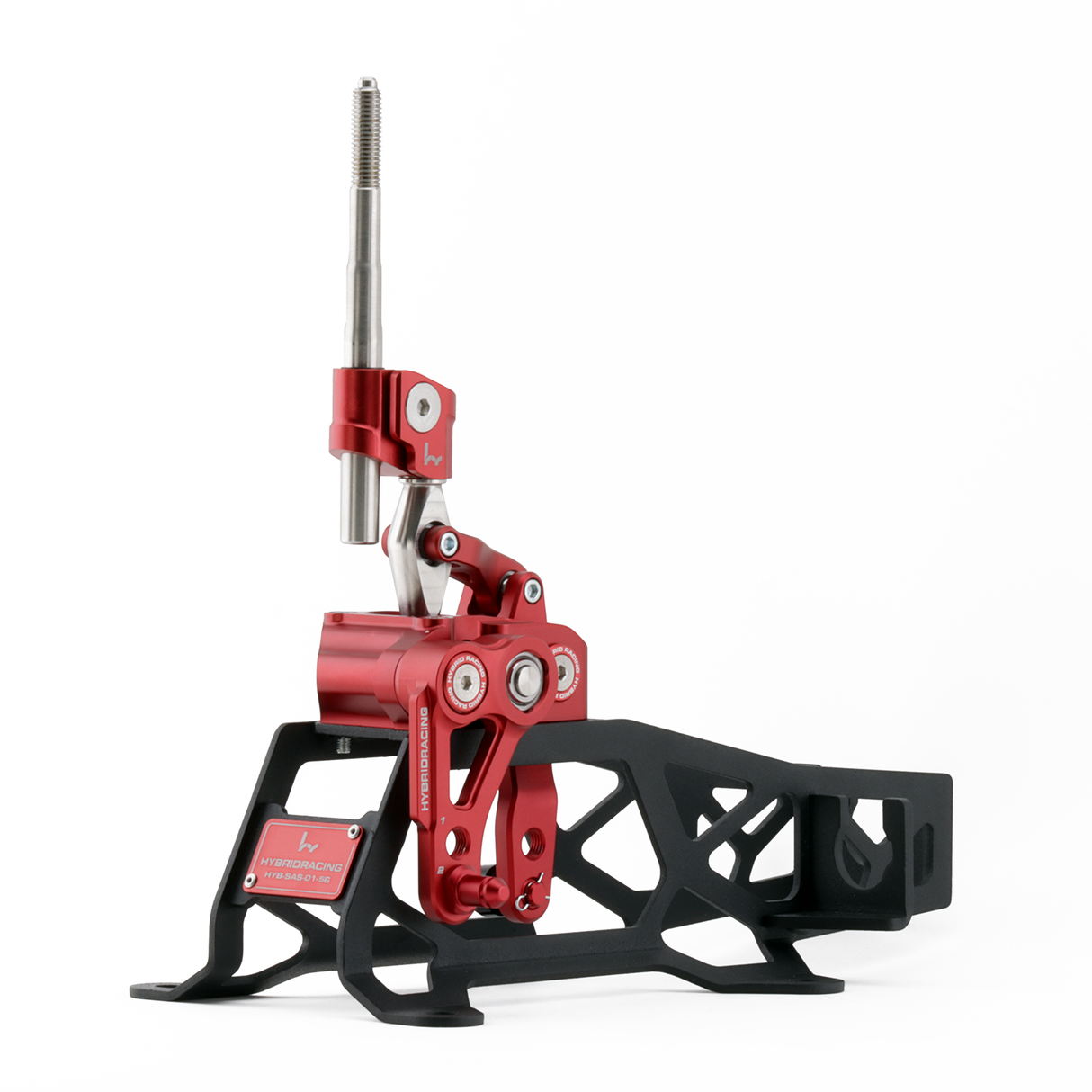

Hybrid Racing HYB-SAS-01-56 Adjustable Short Shifter for 2004-2008 Acura TSX TL & 2003-2007 Accord – Dust Red
Have a Question?
Not sure if this fits your vehicle? Send us a question before ordering.

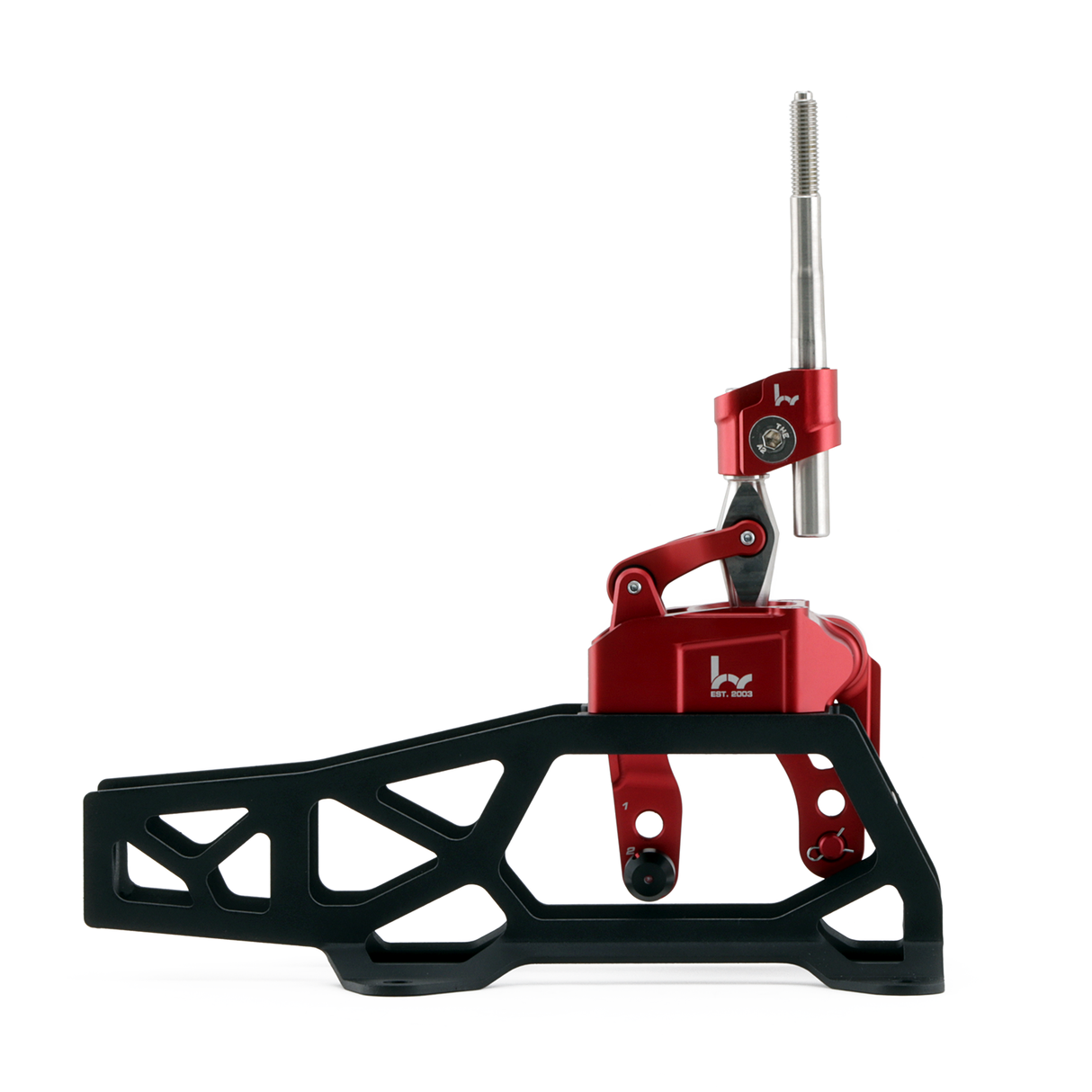

The Hybrid Racing HYB-SAS-01-56 Adjustable Short Shifter is designed for compatible 2004–2008 Acura TSX, 2004–2008 Acura TL, and 2003–2007 Honda Accord manual-transmission applications. Finished in Dust Red, this fully adjustable shifter allows the driver to fine-tune throw reduction, gate spacing, shift knob height, and knob position for a more personalized shifting setup.
Hybrid Racing allows throw reduction to be adjusted from 5% to 45% below stock. Shift knob height can also be raised up to 2 inches or lowered approximately 0.5 inch from the factory position, while the knob position can be moved closer to or farther from the steering wheel. All major adjustments can be made using a 5mm Allen wrench.
Features
- Hybrid Racing adjustable short shifter assembly
- Designed for compatible Acura TSX, Acura TL, and Honda Accord manual-transmission applications
- Dust Red anodized finish
- Adjustable throw reduction from 5% to 45%
- Adjustable gate spacing
- Adjustable shift knob height
- Shift knob height range from approximately +2 inches to -0.5 inch versus stock
- Adjustable shift knob position
- Four-link shifter design
- Stainless steel ball bearings at the pivot points
- CNC-machined 6061-T6 aluminum links
- Stainless steel shift levers
- Replaceable internal centering spring
- All main adjustments made with a 5mm Allen wrench
Fitment
- 2004–2008 Acura TSX – Manual Transmission
- 2004–2008 Acura TL Base – Manual Transmission
- 2004–2008 Acura TL Type-S – Manual Transmission
- 2003–2007 Honda Accord K24 – Manual Transmission
- 2003–2007 Honda Accord V6 – Manual Transmission
Hybrid Racing also supports this shifter in certain K-swap applications using transmissions from the supported TSX, TL, or Accord platforms. Custom mounting hardware or a compatible shifter mounting plate may be required depending on the chassis and transmission combination.
Specifications
- Manufacturer: Hybrid Racing
- Part Number: HYB-SAS-01-56
- Product Type: Adjustable Short Shifter Assembly
- Transmission Type: Manual
- Throw Adjustment: 5%–45% Shorter Than Stock
- Gate Spacing: Adjustable
- Shift Knob Height: Adjustable
- Shift Knob Position: Adjustable
- Adjustment Tool: 5mm Allen Wrench
- Link Material: 6061-T6 Aluminum
- Shift Lever Material: Stainless Steel
- Pivot Design: Stainless Steel Ball Bearings
- Finish: Dust Red / Red Anodized
Adjustable Throw and Gate Spacing
The HYB-SAS-01-56 allows the driver to reduce shift throw from 5% to 45% below stock while also independently adjusting gate spacing. This makes it possible to tune the shifter for a shorter, tighter feel or a more relaxed configuration depending on driving preference.
Adjustable Knob Height and Position
Shift knob height can be raised approximately 2 inches above stock or lowered approximately 0.5 inch below stock. The knob can also be repositioned closer to or farther from the steering wheel, allowing the driver to fine-tune ergonomics as well as shift feel.

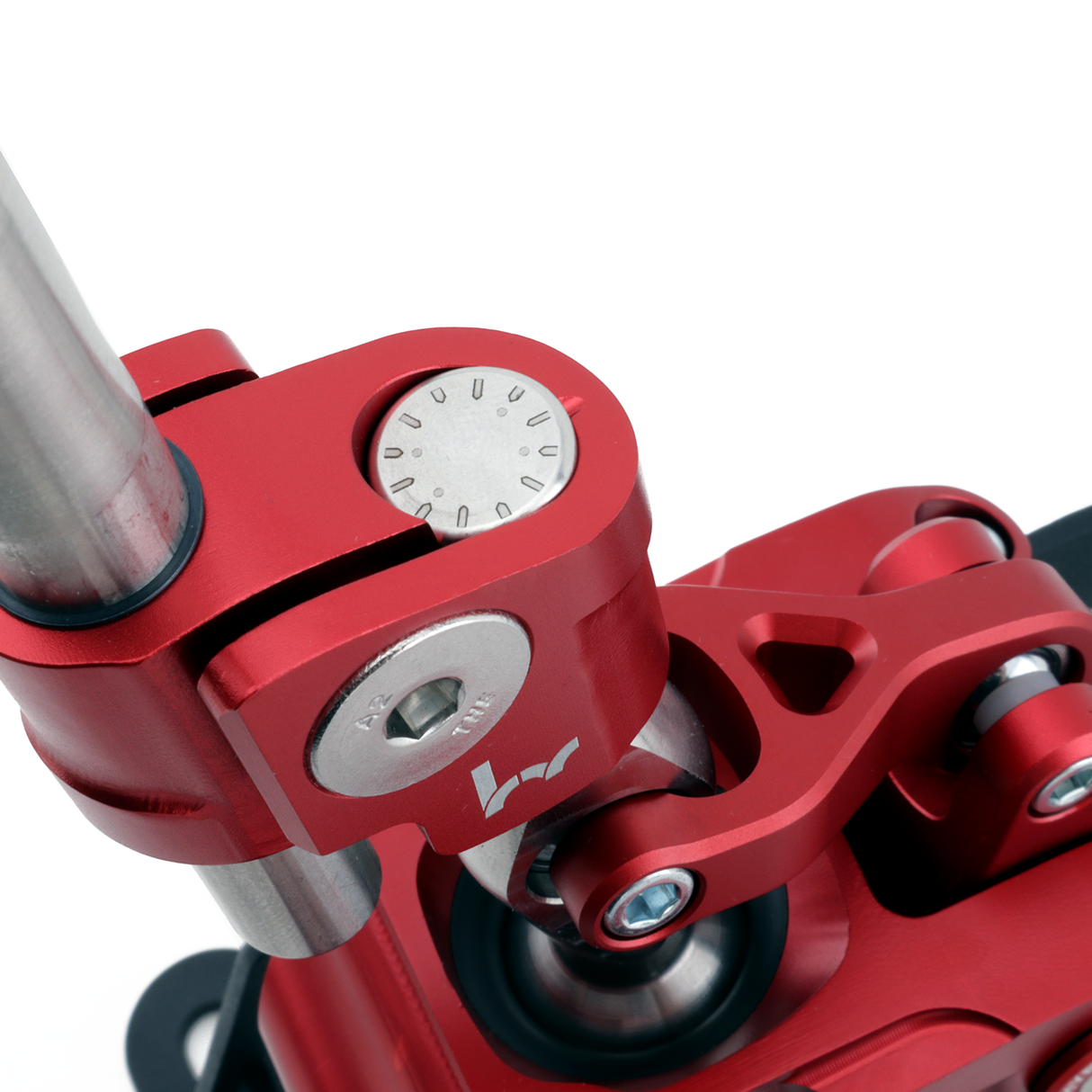

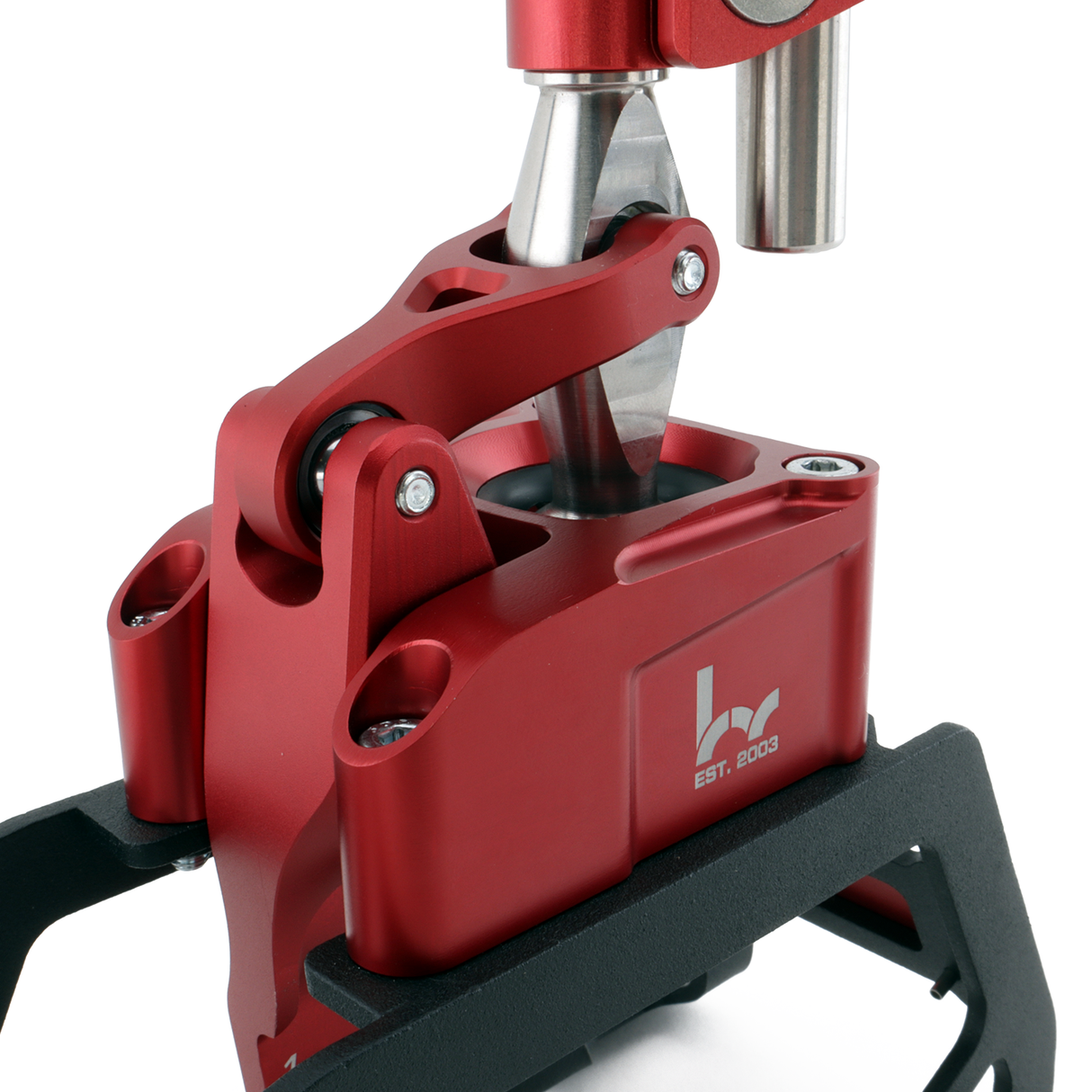

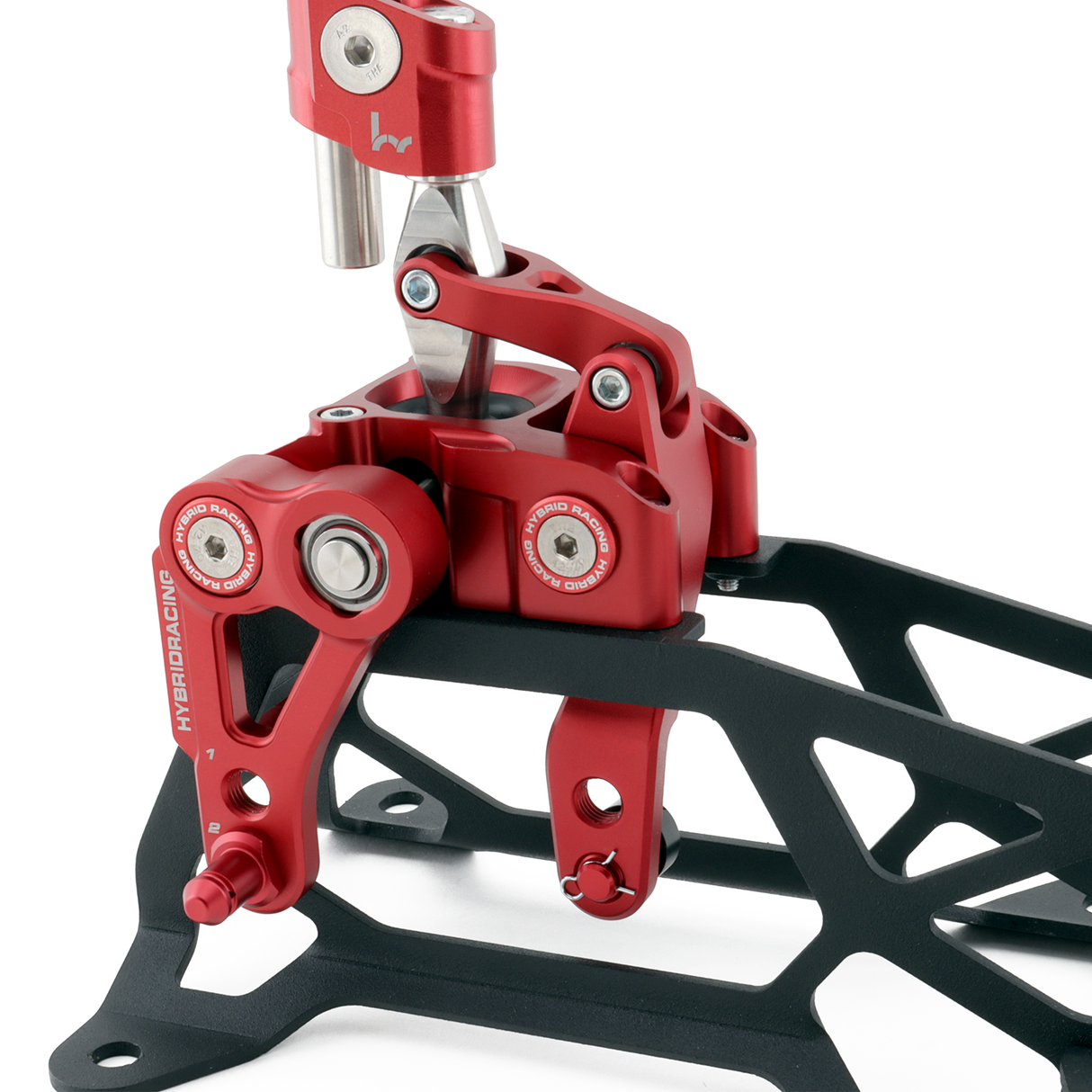

Four-Link Bearing Design
The shifter uses a four-link mechanism with stainless steel ball bearings at the pivot points. Hybrid Racing uses CNC-machined 6061-T6 aluminum links and stainless steel shift levers for a rigid, smooth-operating assembly designed to minimize unwanted play.
Replaceable Internal Spring
An internal centering spring controls the resistance and self-centering feel of the shifter. The spring can be replaced with a lighter or stiffer option if a different level of shift resistance is desired.
Recommended Use
- Performance street driving
- Track and motorsport applications
- Drivers seeking shorter shift throws
- Drivers wanting adjustable shift knob height and position
- TSX, TL, Accord, and compatible K-swap builds
What’s Included
- 1 Hybrid Racing short shifter assembly
- 1 shifter offset
- 1 shift rod
- 1 hardware pack
Installation Note
This shifter is for compatible manual-transmission applications only. Verify the transmission, chassis, shifter cable configuration, and mounting requirements before installation. Hybrid Racing notes that K-swap applications may require additional mounting hardware depending on the setup.
