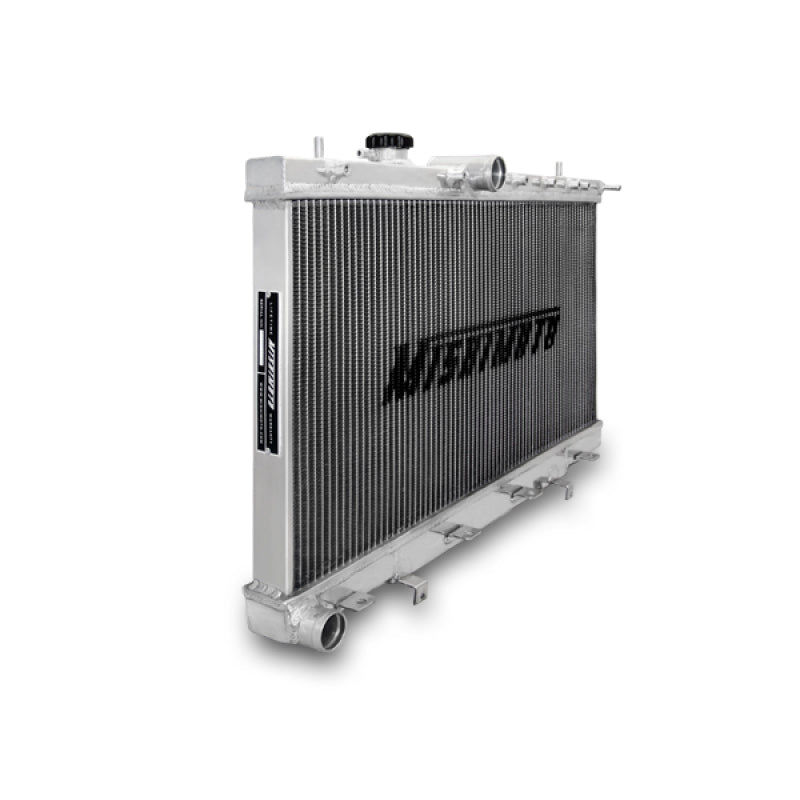

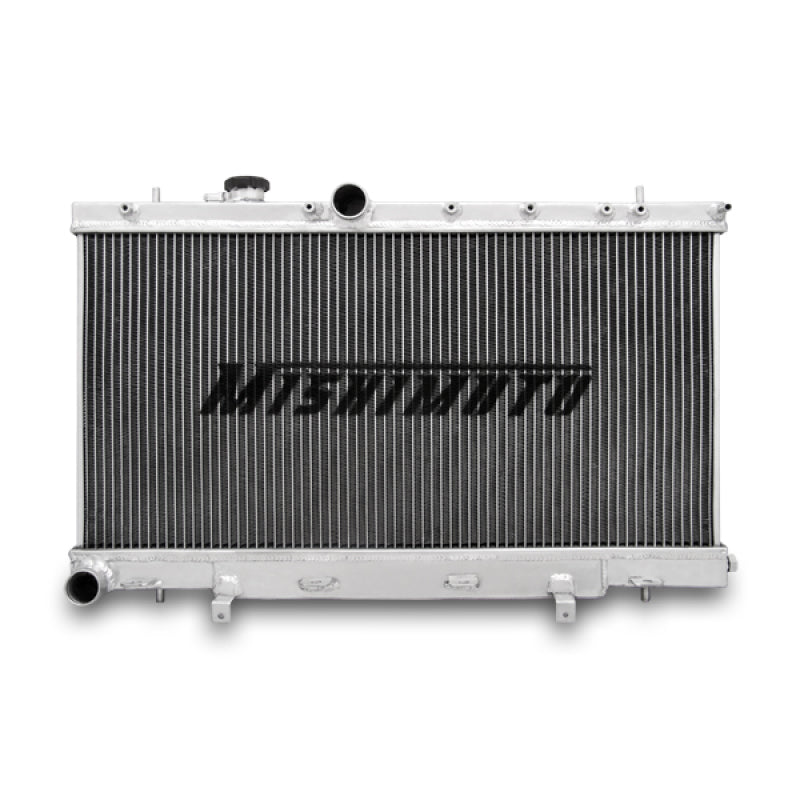

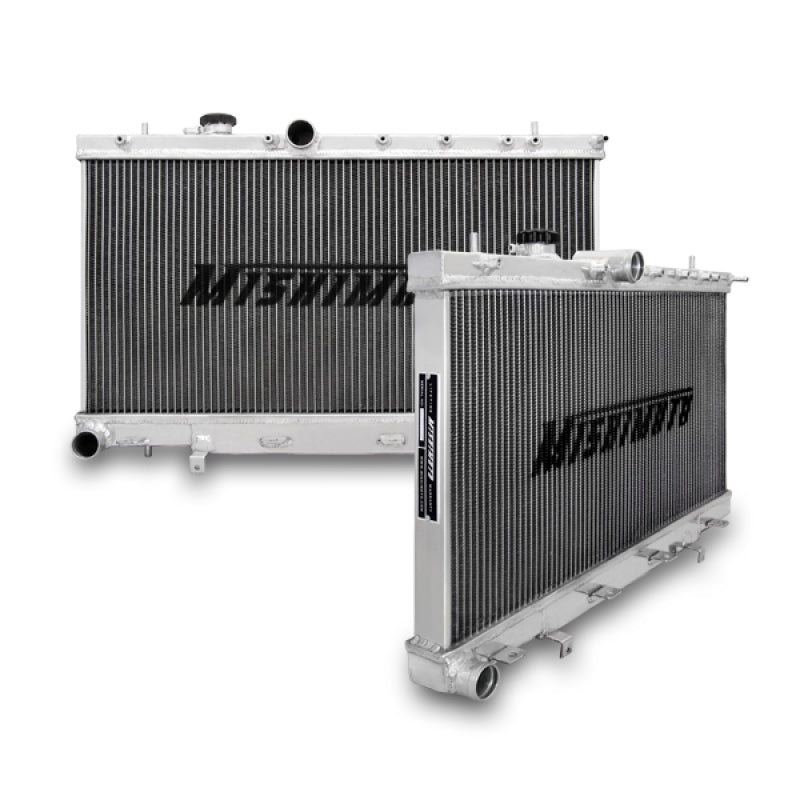

The Mishimoto MMRAD-WRX-01 Performance Aluminum Radiator is a direct-fit cooling-system upgrade for 2002–2007 Subaru WRX and 2004–2007 Subaru WRX STI applications. Designed to replace the factory radiator without vehicle modification, it combines full-aluminum construction with a 2-row brazed core and TIG-welded end tanks for improved durability, heat dissipation, and cooling capacity.
Compared with the factory-style radiator, the Mishimoto design eliminates plastic end tanks and increases coolant capacity to approximately 2.3 gallons. It is suitable for daily-driven, modified, and performance-oriented WRX and STI applications where dependable cooling is a priority.
Features
- Mishimoto performance aluminum radiator
- Direct-fit design for compatible Subaru WRX and WRX STI applications
- Full-aluminum construction
- 2-row radiator core
- 100% brazed aluminum core
- TIG-welded aluminum end tanks
- Increased coolant capacity compared with the factory-style radiator
- Approximately 2.3-gallon fluid capacity
- 1.65-inch core thickness
- 1.5-inch inlet and outlet
- Includes radiator and expansion-tank pressure caps
- 1.3 bar pressure-cap rating
- Includes magnetic drain plug
- Includes fan-mounting hardware
- Designed as a bolt-in replacement
Fitment
- 2002–2005 Subaru Impreza WRX 2.0L – EJ205
- 2006–2007 Subaru Impreza WRX 2.5L – EJ255
- 2004–2007 Subaru Impreza WRX STI 2.5L – EJ257
This radiator is intended for compatible manual-transmission applications. Verify your exact vehicle, engine, transmission, and cooling-system configuration before ordering.
Specifications
- Manufacturer: Mishimoto
- Part Number: MMRAD-WRX-01
- VelocityShop SKU: MISMMRAD-WRX-01
- Product Type: Performance Aluminum Radiator
- Construction: Full Aluminum
- Core Construction: 100% Brazed Aluminum
- Rows: 2
- Overall Length: 28.4 Inches
- Overall Height: 17.2 Inches
- Overall Width: 2.15 Inches
- Core Length: 27.24 Inches
- Core Height: 13.54 Inches
- Core Thickness: 1.65 Inches
- Coolant Capacity: Approximately 2.3 Gallons
- Inlet Diameter: 1.5 Inches
- Outlet Diameter: 1.5 Inches
- Drain Plug Thread: M12 x 1.5
- DPI: 2703
- Barcode: 748354797633
Full-Aluminum Construction
The MMRAD-WRX-01 uses an aluminum core with TIG-welded aluminum end tanks rather than the plastic end tanks commonly found on factory-style radiators. This construction provides increased heat and pressure tolerance while improving durability and heat dissipation.
Increased Cooling Capacity
Mishimoto increases coolant capacity to approximately 2.3 gallons, providing additional coolant volume for demanding driving conditions. The 2-row, 1.65-inch-thick brazed core is designed to improve cooling efficiency while retaining direct-fit installation.
Recommended Use
- Daily-driven Subaru WRX and WRX STI applications
- Cooling-system restoration and upgrades
- Modified and higher-output vehicles
- Autocross and track-day builds
- Owners replacing an aging factory radiator with an all-aluminum design
What’s Included
- 1 Mishimoto MMRAD-WRX-01 aluminum radiator

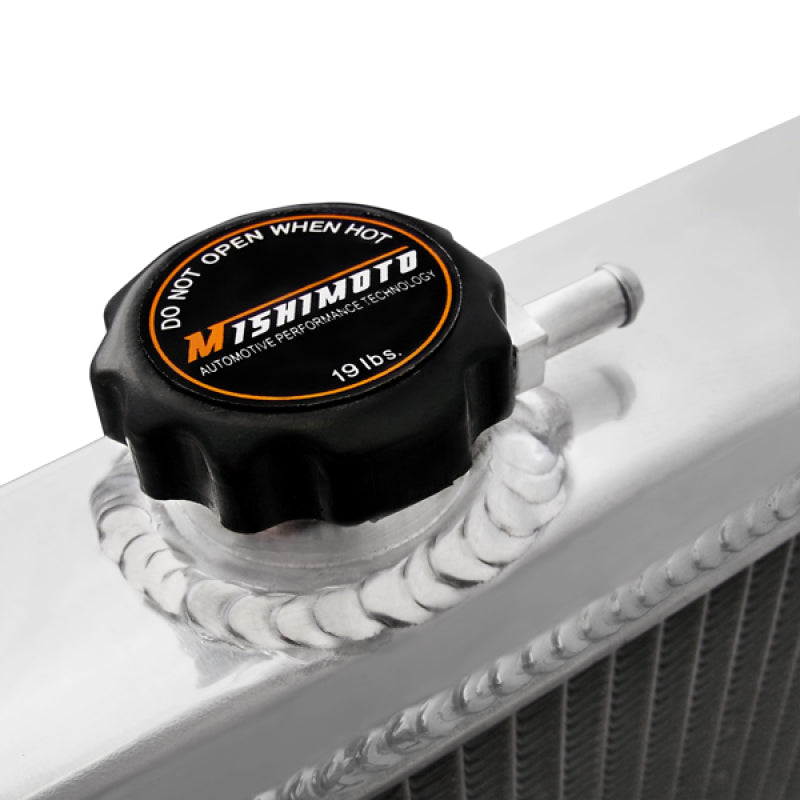

- Radiator pressure cap
- Expansion-tank pressure cap
- 1/16-inch NPT plug
- Fan-mounting hardware
- Magnetic drain plug
Installation Note

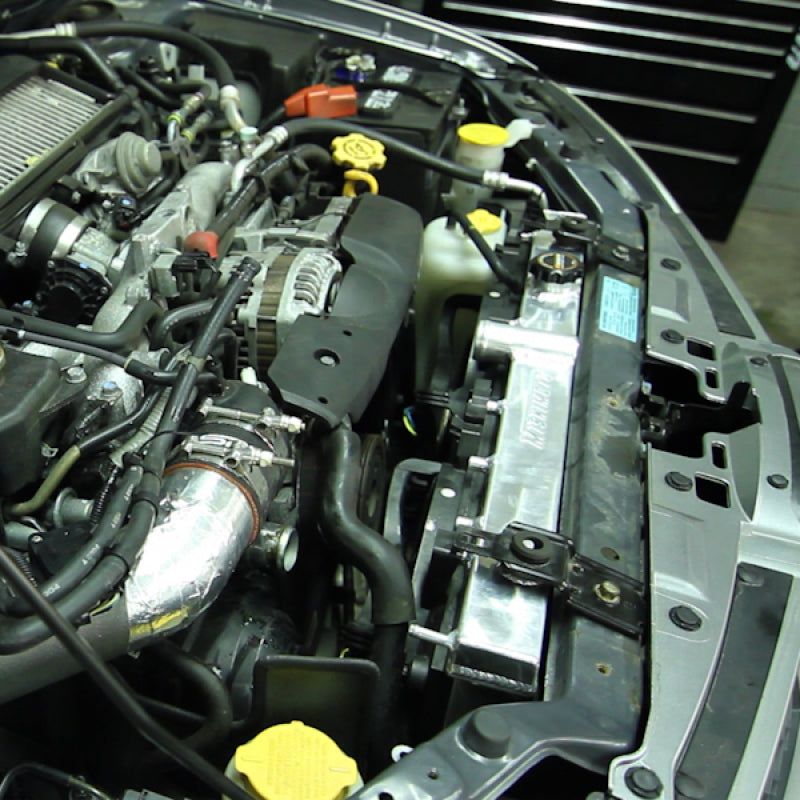

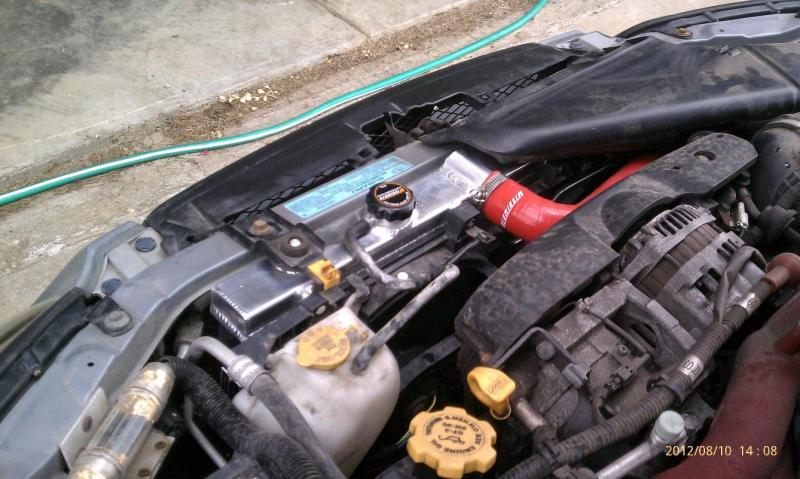

This radiator is designed as a direct-fit replacement for compatible applications. Transfer the appropriate factory components and install the supplied hardware according to the Mishimoto installation instructions.
Proper pressure-cap placement is important on these Subaru cooling systems. Follow Mishimoto's supplied instructions for the radiator and expansion-tank cap locations. After installation, refill and properly bleed the cooling system and inspect all hoses, plugs, fittings, and connections for leaks before driving.
