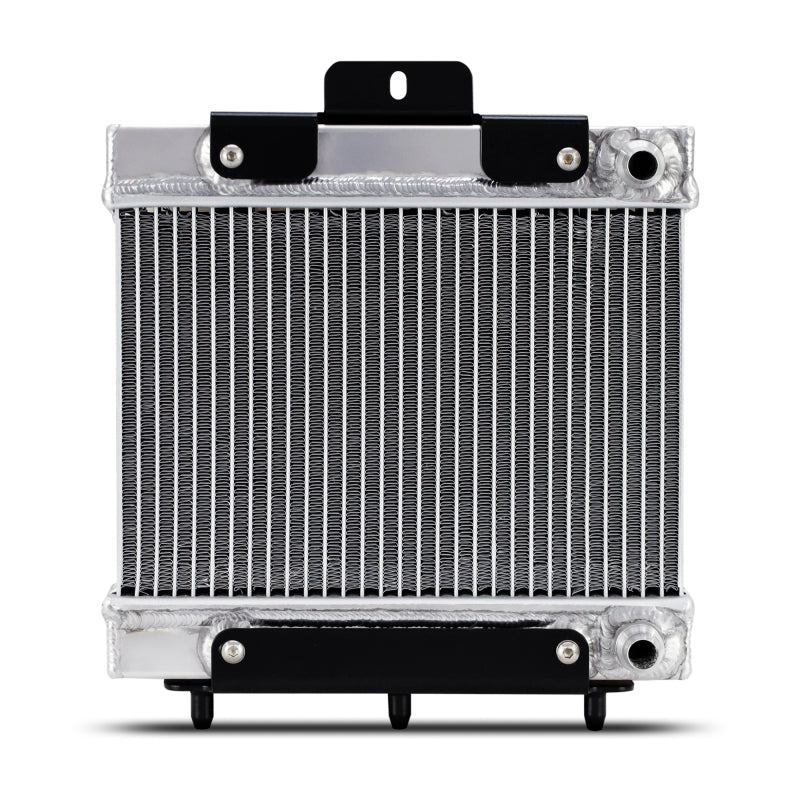

The Mishimoto MMRAD-F80-15A Performance Auxiliary Radiator is designed for 2015–2020 BMW F8X M3 and M4 models equipped with the S55B30 engine. It replaces the factory auxiliary radiator with a larger, fully aluminum unit engineered for improved cooling capacity during sustained high-load driving, aggressive street use, and track sessions.
Mishimoto increased core volume by 9% and external tube area by 32% compared with the factory auxiliary radiator, helping the system reject more heat into the airstream. The radiator uses TIG-welded aluminum end tanks, internally reinforced strutted tubes, and a removable powder-coated steel stone guard for added durability in the low-mounted factory radiator location.
Features
- Mishimoto performance auxiliary radiator
- Direct fit for 2015–2020 BMW F8X M3 and M4
- Designed for the S55B30 engine
- 9% more core volume than the factory auxiliary radiator
- 32% more external tube area than stock
- Full aluminum construction
- TIG-welded aluminum end tanks
- Strutted internal tubes for added strength and vibration resistance
- Removable powder-coated steel stone guard
- Fits either driver-side or passenger-side auxiliary radiator location
- Installs in the factory location with no cutting, fabrication, or adapter work required
- Designed for sustained high-load and performance driving
Fitment
- 2015–2018 BMW M3 Base Sedan
- 2015–2020 BMW M4 Base Coupe
- 2015–2020 BMW M4 Base Convertible
- 2016 BMW M4 GTS
- 2018–2020 BMW M4 CS
- 2019–2021 BMW M2 Competition
- 2020–2021 BMW M2 CS
Compatible with S55-powered BMW M2, M3, and M4 applications listed above. Verify exact year, trim, chassis, and cooling-system configuration before ordering.
This radiator is designed for compatible BMW F80, F82, and F83 chassis applications and can be installed in either auxiliary radiator position.
Specifications
- Manufacturer: Mishimoto
- Part Number: MMRAD-F80-15A
- Product Type: Performance Auxiliary Radiator
- Vehicle Platform: BMW F8X M3 / M4
- Engine Code: S55B30
- Chassis Codes: F80 / F82 / F83
- Material: Aluminum
- Core Rows: 1
- Overall Length: 10.4 Inches
- Overall Height: 9.9 Inches
- Overall Width: 3.3 Inches
- Core Length: 10.1 Inches
- Core Height: 6.9 Inches
- Core Thickness: 1.6 Inches
- Drain Plug Thread: M12 x 1.5
- Core Volume Increase: 9% Over Stock
- External Tube Area Increase: 32% Over Stock
Enhanced Cooling Capacity
The MMRAD-F80-15A uses a larger core than the factory auxiliary radiator, increasing coolant volume and external tube area. Mishimoto designed this additional capacity to provide more thermal headroom during repeated high-load driving where the factory unit can become heat-soaked.
Reinforced Aluminum Construction

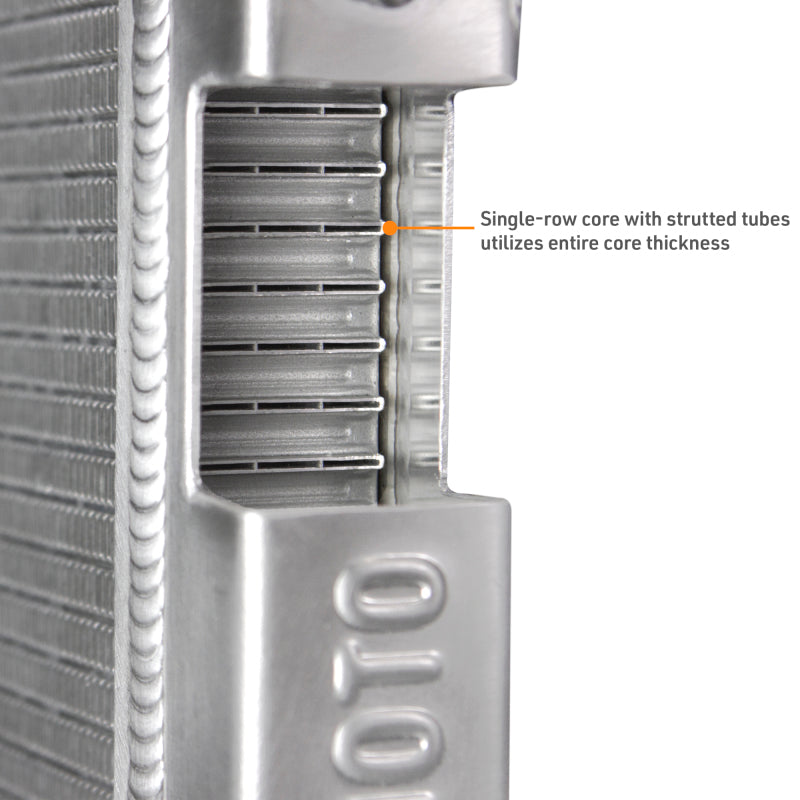

The radiator replaces the factory plastic end-tank design with aluminum TIG-welded end tanks. Internally strutted tubes reinforce the core against vibration and impacts that can affect a low-mounted auxiliary radiator over time.

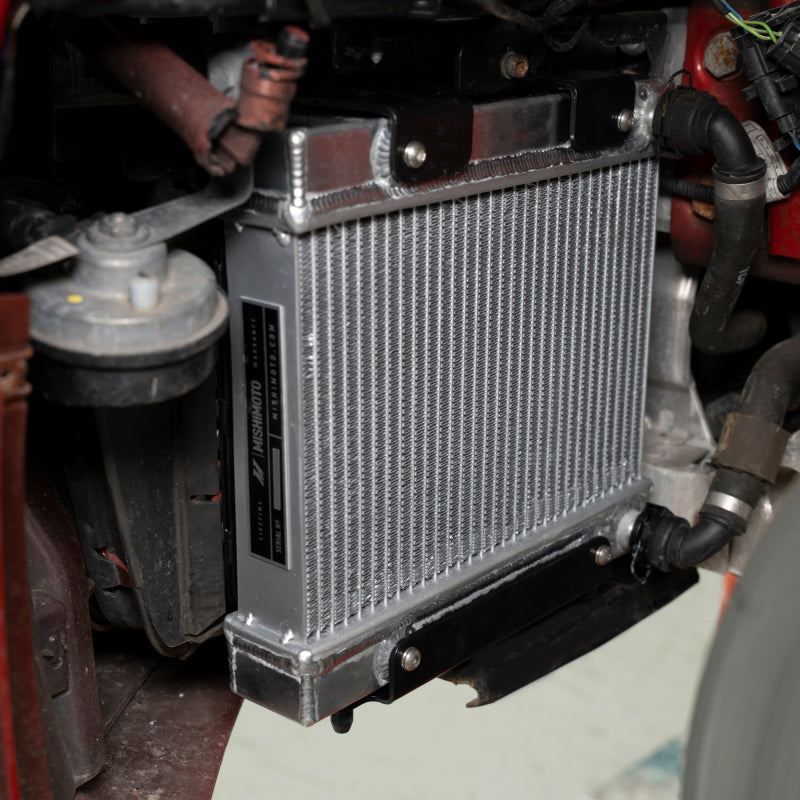

Driver or Passenger Side Installation
A single MMRAD-F80-15A radiator can be used in either the driver-side or passenger-side auxiliary radiator location. Mishimoto's bracket design allows the same part number to service either side of the vehicle.

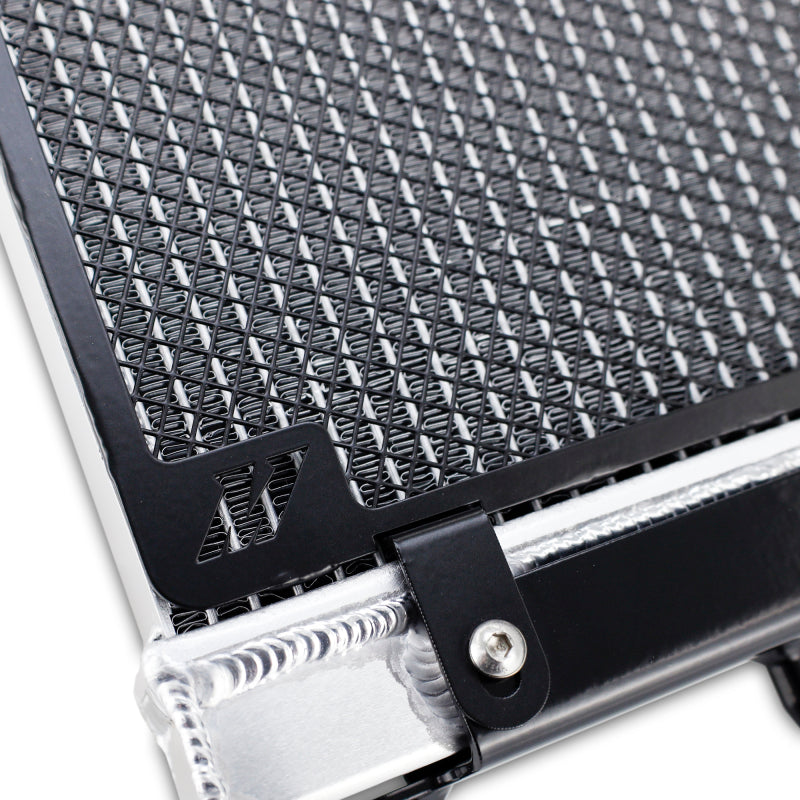

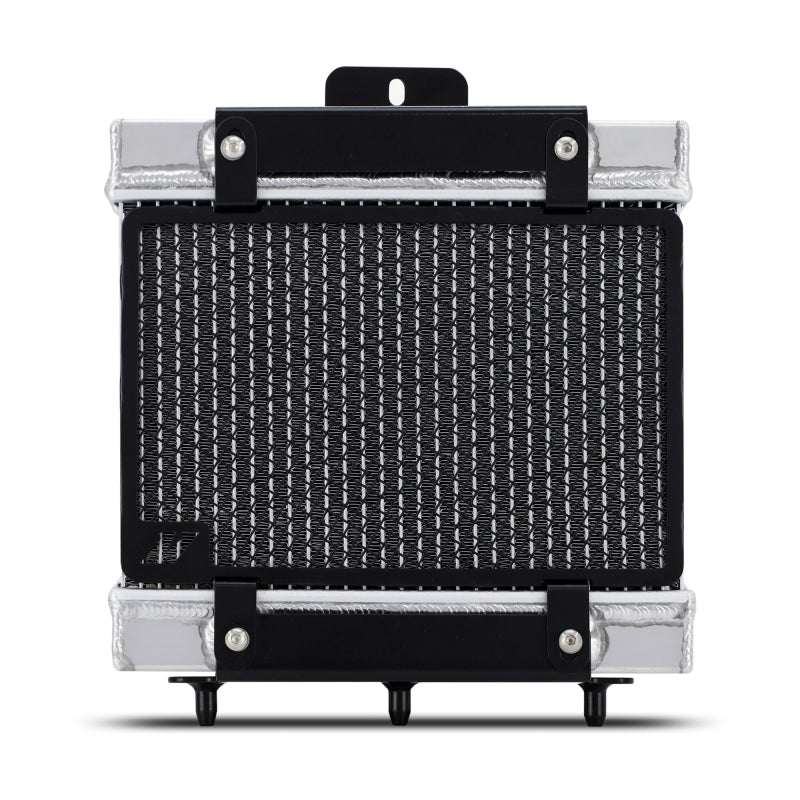

Stone Guard Protection
The included removable powder-coated steel stone guard helps protect the exposed radiator core from gravel, road debris, and other impacts at the front of the vehicle.
Recommended Use
- Track-driven BMW M3 and M4 applications
- Performance street builds
- Modified S55B30 engines
- Vehicles experiencing elevated cooling demand during sustained high-load driving
- Replacement of a damaged or aging factory auxiliary radiator

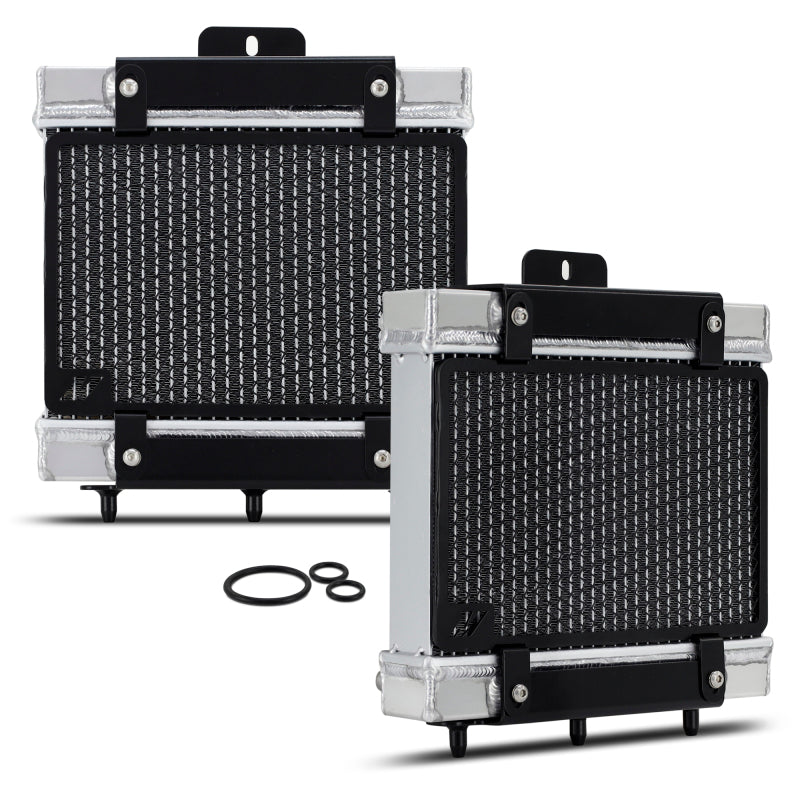

What’s Included
- 1 Mishimoto MMRAD-F80-15A auxiliary radiator
- 1 powder-coated steel stone guard
- 2 powder-coated steel mounting brackets
- 3 O-rings
- 8 M6 lock washers
- 8 M6 button-head bolts
Installation
The radiator installs in the factory auxiliary radiator location with no cutting, fabrication, or adapter work required. Mishimoto rates installation difficulty as easy. Verify all O-rings, coolant connections, brackets, and hardware are installed correctly, then refill and bleed the cooling system according to the BMW service procedure.
