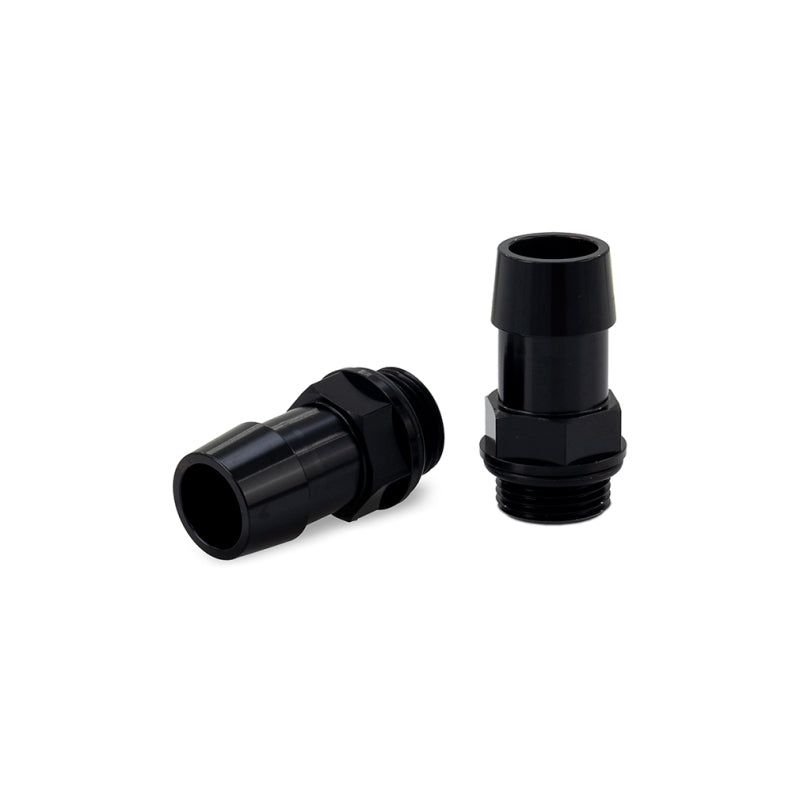

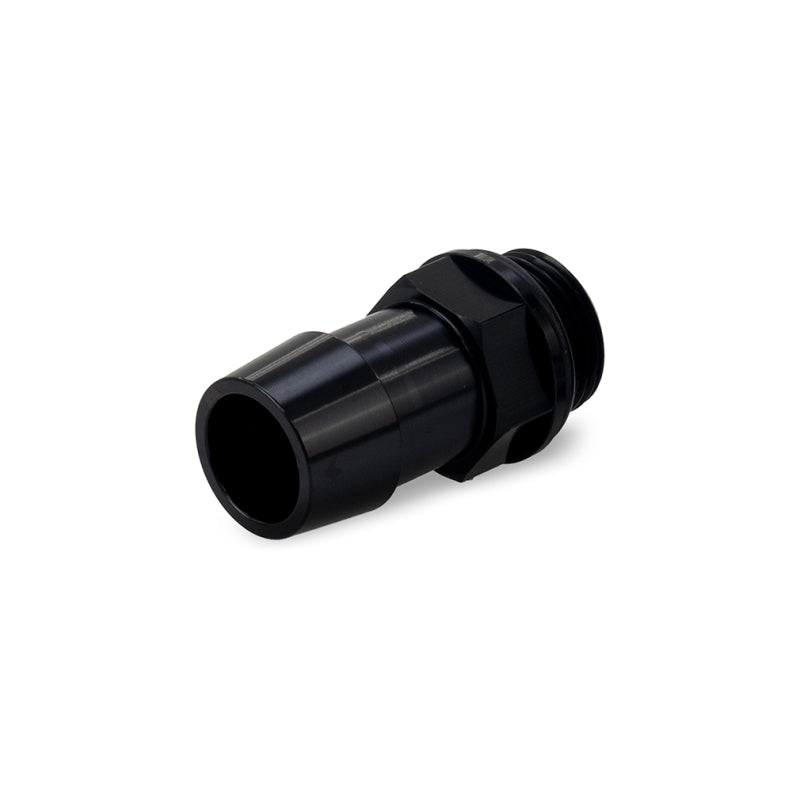

Adapt a compatible Mishimoto catch can for use with 3/4-inch CCV or PCV hose using the Mishimoto MMFT-M20-34BK hose barb fitting set.
These straight fittings feature M20x1.5 male threads on one end and a 3/4-inch push-on hose barb on the other.
They are designed for use with the Mishimoto Universal Baffled Parallel Port Catch Can and other compatible components using the same M20x1.5 O-ring-faced port configuration.
Each fitting is CNC-machined from 6061 aluminum and finished with a black anodized coating. The included Viton O-rings seal the threaded ends against the catch can ports without requiring tapered pipe-thread sealant.

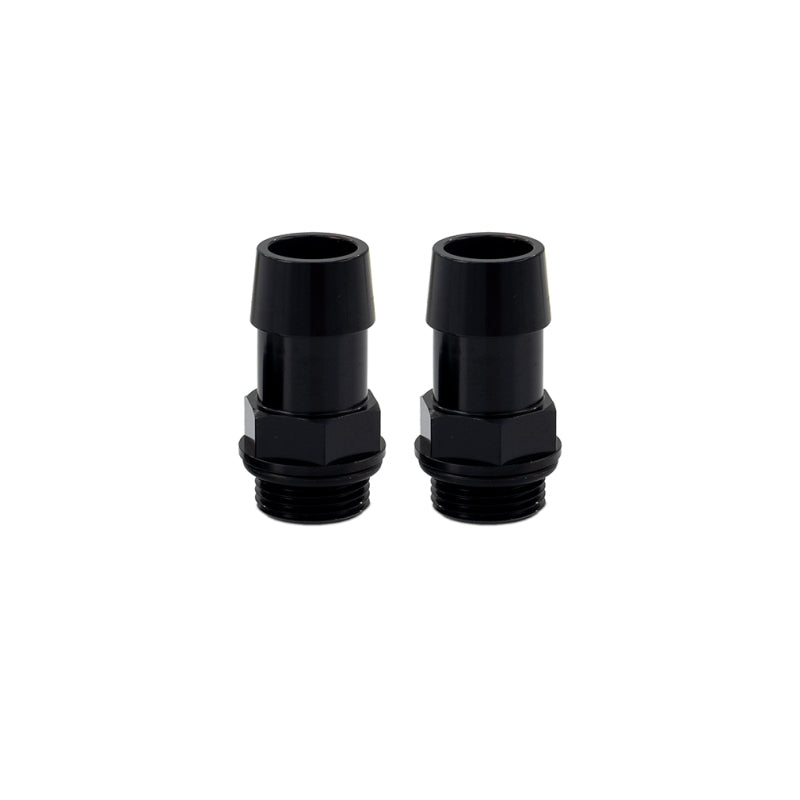

This listing includes two black aluminum fittings with Viton O-rings.
Product Features
- Converts an M20x1.5 port to a 3/4-inch hose barb
- Designed for 3/4-inch CCV and PCV hose
- Compatible with the Mishimoto Universal Baffled Parallel Port Catch Can
- Straight fitting configuration
- CNC-machined 6061 aluminum
- Black anodized finish
- O-ring-faced threaded connection
- Viton O-rings included
- Sold as a two-piece fitting set
- Mishimoto part number MMFT-M20-34BK
- Mishimoto Lifetime Warranty
Product Specifications
- Manufacturer: Mishimoto
- Product: Catch can hose barb fitting set
- Mishimoto Part Number: MMFT-M20-34BK
- Inlet Thread: M20x1.5
- Outlet: 3/4-inch hose barb
- Fitting Angle: Straight
- Material: 6061 aluminum
- Finish: Black anodized
- Seal Type: Viton O-ring
- Quantity: Two fittings
Compatibility
These fittings are designed for the Mishimoto Universal Baffled Parallel Port Catch Can with M20x1.5 O-ring-faced inlet and outlet ports.
They may also fit other catch cans or components that use:
- M20x1.5 straight-thread ports
- O-ring-faced sealing surfaces
- 3/4-inch push-on hose
Thread size alone does not confirm compatibility. Verify the port type, sealing method, available clearance, and hose inside diameter before ordering.
Kit Contents
- 2 M20x1.5 to 3/4-inch straight hose barb fittings
- 2 Viton O-rings
Catch can, hose, clamps, brackets, and other installation components are not included unless specifically shown or stated.
Installation Note
Inspect the fitting ports and sealing surfaces before installation. Lubricate the Viton O-rings lightly with a fluid compatible with the intended CCV or PCV system.
Thread each fitting into the catch can by hand to avoid cross-threading. Tighten only enough to properly compress the O-ring and create a secure seal. Do not use excessive force.
Push the compatible 3/4-inch hose fully over each barb and secure it with properly sized clamps. After installation, inspect the connections for vacuum leaks, oil seepage, loose hoses, or contact with hot and moving components.
