Mishimoto Universal 500HP Air-to-Water Intercooler

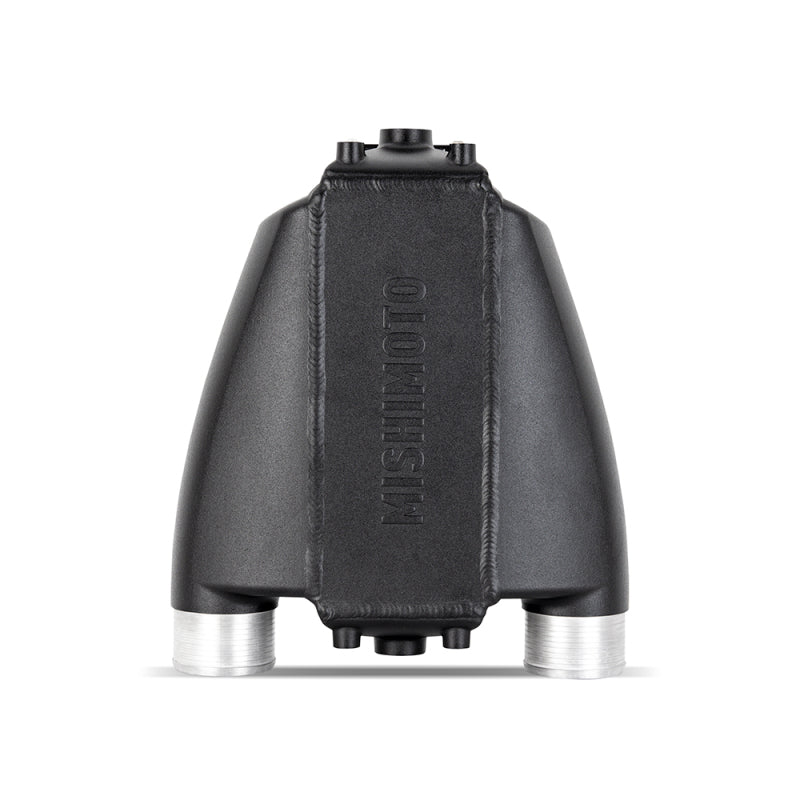

Build a compact and efficient charge-air cooling system with the Mishimoto MMINT-A2W-SP-1 universal air-to-water intercooler. Designed for custom turbocharged and supercharged applications producing up to 500 horsepower, this unit combines a durable bar-and-plate core with a single-pass coolant path and same-side air inlet and outlet configuration.
The compact air-to-water design is ideal for engine bays where space or airflow limits the use of a conventional front-mounted air-to-air intercooler. Coolant flowing through the intercooler core removes heat from the compressed intake air, helping reduce intake-air temperatures, resist heat soak, and maintain more consistent power under boost.
Heavy-duty 5mm cast-aluminum end tanks are TIG-welded to the core for strength and durability. Mishimoto rates the assembly for up to 100 PSI of boost pressure, making it suitable for demanding custom performance builds.
CNC-machined ribbed inlet and outlet connections improve coupler grip, while integrated -12 ORB coolant ports provide secure plumbing connections. The intercooler is finished in a durable micro-wrinkle black powder coat and includes a steel universal mounting bracket with installation hardware.
Product Features
- Universal air-to-water intercooler
- Recommended for applications producing up to 500 horsepower
- Single-pass coolant-flow design
- Same-side air inlet and outlet configuration
- Compact bar-and-plate intercooler core
- Helps reduce intake-air temperatures and heat soak
- Suitable for turbocharged and supercharged applications
- 5mm-thick cast-aluminum end tanks
- Professionally TIG-welded all-aluminum construction
- Rated for up to 100 PSI of boost pressure
- CNC-machined ribbed inlet and outlet connections

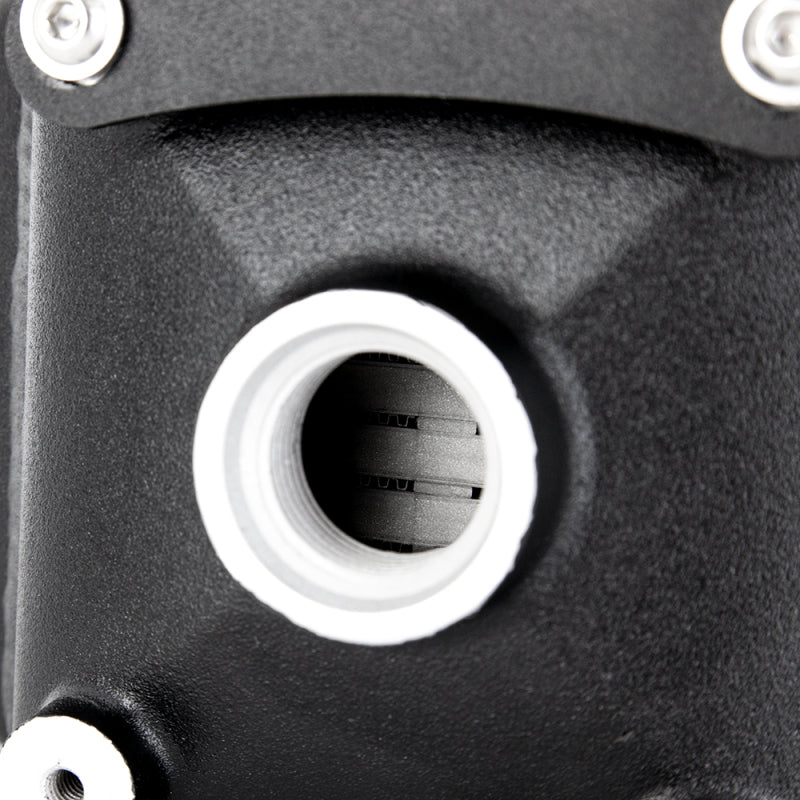

- Integrated -12 ORB coolant ports

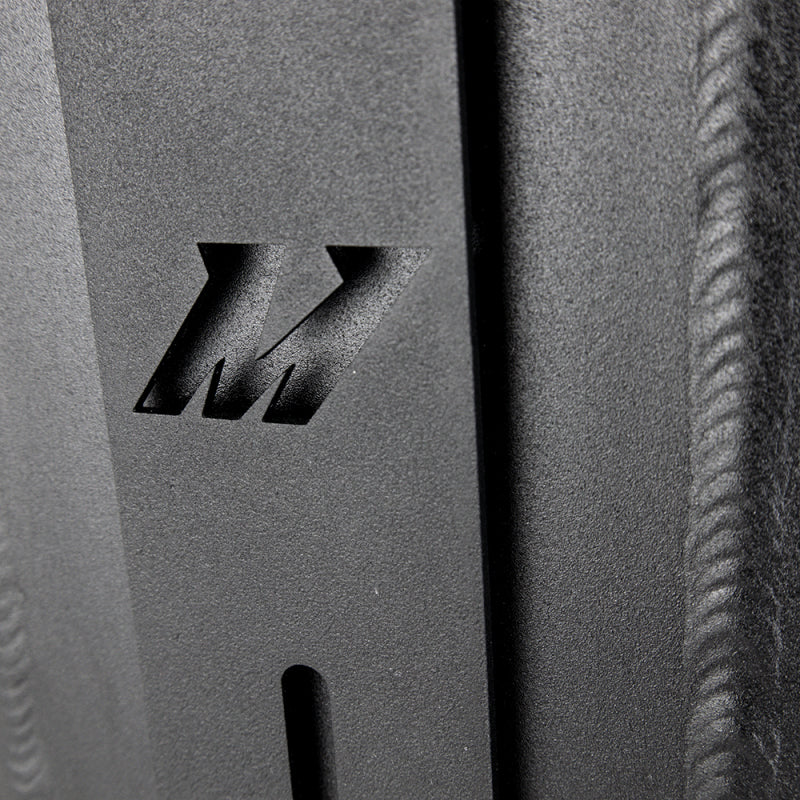

- Durable micro-wrinkle black powder-coated finish

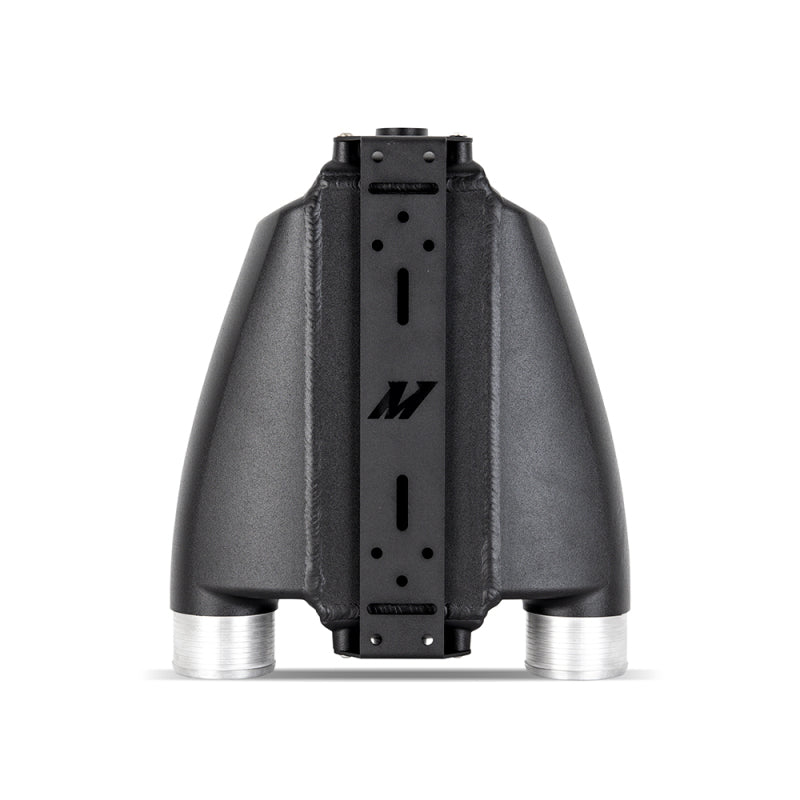

- Includes steel universal mounting bracket
- Includes mounting hardware
- Mishimoto part number MMINT-A2W-SP-1
Product Specifications
- Manufacturer: Mishimoto
- Part Number: MMINT-A2W-SP-1
- Product Type: Universal air-to-water intercooler
- Recommended Maximum Horsepower: 500 HP
- Maximum Recommended Boost Pressure: 100 PSI
- Coolant Flow Configuration: Single pass
- Air Inlet and Outlet Location: Same side
- Core Type: Bar-and-plate

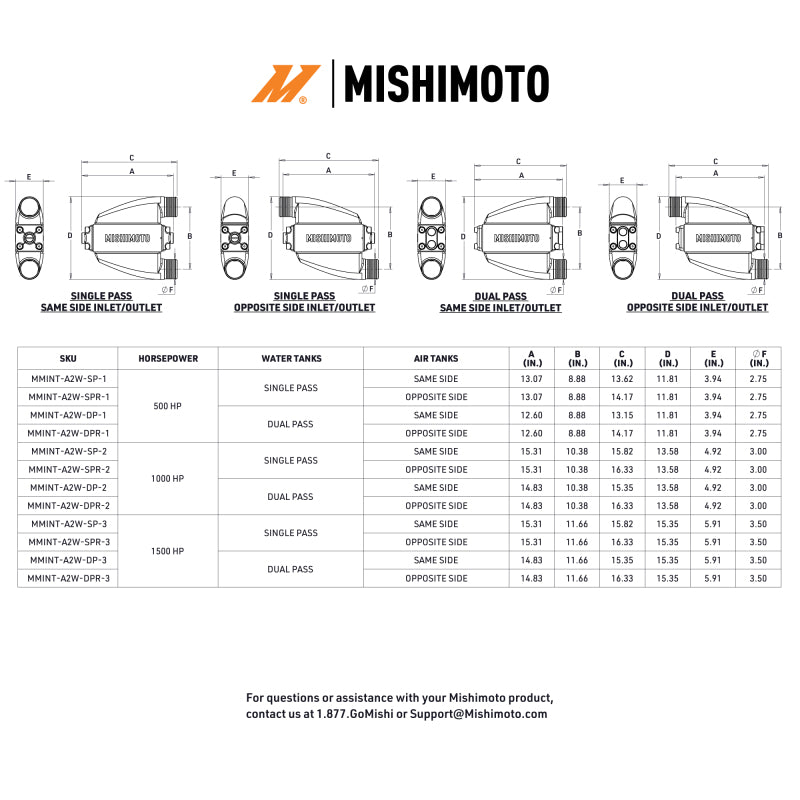

- Overall Length: 15.75 inches
- Core Length: 11.7 inches
- Core Height: 3.94 inches
- Core Thickness: 3.94 inches
- Air Inlet Diameter: 3.5 inches
- Air Outlet Diameter: 2.75 inches
- Coolant Port Size: -12 ORB
- Construction: TIG-welded aluminum
- Finish: Micro-wrinkle black powder coat
- Fitment: Universal/custom applications
What's Included
- One Mishimoto air-to-water intercooler
- One universal mounting bracket
- Four M6 x 1.0 x 16mm mounting bolts
Installation Note
This is a universal component intended for custom fabrication. Installation requires intercooler piping, couplers, clamps, coolant lines, fittings, a coolant pump, a reservoir, and an external heat exchanger selected for the specific vehicle and power level.
Verify the available installation space, inlet and outlet diameters, coolant-port orientation, and required intercooler-system capacity before ordering.
