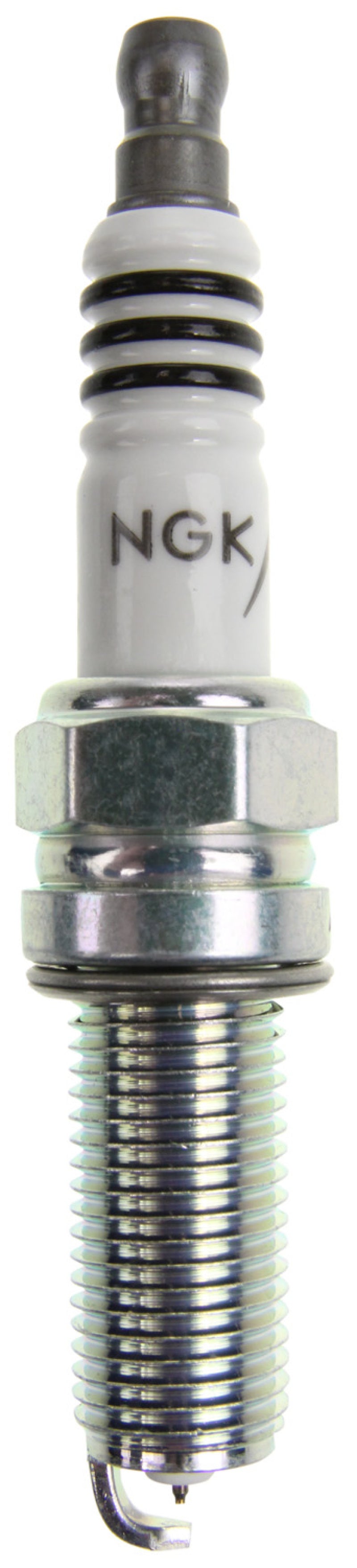

NGK Iridium IX Spark Plug Box of 4 (KR7DIX-11S)

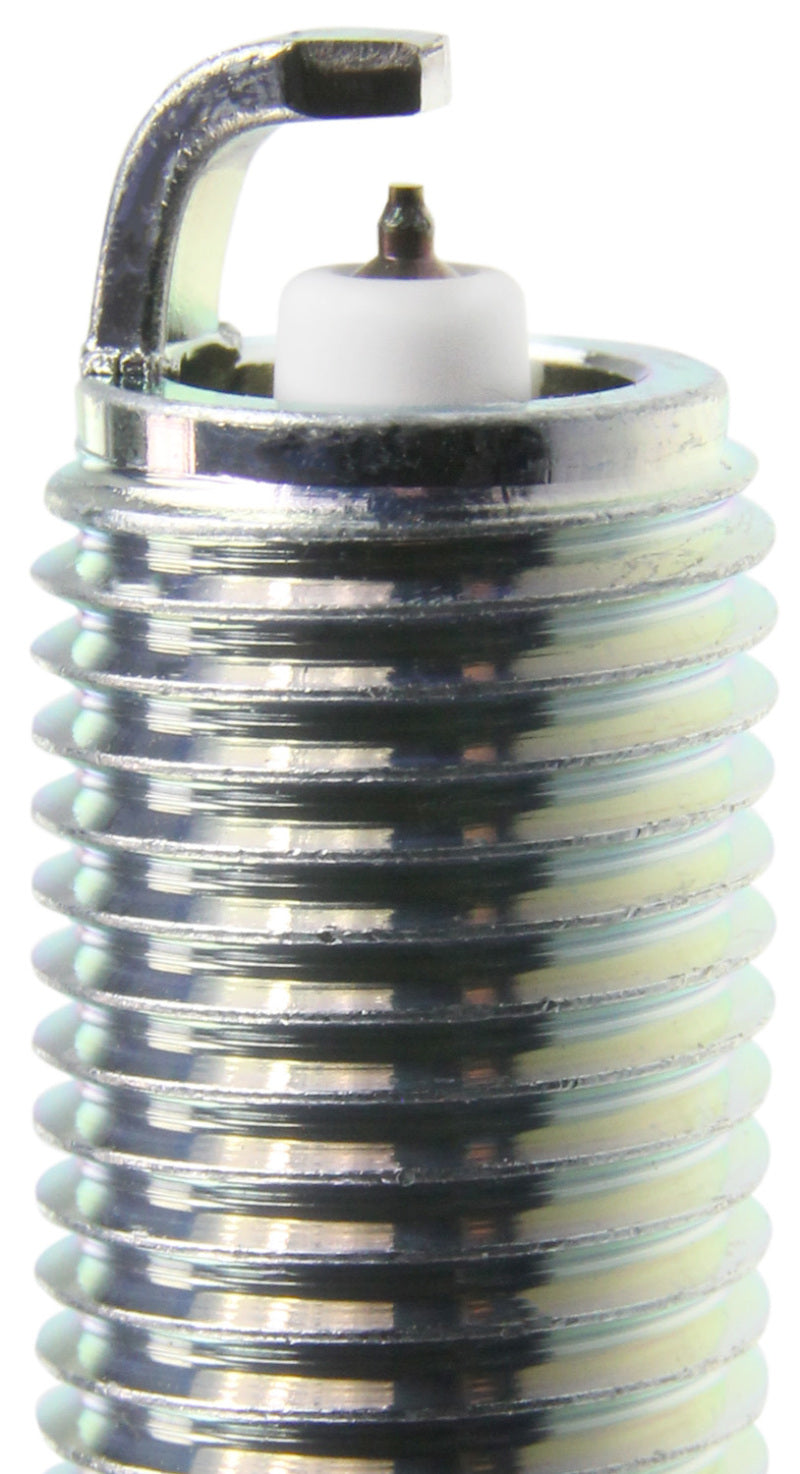

Service a compatible four-cylinder engine or purchase the required quantity for a larger engine with this set of four NGK LKR7DIX-11S Iridium IX spark plugs. Each performance-grade resistor plug features a fine-wire iridium center electrode, tapered-cut ground electrode and solid non-removable terminal.

NGK Iridium IX construction is designed to support dependable ignitability and resistance to fouling. These plugs use M12 x 1.25 threads, an extended 26.5 mm reach, NGK heat range 7 and a factory gap of 1.1 mm.

Features

• NGK Iridium IX performance spark plug
• Fine-wire iridium center electrode
• Tapered-cut nickel ground electrode
• Projected-tip resistor construction
• Solid copper core supports heat dissipation
• Trivalent metal shell plating provides corrosion resistance
• Solid, non-removable terminal
• NGK heat range 7
• Set of four spark plugs

Specifications

• NGK plug number: LKR7DIX-11S
• NGK stock number: 93175
• Thread size: M12 x 1.25
• Thread diameter: 12 mm
• Thread reach: 26.5 mm / 1.043 inches
• Hex size: 5/8 inch / 16 mm
• Seat type: Flat gasket seat with crush washer
• Terminal type: Solid non-removable nut
• Heat range: 7
• Factory gap: 1.1 mm / 0.044 inch
• Center electrode: Fine-wire iridium
• Ground electrode: Tapered-cut nickel
• Ground-electrode quantity: 1
• Resistance: 5,000 ohms

Fitment

Compatible with vehicle and engine applications that specify NGK LKR7DIX-11S, stock number 93175 or specifications confirmed as equivalent by NGK’s application catalog.

Fitment note: This is a four-plug package. Four-cylinder engines generally require one set, while compatible six-cylinder engines require six plugs and therefore need two sets, leaving two spare plugs. Confirm the vehicle year, make, model, engine, required plug number and total quantity before ordering.

Do not select a spark plug based only on thread diameter or vehicle engine size. Similar-looking plugs may have a different reach, heat range, terminal, seat design or electrode configuration. Vehicles originally equipped with long-life precious-metal plugs may also have different service requirements.

Recommended Use

Recommended for compatible engines specifically calling for LKR7DIX-11S or NGK stock number 93175. Modified, forced-induction or specially tuned engines may require a different heat range and electrode gap based on the engine builder or tuner’s specifications.

What’s Included

• Four NGK LKR7DIX-11S Iridium IX spark plugs

Installation

Verify the required plug number and gap against the vehicle service information before installation. Check each plug using a suitable wire-style gauge and avoid applying pressure directly to the fine-wire iridium center electrode.

Install into a cool engine and start each plug by hand to prevent cross-threading. Tighten according to the vehicle manufacturer’s procedure and torque specification. Do not apply lubricant or anti-seize unless specifically directed by the vehicle or spark-plug manufacturer.
