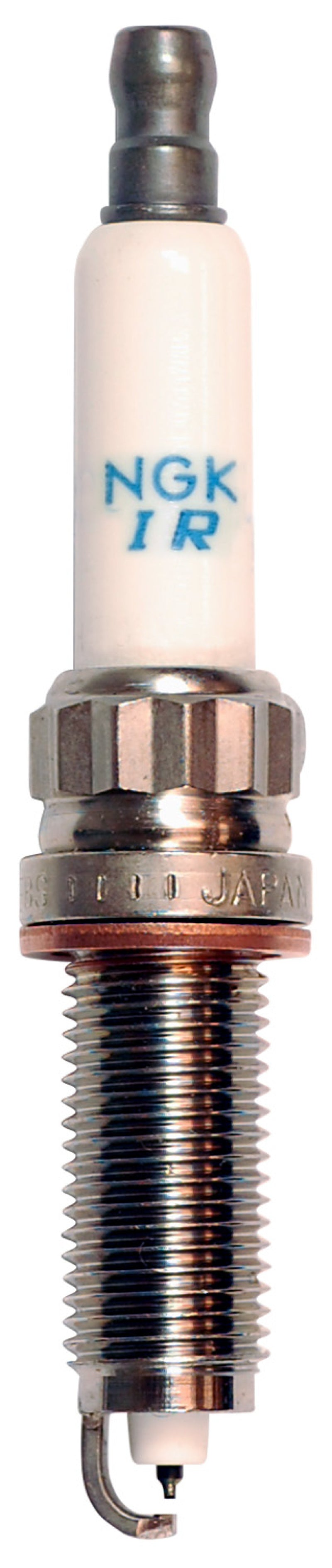

NGK Laser Iridium Spark Plug Box of 4 (SILZKBR8D8S)

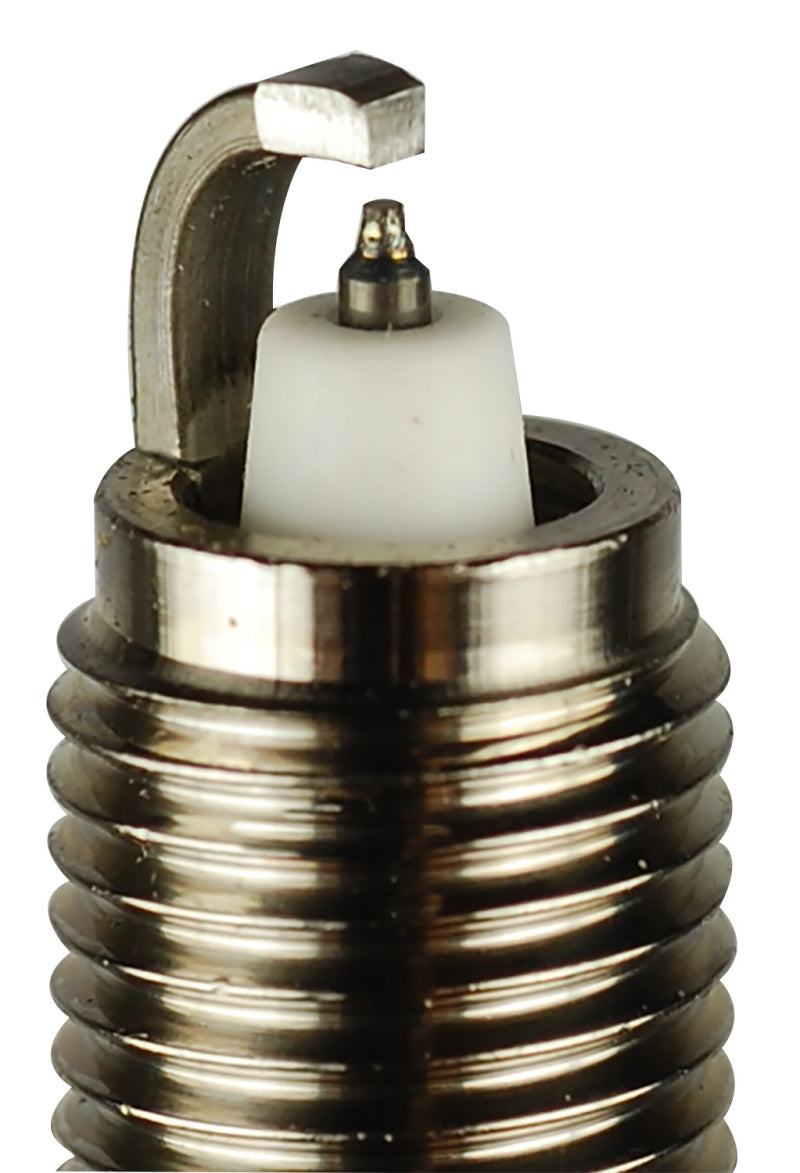

This set of four NGK SILZKBR8D8S Laser Iridium spark plugs provides OE-style ignition performance and extended service life for compatible BMW engines. Each plug combines a fine-wire iridium center electrode with a platinum-tipped ground electrode to help provide reliable ignition, consistent combustion, and resistance to electrode wear.

The package contains four spark plugs, making it a complete replacement set for compatible four-cylinder engines. These plugs are also used in certain six-cylinder applications, including select BMW S55 engines, but two sets or additional individual plugs will be required.

Features

• NGK Laser Iridium spark plug
• Fine-wire iridium center electrode
• Platinum-tipped ground electrode
• Designed for dependable ignition and extended service life
• Resistor construction helps reduce electrical interference
• Gasket-seat design with crush washer
• Solid, non-removable terminal
• NGK part number: SILZKBR8D8S
• NGK stock number: 97506

Specifications

• Product line: Laser Iridium
• Thread diameter: M12
• Thread pitch: 1.25 mm
• Thread reach: 26.5 mm (1.04 inches)
• Hex size: 14 mm bi-hex (12-point)
• Seat type: Gasket
• Center electrode material: Iridium
• Ground electrode material: Platinum
• NGK heat range: 8
• Nominal pre-gap: 0.8 mm (approximately 0.031 inch)
• Resistor: Yes

Fitment

Used in select BMW applications that specify NGK SILZKBR8D8S or stock number 97506. Common applications include compatible BMW N20 and N26 2.0L turbocharged four-cylinder engines and select S55 3.0L twin-turbocharged six-cylinder engines.

• Select BMW 2.0L turbo four-cylinder models equipped with N20 or N26 engines
• 2012–2017 BMW 320i 2.0L applications where specified
• Select BMW 228i, 328i, 428i, 528i, X1, X3, and X4 configurations
• Select BMW M2 Competition, M2 CS, M3, and M4 models equipped with the S55 engine

Fitment warning: BMW engine availability varies by model, production date, market, and trim. Confirm the existing plug number, engine code, VIN-based catalog listing, thread dimensions, heat range, and required gap before ordering.

Package Quantity

• Four-cylinder engine: 1 set of four plugs normally required
• Six-cylinder engine: 6 plugs required; this package is not a complete set
• Eight-cylinder engine: 8 plugs required; this package is not a complete set

Performance and Modified Engines

SILZKBR8D8S plugs are also used in some modified or tuned BMW applications. This does not make them a universal replacement for every BMW turbo engine. The appropriate heat range and electrode gap depend on the engine, tune, fuel, boost pressure, ignition system, and tuner’s requirements.

For a modified vehicle, follow the engine builder’s or tuner’s spark-plug and gap recommendations rather than relying solely on the factory specification.

What’s Included

• 4 NGK SILZKBR8D8S Laser Iridium spark plugs
• NGK stock number 97506

Installation

Compare each new plug with the plug being removed and verify the part number and gap before installation. Fine-wire iridium electrodes can be damaged by improper gapping tools, so use a suitable wire-style gauge and avoid applying pressure to the center electrode.

Install the plugs only when the cylinder head is cool. Start each plug by hand to prevent cross-threading and tighten it according to the vehicle manufacturer’s procedure and torque specification. Inspect the ignition coils, boots, and plug wells for damage, oil, moisture, or contamination while the plugs are removed.
