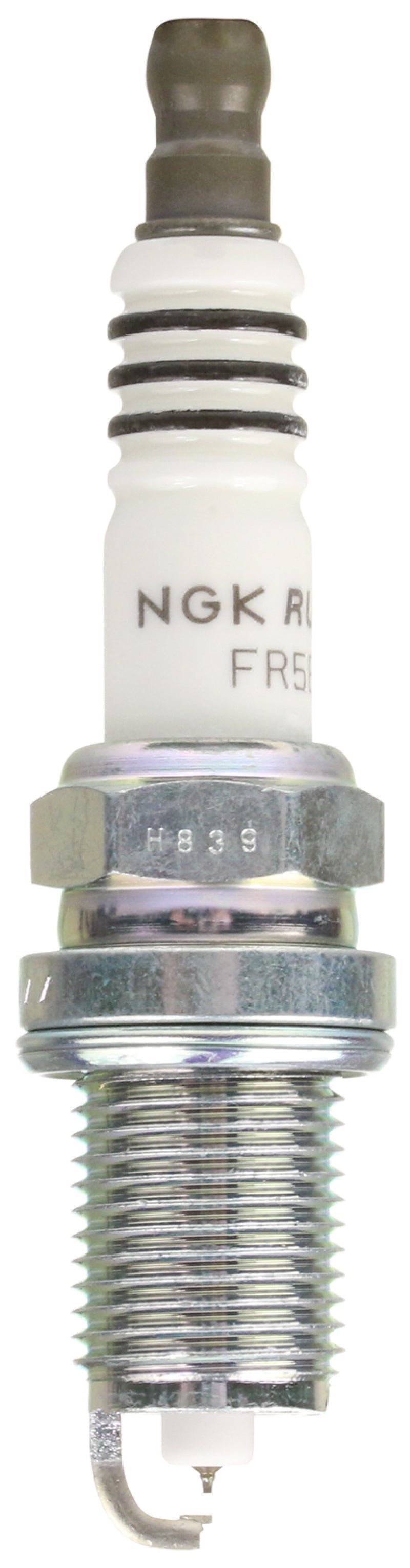

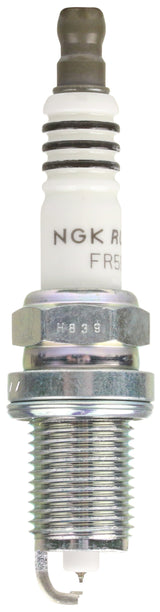

NGK FR5BHX Ruthenium HX Spark Plugs – Set of 4

This set of four NGK FR5BHX Ruthenium HX spark plugs provides high-ignitability performance and extended service life for compatible modern engine applications. NGK’s ruthenium-alloy center electrode concentrates the spark while resisting wear at elevated combustion temperatures.

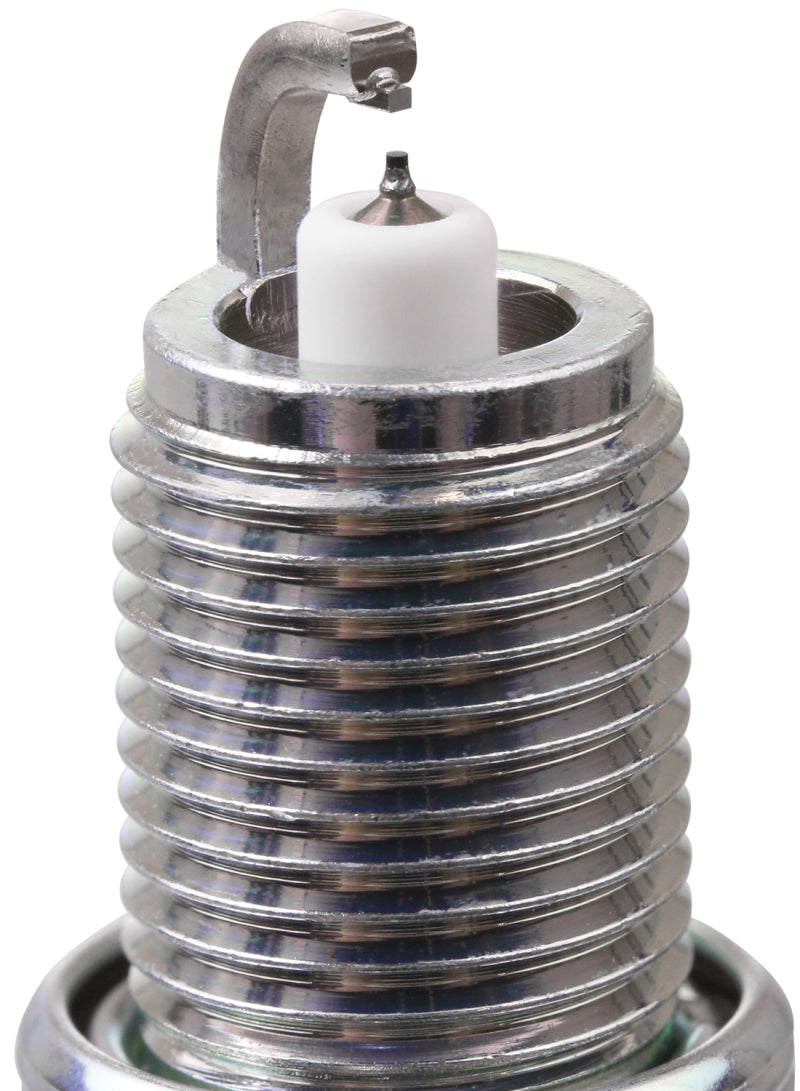

The FR5BHX uses NGK’s Projected Square Platinum Electrode design. Its fine-wire ruthenium center electrode and specially shaped platinum ground electrode help provide reliable cold starts, stable idle, responsive acceleration, and consistent ignition throughout the plug’s service life.

Features

• NGK Ruthenium HX high-ignitability spark plug
• Fine-wire ruthenium-alloy center electrode
• Projected Square Platinum Electrode ground design
• Platinum-tipped ground electrode
• Designed for high ignitability and extended service life
• Solid copper core helps transfer heat and conduct electrical energy
• Built-in resistor helps suppress electrical interference
• Trivalent metal shell plating helps resist corrosion and seizing
• Gasket-seat design with crush washer
• NGK part number: FR5BHX
• NGK stock number: 96457

Ruthenium HX Technology

Ruthenium is used at the center electrode for its durability and resistance to wear at high operating temperatures. The fine-wire electrode requires less voltage to initiate the spark than a conventional large-diameter nickel electrode.

The Projected Square Platinum Electrode ground design helps concentrate spark energy across the electrode gap. This high-ignitability configuration is designed to support consistent combustion, smoother operation, and dependable starting in engines specifying this plug design.

Specifications

• Product line: Ruthenium HX
• Center electrode material: Ruthenium
• Center electrode design: Fine wire
• Ground electrode material: Platinum
• Ground electrode design: Projected Square Platinum Electrode
• Ground electrode configuration: Single J-gap
• Center electrode core: Copper
• Thread diameter: 14 mm
• Thread pitch: 1.25 mm
• Thread reach: 19 mm (0.750 inch)
• Hex size: 16 mm (5/8 inch)
• Seat type: Gasket with crush washer
• Terminal type: Solid, non-removable nut
• NGK heat range: 5
• Nominal pre-gap: 1.1 mm (0.044 inch)
• Resistor: Yes
• Resistance: Approximately 5,000 ohms

Fitment

FR5BHX is used in numerous vehicle applications from manufacturers including Hyundai, Kia, Subaru, Saab, Volvo, Mercedes-Benz, Jaguar, Land Rover, Toyota, Mitsubishi, Bentley, and others. Compatibility varies by model year, engine, trim, emissions specification, and market.

Use these plugs only when the application specifies NGK FR5BHX, NGK stock number 96457, or a confirmed equivalent with matching dimensions, heat range, electrode design, resistor construction, and gap requirements.

Verify before ordering: Confirm the spark-plug number through the NGK application catalog, vehicle service information, VIN-based parts catalog, or the plug being removed. Matching the thread diameter alone does not confirm compatibility.

Package Quantity

• Four-cylinder engine: One four-plug set normally required
• Six-cylinder engine: Six plugs required; this package is not a complete set
• Eight-cylinder engine: Two four-plug sets normally required
• Engines using two plugs per cylinder may require additional sets

Recommended Use

Recommended for routine ignition maintenance or replacement of worn, fouled, or damaged plugs in engines that specify FR5BHX. Possible symptoms of worn spark plugs include difficult starting, rough idle, hesitation, reduced fuel economy, or ignition misfires.

What’s Included

• 4 NGK FR5BHX Ruthenium HX spark plugs
• NGK stock number 96457

Installation

Compare the new plugs with the plugs being removed and verify the part number and electrode gap before installation. Although FR5BHX is supplied with a nominal 1.1 mm gap, the required gap may vary by application.

Avoid applying pressure to the fine-wire center electrode when checking or adjusting the gap. Install the plugs only when the cylinder head is cool, start each plug by hand to prevent cross-threading, and tighten according to the vehicle manufacturer’s procedure and torque specification. Do not apply anti-seize unless directed by the vehicle manufacturer.
