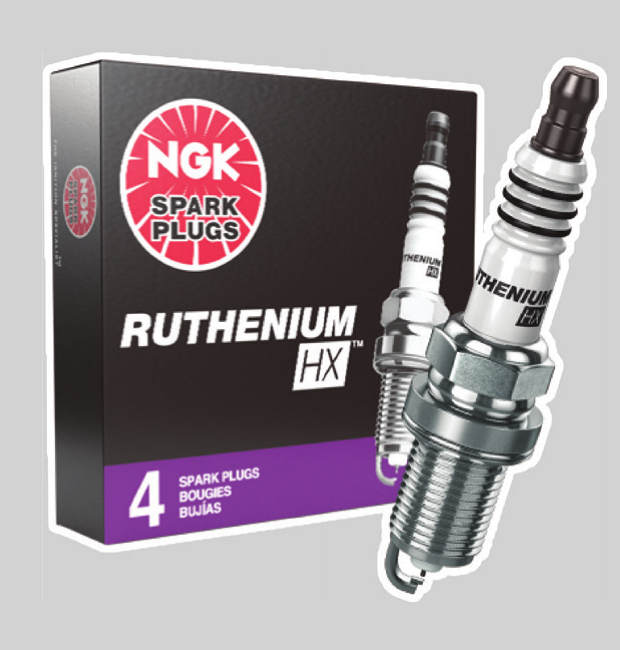

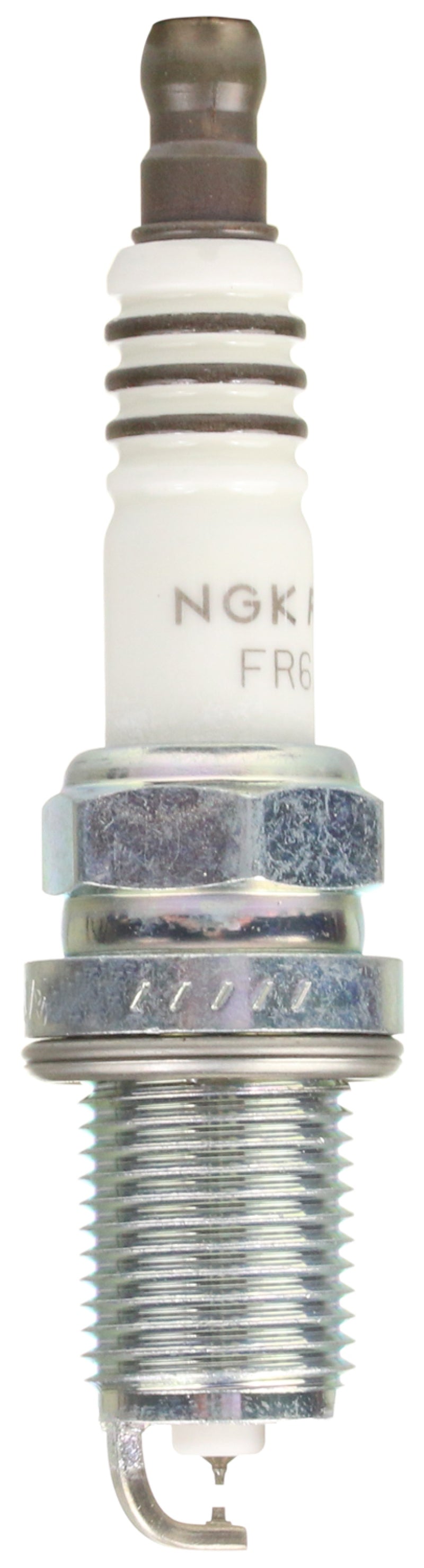

NGK Ruthenium HX FR6AHX-S Spark Plugs (4 Plugs)

This package contains four NGK FR6AHX-S Ruthenium HX high-ignitability spark plugs. Designed for compatible modern ignition systems, each plug combines a 0.6 mm ruthenium center electrode with an opposed fine-wire platinum ground electrode.

The Double Fine Electrode design concentrates the spark to support efficient ignition across a wide range of operating conditions. NGK’s ruthenium alloy technology provides durability at high temperatures, while the platinum ground-electrode tip is designed to promote a complete fuel burn, responsive throttle operation, smooth idle quality, and reliable cold starting.

Features

• Package of four NGK Ruthenium HX spark plugs

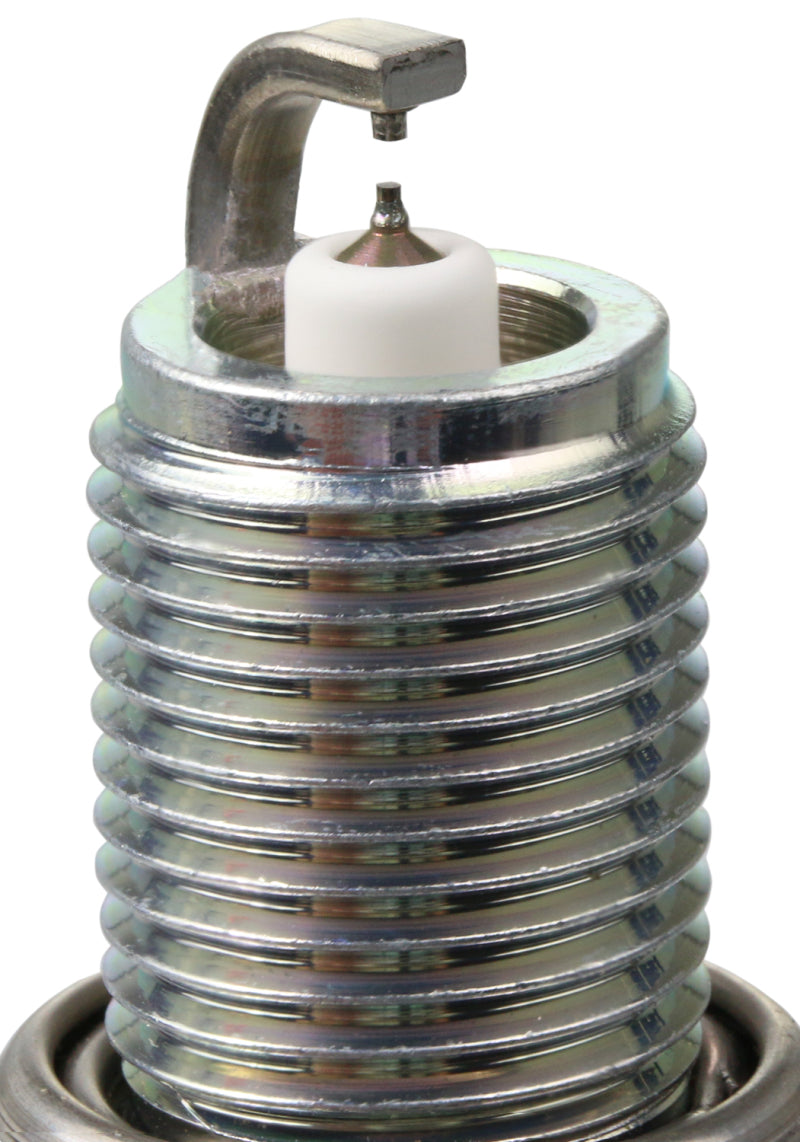

• High-ignitability Double Fine Electrode design
• 0.6 mm fine-wire ruthenium center electrode
• Fine-wire platinum-tipped ground electrode
• Ruthenium alloy provides durability at high operating temperatures
• Solid 98-percent-pure copper core supports heat dissipation and electrical conductivity
• Trivalent metal plating provides corrosion resistance and helps prevent thread seizure
• Resistor construction helps suppress electrical interference
• Factory pre-gap of 0.044 inch
• NGK part number FR6AHX-S
• NGK stock number 94279

Fitment

FR6AHX-S is an application-specific spark plug used in numerous vehicles and engine configurations. Confirm that NGK FR6AHX-S or stock number 94279 is specified for the exact vehicle, engine, and model year before ordering.

This package contains four spark plugs. Engines requiring more than four plugs will require additional packages. Do not determine compatibility from thread size or physical dimensions alone.

Specifications

• Part number: FR6AHX-S
• NGK stock number: 94279
• Product line: Ruthenium HX High Ignitability
• Quantity: 4 spark plugs
• Center-electrode material: Ruthenium
• Center-electrode design: Fine wire
• Center-electrode core: Copper
• Ground-electrode configuration: J-gap
• Ground-electrode design: Double Fine Electrode
• Ground-electrode quantity: 1
• Ground-electrode core material: Nickel
• Ground-electrode tip material: Platinum
• Manufacturer heat range: 6
• Thread size: M14 x 1.25
• Reach: 0.750 inch (19 mm)
• Hex size: 5/8 inch (16 mm)
• Seat type: Flat
• Washer type: Crush washer
• Factory pre-gap: 0.044 inch (1.1 mm)
• Resistance: 5,000 ohms
• Resistor type: Yes
• Terminal type: Non-removable nut
• Insulator-tip projection: 0.12 inch (3.0 mm)
• Center-electrode projection: Mid projection
• Insulator material: Ceramic

Recommended Use

Recommended for compatible vehicles that specify NGK FR6AHX-S or an approved cross-reference. These plugs may be used during scheduled ignition maintenance or when replacing worn, fouled, damaged, or overdue spark plugs.

What’s Included

• 4 NGK FR6AHX-S Ruthenium HX spark plugs

Installation

Confirm the engine designation before installation. NGK lists a 0.052-inch application gap for the B18C1 and a 0.044-inch application gap for the B18C5. Although FR6AHX-S plugs are supplied with a 0.044-inch factory pre-gap, the required installed gap depends on the application.  Please check installation gap on NGK Parts Finder

Inspect each gap before installation and adjust it carefully when required. Avoid applying force directly against the fine-wire center electrode or platinum-tipped ground electrode. NGK notes that factory-pre-gapped plugs may require adjustment for the intended vehicle.

Install the plugs into a cool engine and tighten them according to the Acura service procedure and specified torque value. Improper adjustment, cross-threading, or excessive tightening can damage the spark plug or cylinder head.
