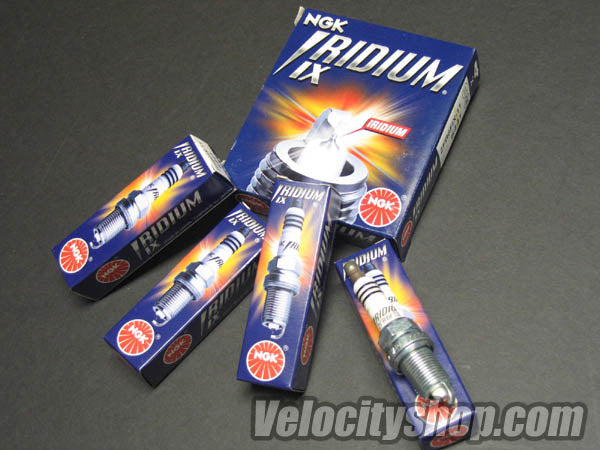

NGK ZFR6FIX-11 Iridium IX Spark Plugs are a performance-oriented replacement for compatible 2001–2005 Honda Civic models equipped with the 1.7L D17A1 or D17A2 engine. This package contains four spark plugs, providing the quantity required to service one four-cylinder engine.
The Iridium IX design uses a fine-wire iridium center electrode to concentrate the spark while requiring less voltage than a conventional large-diameter electrode. A tapered-cut ground electrode helps reduce electrical quenching and supports consistent ignition response.
Features
- Complete set of four NGK Iridium IX spark plugs
- Fine-wire iridium center electrode
- Designed to provide consistent ignition and throttle response
- Tapered-cut ground electrode helps reduce quenching
- Projected insulator design
- Resistor-type construction helps suppress electrical interference
- Gasket-style seat with crush washer
- NGK heat range 6
- NGK plug number ZFR6FIX-11
- NGK stock number 6441
Fitment
- 2001–2005 Honda Civic 1.7L with D17A1 engine
- 2001–2005 Honda Civic 1.7L with D17A2 engine
Common applications include compatible Civic DX, LX, and EX models. Honda used multiple D17 engine variants and ignition specifications, so confirm the engine code and required spark-plug number before ordering. Do not assume compatibility based solely on the vehicle having a D17-series engine.
Specifications
- Product line: NGK Iridium IX
- Plug number: ZFR6FIX-11
- Stock number: 6441
- Thread diameter: 14 mm
- Thread pitch: 1.25 mm
- Thread reach: 19 mm (0.750 inch)
- Hex size: 5/8 inch (16 mm)
- Seat type: Flat gasket seat
- Center electrode: Fine-wire iridium
- Ground electrode: Nickel alloy, tapered cut
- Resistor: Yes
- Heat range: 6
- Nominal gap: 1.1 mm (0.044 inch)
Recommended Use
Recommended for replacing worn, fouled, or overdue spark plugs in compatible stock or mildly modified Honda D17A1 and D17A2 engines requiring ZFR6FIX-11. Spark-plug condition and replacement intervals can vary with engine condition, tuning, fuel quality, and operating environment.
What’s Included
- 4 NGK ZFR6FIX-11 Iridium IX spark plugs
- Enough spark plugs to service one compatible four-cylinder engine
Installation
Confirm the specified plug number and gap for the exact engine before installation. Although the plugs are supplied with a nominal 1.1 mm gap, inspect each plug before installation because handling and shipping can alter the gap.
Use a wire-style gap gauge and avoid applying force directly to the fine-wire iridium center electrode. Start each plug by hand to prevent cross-threading, then tighten it according to the vehicle manufacturer’s procedure and torque specification. Install only when the cylinder head is cool unless the service procedure states otherwise.
