OEM Honda Acura K-Series Valve Cover Nut & Stud Kit – K20 K24

Genuine OEM Honda / Acura K-Series Valve Cover Stud & Cap Nut Kit

This Genuine OEM Honda / Acura K-Series valve cover stud and cap nut kit is used on select K20 and K24 engine valve cover / head cover applications.

This kit includes one OEM valve cover stud and one OEM cap nut used to secure the valve cover in place. It is commonly replaced when the original hardware is stripped, snapped, rounded, corroded, over-tightened, missing, or damaged during valve cover gasket replacement, valve cover removal, cylinder head service, engine reseal work, or K-Series engine assembly.

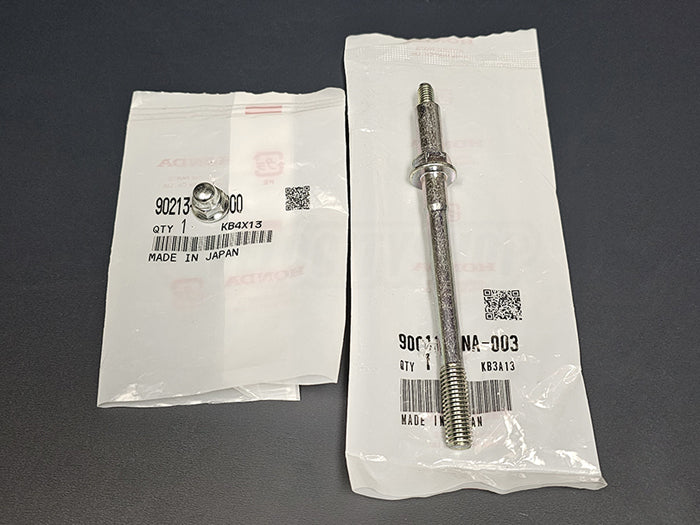

What’s Included

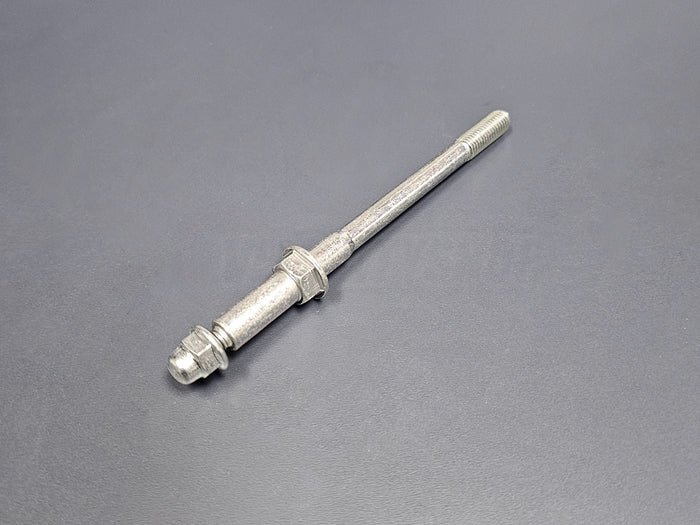

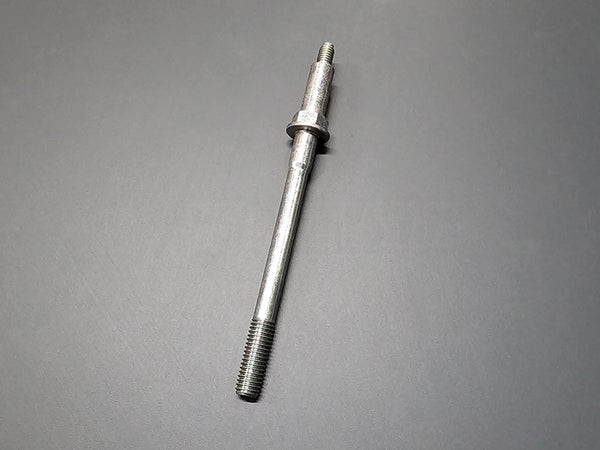

1 Genuine OEM Honda / Acura valve cover stud
OEM part number: 90011-PNA-003
Catalog name: Bolt A, Head Cover

1 Genuine OEM Honda / Acura cap nut
OEM part number: 90213-PH3-000
Catalog name: Cap Nut, 6MM

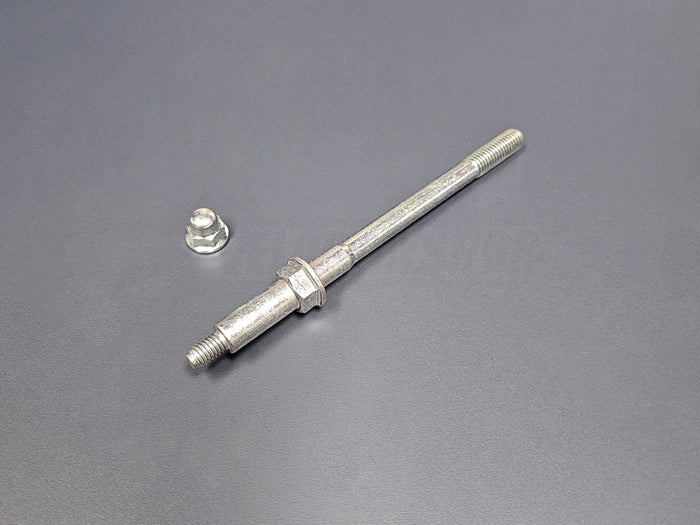

1 stud and 1 cap nut included

Engine Fitment

Fits select Honda / Acura K-Series applications, including:

K20A2
K20A3
K20Z1
K20Z3
K24A1
K24A2
K24A4

Vehicle Fitment

Fits select applications, including:

Acura Applications
2002–2006 Acura RSX Base
2002–2006 Acura RSX Type-S
2004–2008 Acura TSX
2009–2014 Acura TSX

Honda Applications
2002–2005 Honda Civic Si
2006–2011 Honda Civic Si
2012–2015 Honda Civic Si
2002–2006 Honda CR-V
2007–2011 Honda CR-V

Fitment Note

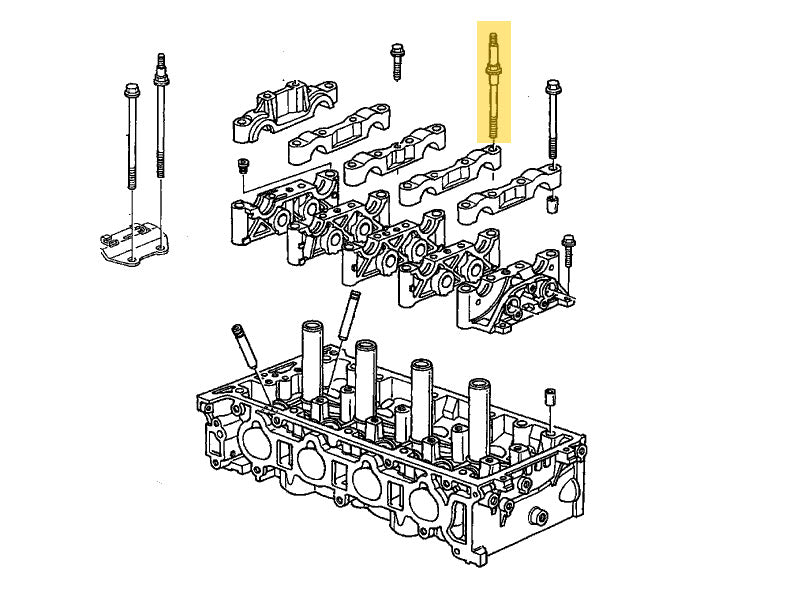

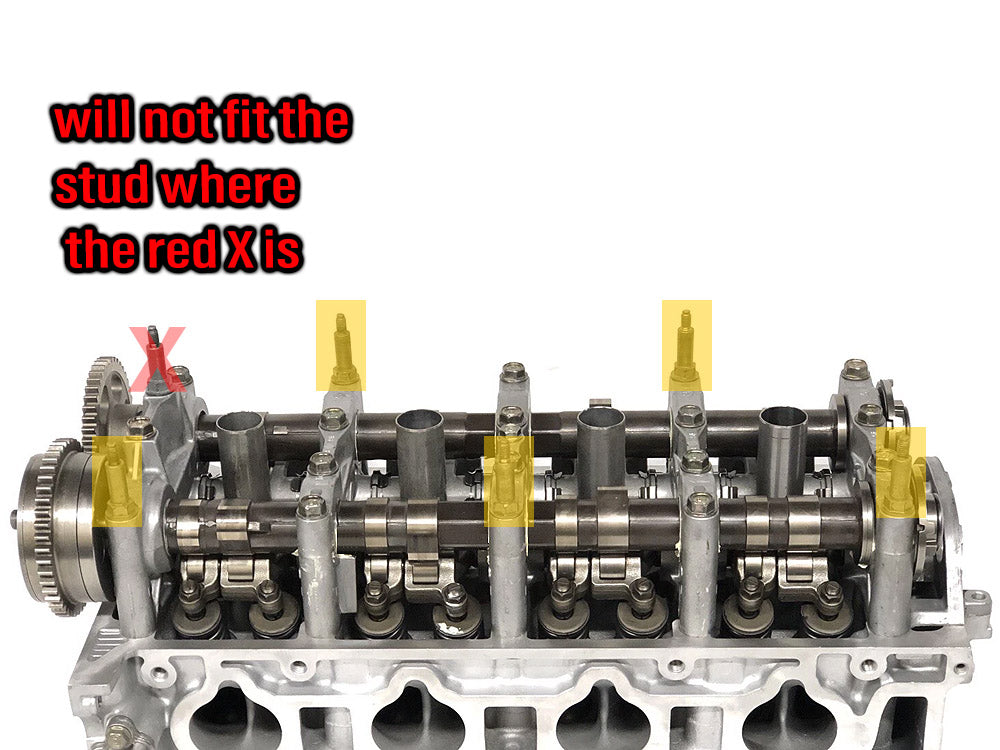

This kit is for select valve cover / head cover mounting locations on Honda and Acura K-Series engines. Fitment may vary by model year, engine code, cylinder head, valve cover, diagram location, and previous engine swap setup.

Please verify by VIN, original part number, and valve cover diagram before ordering.

Installation Note

Do not over-tighten valve cover hardware. K-Series valve cover studs and nuts can be damaged from excessive torque during valve cover gasket replacement. Always follow the factory service manual torque specification and tightening sequence.

Additional Product Information

This Genuine OEM Honda / Acura valve cover stud and cap nut kit is a direct replacement hardware set for select K-Series K20 and K24 valve cover applications. It is commonly used during valve cover gasket service, engine reseal work, cylinder head service, or K-Series swap assembly when the original hardware is missing, worn, or damaged.
