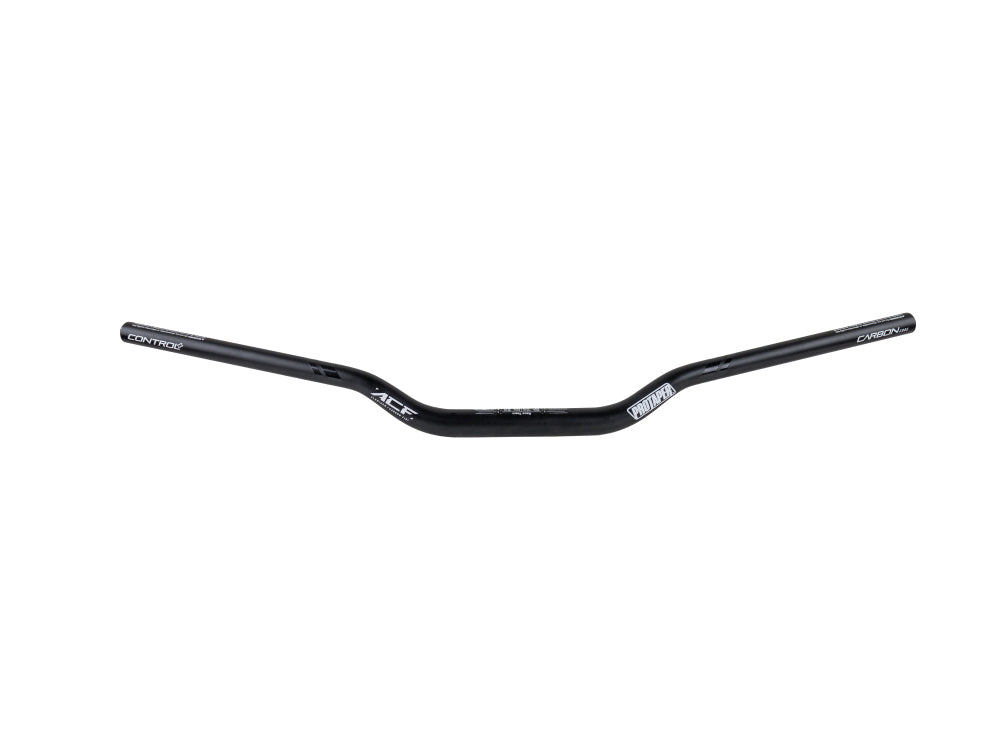

The ProTaper 031085 ACF Race Handlebar combines a 7000-series aluminum outer structure with a unidirectional carbon-fiber reinforcement core to create a lightweight, high-performance motocross handlebar with increased impact-absorbing flex.
This version uses ProTaper's Race bend and oversized 1-1/8-inch clamping diameter. The ACF design allows material to be strategically reduced in key areas while maintaining strength, helping reduce overall weight compared with conventional 1-1/8-inch handlebars.
Features
- ProTaper ACF carbon-fiber-reinforced motocross handlebar
- Race bend configuration
- 1-1/8-inch oversized handlebar design
- Unidirectional carbon-fiber reinforcement core
- 7000-series aluminum alloy construction
- Up to 20% lighter than conventional 1-1/8-inch handlebars
- Designed for high impact absorption and controlled flex
- Control+ design provides 220mm of control space
- Provides up to 40mm more control space than conventional 1-1/8-inch handlebars
- Additional room for mapping switches, electric starters, hydraulic controls, and other handlebar-mounted equipment
- Shot-peened, stress-relieved, and anodized finish for durability
- Black finish
Specifications
- Manufacturer: ProTaper
- Part Number: 031085
- Product Type: Motocross Handlebar
- Series: ACF
- Bend: Race
- Clamp Diameter: 1-1/8 Inch
- Primary Material: 7000-Series Aluminum Alloy
- Reinforcement: Unidirectional Carbon-Fiber Core
- Control Space: 220mm
- Finish: Black Anodized
- UPC: 887337420646
- Quantity: 1 Handlebar
ACF Carbon Fiber Reinforcement
ProTaper's ACF construction uses unidirectional carbon fiber inside the aluminum tubing to reinforce the bar while allowing the aluminum wall thickness to be reduced in selected areas. This helps lower weight while retaining strength and producing a more controlled, impact-absorbing flex characteristic.
Control+ Design
The Control+ layout provides 220mm of straight control space, giving riders additional room for modern controls such as mapping switches, electric starters, hydraulic clutch components, and other handlebar-mounted accessories.
Recommended Use
- Motocross racing
- Off-road motorcycle applications
- Performance dirt bike builds
- Riders looking for a lightweight oversized handlebar
- Applications requiring additional control-mounting space
What’s Included
- 1 ProTaper 031085 ACF Race Team Handlebar
Installation Note
Verify handlebar clamp diameter, control spacing, cable and hose length, and overall bend dimensions before installation. The motorcycle must use or be converted to a compatible 1-1/8-inch handlebar clamping system.
