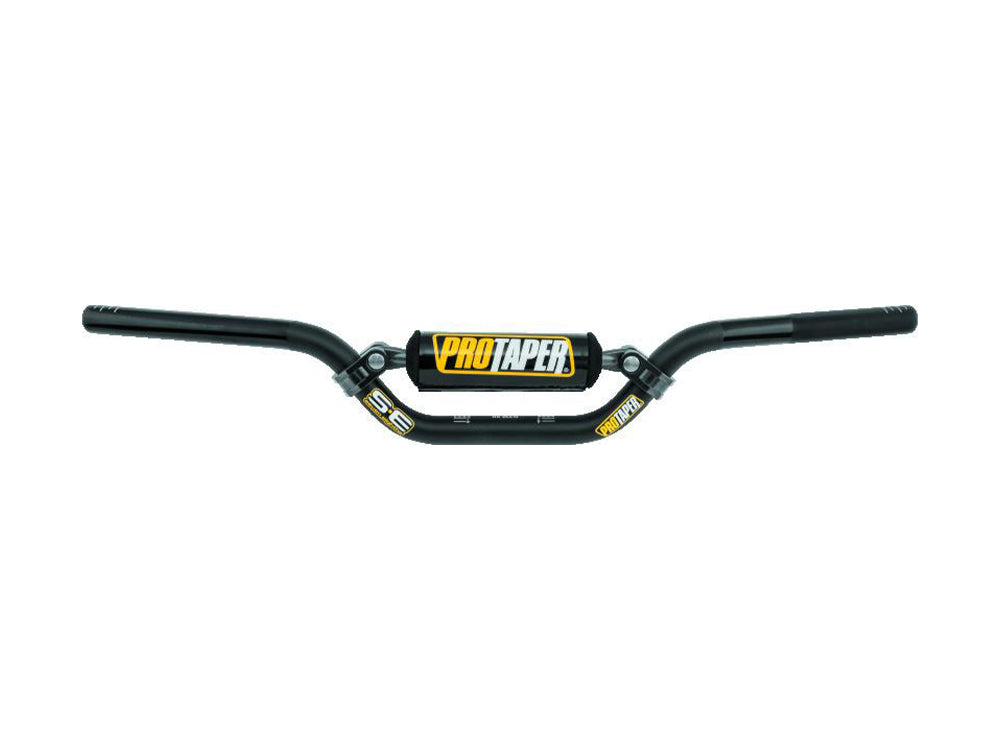

The ProTaper SE Mini Bike Handlebar with the Honda Mini bend is a crossbar-equipped 7/8-inch handlebar designed for compatible Honda mini motorcycles and similar mini-bike applications. Its 730 mm width, 117 mm height, and 89 mm rise provide the compact dimensions and elevated riding position associated with ProTaper’s Honda Mini bend.
This handlebar is constructed from ProTaper’s proprietary 5 mm-thick 2000-series T6 aluminum alloy, rated at 70,000 psi for solid and predictable feedback. It features a black anodized finish and comes equipped with a reinforced crossbar and ProTaper crossbar pad.
Features
- ProTaper SE Mini Bike handlebar with Honda Mini bend
- Standard 7/8-inch handlebar diameter
- Made from proprietary 5 mm-thick 2000-series T6 aluminum alloy
- Aluminum alloy rated at 70,000 psi
- Cold-forged aluminum crossbar
- CNC-machined 6061 aluminum crossbar clamps
- Shot-peened and stress-relieved construction
- Durable black anodized finish
- Clutch-side knurling helps improve grip adhesion
- Chemically applied graphics resist scratching and peeling
- Plastic end plugs help keep contaminants out of the handlebar
- Includes a ProTaper crossbar pad
- ProTaper part number 025258
Fitment
Honda Mini Bend
Designed for compatible Honda mini motorcycles and other mini-bike applications that can accommodate a 7/8-inch handlebar with the listed Honda Mini bend dimensions.
The bend name describes the handlebar profile and should not be treated as guaranteed fitment for every Honda mini motorcycle. Confirm the original handlebar dimensions, clamp diameter, control area, cable and brake-hose length, and surrounding clearance before ordering.

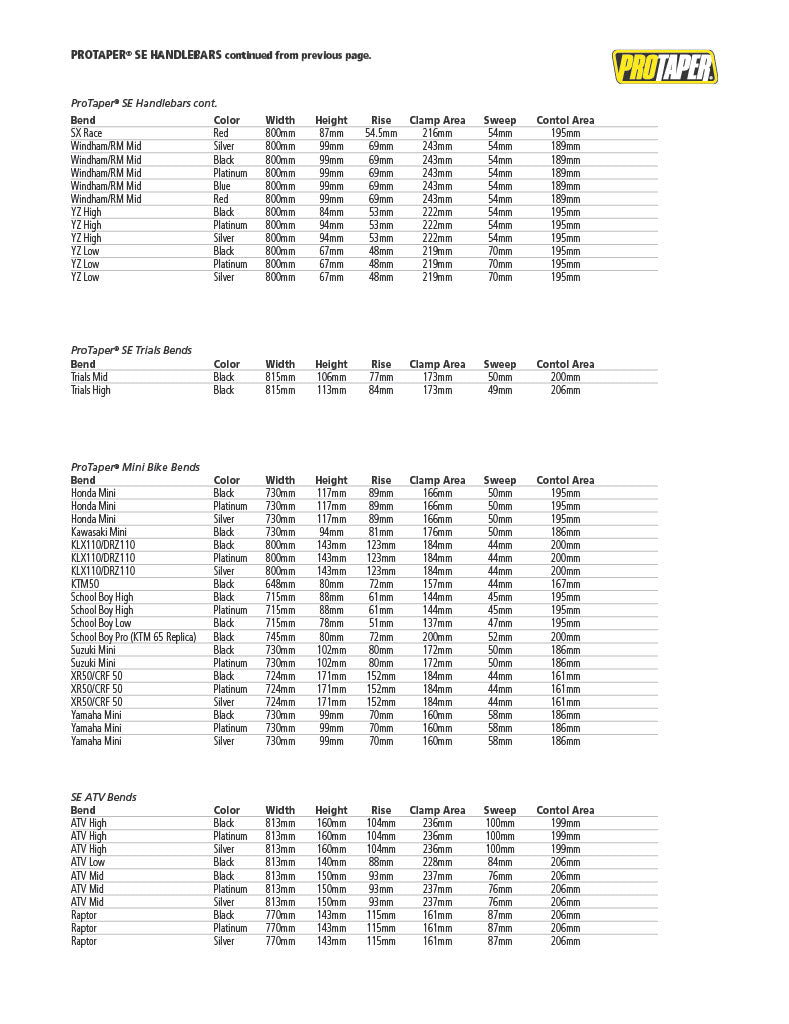

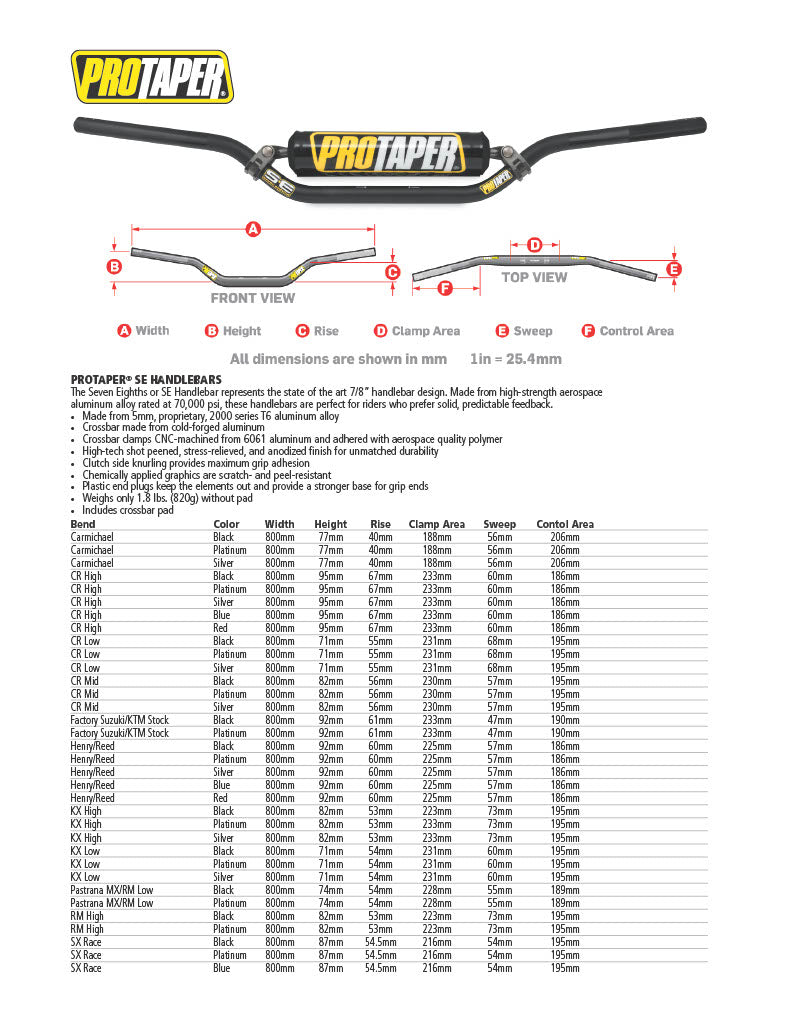

Handlebar Dimensions
- Width: 730 mm
- Height: 117 mm
- Rise: 89 mm
- Clamp area: 166 mm
- Sweep: 50 mm
- Control area: 195 mm
- Handlebar diameter: 7/8 inch
- Weight: Approximately 1.8 pounds (820 g) without the crossbar pad
- Color: Black
Recommended Use
Recommended for riders replacing a bent or damaged mini-bike handlebar or selecting the dimensions and riding position of ProTaper’s Honda Mini bend for a compatible 7/8-inch control setup.
What’s Included
- 1 ProTaper SE Mini Bike handlebar
- Crossbar and crossbar clamps
- ProTaper crossbar pad
- Plastic handlebar end plugs
Grips, levers, controls, handlebar mounts, and installation hardware are not included unless otherwise specified.
Installation
Center and secure the handlebar using the motorcycle or clamp manufacturer’s recommended tightening sequence and torque specifications. Confirm that the cables, brake hose, throttle assembly, controls, and surrounding components have adequate clearance throughout the complete steering range.
Before riding, verify that the throttle moves freely and returns completely without binding. Make sure no cable or hose is stretched, pinched, or pulled tight at full steering lock. Modification or control relocation may be required depending on the motorcycle.
