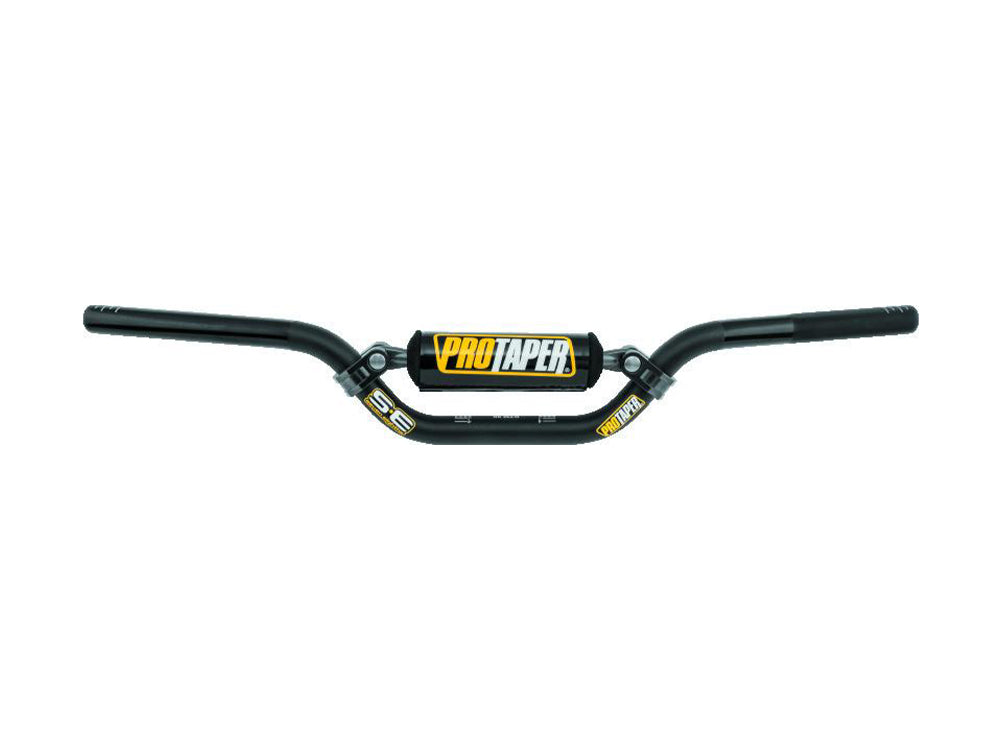

The ProTaper SE Mini Bike Handlebar in the KTM 50 bend is a 7/8-inch crossbar-equipped handlebar designed for mini motocross motorcycles. Its compact 648 mm width and KTM 50-specific bend dimensions provide an appropriately sized control layout for compatible mini-bike applications.
Constructed from proprietary 5 mm-thick 2000-series T6 aluminum alloy rated at 70,000 psi, the SE handlebar is engineered to provide solid, predictable feedback. This version features a durable black anodized finish and includes a ProTaper crossbar pad.
Features
- SE Mini Bike handlebar with KTM 50 bend
- Standard 7/8-inch handlebar diameter
- Constructed from proprietary 5 mm-thick 2000-series T6 aluminum alloy
- Aluminum alloy rated at 70,000 psi
- Cold-forged aluminum crossbar
- CNC-machined 6061 aluminum crossbar clamps
- Shot-peened and stress-relieved construction
- Durable black anodized finish
- Knurled clutch side helps improve grip adhesion
- Chemically applied graphics resist scratching and peeling
- Plastic end plugs help keep contaminants out of the handlebar
- Includes a ProTaper crossbar pad
- ProTaper part number 025263
Fitment
KTM 50 Mini Bend
Designed for compatible KTM 50 mini motorcycle applications using 7/8-inch handlebar clamps. ProTaper classifies this handlebar as universal fit, and installation may require modification.
Confirm the original handlebar dimensions, clamp diameter, control space, cable length, brake hose routing, and overall clearance before ordering.

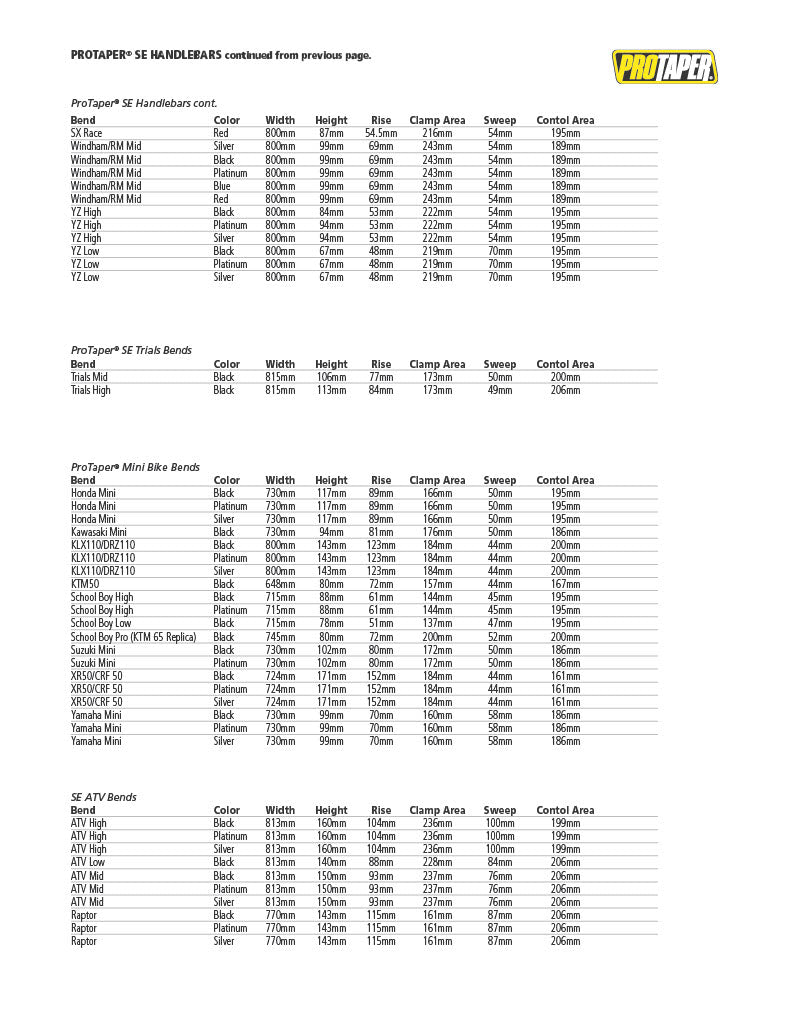

Handlebar Dimensions
- Width: 648 mm
- Height: 80 mm
- Rise: 72 mm
- Clamp area: 157 mm
- Sweep: 44 mm
- Control area: 167 mm
- Handlebar diameter: 7/8 inch
- Weight: Approximately 1.8 pounds (820 g) without the crossbar pad
- Color: Black
Recommended Use
Recommended for mini motocross riders replacing a bent or damaged original handlebar or selecting a KTM 50-style bend for a compatible 7/8-inch mini-bike control setup.
What’s Included
- 1 ProTaper SE Mini Bike handlebar
- Crossbar and crossbar clamps
- ProTaper crossbar pad
- Plastic handlebar end plugs
Grips, controls, levers, mounting clamps, and installation hardware are not included unless otherwise shown or specified.
Installation
Verify that the handlebar is centered and properly secured using the motorcycle or clamp manufacturer’s recommended tightening sequence and torque specifications. Confirm unrestricted steering movement and adequate clearance for the cables, brake hose, throttle assembly, controls, and surrounding components.
Before riding, make sure the throttle returns freely and that no cable or hose becomes stretched, pinched, or pulled tight at full steering lock. Professional installation is recommended when handlebar modification or control relocation is required.
