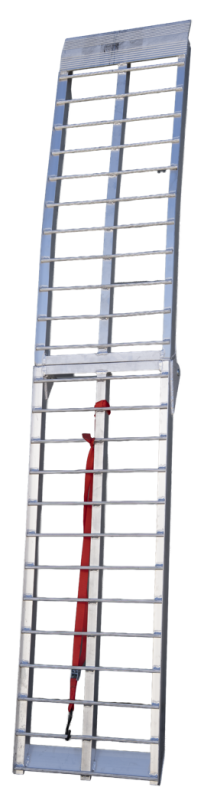

The QuadBoss 1,500-pound Arched Loading Ramp provides additional clearance when loading compatible motorcycles, ATVs, UTVs, and other powersports equipment. Its arched profile helps reduce the risk of the vehicle bottoming out as it transitions between the ramp and truck bed or trailer.
This product includes one individual ramp. A single ramp is rated for up to 1,500 pounds. When two matching ramps are used together, their combined weight capacity is 3,000 pounds. Customers requiring a complete pair must purchase two individual ramps or order the QuadBoss ramp pair sold under part number 571500P.
Features
- Arched profile provides additional loading clearance
- Helps reduce the chance of bottoming out during loading
- Robotically welded construction
- Lightweight structure weighs approximately 32 pounds
- Measures 94 inches long by 18 inches wide
- Rated for up to 1,500 pounds as a single ramp
- Two matching ramps provide a 3,000-pound combined capacity
- Includes adjustable security straps
- Covered by a one-year manufacturer’s warranty against defects
- QuadBoss part number 571500
Quantity and Capacity
- Quantity: One individual ramp
- Single-ramp capacity: 1,500 pounds
- Combined capacity when used as a matching pair: 3,000 pounds
- Complete pair sold separately as QuadBoss part number 571500P
The ramp capacity should comfortably exceed the total loaded weight placed upon it, including the vehicle, rider, cargo, accessories, and any other equipment.
Dimensions
- Length: 94 inches
- Width: 18 inches
- Approximate size: 7.8 feet long by 1.5 feet wide
- Ramp weight: Approximately 32 pounds
Recommended Use

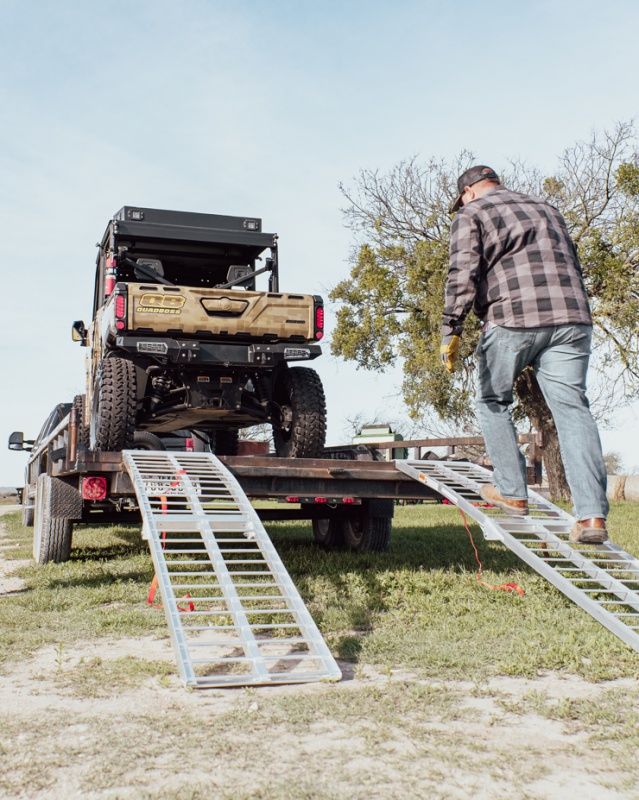

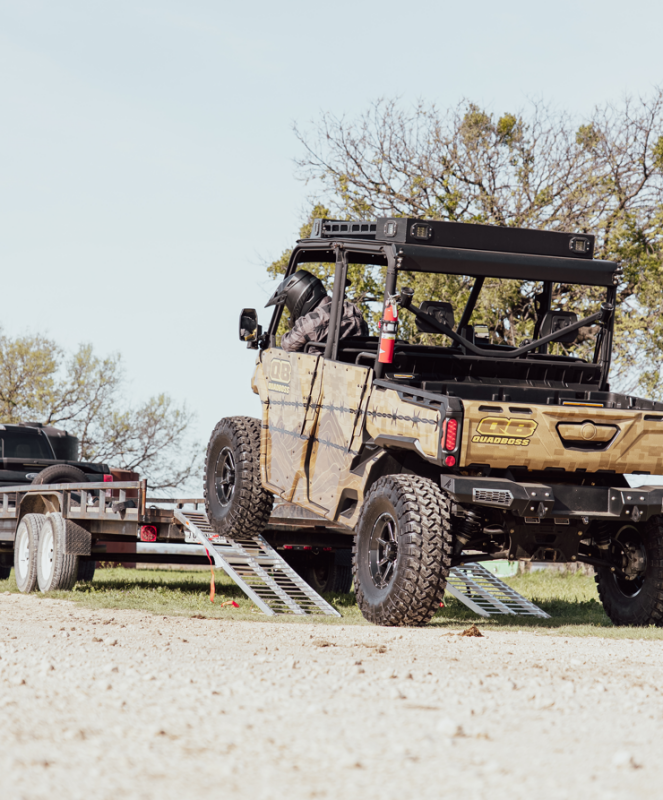

Recommended for loading compatible powersports vehicles into pickup trucks or onto trailers where additional breakover clearance is beneficial. Two matching ramps are required when the vehicle needs separate loading surfaces for its left- and right-side wheels.
What’s Included
- 1 QuadBoss arched loading ramp
- Adjustable security straps
- QuadBoss part number 571500
A second ramp is not included.
Setup and Safety
Position the ramp on a stable loading surface and attach the included adjustable security straps before every use. QuadBoss specifies that the security straps are required when using this product.
Confirm that the ramp is properly secured and that its rated capacity exceeds the complete loaded weight before proceeding. Load and unload slowly on level, stable ground and follow all manufacturer safety instructions.
