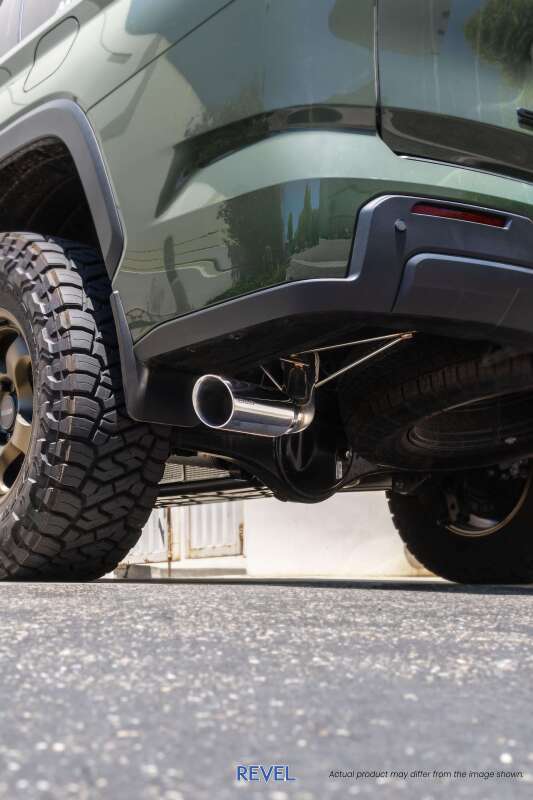

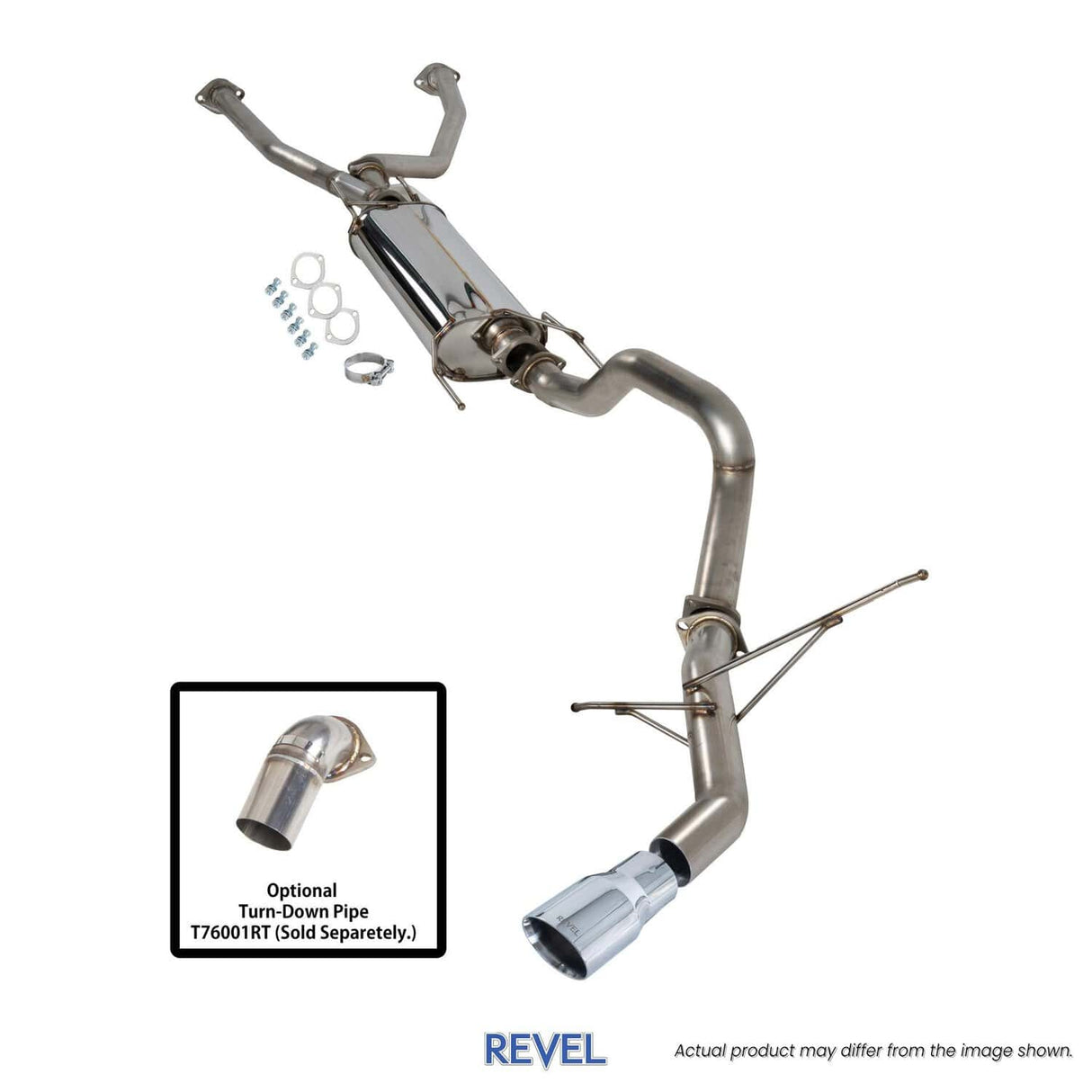

The Revel Medallion Trail Hart T76011RS Exhaust System is designed for 2023–2025 Toyota Sequoia applications, combining a deep performance exhaust tone with durable stainless steel construction and truck-focused design.
Built from full SUS304 stainless steel, the Trail Hart system uses 3-inch mandrel-bent piping with a 1.5mm wall thickness for corrosion resistance, strength, and consistent exhaust flow. This version includes Revel's interchangeable Alpine Silver 4-inch dual-wall exhaust tip.
Features
- Revel Medallion Trail Hart exhaust system
- Designed for 2023–2025 Toyota Sequoia
- Full SUS304 stainless steel construction
- 3-inch exhaust piping
- 1.5mm piping wall thickness
- Mandrel-bent piping maintains consistent diameter through bends
- Fully hand TIG welded construction
- Laser-cut flanges for durable connections
- 4-inch Alpine Silver exhaust tip
- Dual-wall angle-cut tip design
- Interchangeable and adjustable exhaust tip system
- Advantex muffler packing material
- Tested under 93 dB under load
- Designed to produce a clean, deep exhaust tone across the RPM range
Fitment
- 2023 Toyota Sequoia
- 2024 Toyota Sequoia
- 2025 Toyota Sequoia
Designed and tested for U.S.-specification vehicles equipped with the OEM exhaust system. Fitment may vary on vehicles with modified or aftermarket exhaust components.
Specifications
- Manufacturer: Revel USA
- Series: Medallion Trail Hart
- Part Number: T76011RS
- Vehicle Application: 2023–2025 Toyota Sequoia
- Material: SUS304 Stainless Steel
- Pipe Diameter: 3 in.
- Pipe Wall Thickness: 1.5mm
- Tip Diameter: 4 in.
- Tip Finish: Alpine Silver
- Tip Style: Interchangeable Dual-Wall Angle Cut
- Construction: Mandrel Bent and Hand TIG Welded
- Muffler Packing: Advantex
Trail Hart Exhaust Technology
The Trail Hart system uses mandrel-bent piping to maintain a consistent internal diameter through bends. Revel combines this with SUS304 stainless steel construction, hand TIG welding, and laser-cut flanges for durability and consistent exhaust flow.
Advantex muffler packing is used to balance exhaust flow with sound suppression. Revel rates the material for heat resistance up to 1200°F and tests Trail Hart exhaust systems below 93 dB under load.
Interchangeable Alpine Silver Tip
The included Alpine Silver exhaust tip uses a dual-wall construction and an adjustable mounting design. The tip can slide forward or backward before being secured, allowing the visible tip position to be adjusted to suit the vehicle setup and desired appearance.
Revel also offers a Black Gunmetal interchangeable tip separately for owners who want to change the appearance of the system later.
Recommended Use
- Street-driven Toyota Sequoia builds
- Off-road and overland-oriented Sequoia builds
- Drivers seeking a deeper exhaust tone
- Owners wanting a corrosion-resistant stainless steel exhaust upgrade
- Vehicles that may benefit from an adjustable exhaust tip position
What’s Included
- 1 Revel Medallion Trail Hart exhaust system
- 1 Alpine Silver interchangeable exhaust tip
- Associated exhaust system components and mounting hardware supplied by Revel
Optional Accessory

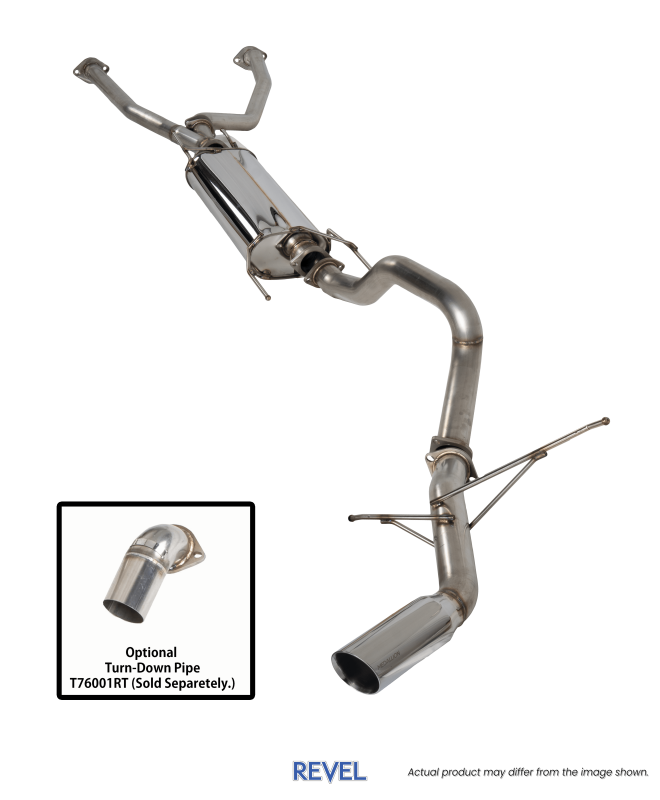

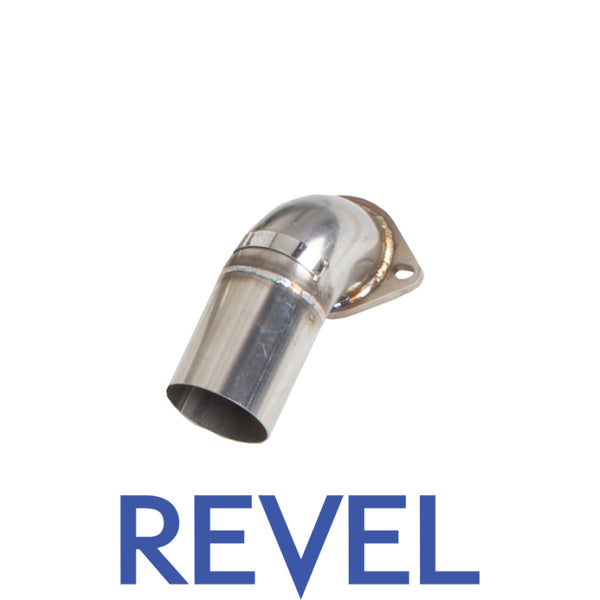

Revel offers the T76001RT 3-inch Trail Hart turn-down pipe separately. The shorter exhaust exit is designed to provide additional clearance for off-road driving where departure-angle clearance may be important.
Installation
Professional installation is recommended. Confirm that the vehicle retains the compatible OEM exhaust configuration before installation and check all exhaust clearances and connections after installation.
