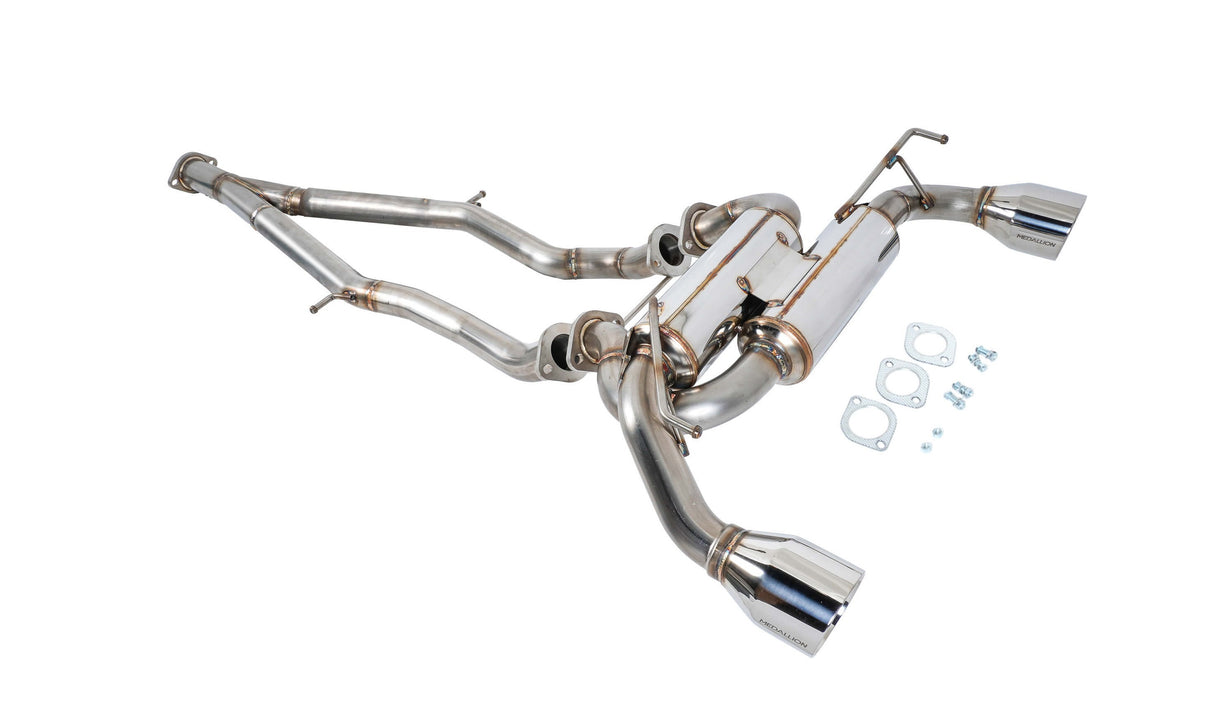

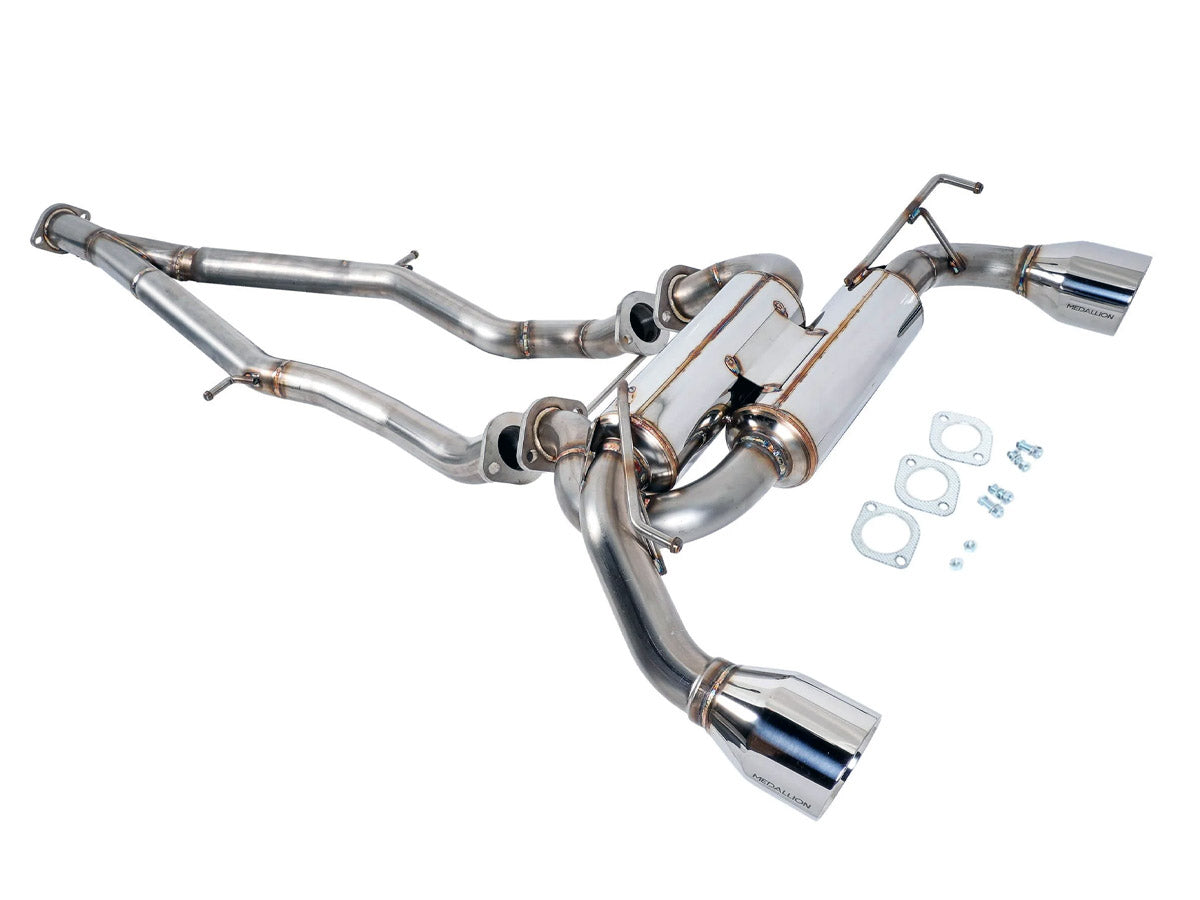

Revel Medallion Touring-S Exhaust for 2023–2024 Nissan Z
Give your Nissan Z a deeper, cleaner exhaust tone with the Revel Medallion Touring-S exhaust system.
Designed for the 2023–2024 Nissan Z RZ34, this system features full SUS304 stainless-steel construction with 1.5mm-wall piping for strength, corrosion resistance, and reduced exhaust resonance. The mandrel-bent tubing helps maintain a consistent pipe diameter through the bends for smoother exhaust flow.
The Touring-S system uses a straight-through muffler design for improved flow and a more aggressive exhaust note while retaining compact muffler canisters for ground clearance. Advantex muffler packing helps control sound while resisting temperatures up to 1200°F.

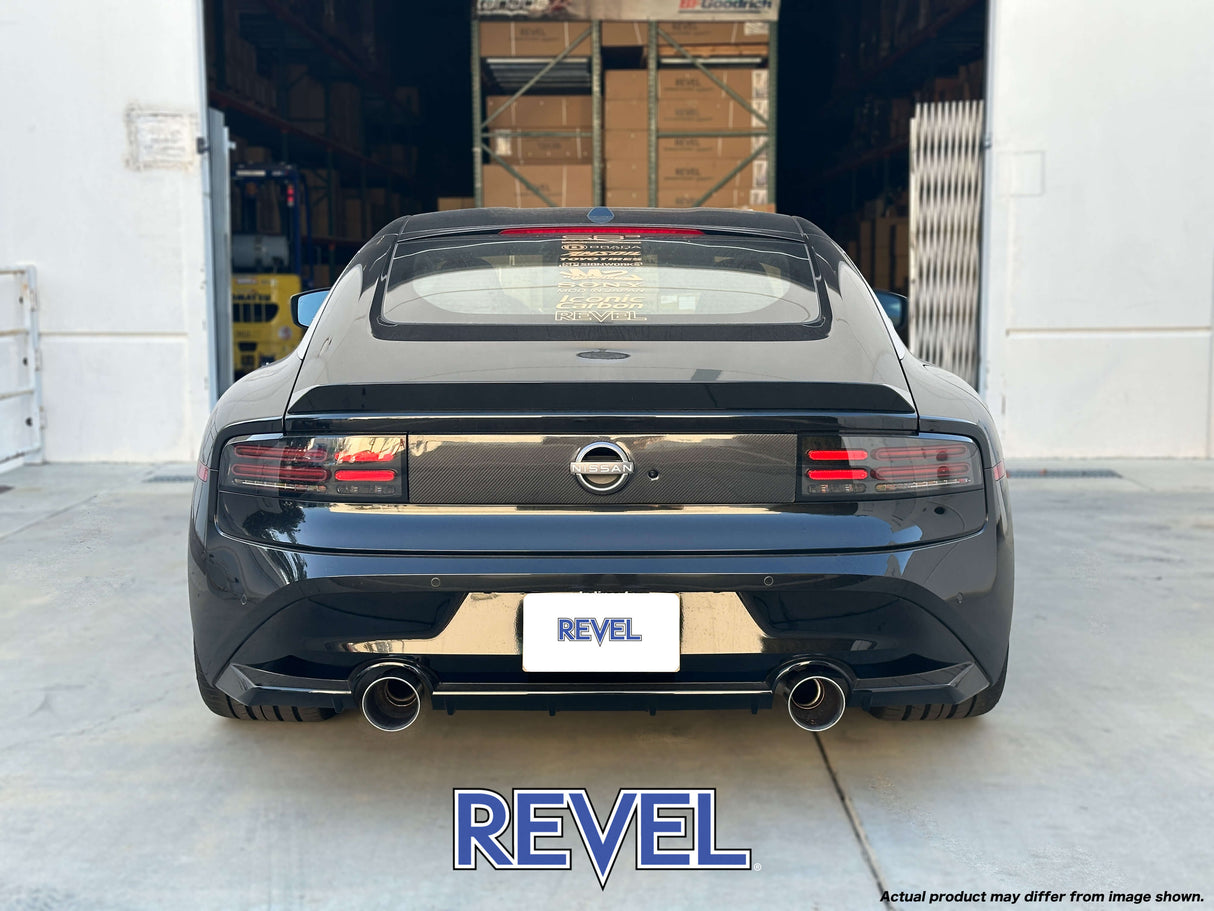

Large 115mm dual-wall angle-cut exhaust tips provide a modern appearance at the rear of the vehicle. The system is fully hand TIG welded and uses laser-cut connecting flanges for durable, precise connections.
Product Features
- Revel Medallion Touring-S exhaust system
- Designed for the 2023–2024 Nissan Z RZ34
- Full SUS304 stainless-steel construction
- 1.5mm-wall exhaust piping
- Mandrel-bent tubing
- Hand TIG-welded construction
- Laser-cut connecting flanges
- Straight-through muffler design
- Advantex muffler packing
- Dual-wall angle-cut exhaust tips
- 115mm exhaust-tip diameter
- 70–60mm exhaust-pipe diameter
- Clean, deep exhaust tone
- Compatible Y-pipe available separately
- Revel part number T70207R
Vehicle Fitment
- 2023 Nissan Z
- 2024 Nissan Z
Designed and tested for U.S.-specification vehicles equipped with the original exhaust configuration. Fitment with aftermarket downpipes, modified front pipes, non-original exhaust components, or previously altered exhaust systems may vary.
Product Specifications
- Manufacturer: Revel
- Product Line: Medallion Touring-S
- Part Number: T70207R
- Vehicle Platform: Nissan Z RZ34
- Pipe Diameter: 70 into 2 x 60mm outlet
- Tip Diameter: 115mm
- Material: SUS304 stainless steel
- Pipe Wall Thickness: 1.5mm
- Construction: Mandrel bent and hand TIG welded
- Muffler Design: Straight through
- Tip Design: Dual-wall angle cut
- Manufacturer-Listed Weight: 57 pounds
- Quantity: One rear exhaust system
Sound and Performance
The Medallion Touring-S is designed to produce a clean, deep, low exhaust tone while maintaining efficient exhaust flow. Revel states that the Touring-S line is tested below 93 dB under load, although some applications may be excluded from that specification.
Actual sound level and tone may vary depending on the Y-pipe, downpipes, catalytic converters, engine modifications, and other exhaust-system changes.
Compatible Y-Pipe
Revel identifies the following Y-pipe for use with this exhaust:
- Revel T50200FR Touring-S Y-Pipe
The Y-pipe is not included with this listing and must be purchased separately when required for the intended exhaust configuration.
Installation Note
Professional exhaust installation is recommended.
Before installation, compare the exhaust routing, flange positions, pipe diameters, hangers, and connection points with the original exhaust system. Inspect all gaskets and mounting hardware and replace any worn or damaged components.
After installation, verify clearance around the body, suspension, heat shields, and driveline. Check all connections for exhaust leaks and retighten the hardware after the first several heat cycles.
