Revel Medallion Trail Hart Cat-Back Exhaust – 2024–2025 Lexus GX550 – T76012R

Revel Medallion Trail Hart Exhaust for 2024–2025 Lexus GX550

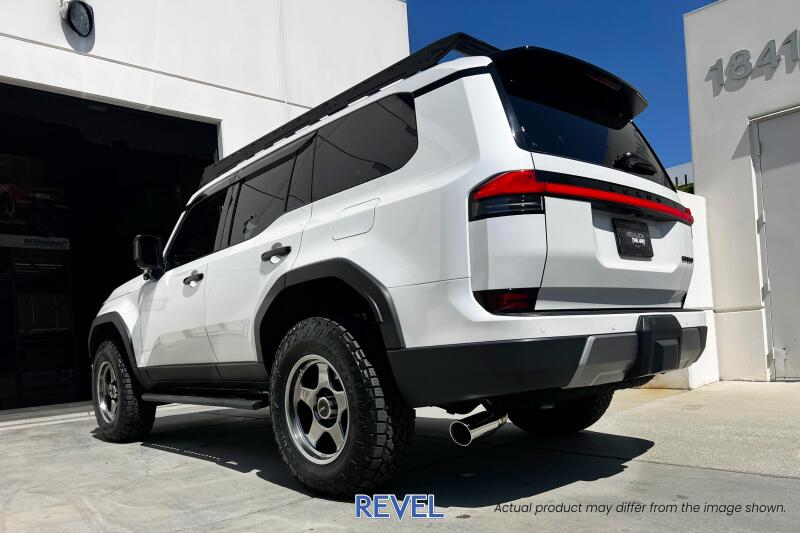

Upgrade the sound, appearance, and exhaust flow of your 2024–2025 Lexus GX550 with the Revel Medallion Trail Hart cat-back exhaust system.

Designed specifically for the J250 Lexus GX550 platform, the Trail Hart system combines corrosion-resistant stainless-steel construction with a deep, refined exhaust tone suitable for everyday driving, highway use, and off-road-oriented builds.

The system uses 2.5-inch and 3-inch mandrel-bent piping to maintain a consistent internal diameter through each bend. This helps support smooth exhaust flow while preserving strength and fitment throughout the vehicle-specific exhaust layout.

Revel constructs the system from full SUS304 stainless steel with 1.5mm wall-thickness tubing. The complete assembly is hand TIG welded and uses laser-cut flanges for strong, durable connections.

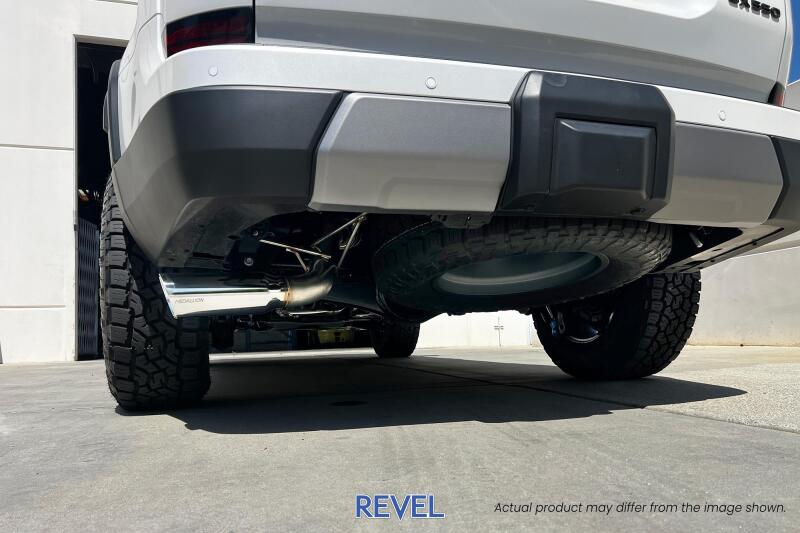

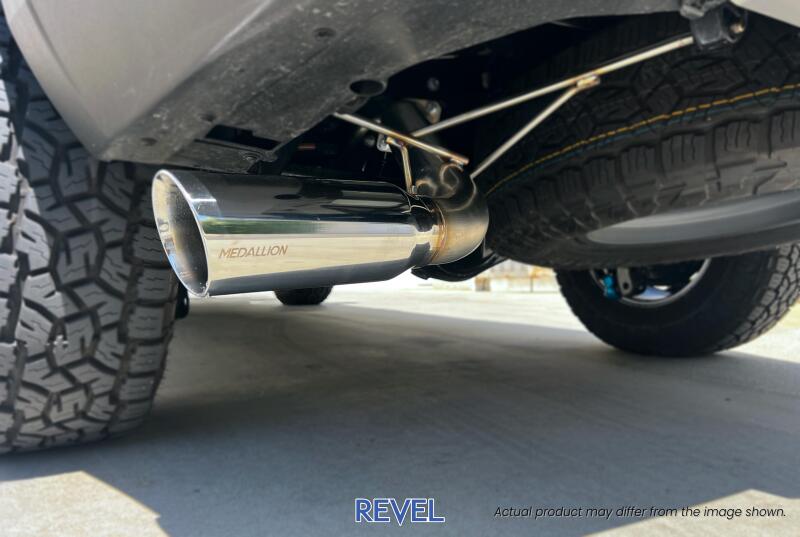

A fixed 4-inch silver exhaust tip completes the system with a clean, understated appearance that complements the GX550’s rear styling.

This listing includes one complete cat-back exhaust system with a fixed silver tip.

Product Features

• Revel Medallion Trail Hart cat-back exhaust system
• Designed for 2024–2025 Lexus GX550 models
• Vehicle-specific exhaust configuration
• 2.5-inch and 3-inch exhaust piping
• 4-inch fixed silver exhaust tip
• Full SUS304 stainless-steel construction
• 1.5mm wall-thickness tubing
• Mandrel-bent exhaust piping
• Fully hand TIG-welded construction
• Laser-cut exhaust flanges
• Deep, refined exhaust tone
• Tested below 93 dB under load
• Designed for U.S.-specification vehicles with original exhaust systems
• Revel part number T76012R

Vehicle Fitment

• 2024 Lexus GX550
• 2025 Lexus GX550

Designed for U.S.-specification vehicles equipped with the original exhaust system.

Fitment on vehicles with aftermarket exhaust components, modified bumpers, altered suspension components, non-original spare-tire arrangements, or other previously modified configurations may vary. Verify the vehicle year, trim, exhaust layout, and existing modifications before ordering.

Product Specifications

• Manufacturer: Revel
• Product Line: Medallion Trail Hart
• Revel Part Number: T76012R
• Exhaust Type: Cat-back exhaust system
• Pipe Diameter: 2.5 inches and 3 inches
• Tip Diameter: 4 inches
• Tip Style: Fixed silver tip
• Material: SUS304 stainless steel
• Pipe Wall Thickness: 1.5mm
• Tubing Construction: Mandrel bent
• Welding: Hand TIG welded
• Sound Level: Tested below 93 dB under load
• Quantity: One complete exhaust system

Exhaust Sound

The Medallion Trail Hart system is designed to deliver a clean, deep exhaust tone throughout the engine’s operating range while maintaining comfortable sound levels during normal driving.

Actual exhaust volume and tone may vary depending on engine load, vehicle modifications, catalytic-converter configuration, driving conditions, and surrounding environment.

Optional Turn-Down Pipe

A compatible Revel 3-inch turn-down pipe is available separately for drivers who want a shorter exhaust exit and additional rear clearance during off-road use.

The optional turn-down pipe is not included with this exhaust system.

Kit Contents

• Vehicle-specific exhaust piping
• Muffler assembly
• Fixed 4-inch silver exhaust tip
• Mounting brackets and hangers supplied with the system
• Required installation hardware
• Installation instructions

Installation Note

Professional installation is recommended.

Before installation, compare the Revel system with the original exhaust layout and confirm that all pipes, hangers, clamps, brackets, and hardware are present. Loosely assemble and align the complete system before final tightening to maintain proper clearance around the frame, suspension, spare tire, rear bumper, and surrounding components.

After the initial driving period, inspect the exhaust for leaks, movement, contact, or loose hardware and retighten the connections as needed.
