Revel Medallion Trail Hart Cat-Back Exhaust for 2024 Toyota Tacoma
Upgrade the sound and appearance of your 2024 Toyota Tacoma with the Revel Medallion Trail Hart cat-back exhaust system.
Designed specifically for truck applications, the Medallion Trail Hart system combines a 3-inch exhaust path with full SUS304 stainless-steel construction and a 4-inch fixed silver exhaust tip. The system is engineered to deliver a deeper, refined exhaust tone while maintaining a comfortable sound during highway driving.
The exhaust tubing uses a 1.5mm wall thickness for strength and to help reduce unwanted resonance. Mandrel-bent piping maintains a consistent internal diameter through each bend, supporting smooth exhaust flow throughout the system.
Each system is hand TIG welded and uses laser-cut flanges for strong, durable connections. The muffler contains Revel Advantex packing material, which is designed to provide effective sound suppression, strong flow characteristics, and resistance to high exhaust temperatures.
This direct bolt-on cat-back system is designed for installation on compatible U.S.-specification vehicles equipped with the original exhaust configuration.
This listing includes one complete cat-back exhaust system with a fixed 4-inch silver tip.
Product Features
- Revel Medallion Trail Hart truck exhaust system
- Complete cat-back exhaust configuration
- Designed for the 2024 Toyota Tacoma
- 3-inch exhaust piping

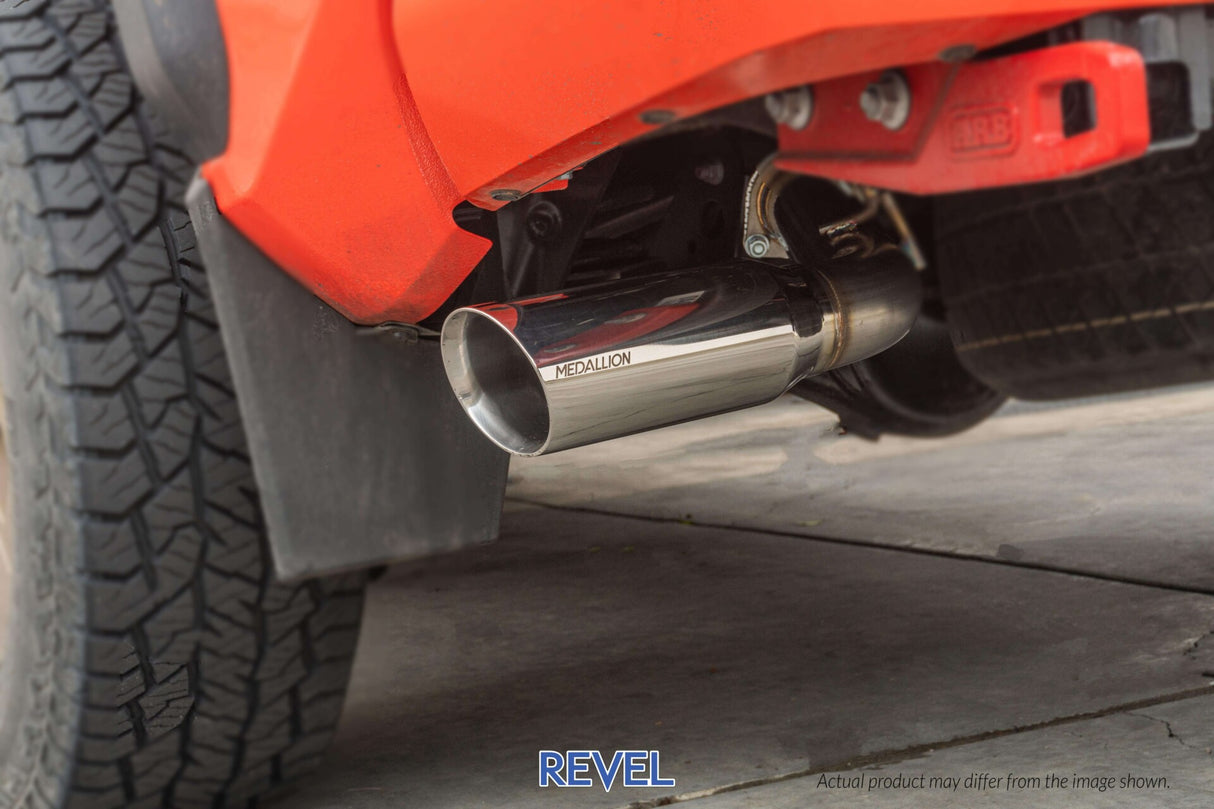

- 4-inch fixed silver exhaust tip
- Full SUS304 stainless-steel construction
- 1.5mm wall-thickness tubing
- Mandrel-bent piping maintains consistent diameter through bends
- Fully hand TIG-welded construction
- Laser-cut exhaust flanges
- Advantex muffler packing material
- Direct bolt-on installation
- Installation hardware and instructions included
- Revel part number T76007R
Vehicle Fitment
- 2024 Toyota Tacoma
Designed and tested for U.S.-specification vehicles with the original exhaust system.
Fitment on vehicles with aftermarket exhaust components, modified chassis components, non-original bumpers, or other previously altered configurations may vary. Verify the vehicle year, model, trim, cab configuration, bed length, engine, and existing exhaust arrangement before ordering.
Product Specifications
- Manufacturer: Revel
- Product Line: Medallion Trail Hart
- Revel Part Number: T76007R
- Exhaust Type: Cat-back exhaust system
- Pipe Diameter: 3 inches
- Tip Diameter: 4 inches
- Tip Style: Fixed silver tip
- Material: SUS304 stainless steel
- Pipe Wall Thickness: 1.5mm
- Tubing Construction: Mandrel bent
- Welding: Hand TIG welded
- Muffler Packing: Advantex
- Installation Type: Direct bolt-on
- Product Weight: Approximately 49 pounds
- Quantity: One complete exhaust system
Exhaust Sound
Revel designed the Medallion Trail Hart system to provide:
- A deep, refined tone at idle
- A more pronounced exhaust sound during acceleration
- Reduced unwanted resonance
- Comfortable highway cruising characteristics
Actual exhaust volume and tone can vary depending on engine configuration, vehicle load, additional modifications, and driving conditions.
Optional Turn-Down Pipe
A compatible Revel turn-down pipe is available separately for drivers who need a shorter exhaust exit and additional rear clearance during off-road use.
The optional turn-down pipe is not included with this exhaust system.
Kit Contents

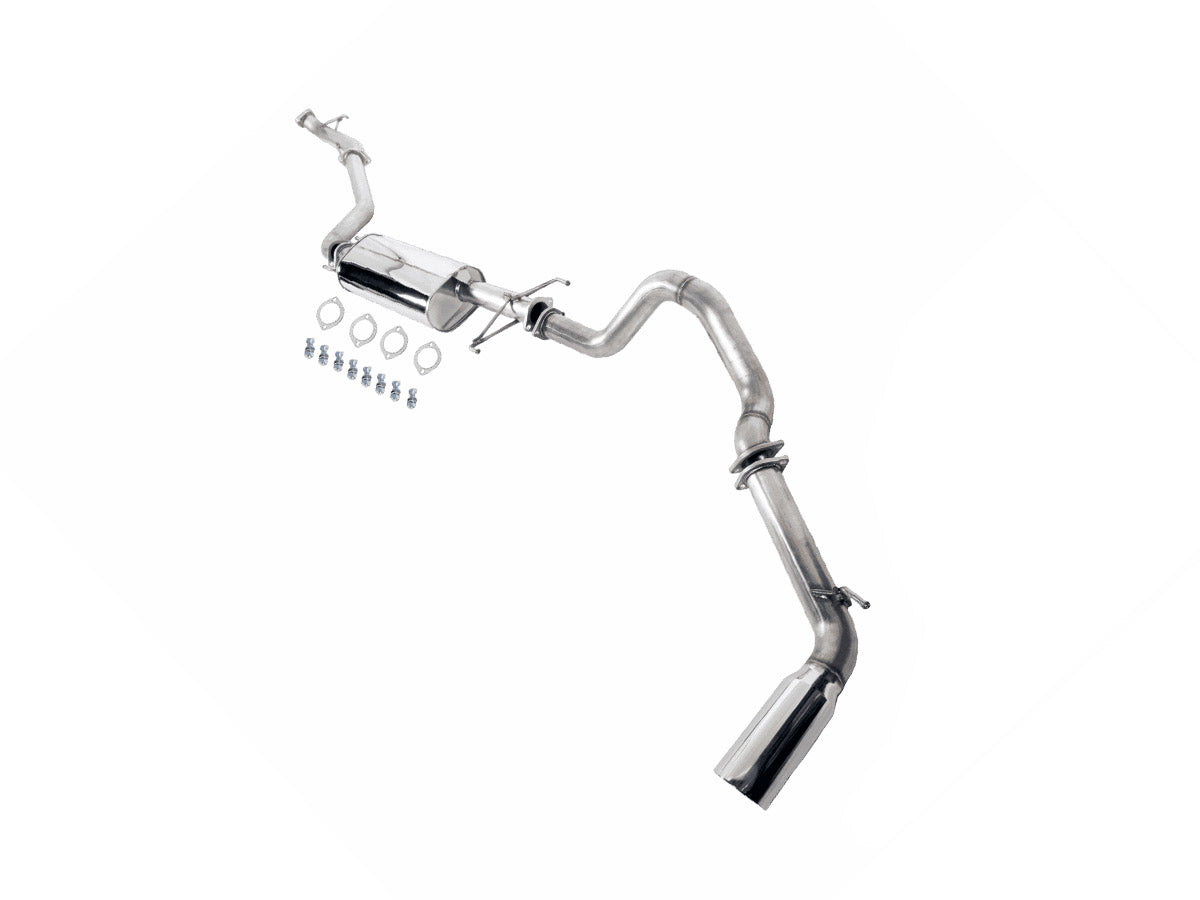

- Cat-back exhaust piping
- Muffler assembly
- Fixed 4-inch silver exhaust tip
- Vehicle-specific mounting brackets
- Required installation hardware
- Installation instructions
Installation Note
Professional installation is recommended.
Before installation, compare the new system with the original exhaust layout and confirm that all pipes, brackets, hangers, clamps, and hardware are present. Install the system loosely before final alignment so that adequate clearance can be maintained around the frame, suspension, body, spare tire, and other nearby components.
Tighten all connections according to the installation instructions. After the initial driving period, inspect the system for exhaust leaks, contact, movement, or loose hardware and retighten as required.
Proposition 65 Warnings.
Cancer and Reproductive Harm. See details below.
Items that are not CARB Legal will not be sold and ship to California or CARB states.
