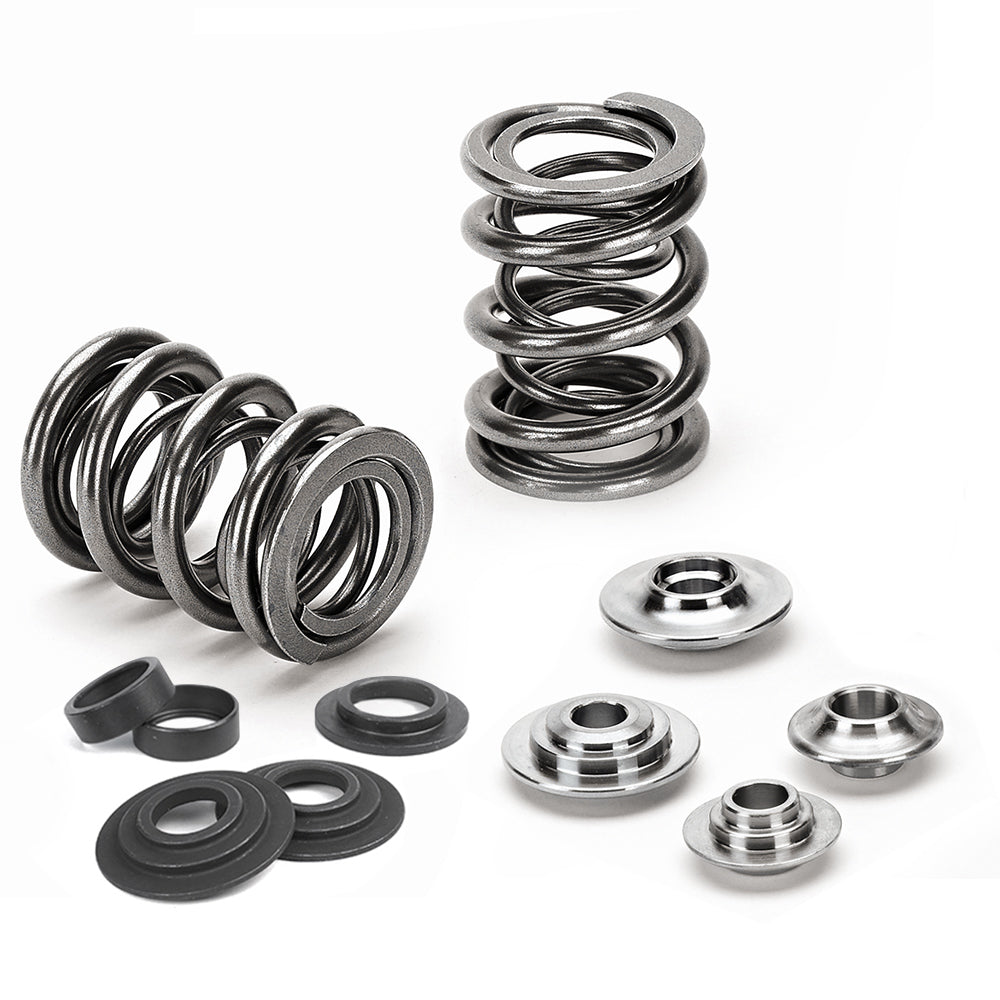

This kit includes Dual Valve Springs set with 80lb Seat Pressure at 40.4mm, made with super clean chrome silicon vanadium steel allow for durability at high rpms. Titanium retainers made with high quality military certified titanium alloy.
Kit includes
Valve Springs Set
Titanium Retainers
Spring Seats
Applications
K20A, K20A2, K20A3, K24A2, K20Z1, K20Z3
Specifications
- Seat Pressure: 80 @ 40.4
- Open Pressure: 215 @ 12
- Max Lift: 18.3mm
- Coil Bind: 22mm
- Outer Spring ID: 21.80mm
- Seat Locator: SEAT-H1020DS
- Retainer qty: 16
- Retainer: RET-K20A2/T2
- Kit Spring qty: 16
- Kit Spring: SPR-H1022D
- Rate: 11.2
- Inner Spring ID: 15.50mm
- Inner Spring OD: 21.0mm
- Outer Spring OD: 30.00m
- Seat Locator qty: 16
