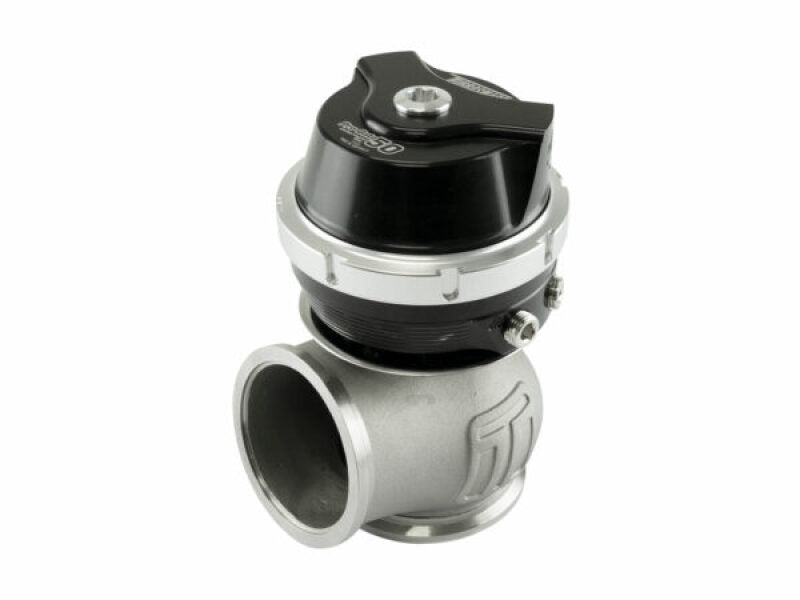

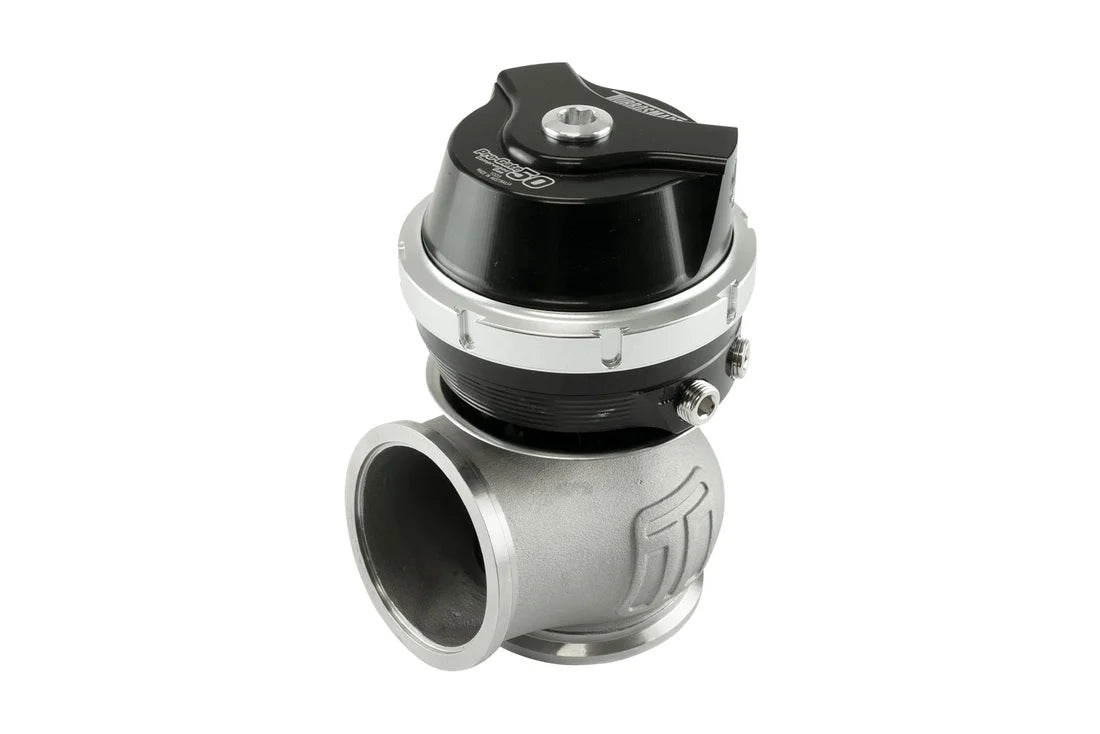

Turbosmart TS-0554-1242 GenV ProGate50 CG/CO2 HP 50mm External Wastegate – Black

The Turbosmart TS-0554-1242 GenV ProGate50 CG/CO2 HP Full Range is a 50mm external wastegate engineered for high-pressure compressed-gas boost-control strategies, including CO2 drag racing and compressed-air applications.

Unlike a conventional wastegate actuator, the ProGate50 Compressed Gas version uses an inverted diaphragm designed to withstand the large pressure differentials created when high-pressure CO2 or compressed air is applied to the upper chamber. The HP Full Range version supports spring base pressures from 3 PSI up to 26 PSI and includes Turbosmart's complete 3, 5, 7, and 14 PSI spring set for configurable boost-control setups.

Features

• Turbosmart GenV ProGate50 CG / CO2 HP Full Range external wastegate
• 50mm valve diameter
• Designed for compressed-gas and CO2 boost-control strategies
• Inverted diaphragm designed for high-pressure top-chamber operation
• 3–26 PSI configurable spring base-pressure range
• Includes 3, 5, 7, and 14 PSI wastegate springs
• High-temperature 347 stainless steel main body
• Nitronic 60 valve guide
• 17-7PH stainless steel springs

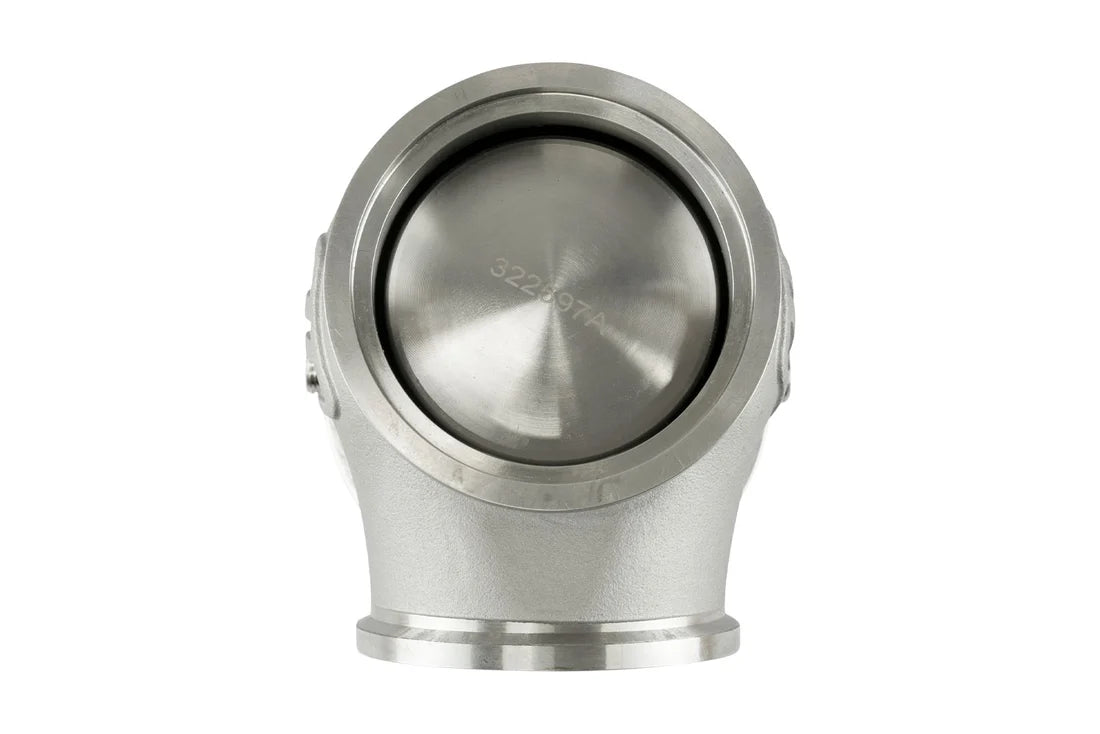

• SS316 valve seat

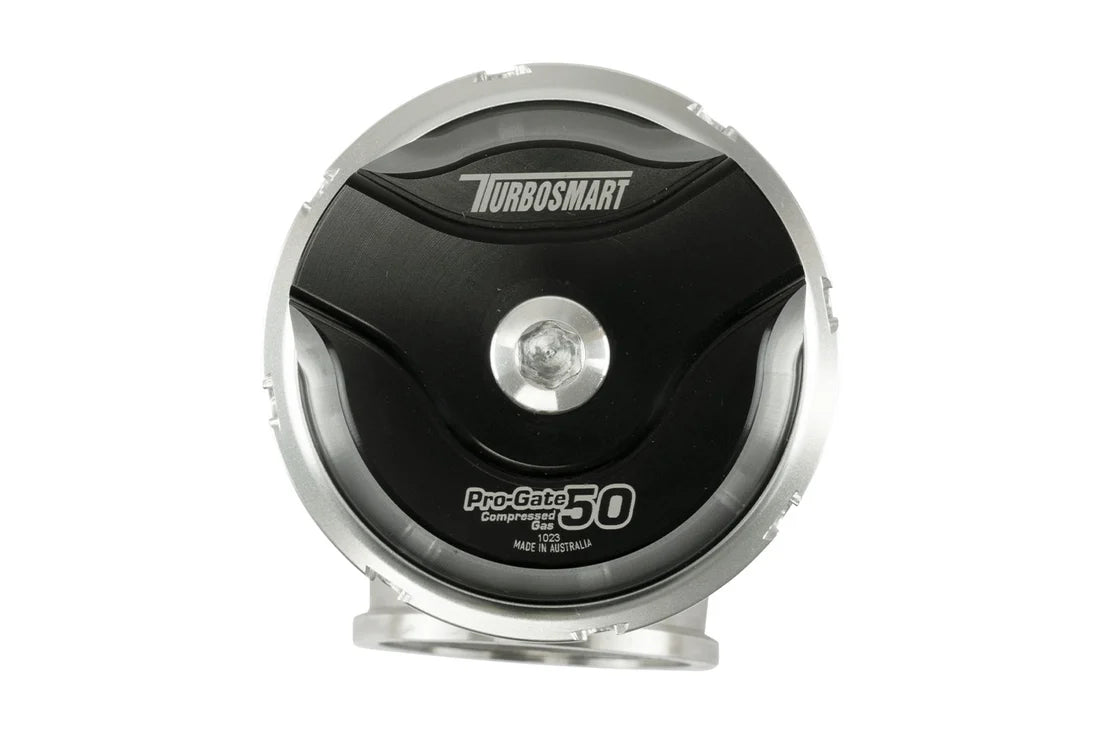

• 6061-T6 anodized aluminum actuator housing

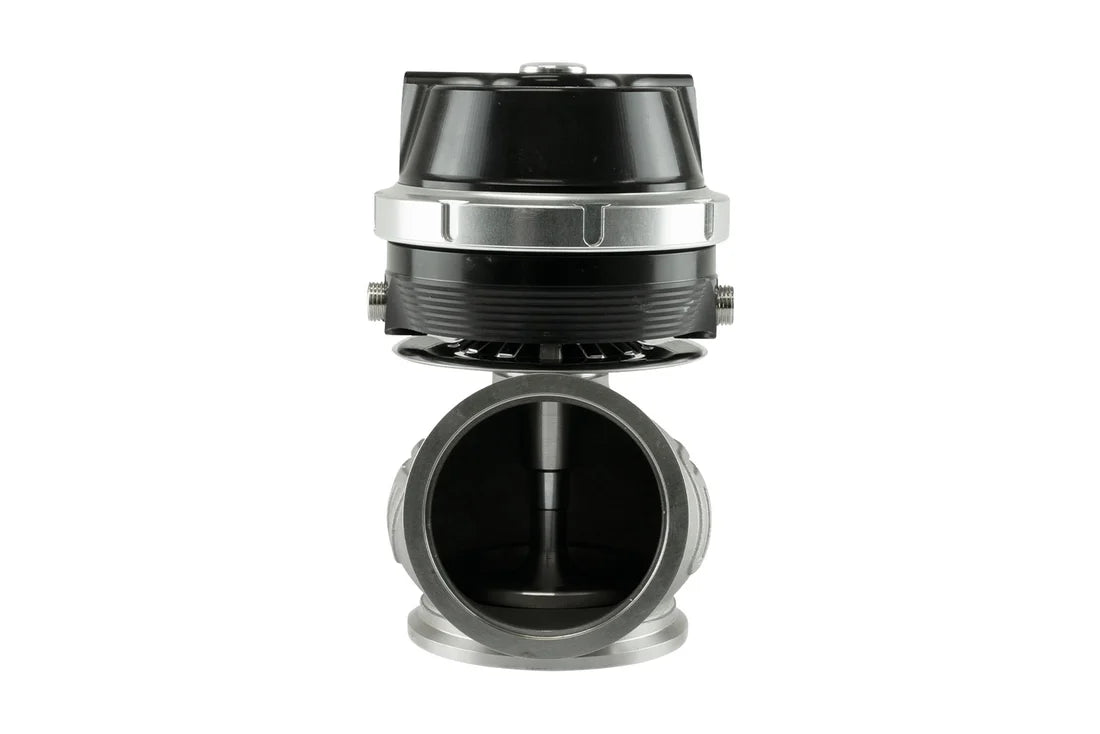

• 50mm V-band fitment

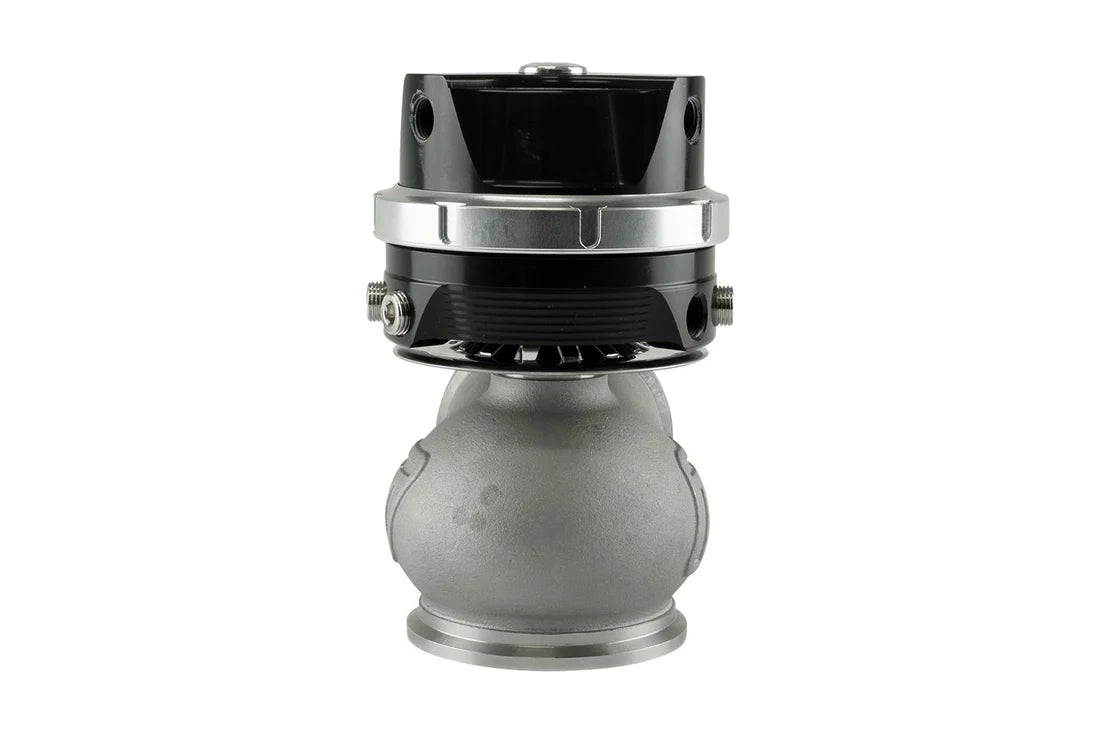

• Rotatable / clockable actuator housing
• Optional liquid actuator cooling provision
• Optional position sensor available separately
• Direct-fit upgrade for compatible Gen4 Turbosmart wastegate installations

Specifications

• Manufacturer: Turbosmart
• Part Number: TS-0554-1242
• Series: GenV
• Model: ProGate50 CG / CO2 HP Full Range
• Product Type: External Wastegate
• Valve Diameter: 50mm / 1.97 in.
• Minimum Spring Base Pressure: 3 PSI
• Maximum Spring Base Pressure: 26 PSI
• Maximum Safe Working Pressure: 220 PSI / 15 Bar
• Maximum Safe Inverted Pressure: 180 PSI / 12.5 Bar
• Main Body Material: High-Temperature 347 Stainless Steel
• Actuator Housing: 6061-T6 Anodized Aluminum
• Valve Guide: Nitronic 60
• Valve Seat: SS316 Stainless Steel
• Springs: 17-7PH Stainless Steel
• Weld Flanges: 304 Stainless Steel
• Reference Ports: Four 1/8-inch NPT air ports
• Liquid Cooling Ports: Two 1/8-inch NPT ports
• Weight: Approximately 2.25 lb / 1022 g

Compressed Gas / CO2 Design

The GenV ProGate50 CG uses an inverted diaphragm specifically developed for control systems that apply high pressure to the wastegate's upper chamber. This allows advanced boost-control systems to actively bias the wastegate closed using regulated CO2 or compressed air, providing a broad boost-control range for motorsport applications.

A compatible boost-control system is required when using CO2 control. Turbosmart specifies that the upper chamber requires appropriate pressure control and monitoring when operated in a compressed-gas configuration.

Spring Configuration

The TS-0554-1242 HP Full Range version includes 3 PSI, 5 PSI, 7 PSI, and 14 PSI springs. Different spring combinations can be used to configure the desired mechanical base pressure, with Turbosmart specifying a supported spring base-pressure range from 3 PSI to 26 PSI.

Recommended Use

• CO2-controlled turbocharger systems
• Compressed-air boost-control systems
• Drag racing applications
• High-boost motorsport applications
• Custom turbo systems using a 50mm external wastegate
• Applications requiring a wide configurable boost-control range

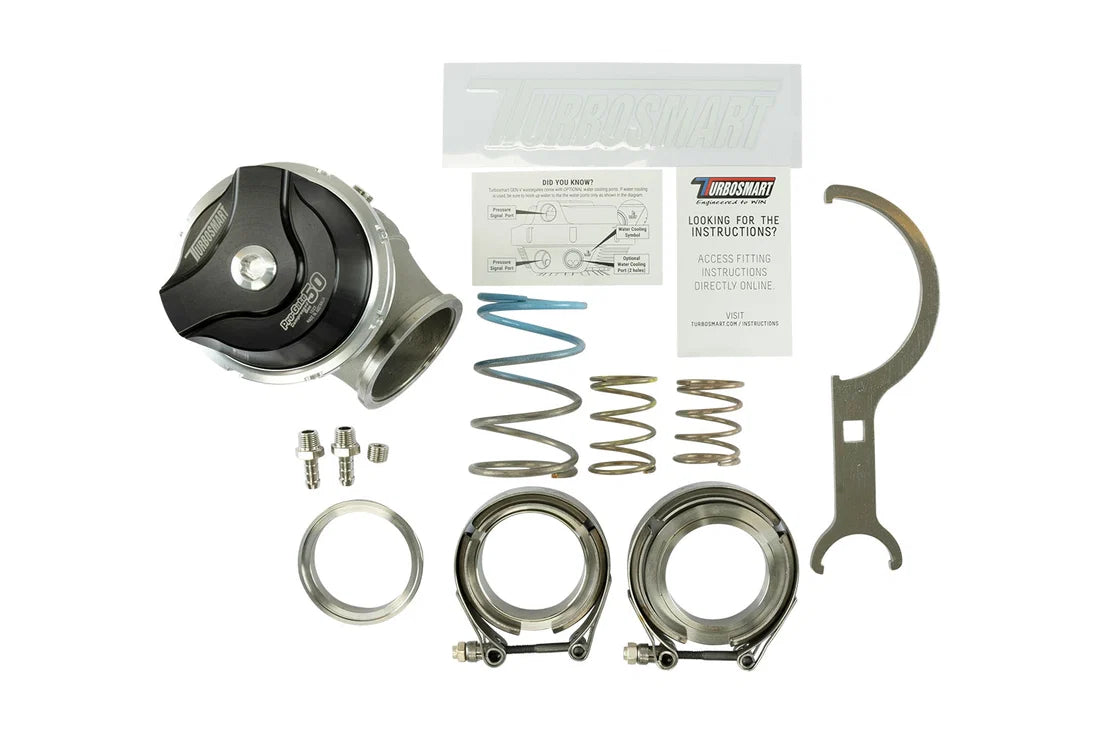

What’s Included

• 1 Turbosmart GenV ProGate50 CG / CO2 HP wastegate
• 1 SS316 valve seat
• 1 inlet V-band clamp
• 1 inlet 304 stainless steel weld flange
• 1 outlet V-band clamp
• 1 outlet 304 stainless steel weld flange
• 1 locking collar tool
• 3 PSI spring
• 5 PSI spring
• 7 PSI spring
• 14 PSI spring
• 1/8-inch NPT plugs and hose fittings
• Turbosmart decal
• Instruction card

Installation Note

Turbosmart recommends installation by an appropriately qualified technician. Installation may require fabrication or modification to the exhaust manifold. The wastegate should be positioned to promote good exhaust flow and the actuator housing should be kept at least 100mm away from significant heat sources.

For CO2 boost control, use a compatible boost-control system and follow Turbosmart's compressed-gas plumbing instructions. Boost pressure and air/fuel ratio should be verified on a dynamometer after installation or adjustment.
