Wilwood TX6R Front Big Brake Kit for 2013–2018 Ram 1500 4WD
Upgrade the braking performance of your 2013–2018 Ram 1500 4WD with the Wilwood 140-18207 TX6R Big Brake Truck Front Kit. Developed for demanding truck, SUV, and extreme-duty applications, this system combines six-piston radial-mount calipers with massive 16-inch GT slotted rotors for consistent stopping power, improved heat management, and dependable braking under heavy loads.

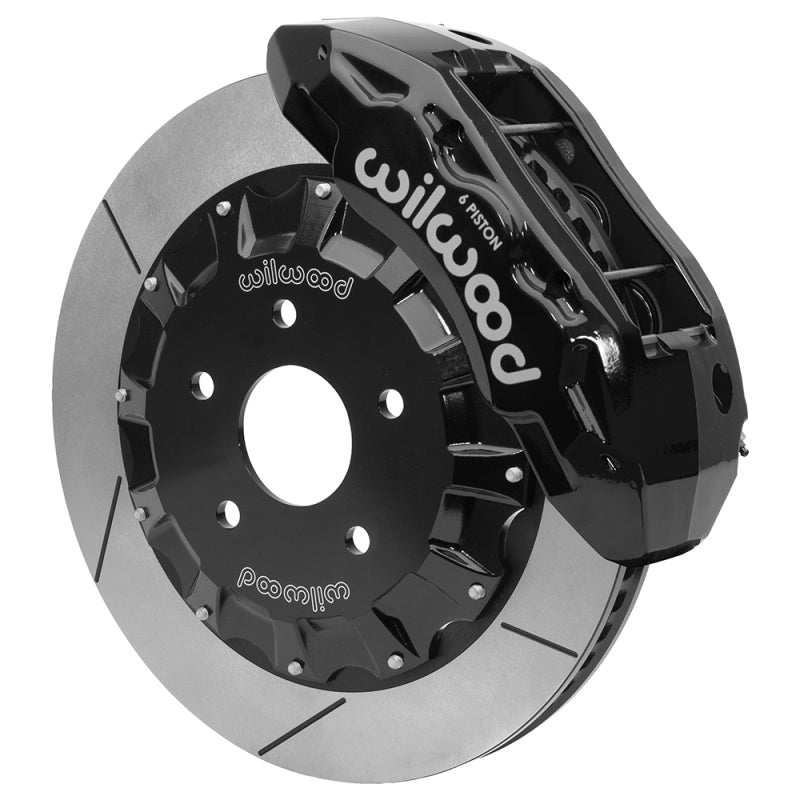

The TX6R calipers feature a rigid six-piston design with stainless-steel pistons and a black powder-coated finish. Their piston volume is matched for compatibility with the factory power-brake system, helping provide balanced pedal response without requiring an immediate master-cylinder change.
Each 16-inch rotor uses Wilwood’s GT 72 staggered-vane design. The directional internal vanes increase airflow through the rotor to help control operating temperatures during repeated braking. The rotors are dynamically balanced and feature a GT-slotted face with a protective black electro-coat finish.

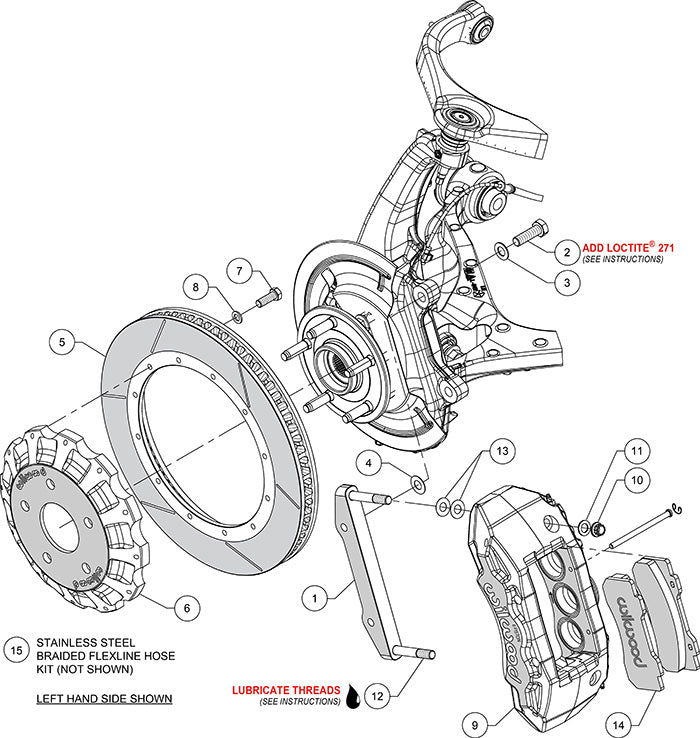

The kit is designed for compatible 2013–2018 Ram 1500 4WD models using the original factory disc spindles. Radial-mount caliper brackets and the required installation hardware are included. Wheel clearance must be checked before ordering.
Product Features
- Wilwood TX6R Big Brake Truck front kit
- Fits compatible 2013–2018 Ram 1500 4WD models
- Six-piston radial-mount TX6R calipers
- Black powder-coated caliper finish
- Stainless-steel caliper pistons
- Massive 16.00-inch front rotors
- GT-slotted rotor faces
- GT 72 staggered directional cooling vanes
- 1.38-inch-thick iron rotors
- Dynamically balanced rotor assemblies
- Black electro-coated rotor finish
- Wilwood BP-Q brake pad compound
- Designed for original factory disc spindles
- Caliper piston volume matched to the factory power-brake system

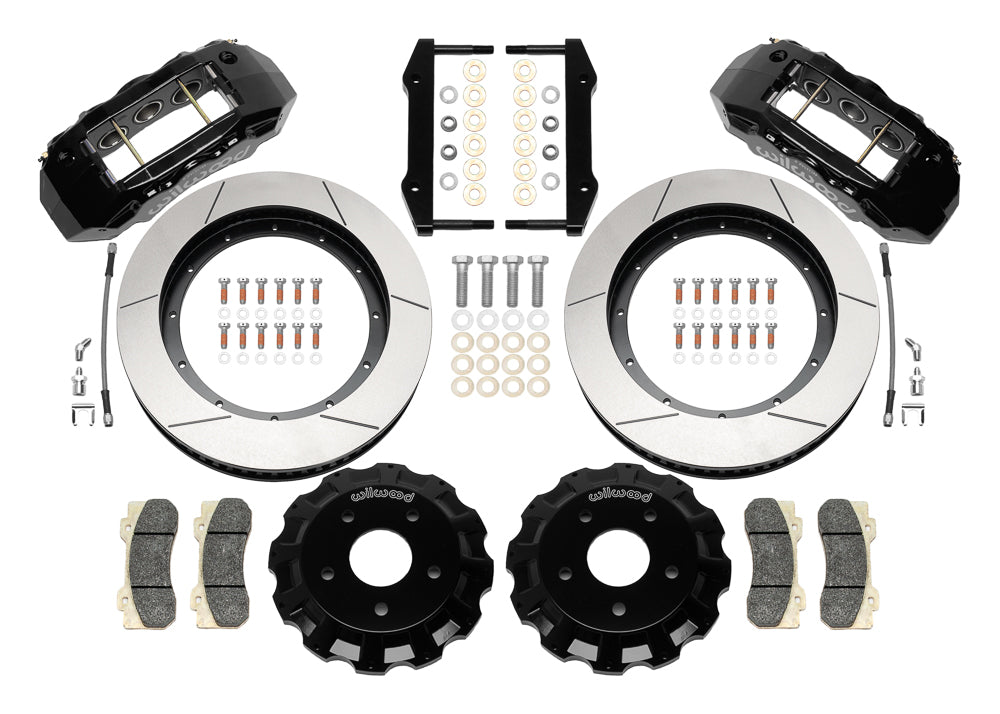

- Includes radial-mount brackets and installation hardware
- Minimum listed wheel diameter of 20 inches
- Manufacturer part number 140-18207
Vehicle Fitment
Fits select 2013–2018 Ram 1500 4WD models, depending on trim:
- Big Horn
- Express
- Laramie
- Laramie Limited
- Laramie Longhorn
- Limited
- Lone Star
- Outdoorsman
- Rebel
- SLT
- Special Service
- Sport
- ST
- SXT
- Tradesman
Some trims begin in later model years within the 2013–2018 range. Wilwood specifies that this kit is designed for vehicles equipped with the factory disc spindle. It is not listed for 2WD applications.
Caliper Specifications
- Caliper type: TX6R
- Caliper quantity: Two
- Piston count: Six per caliper
- Finish: Black powder coat
- Piston material: Stainless steel
- Piston bore 1: 1.75 inches
- Piston bore 2: 1.62 inches
- Piston bore 3: 1.62 inches
- Total piston area: 6.52 square inches
- Mounting type: Radial mount
- Brake-pad plate: 10120
- Brake-pad area: 12.69 square inches
- Brake-pad volume: 6.81 cubic inches
- Pad compound: BP-Q
Rotor Specifications
- Rotor type: GT 72 Staggered Vane
- Rotor style: GT Slotted
- Rotor material: Iron
- Rotor diameter: 16.00 inches
- Rotor thickness: 1.38 inches
- Vane count: 72 staggered vanes
- Surface finish: Black electro-coat
- Dynamically balanced: Yes
- Burnished: No
Rotor Hat Specifications
- Hat type: Standard truck hat
- Material: Aluminum
- Finish: Black electro-coat
- Hat offset: 1.180 inches
Wheel-Clearance Notice
Wilwood lists 20 inches as the minimum required wheel diameter. However, wheel diameter alone does not guarantee clearance. Wheel spoke profile, barrel shape, and offset can affect caliper clearance, so Wilwood’s wheel-clearance diagram should be checked before ordering.
Brake-Line Notice
Wilwood recommend part number 220-18206 as the compatible stainless-steel front flexline kit for the 2013–2018 Ram 1500 4WD.
Product Specifications
- Manufacturer: Wilwood
- Product line: TX6R Big Brake Truck
- Manufacturer part number: 140-18207
- Position: Front
- Vehicle drivetrain: 4WD
- Spindle type: Factory disc spindle
- Caliper finish: Black powder coat
- Rotor diameter: 16.00 inches
- Rotor style: GT Slotted
- Minimum listed wheel diameter: 20 inches
- UPC: 889545125153
