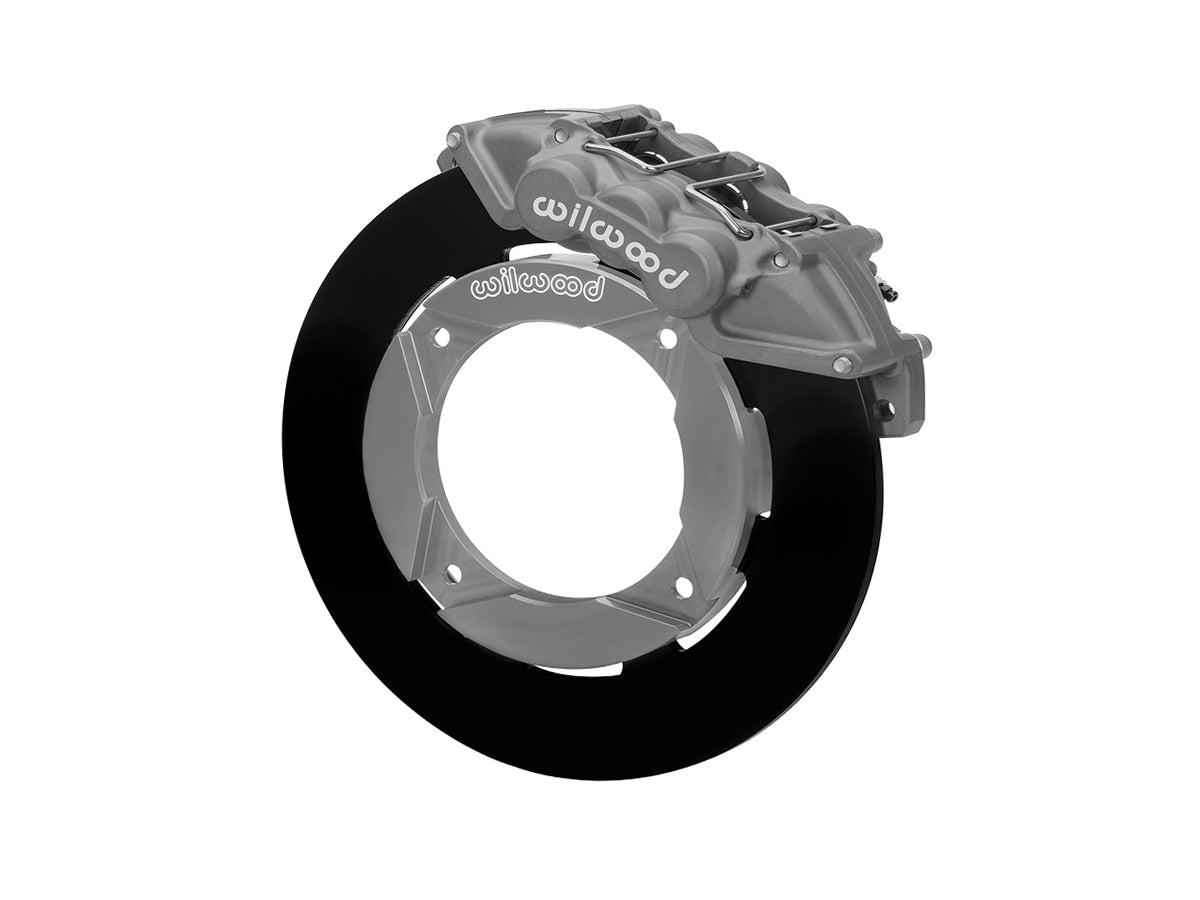

Wilwood UTV6 Race Front Brake Kit for Select 2016–2023 Polaris RZR

The Wilwood UTV6 Race Front Brake Kit upgrades the front braking system on select 2016–2023 Polaris RZR XP Turbo, Turbo S, and PRO XP models. Developed for higher-powered UTVs, this system combines forged six-piston calipers, BP-28 high-friction brake pads, and larger dynamically mounted rotors to increase braking torque, improve pedal feel, and manage the demands of aggressive off-road driving.

The differential-bore UTV6 calipers use forged aluminum bodies to reduce deflection and promote more uniform pad engagement. The 11.25-inch solid steel rotors are dynamically mounted to help reduce thermal stress and minimize piston knockback caused by rough terrain.

Features

• Complete front race brake upgrade for compatible Polaris RZR models
• Forged aluminum UTV6 differential-bore calipers
• Six stainless-steel pistons per caliper
• Type III anodized caliper finish
• BP-28 high-friction race brake pads
• 11.25-inch dynamically mounted solid steel rotors
• Dynamic rotor mounting helps reduce thermal stress
• Designed to help prevent piston knockback over rough terrain
• Increased clamping force and braking torque for higher-powered UTVs
• Designed for use with the factory disc spindles and OEM wheel hubs
• Compatible with the stock OEM master cylinder
• Wilwood part number 140-17042

Fitment

Polaris RZR XP Turbo

• 2016–2019 RZR XP Turbo EPS
• 2018–2019 RZR XP Turbo EPS DYNAMIX Edition
• 2018 RZR XP Turbo EPS Fox Edition
• 2019 RZR XP Turbo EPS LE
• 2020–2021 RZR XP Turbo

Polaris RZR XP 4 Turbo

• 2016–2019 RZR XP 4 Turbo EPS
• 2018–2019 RZR XP 4 Turbo EPS DYNAMIX Edition
• 2018 RZR XP 4 Turbo EPS Fox Edition
• 2019 RZR XP 4 Turbo EPS LE
• 2020–2021 RZR XP 4 Turbo

Polaris RZR Turbo S

• 2018–2020 RZR XP Turbo S
• 2020 RZR XP Turbo S Velocity
• 2021 RZR Turbo S
• 2021 RZR Turbo S Lifted Lime LE
• 2021 RZR Turbo S Velocity

Polaris RZR PRO XP

• 2020–2021 RZR PRO XP
• 2020 RZR PRO XP Orange Madness LE
• 2020–2023 RZR PRO XP Premium
• 2021–2023 RZR PRO XP Sport
• 2021 RZR PRO XP Sport Rockford Fosgate LE
• 2020–2023 RZR PRO XP Ultimate
• 2022 RZR PRO XP Ultimate Rockford Fosgate LE

Polaris RZR PRO XP 4

• 2020–2021 RZR PRO XP 4
• 2020 RZR PRO XP 4 Orange Madness LE
• 2020–2023 RZR PRO XP 4 Premium
• 2022–2023 RZR PRO XP 4 Sport
• 2020–2023 RZR PRO XP 4 Ultimate
• 2022 RZR PRO XP 4 Ultimate Rockford Fosgate

This kit is designed for factory disc spindles and OEM wheel hubs. Fitment must be rechecked when the vehicle has aftermarket hubs, spindles, uprights, suspension components, wheel studs, brake lines, or wheels.

Caliper Specifications

• Caliper model: Wilwood UTV6
• Caliper construction: Forged aluminum
• Finish: Type III anodized
• Piston count: 6 per caliper
• Piston material: Stainless steel
• Piston bores: 1.25, 1.12, and 1.12 inches
• Total piston area: 3.21 square inches
• Mounting style: Lug mount
• Brake pad plate: 7812
• Brake pad area: 6.36 square inches
• Brake pad compound: BP-28

Rotor Specifications

• Rotor type: Solid steel
• Rotor style: Plain face
• Outside diameter: 11.25 inches
• Thickness: 0.25 inch
• Surface finish: Black electro-coat
• Mounting design: Dynamic lug-drive mounting
• Minimum stated wheel diameter: 15 inches

Wheel diameter alone does not guarantee clearance. Compare the intended wheel with Wilwood’s wheel-clearance diagram before ordering. A minimum of 0.080 inch clearance must be maintained between the caliper and wheel in all areas.

Recommended Use

This race-oriented brake kit is recommended for higher-powered Polaris RZR models used in aggressive trail driving, desert racing, competition, or other demanding off-road conditions where increased braking torque, improved pedal response, and resistance to rough-terrain piston knockback are desired.

The BP-28 high-friction pad compound is intended for performance and race use. Proper brake temperature, bedding, inspection, and maintenance are important for consistent operation.

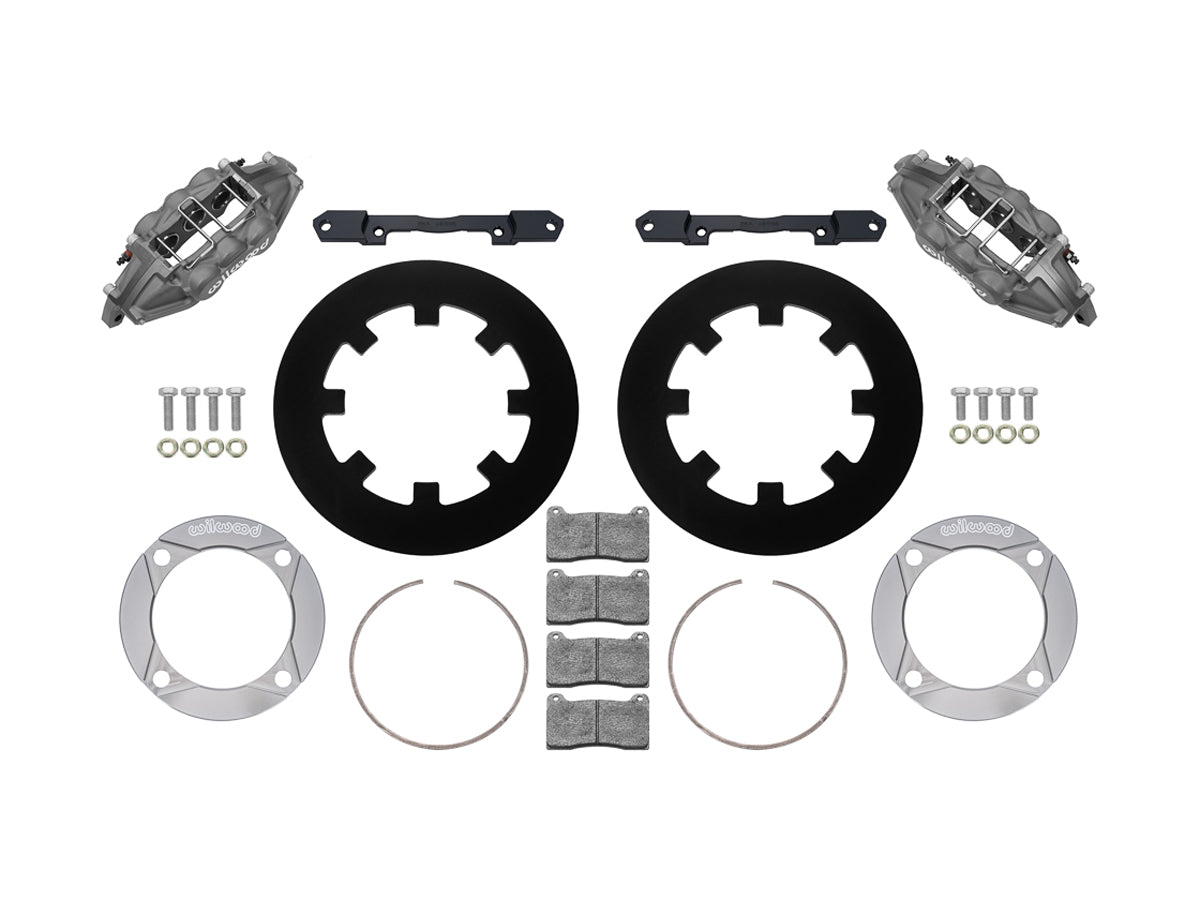

What’s Included

• 2 Type III anodized Wilwood UTV6 six-piston calipers
• 2 plain-face 11.25-inch solid steel rotors
• 2 rotor adapters
• 2 caliper mounting brackets
• 1 axle set of Wilwood BP-28 brake pads
• Rotor retaining components
• Caliper and bracket mounting hardware
• Replacement banjo bolts and copper crush washers
• Installation instructions

Brake flex lines, brake fluid, OEM wheel hubs, wheel studs, wheels, and installation tools are not included. Wilwood specifies that the kit is designed to reuse the stock OEM wheel studs; aftermarket wheel studs may not be compatible.

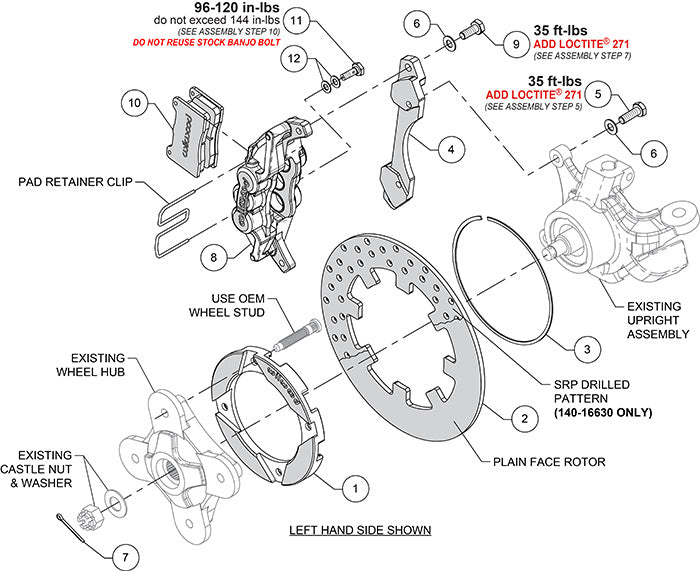

Installation

Installation requires removal of the original front calipers, hubs, and rotors. The OEM wheel studs must be pressed out so the supplied rotor adapters can be installed, after which the OEM studs are pressed back through the adapters and factory hubs.

The Wilwood calipers use an M10 x 1.25 brake-line inlet rather than the original M10 x 1.00 inlet. Use the new banjo bolts and crush washers supplied with the kit—do not reuse the factory banjo bolts.

Verify wheel and suspension clearance through the complete range of steering and suspension movement. The brake system must be properly bled, inspected for leaks, tested at low speed, and bedded according to Wilwood’s instructions before normal or competition operation.

Brake installation affects a critical vehicle safety system. Wilwood specifies that installation should only be performed by someone experienced in disc-brake installation and operation.
